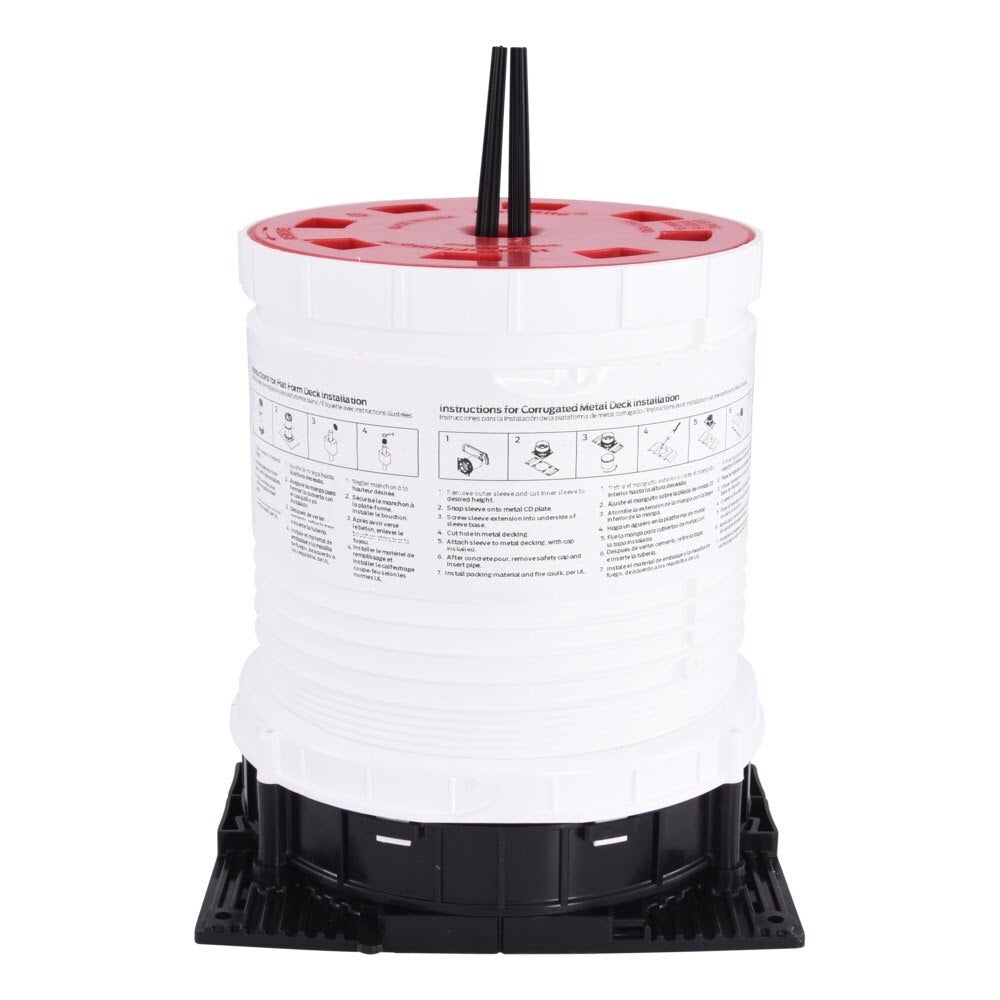

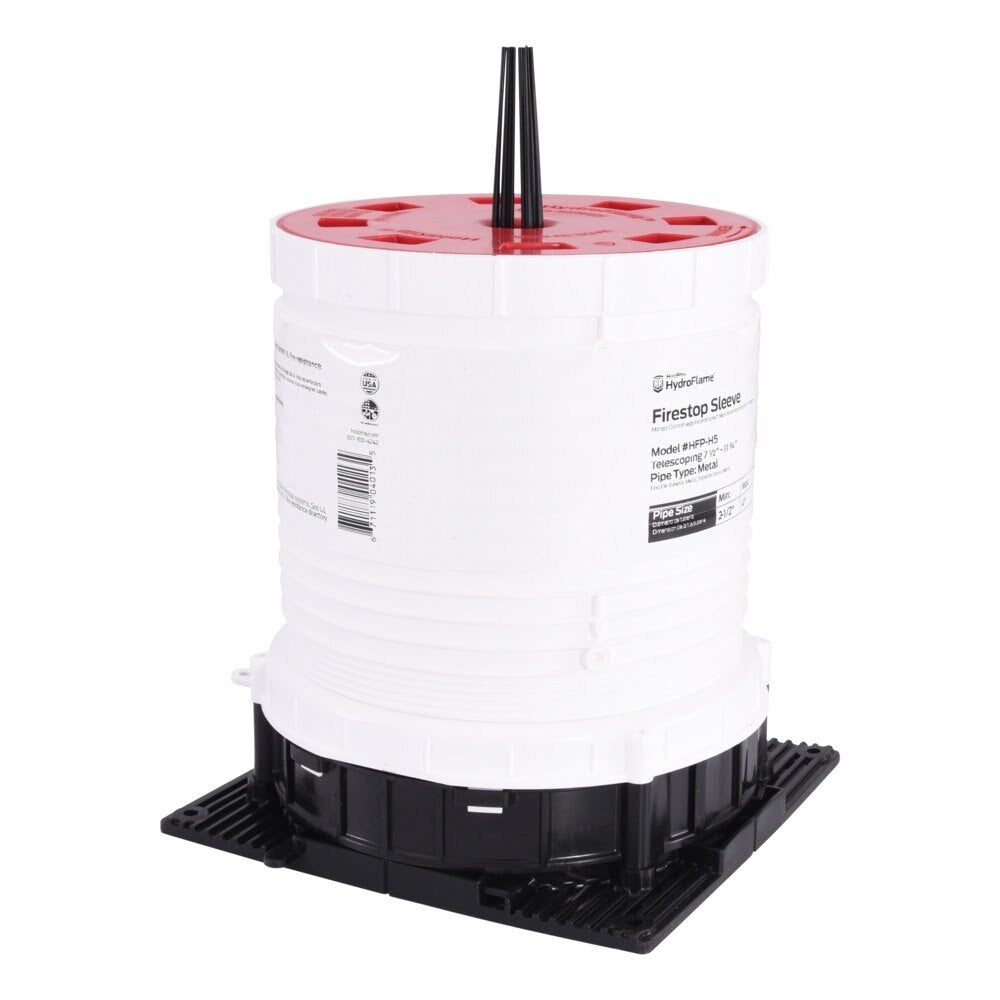

HoldRite HFP-H5 Description
The HoldRite HydroFlame Pro Series HFP-H5 is a 5 in. ID hollow telescoping deck sleeve designed for through-penetration firestop sleeve applications in concrete slabs, corrugated metal deck, and flat form deck installations. Its adjustable design extends from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments, can be cut as short as 4-1/2 in., and includes locator whiskers and a safety cap for easier installation and identification.

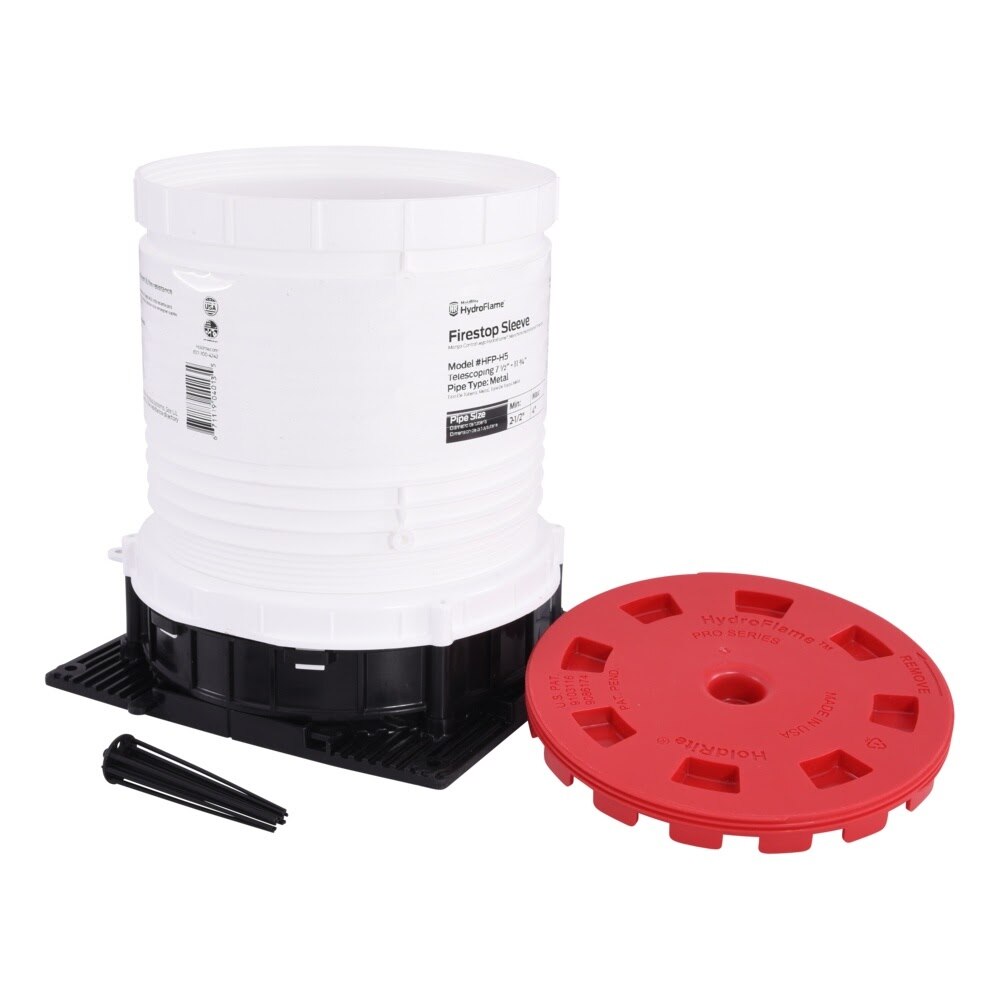

HoldRite HFP-H5 Includes
- (1) Hollow Telescoping Deck Sleeve
- (1) Safety Cap
- (1) Set of Locator Whiskers
HoldRite HFP-H5 Features
- Telescoping design adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments
- Hollow sleeve design does not include intumescent material
- Can achieve 2 or 3-hour F-Ratings when firestopping is provided by others
- Can be cut down to as short as 4-1/2 in.
- Suitable for corrugated metal deck or flat form deck installations
- Includes locator whiskers for easier identification after concrete pour
- Safety cap meets OSHA hole cover requirements
- Works with insulated pipes up to 6 in. total diameter
- Works with non-insulated pipes up to 6 in. diameter and plastic pipes up to 2 in. diameter
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- ASTM E90 acoustic isolation data available
- ASTM G21 mold and mildew tested
- FBC compatible for CPVC
HoldRite HFP-H5 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Hollow Telescoping Deck Sleeve |
| Inner Diameter | 5 in. |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Height Adjustment Increment | 1/4 in. |
| Minimum Cut Height | 4-1/2 in. |
| Firestop Material Included | No |
| F-Rating Capability | 2 or 3-hour F-Ratings |
| Deck Compatibility | Corrugated metal deck or flat form deck |
| Pipe Compatibility | Insulated pipes up to 6 in. total diameter; non-insulated pipes up to 6 in. diameter; plastic pipes up to 2 in. diameter |
| Testing Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Acoustic Data | ASTM E90 available |
| Mold and Mildew Standard | ASTM G21 |
| FBC Compatible for CPVC | Yes |
| Shipping Weight | 1.213 lb |
