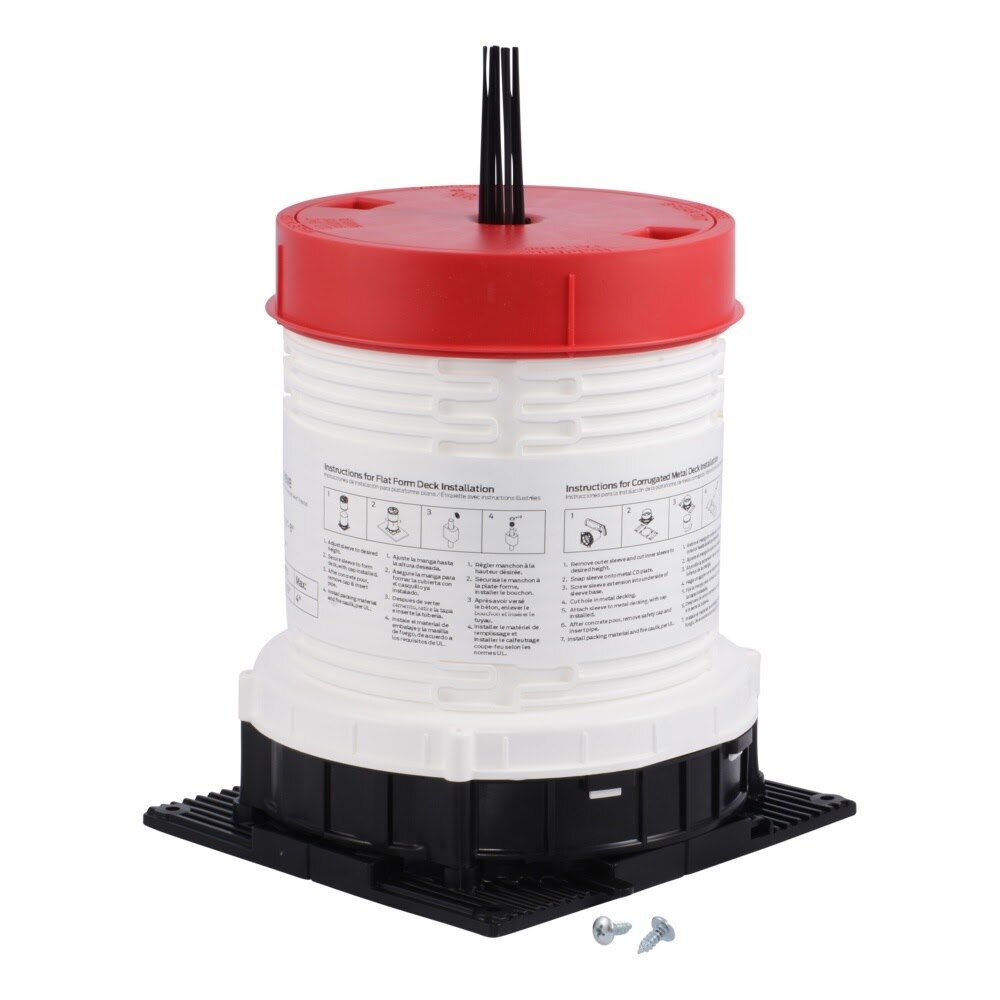

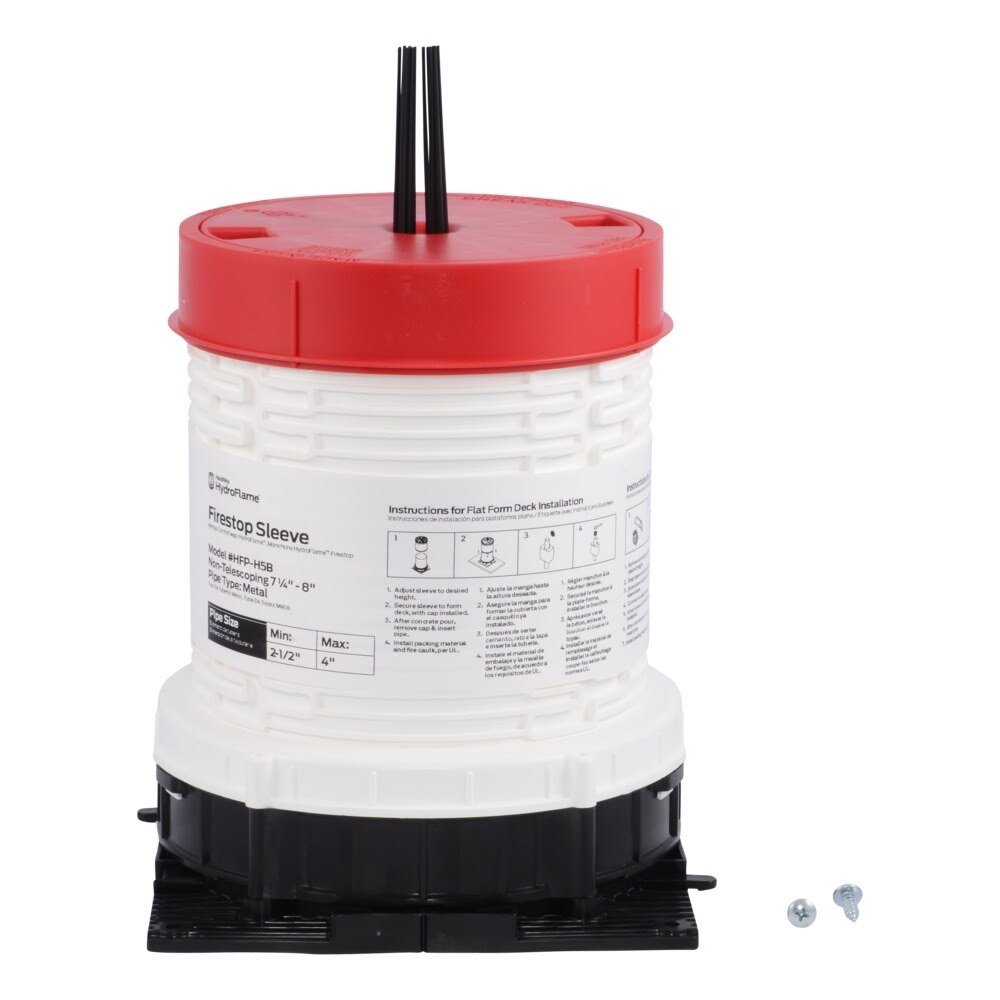

HoldRite HFP-H5B Description
The HoldRite HydroFlame Pro Series hollow deck sleeve is a UL listed firestop sleeve designed for flat form decks and compatible with corrugated metal deck plate accessories. It features a 5 inch inner diameter, adjustable 7-1/4 inch to 8 inch height, polypropylene construction, locator whiskers, and a safety cap that meets OSHA hole cover requirements.

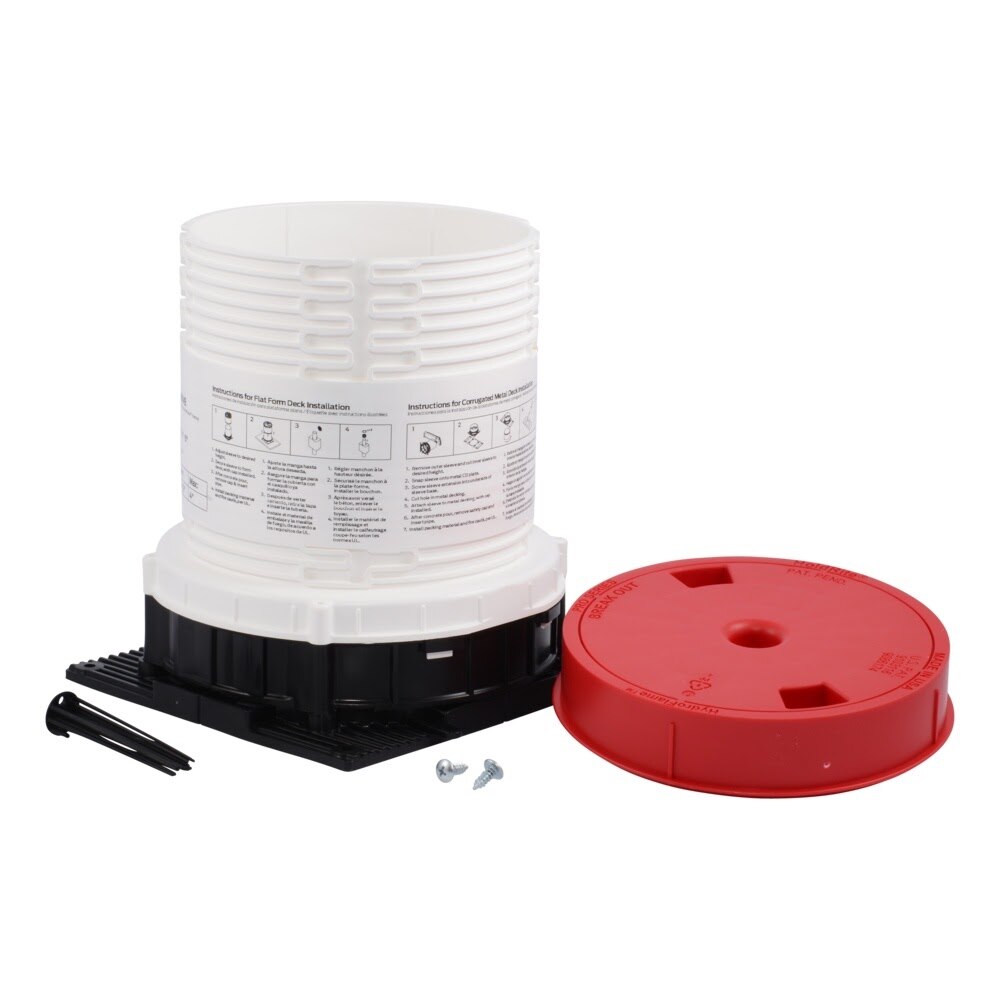

HoldRite HFP-H5B Includes
- (1) HFP-H5B Hollow Deck Sleeve
- (1) Adjustable Safety Cap
- (1) Base
- (1) Set of Locator Whiskers
- (2) Screws
HoldRite HFP-H5B Features
- UL listed sleeve when installed per UL systems
- Adjustable height from 7-1/4 in. to 8 in.
- Can be cut down to as short as 4-1/2 in.
- Designed for flat form deck installations
- Compatible with insulated and non-insulated pipes
- Suitable for plastic and metal penetrating pipes
- Includes locator whiskers to help locate buried sleeves
- Safety cap meets OSHA hole cover requirements
- No field assembly required
- Sleeve remains in slab after installation
- Accepts HydroFlame Pro Series corrugated metal deck plate
- Polypropylene sleeve body, base, and safety cap
HoldRite HFP-H5B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Hollow Deck Sleeve |
| Model | HFP-H5B |
| Inner Diameter | 5 in. |
| Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 4-1/2 in. |
| Material | Polypropylene |
| Penetrating Pipe Type | Plastic and Metal |
| Nominal Penetrant Size | 2-1/2 in. to 4 in. |
| Each Length | 7.016 in. |
| Each Width | 7.016 in. |
| Each Height | 7.016 in. |
| Each Shipping Weight | 0.904 lb |
| Case Quantity | 10 |
Toolup Part # :
883294
