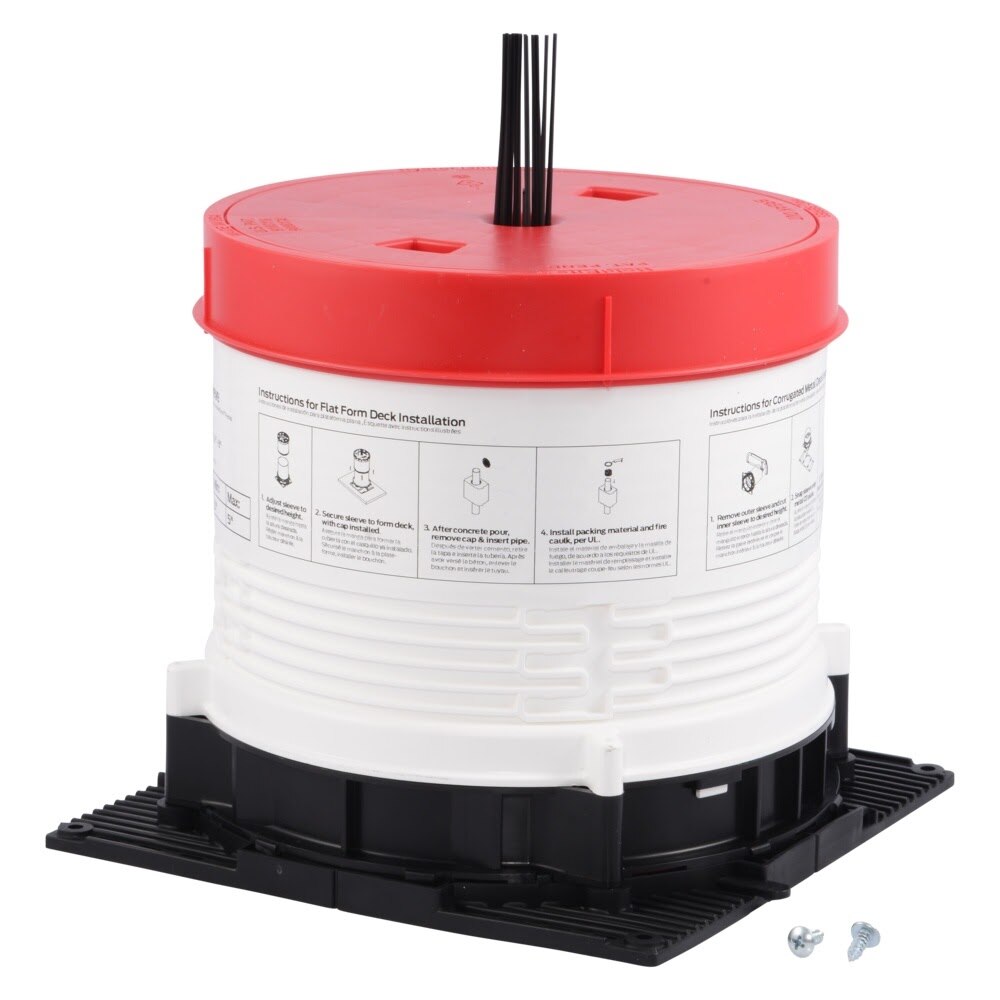

HoldRite HFP-H6B Description
The HoldRite HydroFlame Pro Series HFP-H6B is a 6 in. ID hollow deck sleeve designed for through-penetration firestop applications in flat form concrete decks. This polypropylene sleeve features an adjustable cap for 7-1/4 in. to 8 in. deck heights, can be cut down to 4-1/2 in., and includes locator whiskers for easier identification after the pour. Firestopping material is not included and must be provided separately.

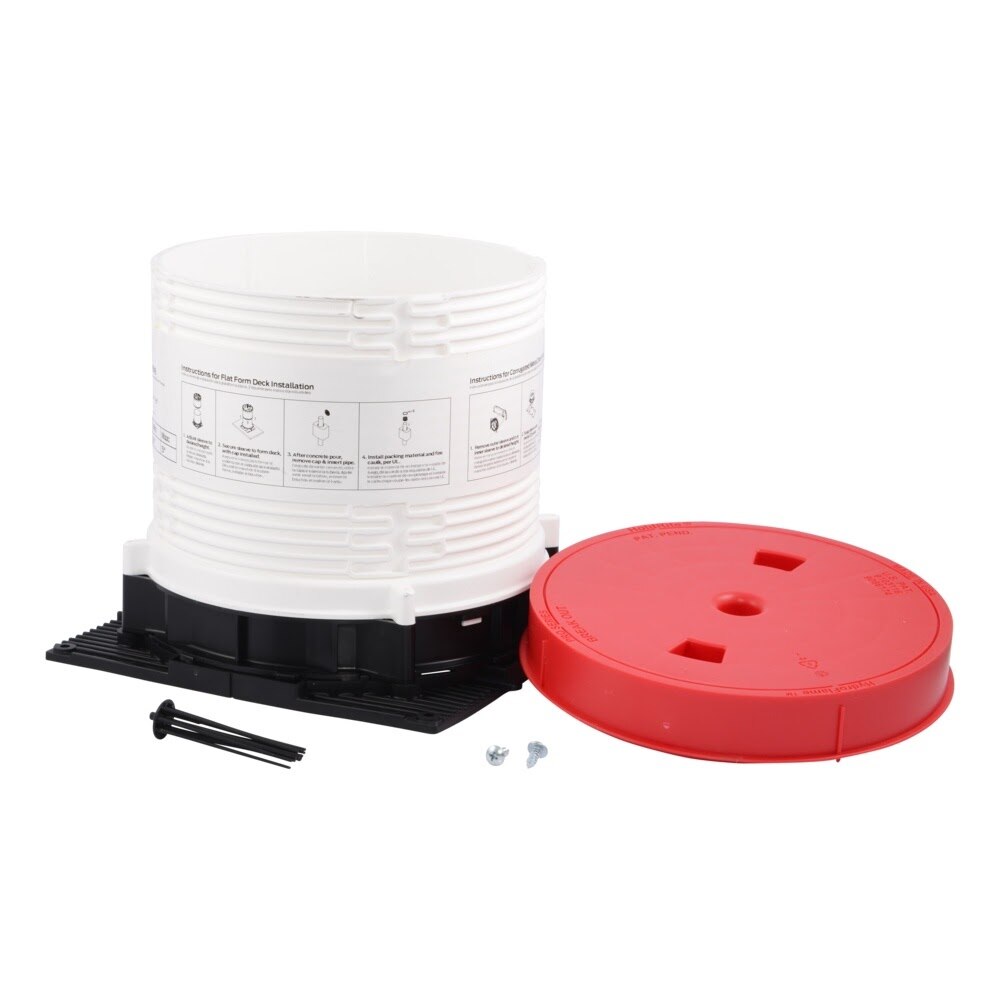

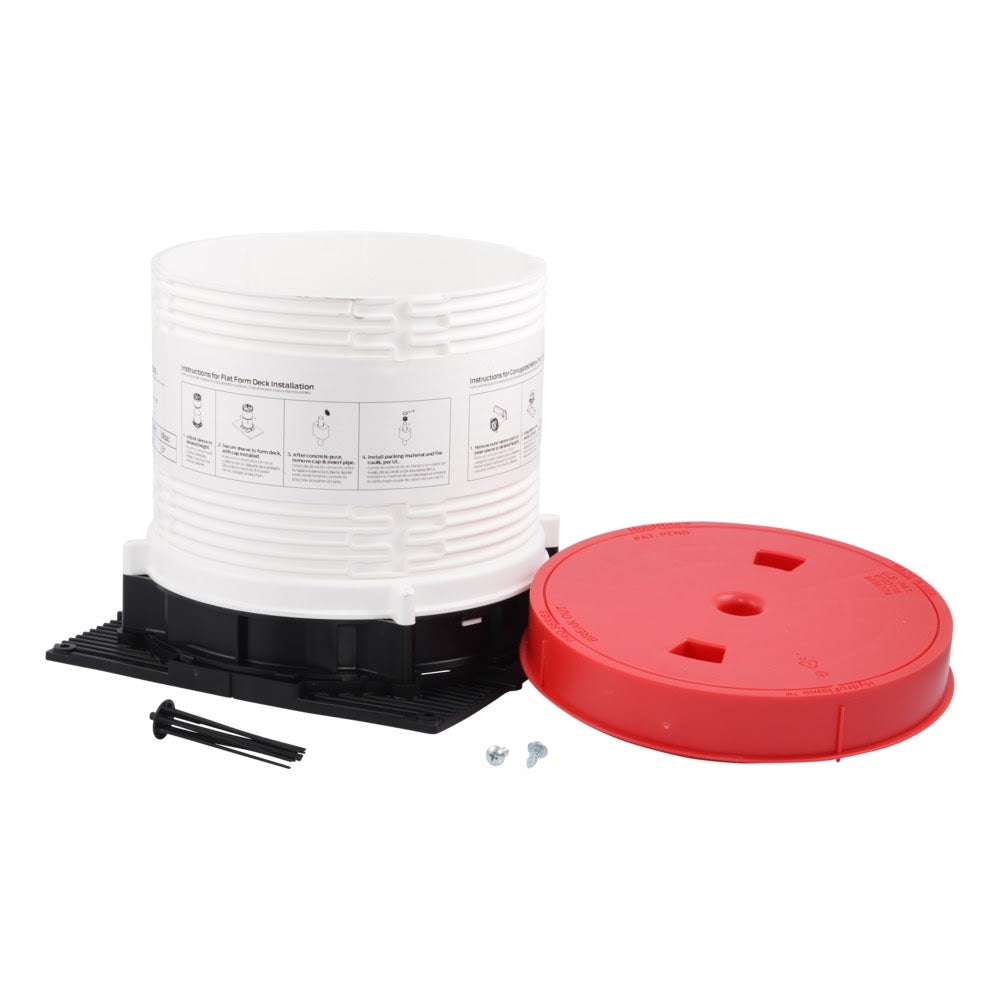

HoldRite HFP-H6B Includes
- (1) HydroFlame Pro Series Hollow Deck Sleeve
- (1) Adjustable Cap
- (1) Set of Locator Whiskers
- (2) Screws
HoldRite HFP-H6B Features
- 6 in. ID hollow deck sleeve for through-penetration firestop applications
- Adjustable cap supports 7-1/4 in. to 8 in. deck heights
- Non-telescoping sleeve can be cut as short as 4-1/2 in.
- Polypropylene sleeve body, base, and cap
- Designed for fast, simple installation in flat form decks
- Compatible with insulated and non-insulated plastic and metal pipes
- UL listed when installed per applicable UL systems
- Includes locator whiskers to help locate buried sleeves
- Safety cap meets OSHA hole cover requirements
- No field assembly required
- Sleeve remains in the slab after installation
- Accepts HydroFlame Pro Series corrugated metal deck plate
- Firestopping is provided by additional HoldRite products sold separately
HoldRite HFP-H6B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Hollow Deck Sleeve |
| Model | HFP-H6B |
| Inner Diameter | 6 in. |
| Adjustable Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 4-1/2 in. |
| Material | Polypropylene |
| Pipe Compatibility | Plastic and Metal |
| Deck Type | Flat form deck |
| UL Listed | Yes, when installed per UL systems |
| Firestop Material Included | No |
| Each Length | 9.298 in. |
| Each Width | 9.298 in. |
| Each Height | 9.298 in. |
| Each Shipping Weight | 1.763 lb |
| Case Quantity | 2 |
| Minimum Order Quantity | 2 |
