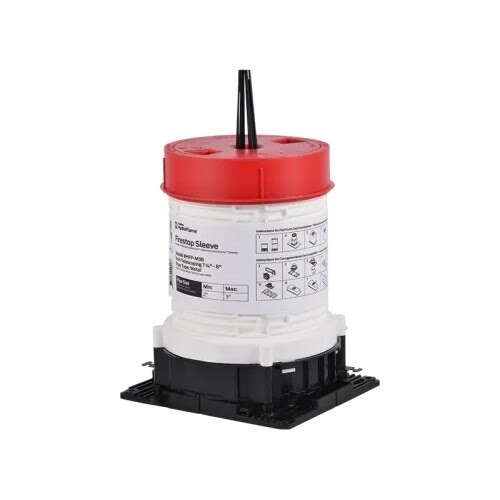

HoldRite HFP-M3B Description
The HoldRite HydroFlame Pro Series fire stop deck sleeve is designed for 2 in. to 3 in. metal pipe penetrations in flat concrete form decks. Its adjustable cap allows height adjustment from 7-1/4 in. to 8 in. in quarter-inch increments while providing built-in fire, smoke, gas, and water protection.
HoldRite HFP-M3B Includes
- (1) HydroFlame Pro Series Fire Stop Deck Sleeve with Adjustable Cap
HoldRite HFP-M3B Features
- Fits 2 in. to 3 in. metal pipe applications
- Adjustable cap allows 7-1/4 in. to 8 in. installed height
- Can be cut as short as 3-1/2 in.
- Black base and black whiskers identify metal piping systems
- Built-in fire, smoke, gas, and water protection
- UL W-Rated seal for water-tight performance on most penetrants
- Allows for contraction, expansion, movement, and off-center pipes
- Reduces piping system noise transfer by maintaining annular spacing
- Interlocking base helps with layout alignment
- Safety cap meets OSHA hole cover requirements
HoldRite HFP-M3B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Part Number | HFP-M3B |
| Pipe Compatibility | 2 in. to 3 in. metal pipe |
| Adjustable Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 3-1/2 in. |
| Product Length | 7.826 in. |
| Product Width | 5.316 in. |
| Product Height | 5.882 in. |
| Product Weight | 1.15 lb |
| Case Quantity | 10 |
| Testing Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Ratings | ULC 50 Pa |
| Compatibility | FBC Compatible for CPVC |
