HoldRite HFP-P1 Description

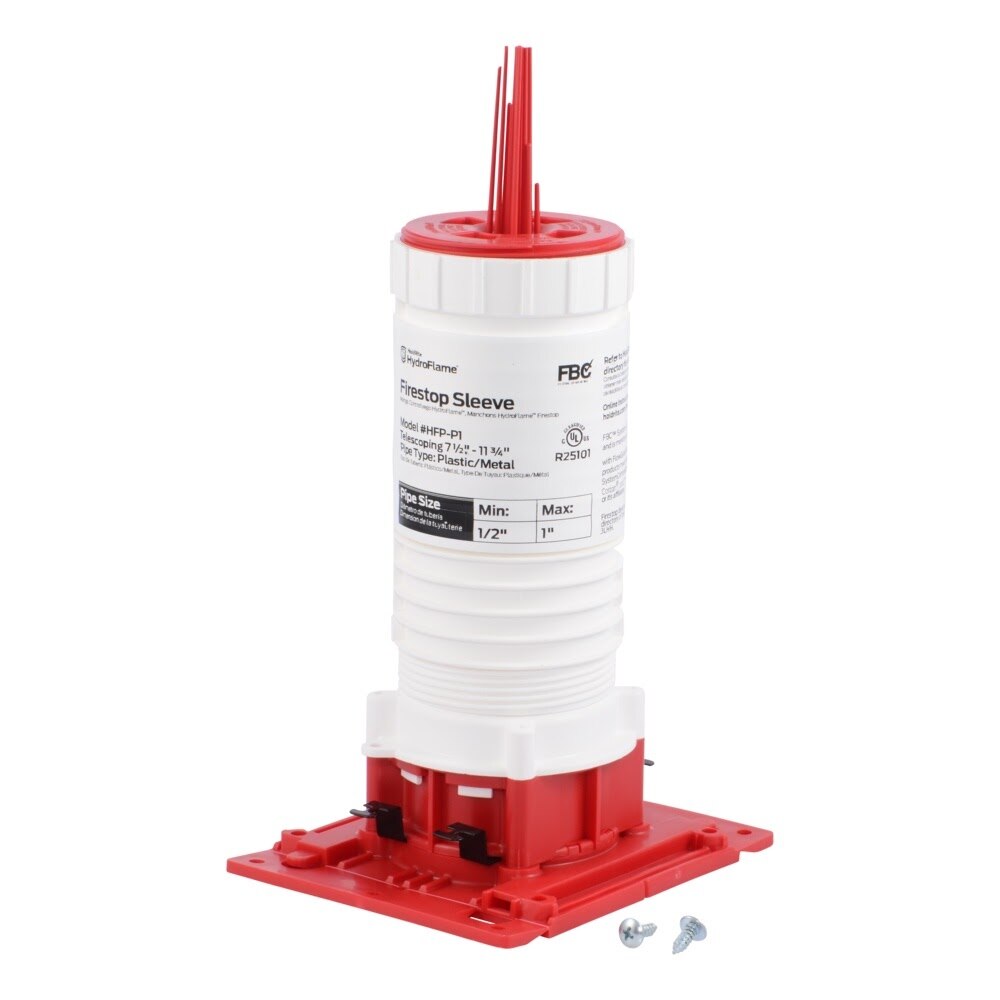

The HoldRite HydroFlame Pro Series HFP-P1 telescoping firestop deck sleeve provides fast, adjustable through-penetration firestop protection for 1/2 in. to 1 in. plastic or metal pipe. Its telescoping body adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments and delivers built-in fire, smoke, gas, and water protection for flat concrete form decks or corrugated metal decks.

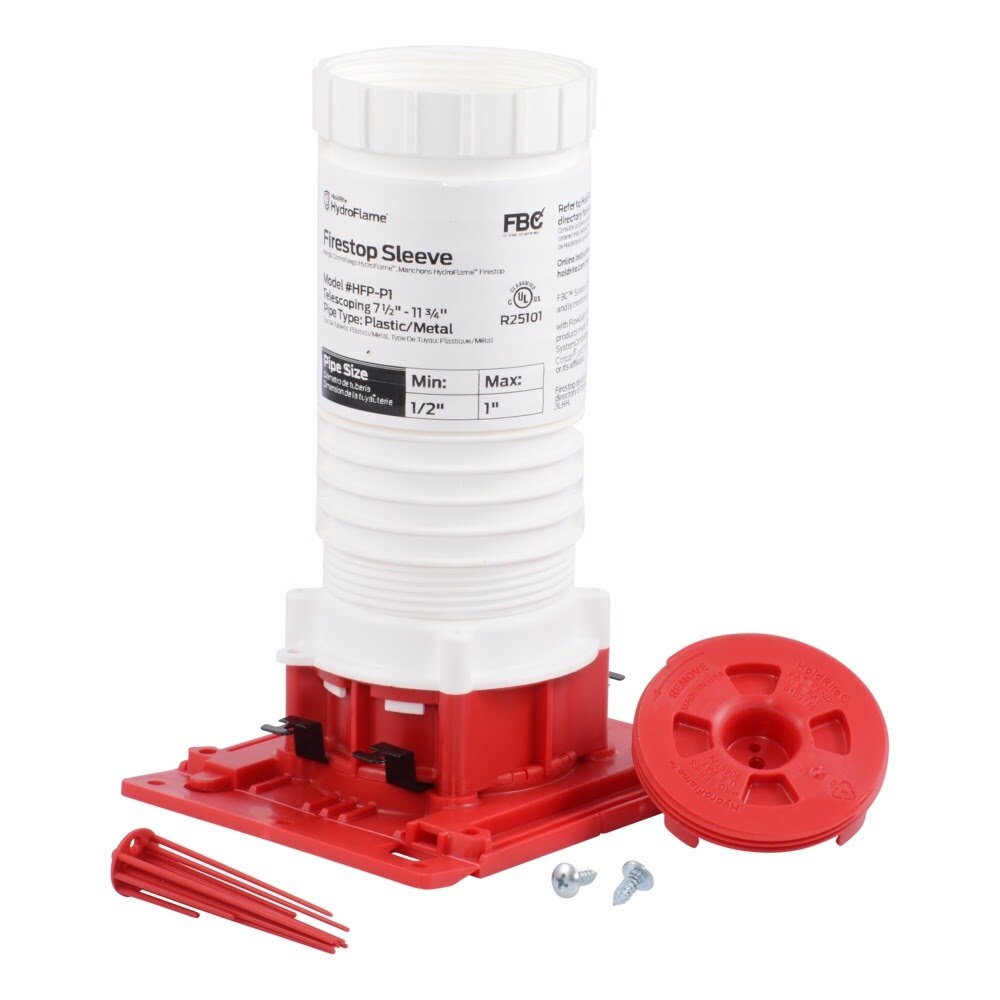

HoldRite HFP-P1 Includes
- (1) HydroFlame Pro Series telescoping firestop deck sleeve
- (1) Safety cap
- (1) Locator whisker set
- (2) Mounting screws
HoldRite HFP-P1 Features
- Telescoping design adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments
- Can be cut down to as short as 2-1/2 in.
- Designed for 1/2 in. to 1 in. plastic or metal pipe penetrations
- Built-in fire, smoke, gas, and water protection
- UL W-Rated sleeve design provides a watertight seal for most penetrant types and sizes

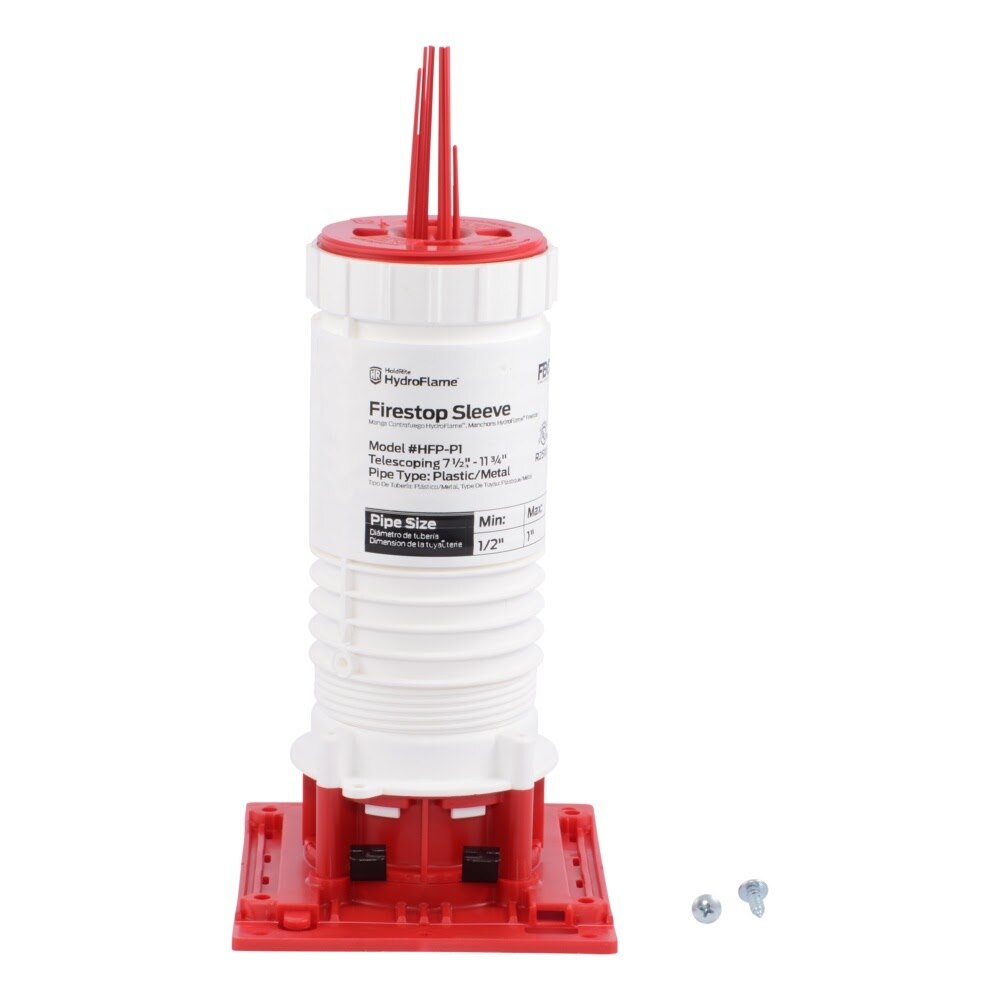

- Includes locator whiskers to help identify and locate buried sleeves
- Safety cap meets OSHA hole cover requirements
- Allows for contraction, expansion, movement, and off-center pipes
- Maintains annular spacing to help reduce piping system noise transfer
- Interlocking base helps with layout alignment
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- FBC compatible for CPVC
HoldRite HFP-P1 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-P1 |
| Product Type | Telescoping Firestop Deck Sleeve |
| Compatible Pipe Type | Plastic or Metal |
| Compatible Pipe Size | 1/2 in. - 1 in. |
| Adjustable Height | 7-1/2 in. - 11-3/4 in. |
| Adjustment Increment | 1/4 in. |
| Minimum Cut Length | 2-1/2 in. |
| Application | Flat concrete form decks or corrugated metal decks |
| Seal Rating | UL W-Rated |
| ULC Rating | 50 Pa |
| Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| FBC Compatible | CPVC |
| Shipping Weight | 0.73 lb |
