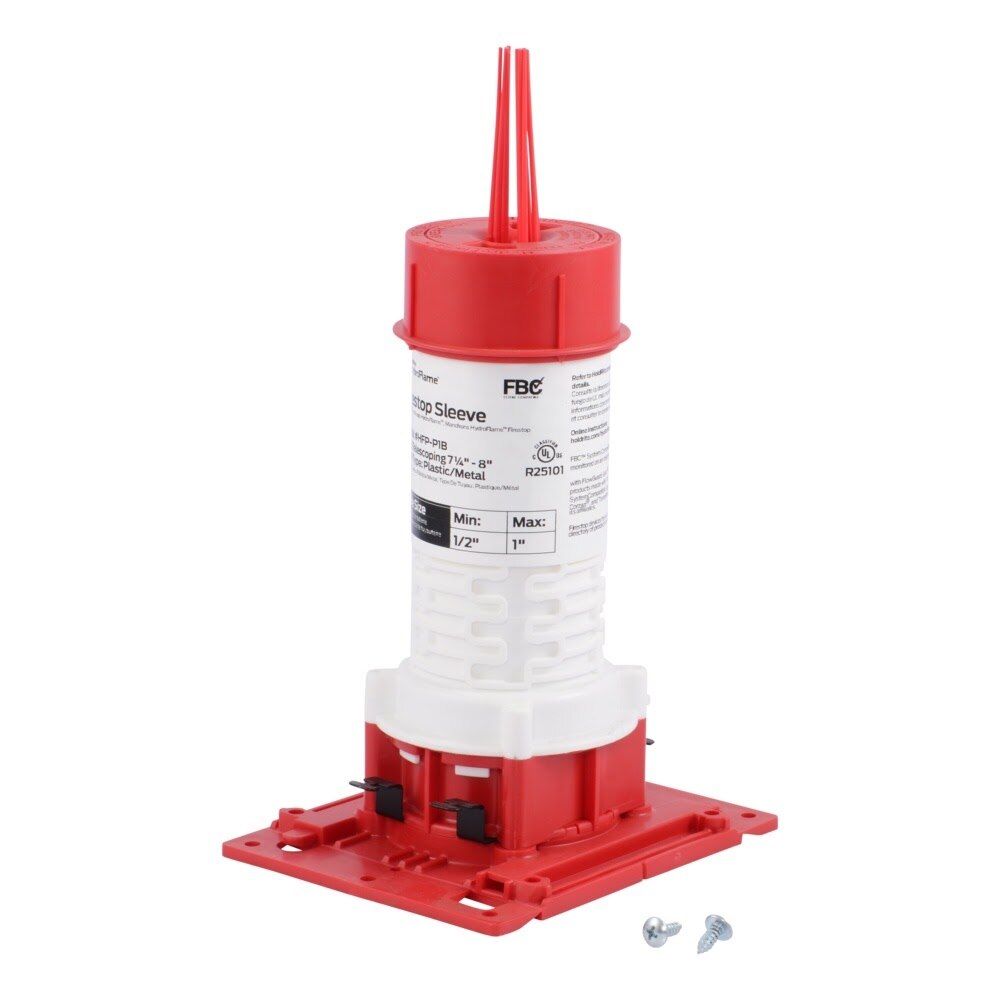

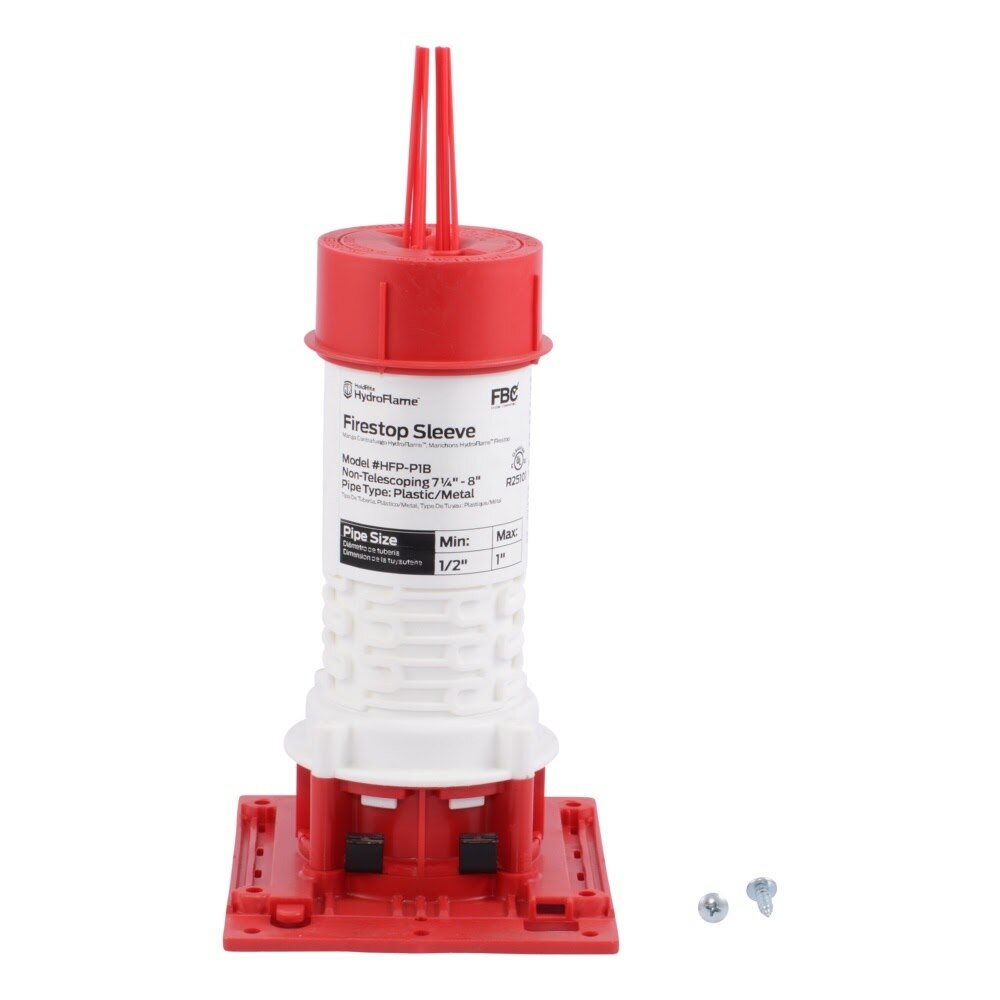

HoldRite HFP-P1B Description
The HoldRite HydroFlame Pro Series firestop deck sleeve is designed for 1/2 in. to 1 in. plastic or metal pipe penetrations in cast-in-place concrete and corrugated metal deck applications. Its adjustable 7-1/4 in. to 8 in. height, integrated fire, smoke, gas, and water protection, and OSHA-compliant safety cap help simplify installation while supporting code-compliant firestop performance.

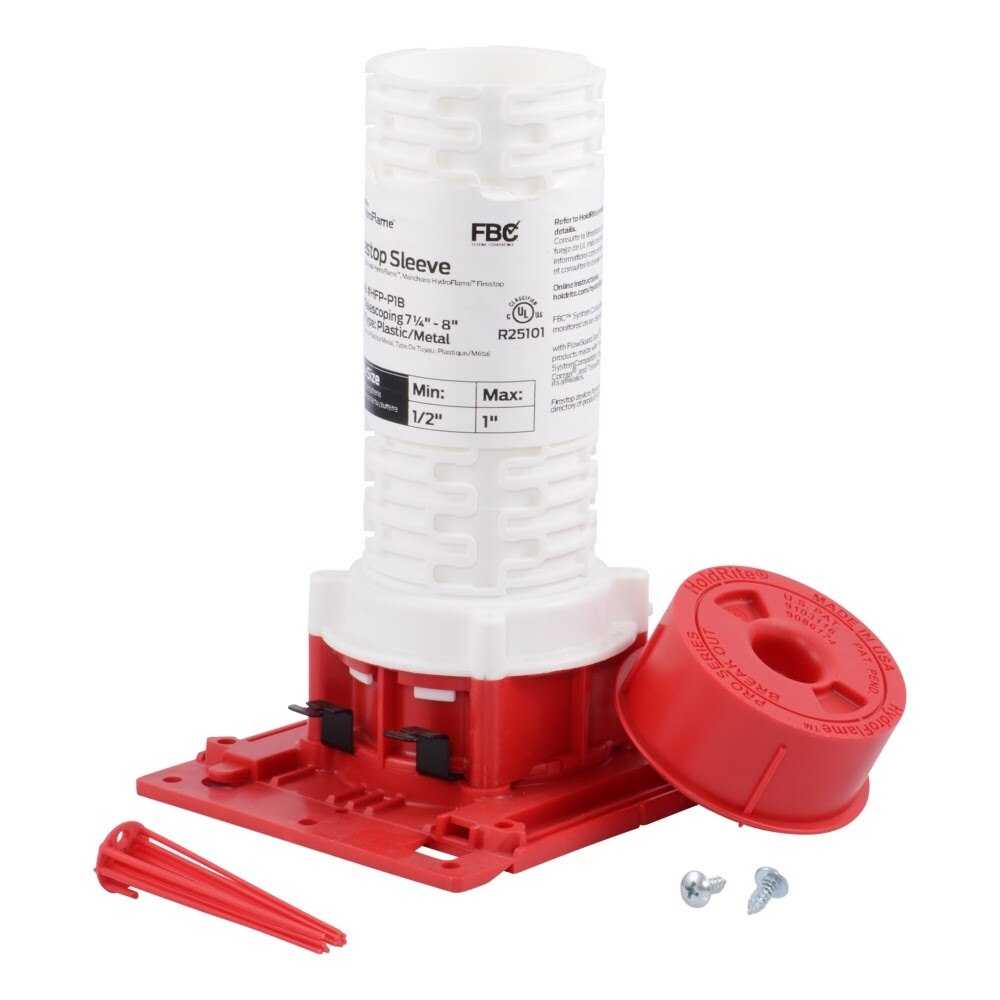

HoldRite HFP-P1B Includes
- (1) Firestop deck sleeve
- (1) Adjustable cap
- (1) Locator whisker set
- (2) Screws
HoldRite HFP-P1B Features
- Designed for 1/2 in. to 1 in. plastic or metal pipe penetrations
- Adjustable sleeve height from 7-1/4 in. to 8 in.
- Suitable for cast-in-place concrete form decks
- Compatible with corrugated metal deck installations
- Built in fire smoke gas and water protection
- UL listed firestop device with 2 or 3 hour F-ratings
- UL W-Rated seal for water-tight performance on most penetrants
- Safety cap meets OSHA hole cover requirements
- Allows for contraction expansion movement and off-center pipes
- Locator whiskers help identify and locate buried sleeves
HoldRite HFP-P1B Specifications
| Series | HydroFlame Pro Series |
| Product Type | Firestop Deck Sleeve |
| Model | HFP-P1B |
| Nominal Penetrant Size | 1/2 in. - 1 in. |
| Penetrating Pipe Type | Plastic and Metal |
| Sleeve Height | 7-1/4 in. - 8 in. |
| Each Length | 7.823 in. |
| Each Width | 4.02 in. |
| Each Height | 5.213 in. |
| Each Shipping Weight | 0.6 lb |
| UL Listed | Yes |
Toolup Part # :
883752
