HoldRite HFP-P2 Description

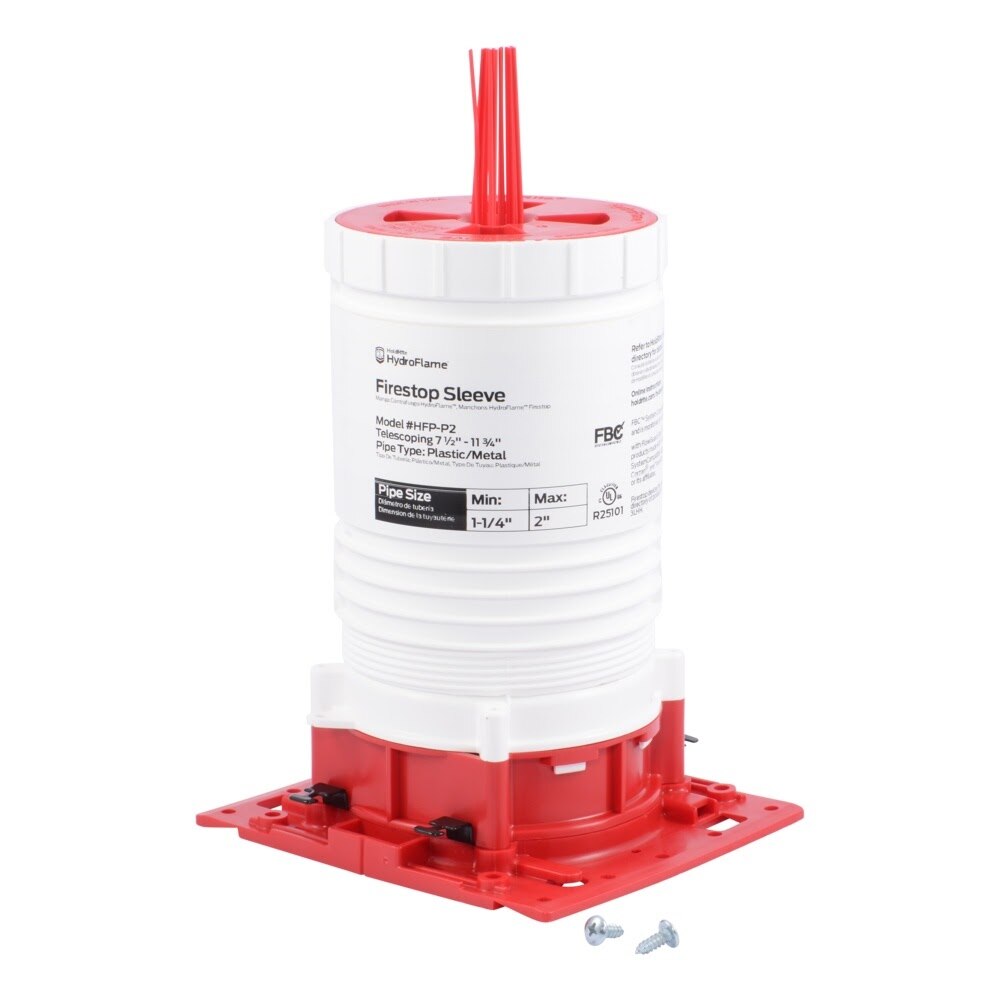

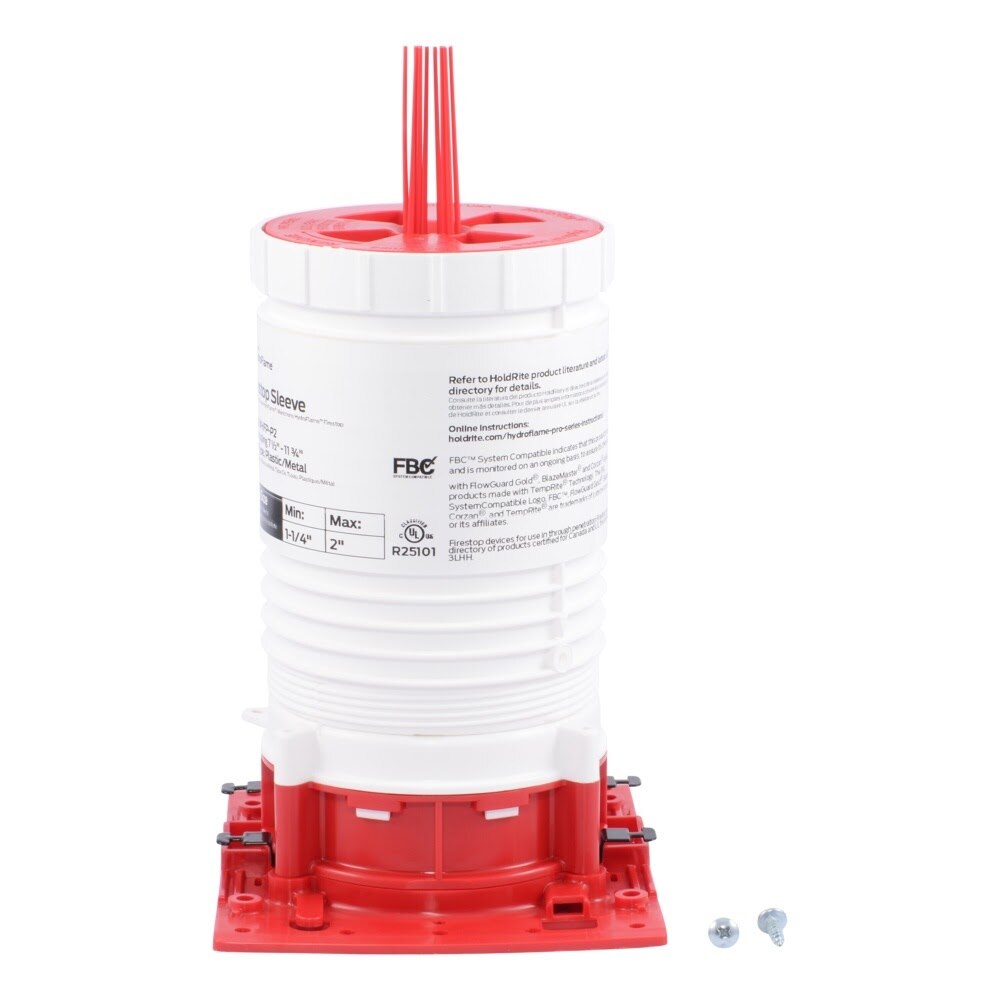

The HoldRite HydroFlame Pro Series telescoping firestop deck sleeve is designed for 1-1/4 in. to 2 in. plastic or metal pipe and adjusts from 7-1/2 in. to 11-3/4 in. for fast installation in flat concrete form or corrugated metal deck applications. It features built-in fire, smoke, gas, and water protection, a UL W-Rated watertight seal, locator whiskers, and a safety cap that helps meet OSHA hole cover requirements.
HoldRite HFP-P2 Includes

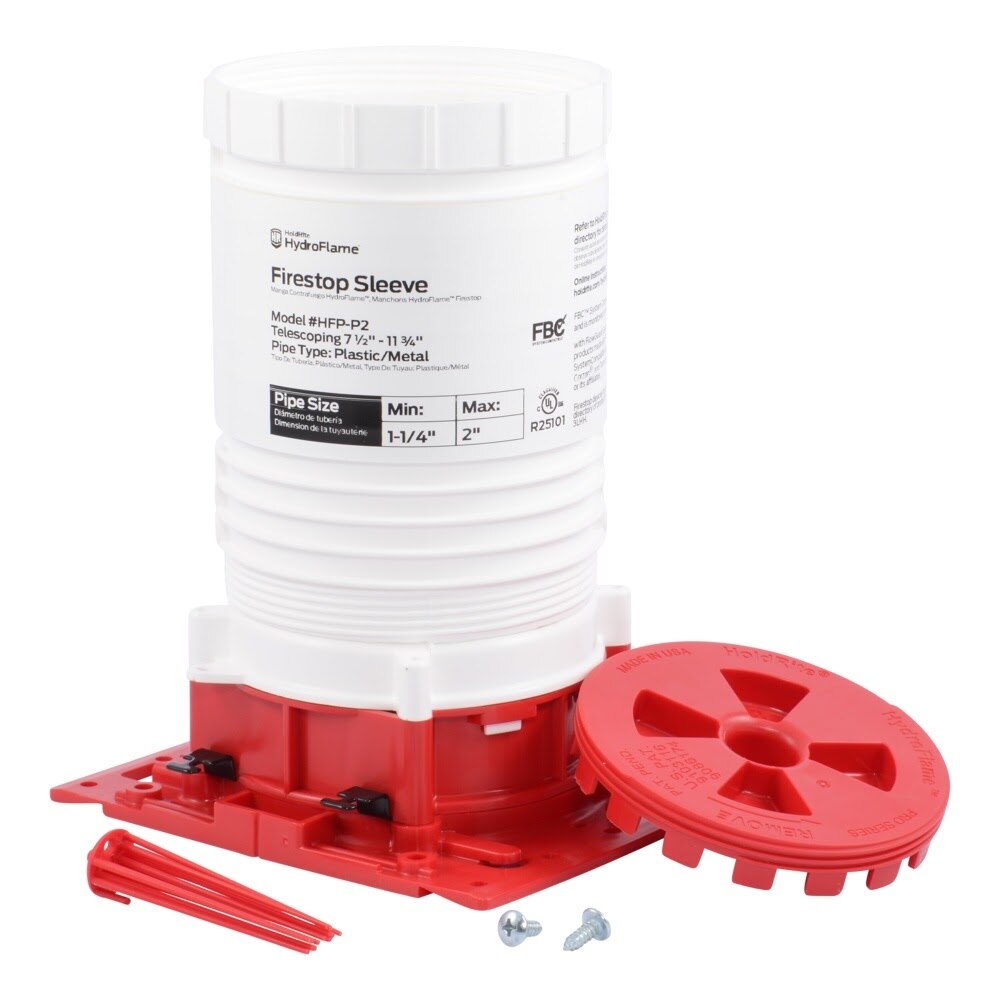

- (1) Telescoping firestop deck sleeve
- (1) Safety cap
- (1) Locator whisker set
HoldRite HFP-P2 Features
- Telescoping design adjusts from 7-1/2 in. to 11-3/4 in. in 1/4 in. increments
- Can be cut down to as short as 2-1/2 in.
- Designed for 1-1/4 in. to 2 in. plastic or metal pipe
- Built-in fire, smoke, gas, and water protection
- UL W-Rated seal provides watertight performance for most penetrant types and sizes
- Locator whiskers help identify buried sleeves and distinguish pipe type
- Safety cap helps meet OSHA hole cover requirements
- Allows for contraction, expansion, movement, and off-center pipes
- Reduces piping system noise transfer by maintaining annular spacing
- Interlocking base helps with layout alignment
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
- FBC compatible for CPVC
HoldRite HFP-P2 Specifications
| Manufacturer | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-P2 |
| Product Type | Telescoping Firestop Deck Sleeve |
| Pipe Material Compatibility | Plastic or Metal |
| Minimum Pipe Size | 1-1/4 in. |
| Maximum Pipe Size | 2 in. |
| Adjustable Height | 7-1/2 in. to 11-3/4 in. |
| Height Adjustment Increment | 1/4 in. |
| Minimum Cut Height | 2-1/2 in. |
| Application | Flat concrete form decks or corrugated metal decks |
| Pipe Compatibility | Insulated and non-insulated pipes |
| Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| ULC Rating | 50 Pa |
| FBC Compatible | CPVC |
Toolup Part # :
883311
