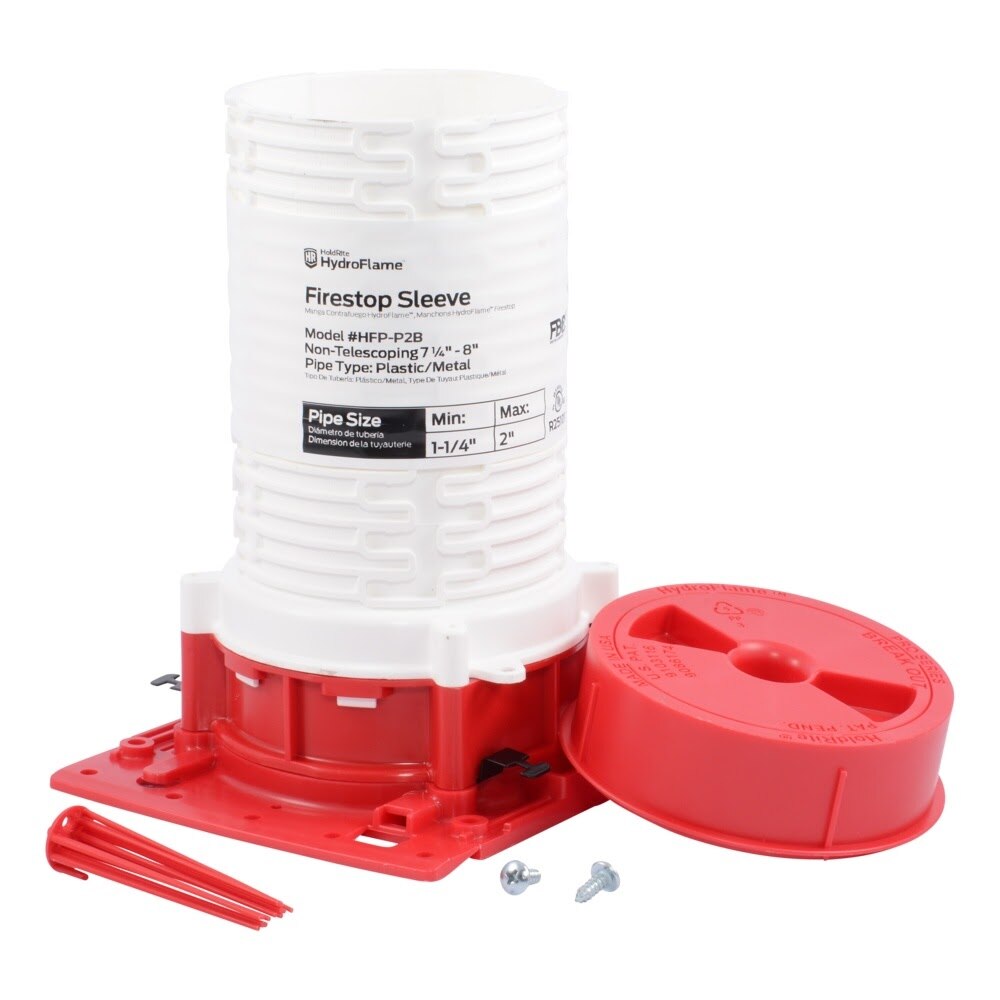

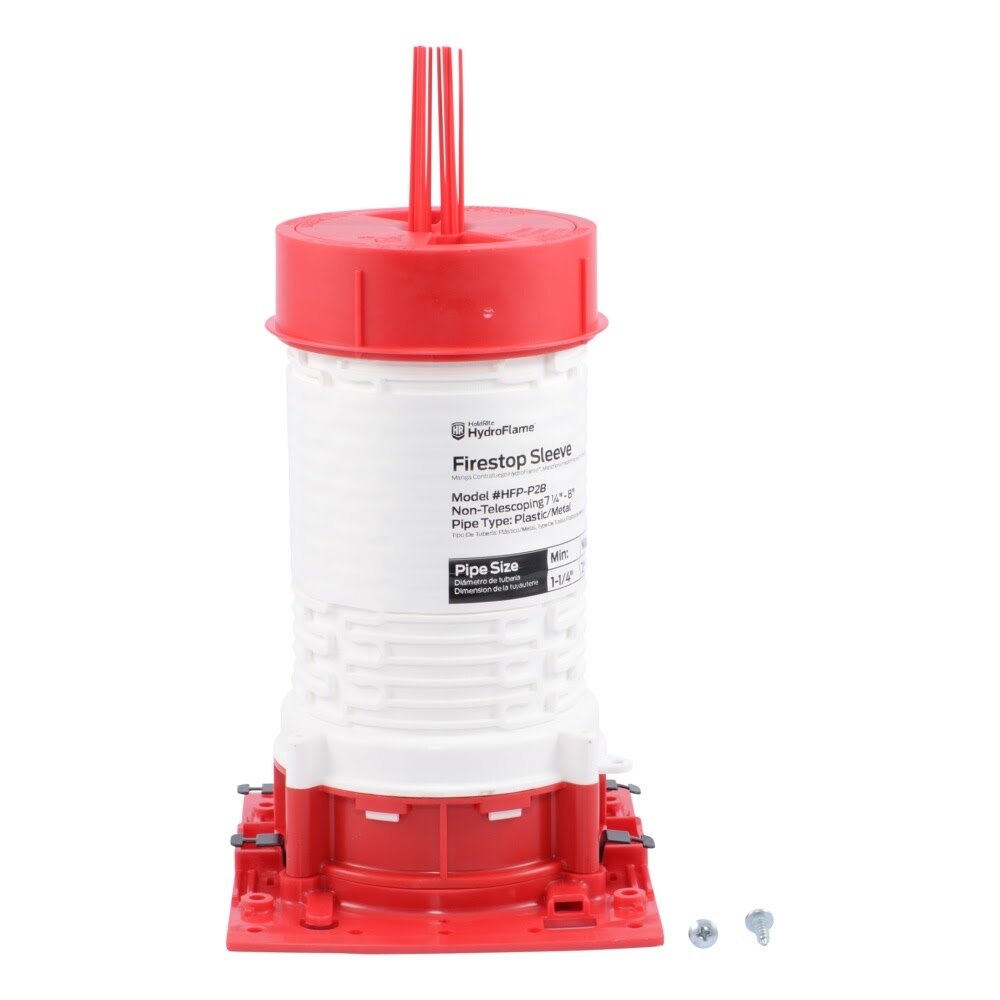

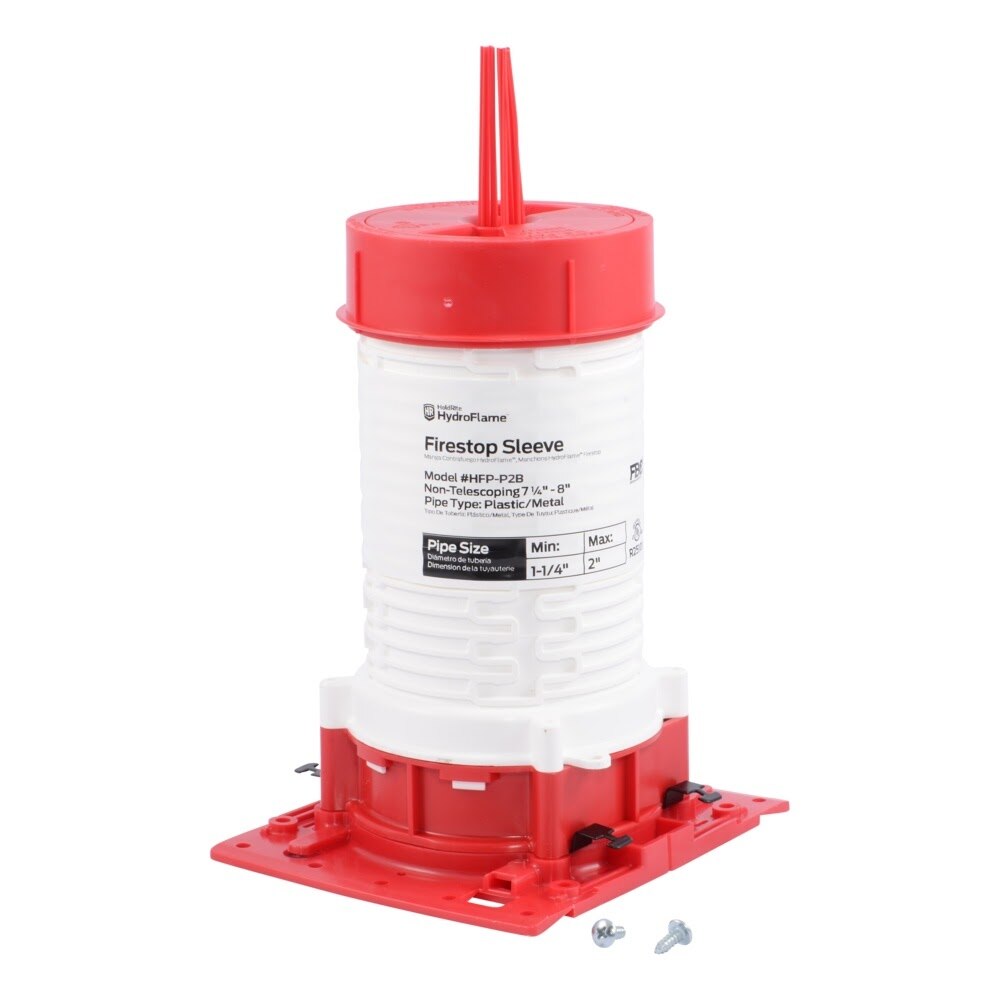

HoldRite HFP-P2B Description
The HoldRite HydroFlame Pro Series fire stop deck sleeve is designed for 1-1/4 in. to 2 in. plastic or metal pipe penetrations in flat concrete and corrugated metal decks. This non-telescoping sleeve features an adjustable cap, built-in fire, smoke, gas, and water protection, and locator whiskers for easy identification and installation.
HoldRite HFP-P2B Includes
- (1) HydroFlame Pro Series Fire Stop Deck Sleeve
- (1) Adjustable Cap
- (1) Set of Locator Whiskers
- (2) Screws
HoldRite HFP-P2B Features
- Designed for 1-1/4 in. to 2 in. plastic or metal pipe penetrations
- Fits flat concrete form decks and corrugated metal decks
- 7-1/4 in. to 8 in. tall with adjustable cap
- Can be cut down to as short as 3-1/2 in.
- Includes locator whiskers to identify buried sleeves and pipe type
- Built-in fire, smoke, gas, and water protection
- UL listed firestop device with 2 or 3 hour F-ratings
- UL W-Rated seal provides water-tight protection for most penetrants
- Allows for contraction, expansion, movement, and off-center pipes
- Safety caps meet OSHA hole cover requirements
HoldRite HFP-P2B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Model | HFP-P2B |
| Product Type | Fire Stop Deck Sleeve |
| Pipe Type | Plastic or Metal |
| Pipe Size Minimum | 1-1/4 in. |
| Pipe Size Maximum | 2 in. |
| Height | 7-1/4 in. to 8 in. |
| Cuttable Minimum Height | 3-1/2 in. |
| Material | UL Listed Intumescent Composite |
| Case Quantity | 10 |
