HoldRite HFP-P5B Description

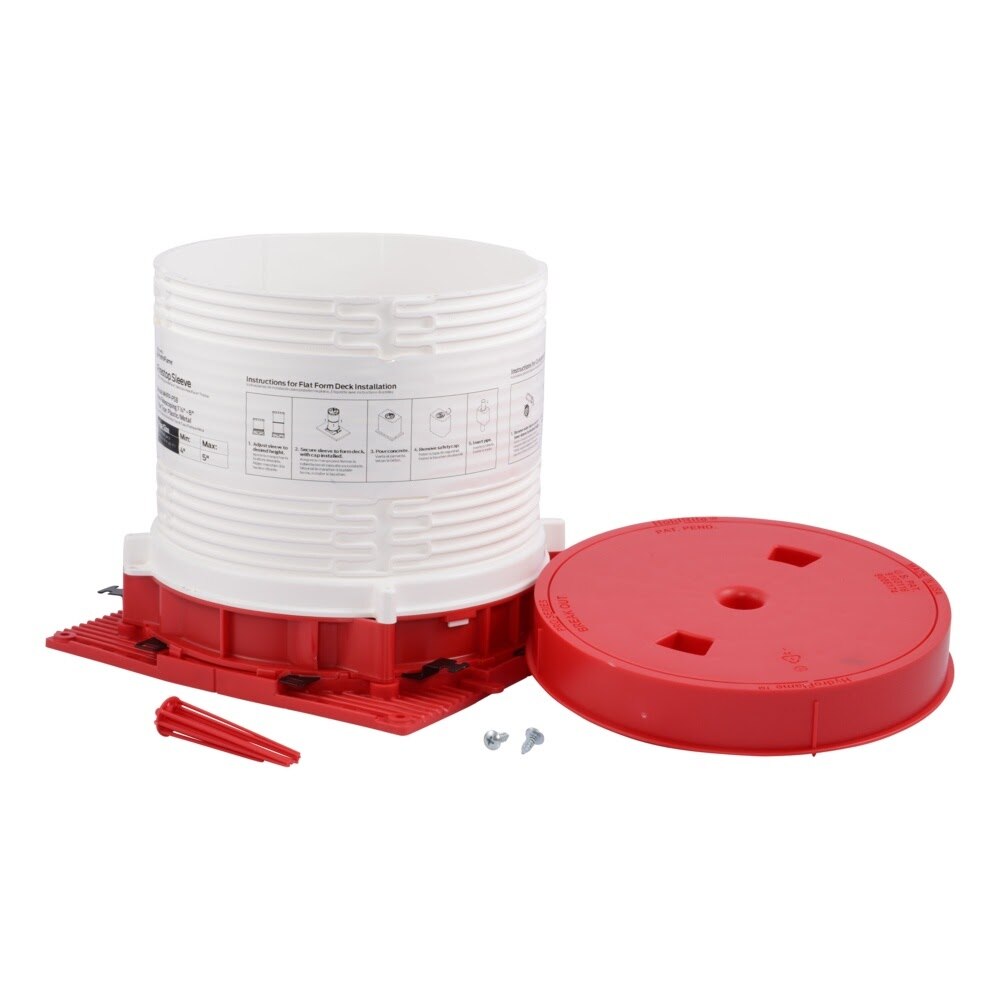

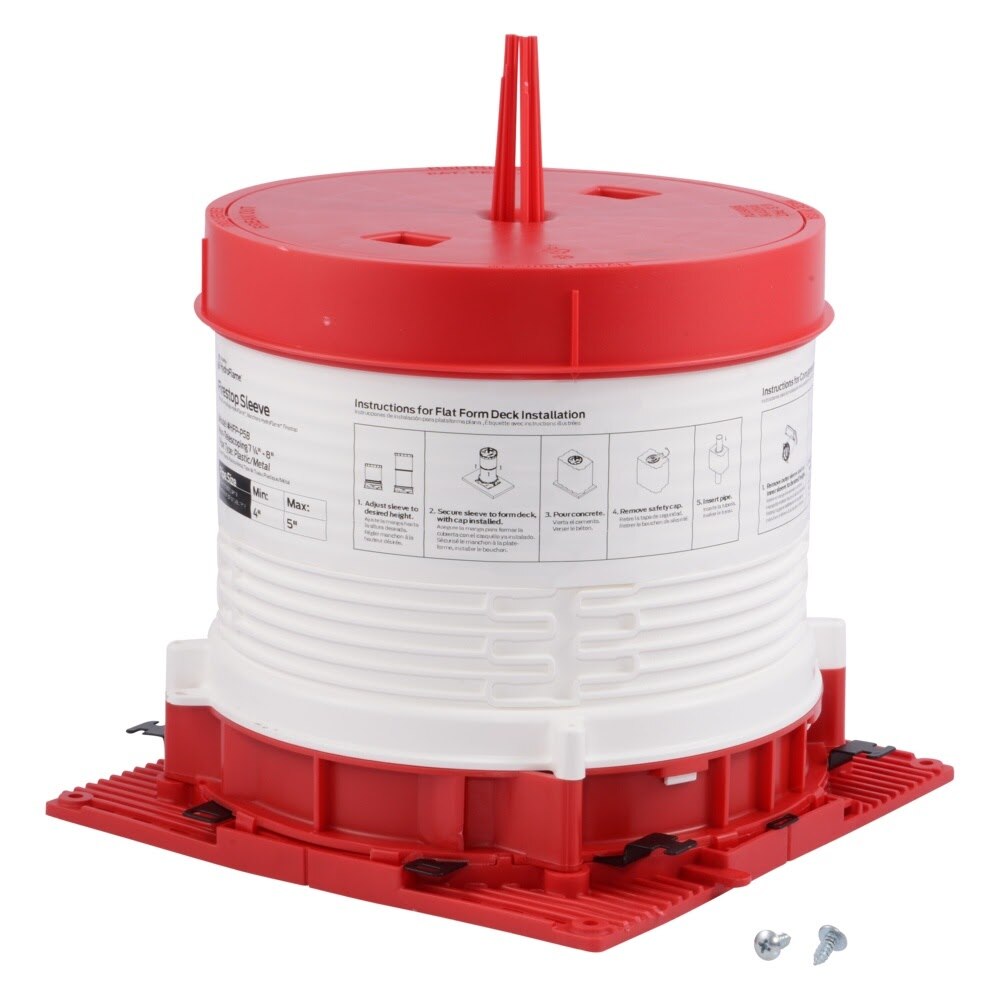

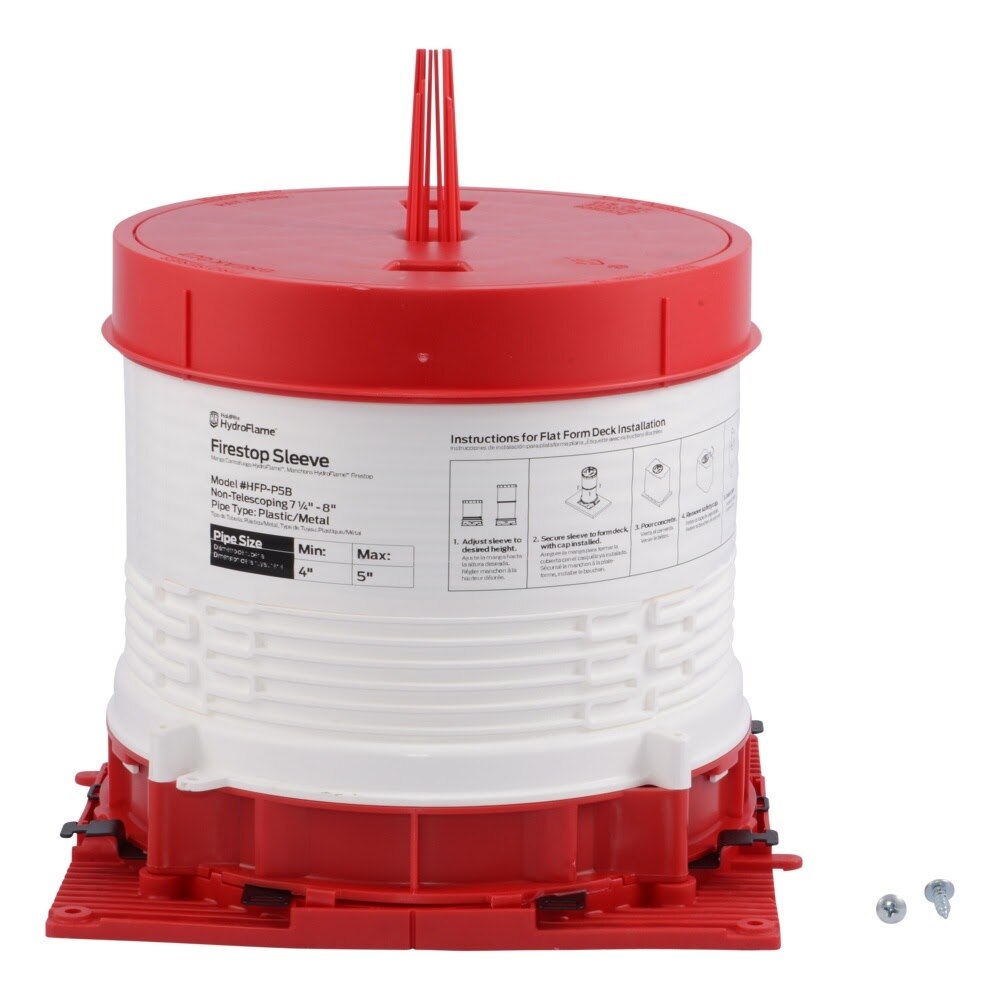

The HoldRite HydroFlame Pro Series Firestop Deck Sleeve is a non-telescoping firestop sleeve designed for 4 in. to 5 in. plastic or metal pipe penetrations. It features a 7-1/4 in. to 8 in. tall body with an adjustable cap, built-in fire, smoke, gas, and water protection, and a polypropylene body for cast-in-place concrete form deck applications.
HoldRite HFP-P5B Includes
- (1) Firestop Deck Sleeve
- (1) Adjustable Cap
- (1) Locator Whisker Set
HoldRite HFP-P5B Features
- Designed for 4 in. to 5 in. plastic or metal pipe penetrations
- 7-1/4 in. to 8 in. tall with adjustable cap
- Can be cut down to as short as 3-1/2 in.
- Ideal for flat concrete form decks cast in place
- Suitable for corrugated metal decks with corrugated deck plate required
- For insulated and non-insulated pipes
- Includes locator whiskers to help identify and locate buried sleeves
- Safety cap meets OSHA hole cover requirements
- UL Listed firestop device with 2 or 3 hour F-ratings
- Built-in fire, smoke, gas, and water protection
- UL W-Rated seal for water-tight performance on most penetrants
- Allows for contraction, expansion, movement, and off-center pipes
- Helps reduce piping system noise transfer by maintaining annular spacing
- Interlocking base capability assists with layout alignment
HoldRite HFP-P5B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Part Number | HFP-P5B |
| Product Type | Firestop Deck Sleeve |
| Sleeve Type | Non-Telescoping |
| Compatible Pipe Type | Plastic and Metal |
| Compatible Pipe Size | 4 in. to 5 in. |
| Height | 7-1/4 in. to 8 in. |
| Minimum Cut Height | 3-1/2 in. |
| Main Sleeve Body and Safety Cap Material | Polypropylene |
| Firestop Material | UL Listed Intumescent Composite |
| Application | Flat concrete form decks cast in place |
| Deck Compatibility | Corrugated metal decks with corrugated deck plate required |
| Each Length | 8.75 |
| Each Width | 8 |
| Each Height | 7.25 |
| Each Shipping Weight | 2.55 |
