HoldRite HFP-P6B Description
The HoldRite HydroFlame Pro Series Firestop Deck Sleeve is designed for through-penetration firestop applications in flat concrete form decks and corrugated metal decks. It fits 5 in. to 6 in. plastic or metal pipe, features an adjustable 7-1/4 in. to 8 in. height that can be cut shorter as needed, and provides built-in fire, smoke, gas, and water protection.

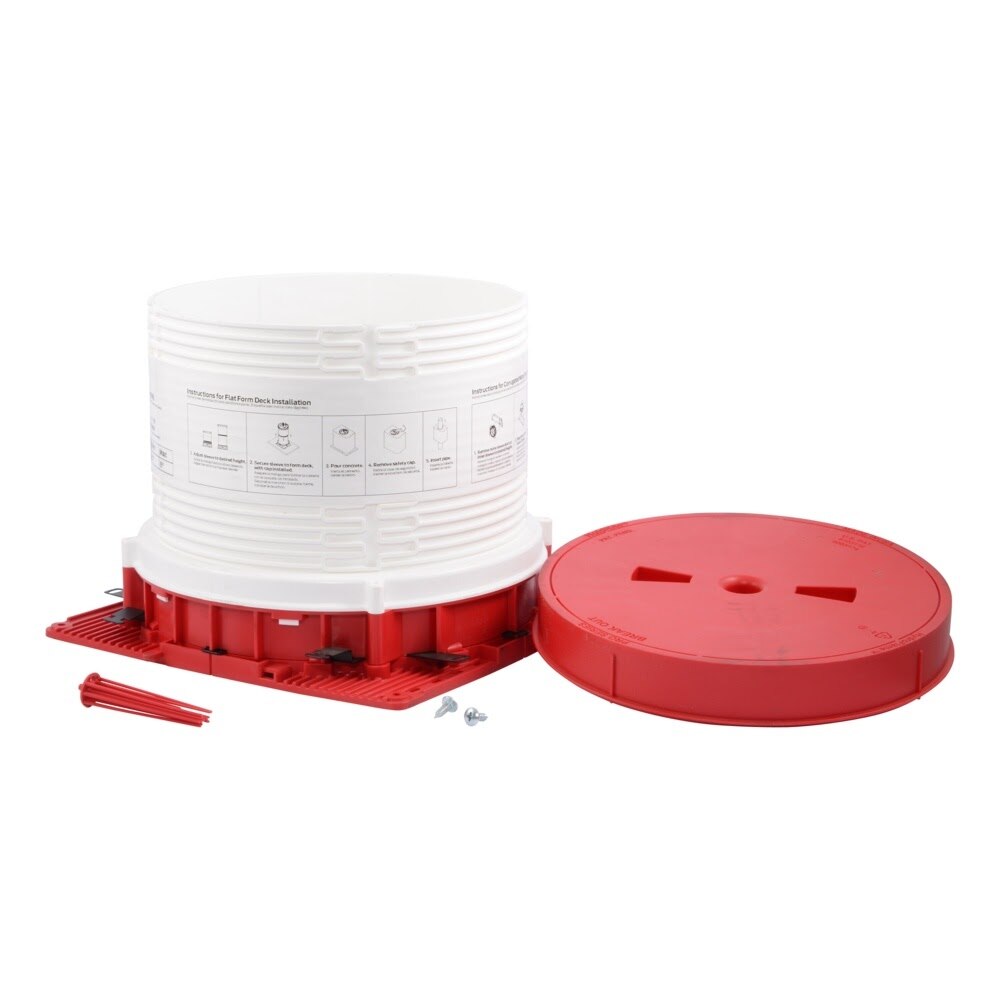

HoldRite HFP-P6B Includes
- (1) Firestop deck sleeve
- (1) Adjustable cap
- (1) Set of locator whiskers
- (2) Screws
HoldRite HFP-P6B Features
- Designed for cast-in-place flat concrete form decks
- Suitable for corrugated metal decks with corrugated deck plate
- Fits 5 in. to 6 in. plastic or metal pipe
- Adjustable 7-1/4 in. to 8 in. height and can be cut as short as 3-1/2 in.
- Includes locator whiskers to help locate buried sleeves and identify pipe type
- Built-in fire, smoke, gas, and water protection
- UL Listed firestop device with 2 or 3 hour F-ratings
- UL W-Rated seal is water-tight for most penetrants
- Allows for contraction, expansion, movement, and off-center pipes
- Safety cap meets OSHA hole cover requirements
- Interlocking base capability assists with layout alignment
- Helps reduce piping system noise transfer by maintaining annular spacing
HoldRite HFP-P6B Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Firestop Deck Sleeve |
| Part Number | HFP-P6B |
| Pipe Type | Plastic and Metal |
| Nominal Penetrant Size | 5 in. - 6 in. |
| Height Range | 7-1/4 in. - 8 in. |
| Minimum Cut Height | 3-1/2 in. |
| Material | UL Listed Intumescent Composite |
| Main Sleeve Body and Safety Cap Material | Polypropylene |
| Mid-Body Seal Material | Thermoplastic Rubber (TPR) |
| Locator Whiskers Material | Polypropylene |
| Fire Ring Material | 24GA CRS Firestop Material |
| Mold and Fungus Resistance | ASTM G-21 |
| Each Length | 9.75 in. |
| Each Width | 9.25 in. |
| Each Height | 7.875 in. |
| Each Shipping Weight | 3.15 lb |
| Case Quantity | 2 |
