HoldRite HFPESC3 Description

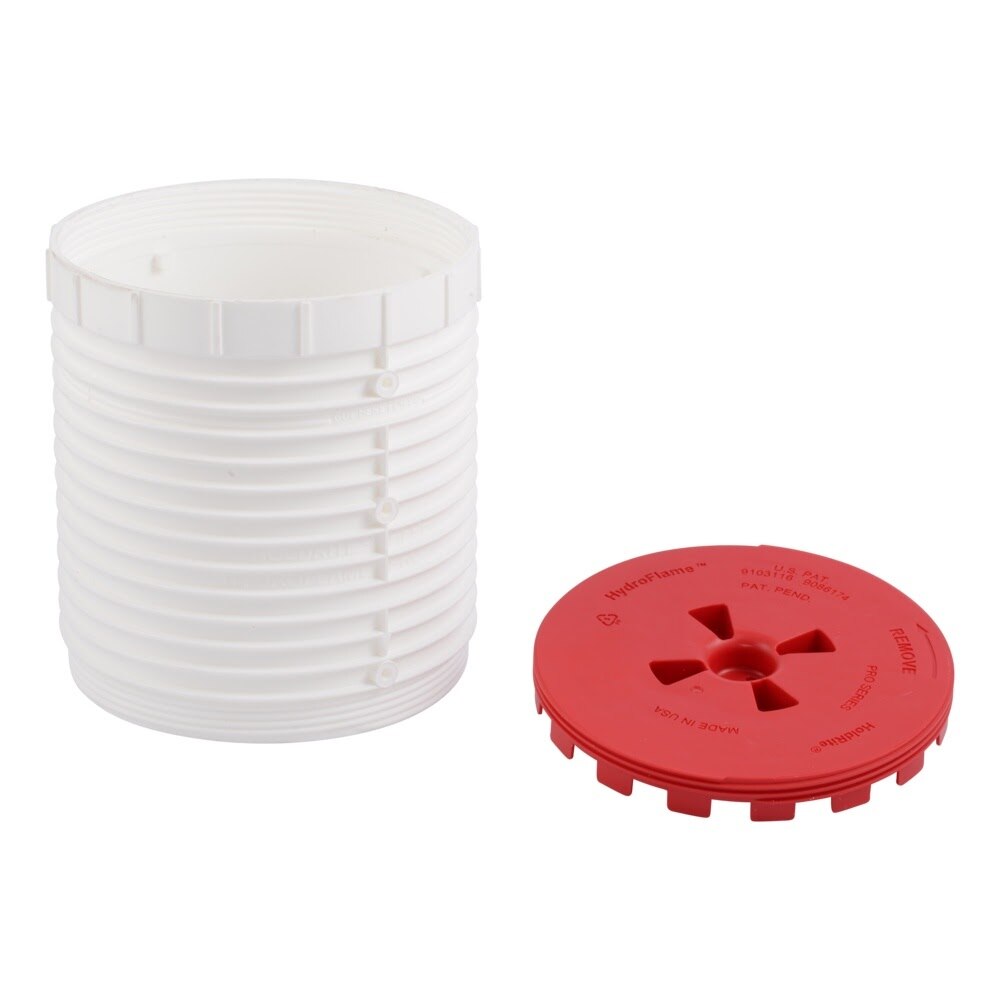

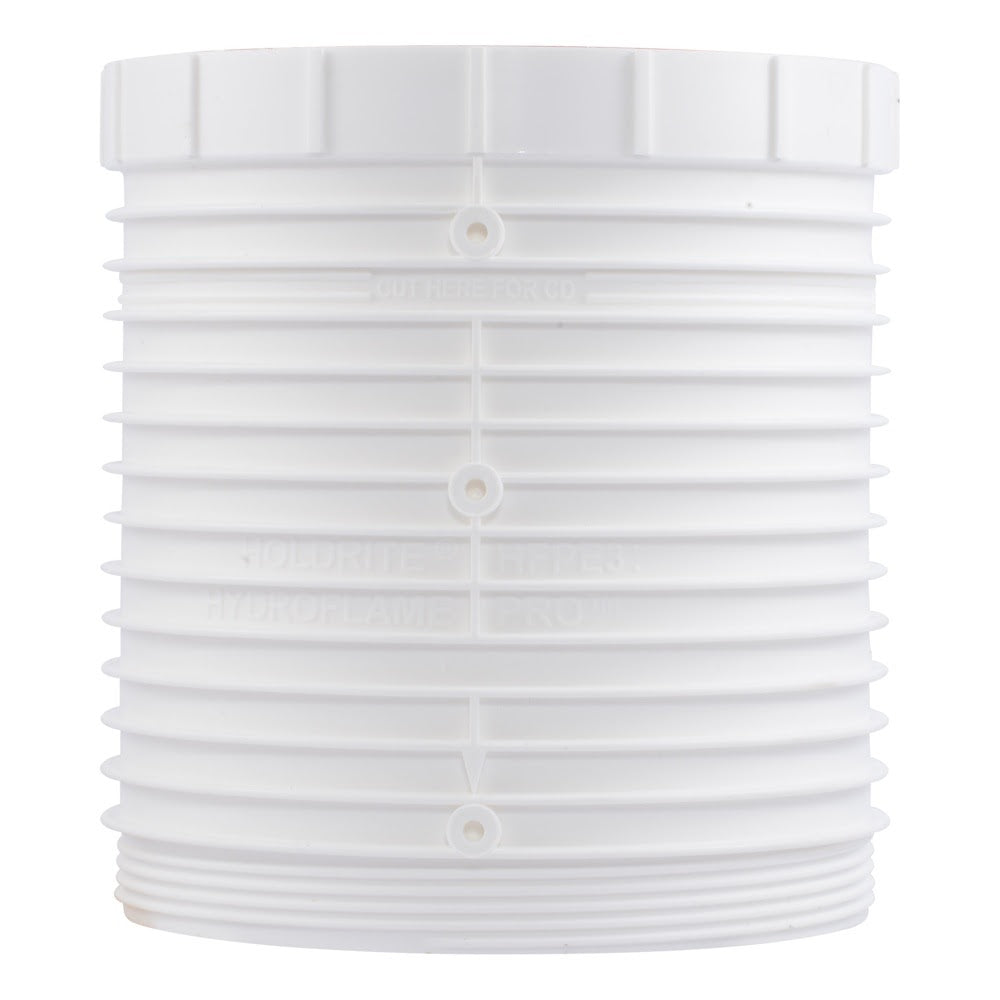

The HoldRite HydroFlame Pro Series HFPESC3 is a 3 in. firestop sleeve extension with safety cap designed for HydroFlame Pro Series sleeve installations with metal or plastic pipe. It helps achieve the required sleeve height for concrete pours over 11-3/4 in., adds up to 4-3/4 in. of height in 1/4 in. increments, and installs without a coupling.
HoldRite HFPESC3 Includes
- (1) HydroFlame Pro Series 3 in. Firestop Sleeve Extension
- (1) HFP Safety Cap
HoldRite HFPESC3 Features
- Designed for HydroFlame Pro Series firestop sleeve applications
- 3 in. extension sleeve with safety cap
- Adds up to 4-3/4 in. of height in 1/4 in. increments
- Helps achieve proper sleeve height for concrete pours over 11-3/4 in.
- No coupling needed for connection to sleeve
- Connects to water dams, water modules and underside of sleeves
- Suitable for metal or plastic pipe installations
HoldRite HFPESC3 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Firestop Sleeve Extension with Safety Cap |
| Size | 3 in. |
| Compatible Sleeve Size | #3 |
| Compatible Pipe Material | Metal or Plastic |
| Maximum Added Height | 4-3/4 in. |
| Height Adjustment Increment | 1/4 in. |
| For Concrete Pours | Over 11-3/4 in. |
| Connection Type | No coupling needed |
| Product Length (in) | 5.073 |
| Product Width (in) | 5.073 |
| Product Height (in) | 5.345 |
| Shipping Weight (lb) | 0.5 |
| Case Quantity | 10 |
Toolup Part # :
883919
