HoldRite HFPLTB-TW-0200-10 Description

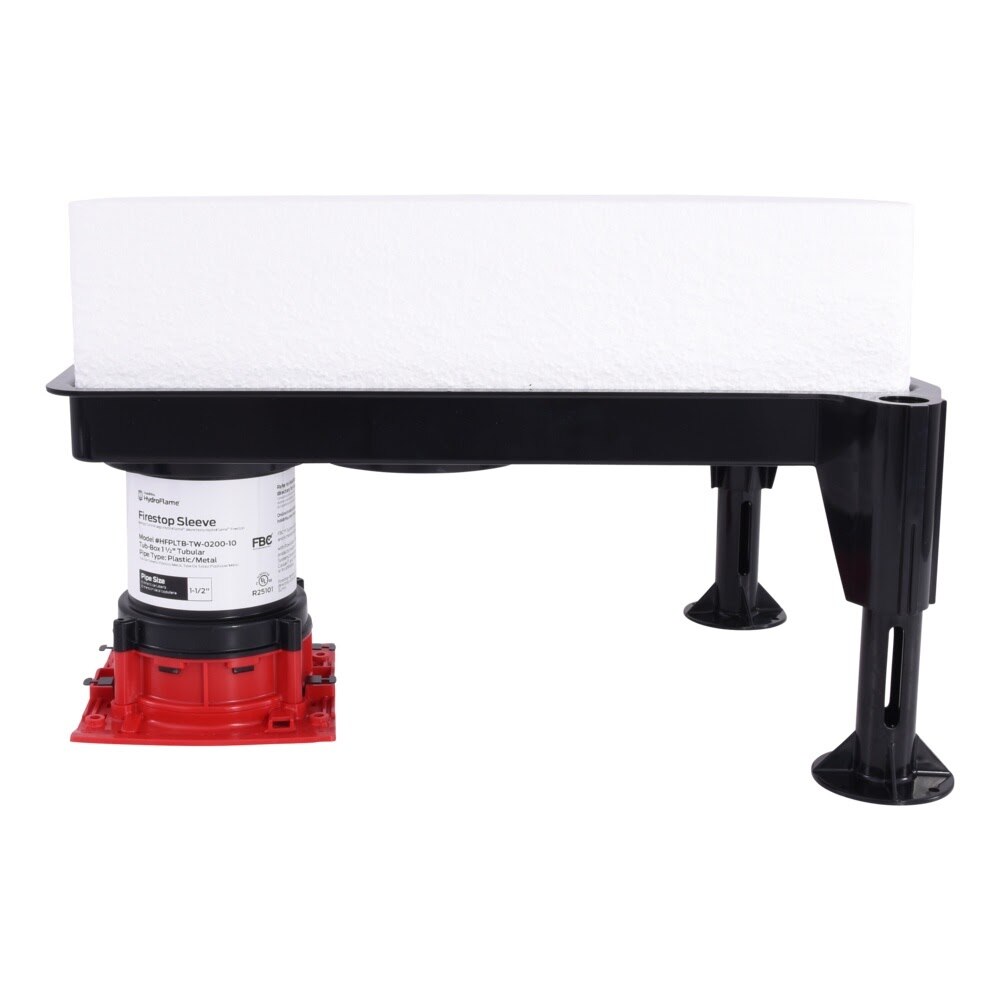

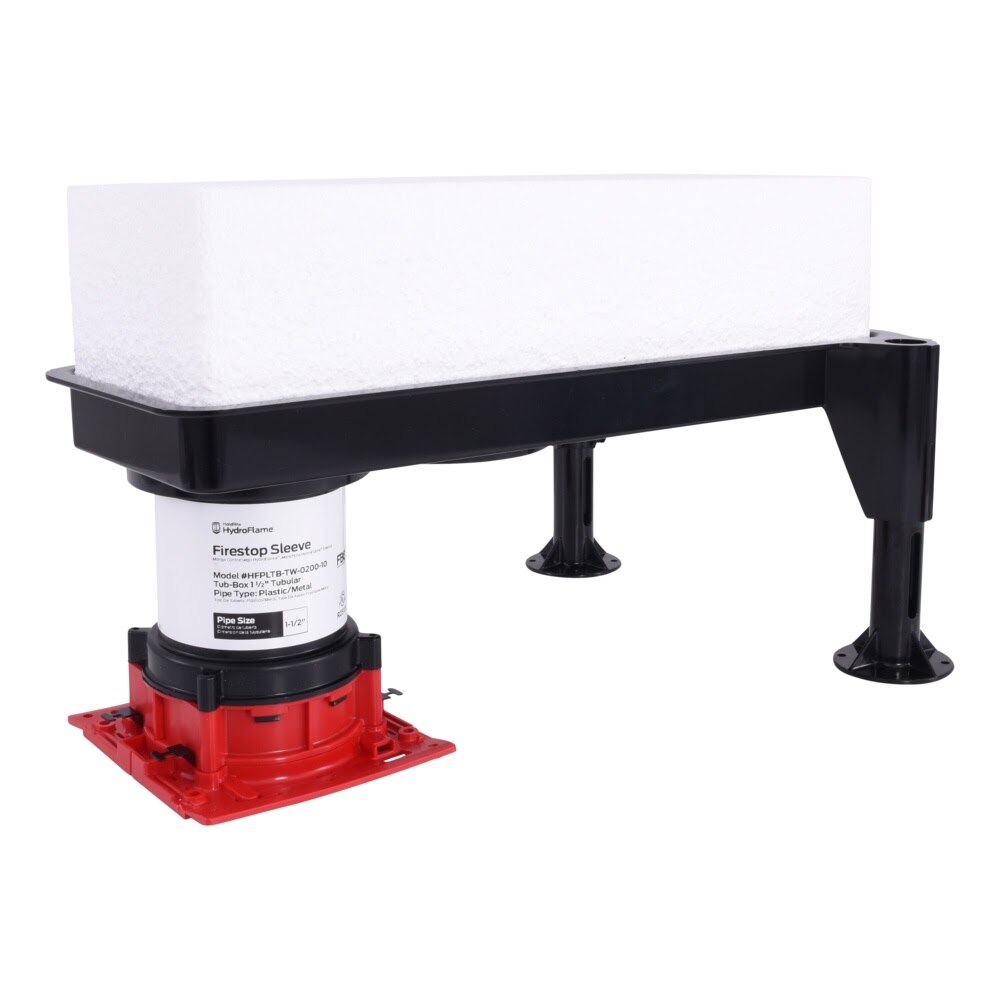

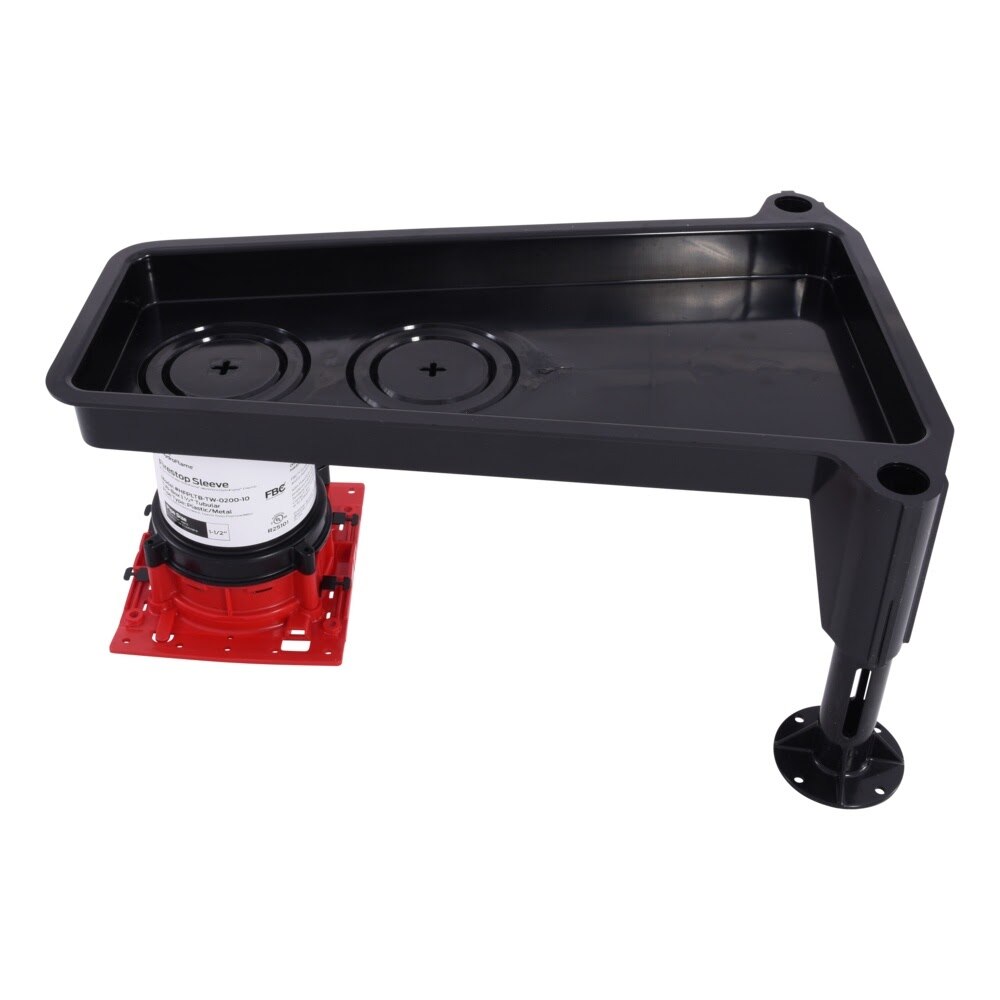

The HoldRite HydroFlame Pro Series long tub box is a UL Listed firestop device designed for bathtub drains. This 10 in. pre-built assembly includes a 2 in. floor sleeve for 1-1/2 in. OD plastic or metal drains, provides a 3 hour F-Rating, and helps create a water-tight slab penetration with built-in fire, smoke, and gas protection.
HoldRite HFPLTB-TW-0200-10 Includes
- (1) HydroFlame Pro Series Long Tub Box with 2 in. Sleeve
HoldRite HFPLTB-TW-0200-10 Features
- UL Listed firestop device for bathtub drains
- 3 hour F-Rating
- Built-in fire, smoke and gas protection
- Provides a water-tight slab penetration
- Accepts 1-1/2 in. plastic or metal drains
- Allows for expansion, contraction and movement
- UL W-Rated water seal
- 10 in. pre-built height can be modified in the field
- Includes a 2 in. floor sleeve with 3 in. ID
- Sleeve extensions are available for thick floor slabs
HoldRite HFPLTB-TW-0200-10 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro |
| Product Type | Firestop Long Tub Box |
| Application | Bathtub drains |
| Drain Outside Diameter | 1-1/2 in. |
| Compatible Pipe Type | 1-1/2 in. thin wall drain |
| Compatible Drain Material | Plastic or metal |
| Pre-Built Height | 10 in. |
| Floor Sleeve Size | 2 in. |
| Floor Sleeve ID | 3 in. |
| Box Length | 16 in. |
| Fire Rating | 3 hour F-Rating |
| Water Seal Rating | UL W-Rated |
| UL Listed | Yes |
Toolup Part # :
882353
