HoldRite HFPLTB-TW-0200-8 Description

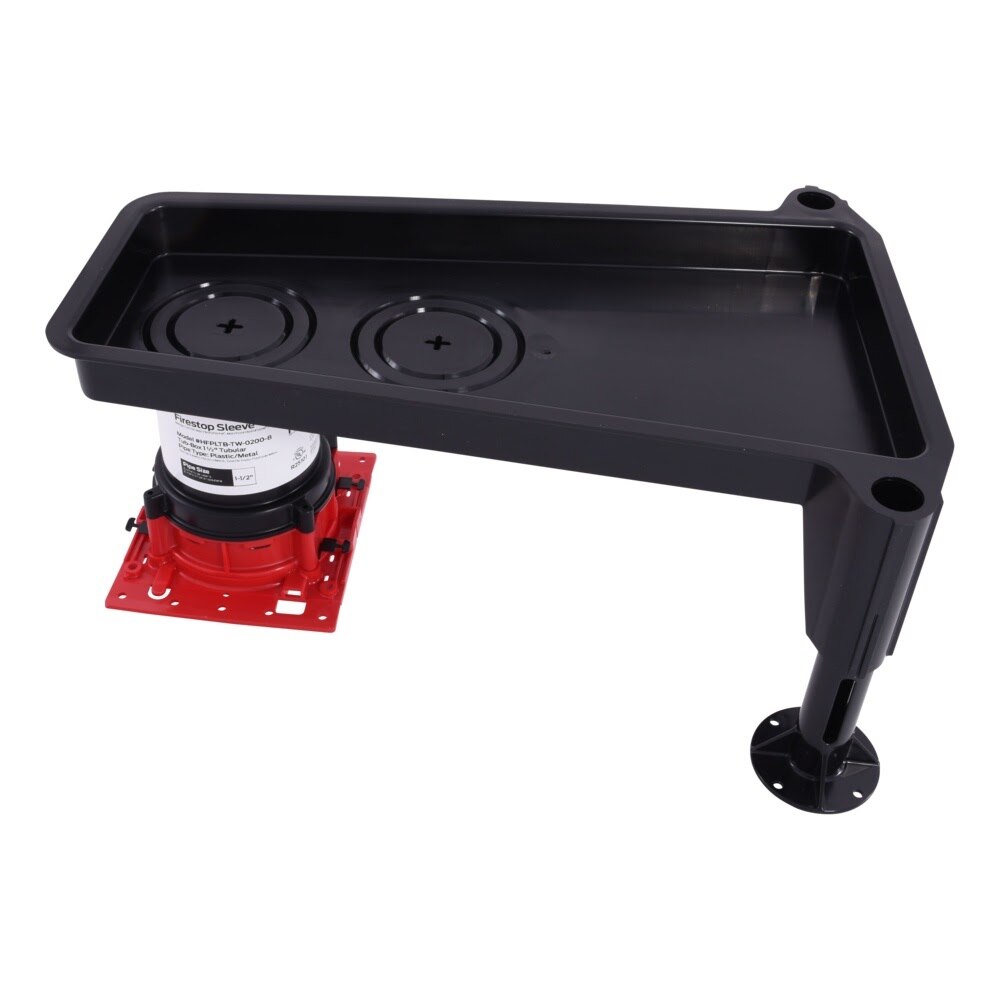

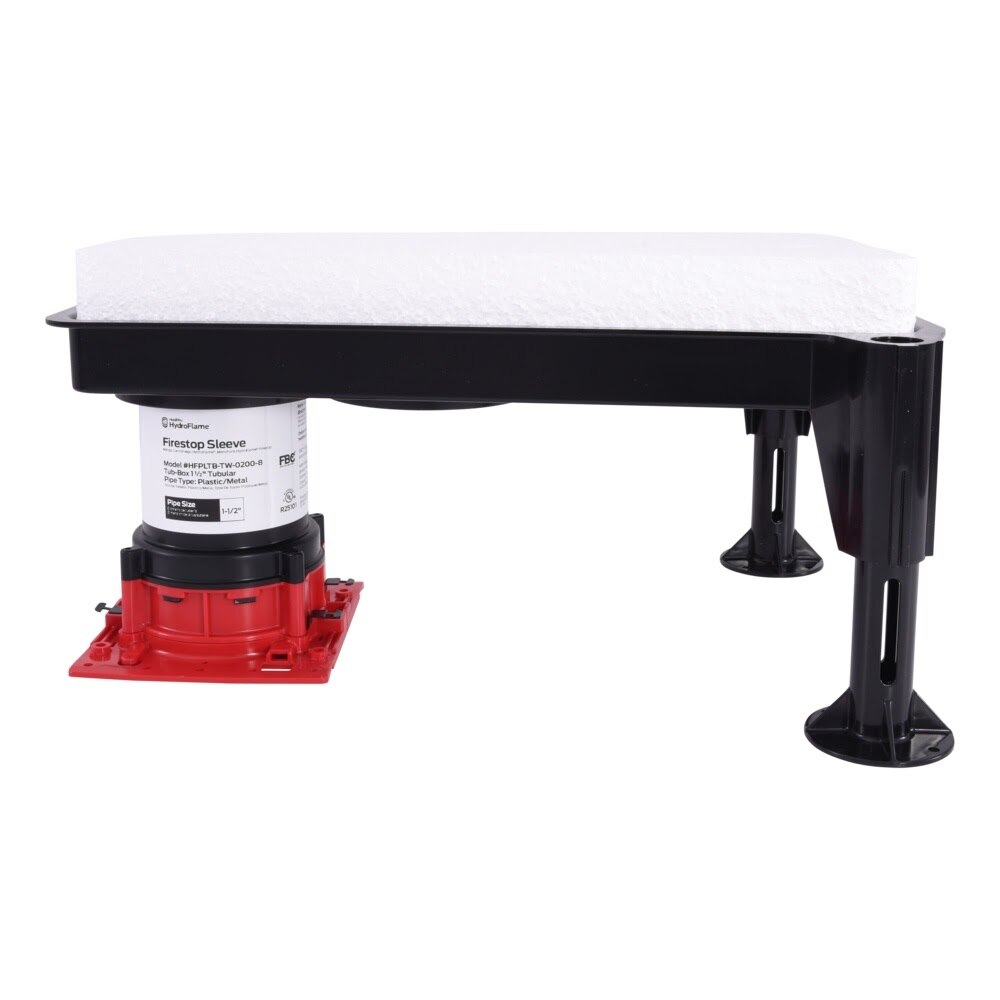

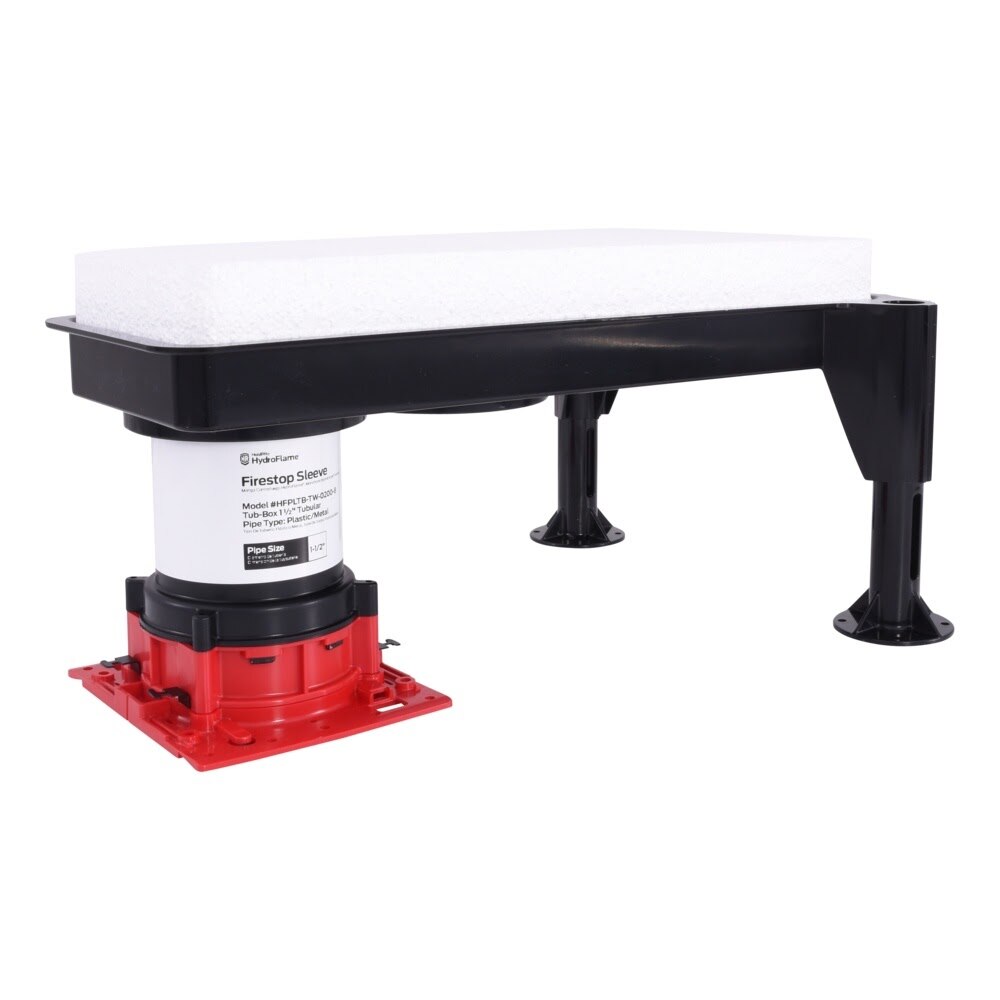

The HoldRite HydroFlame Pro Series long tub box is a UL listed firestop device designed for bathtub drains. Built 8 in. tall with a 2 in. sleeve, it accepts 1-1/2 in. OD plastic or metallic drains while providing fire, smoke, gas, and water-tight slab penetration protection.
HoldRite HFPLTB-TW-0200-8 Includes
- (1) HydroFlame Pro Series Long Tub Box with 2 in. Sleeve
HoldRite HFPLTB-TW-0200-8 Features
- UL listed firestop device for bathtub drains
- 3 hour F-Rating
- Built-in fire, smoke, and gas protection
- Provides a water-tight slab penetration
- Accepts 1-1/2 in. OD plastic or metallic drains
- Allows for expansion, contraction, and movement
- UL W-Rated water seal
- Pre-built 8 in. height can be modified in the field
- Includes 2 in. floor sleeve with 3 in. ID
- Sleeve extensions are available for thick floor slabs
HoldRite HFPLTB-TW-0200-8 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro |
| Product Type | Long Tub Box |
| Application | Bathtub drains |
| Drain Size | 1-1/2 in. OD |
| Penetrating Pipe Type | 1-1/2 in. thin wall drain |
| Compatible Drain Material | Plastic or metal |
| Sleeve Size | 2 in. |
| Floor Sleeve ID | 3 in. |
| Pre-Built Height | 8 in. |
| Box Length | 16 in. |
| Fire Rating | 3 hour F-Rating |
| Water Seal Rating | UL W-Rated |
| UL Listed | Yes |
Toolup Part # :
882391
