HoldRite HFPLTB-TW-0200-9 Description

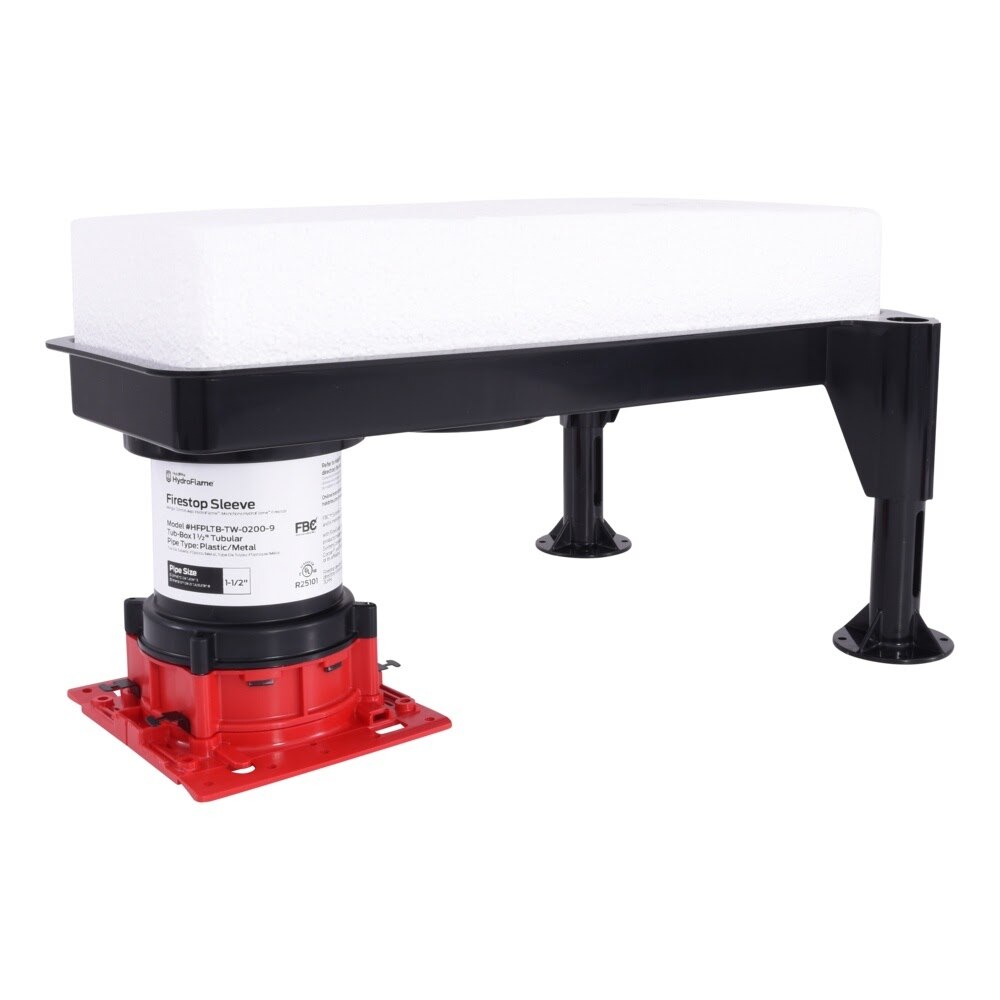

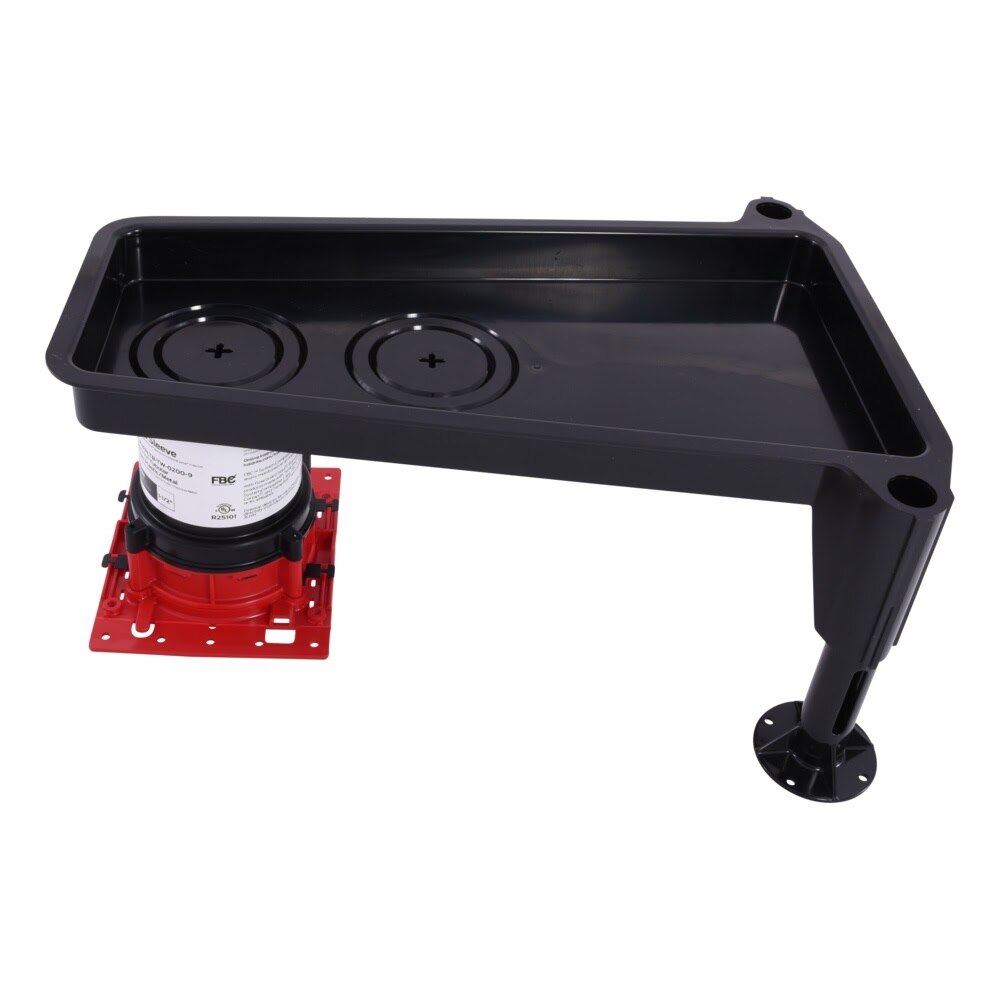

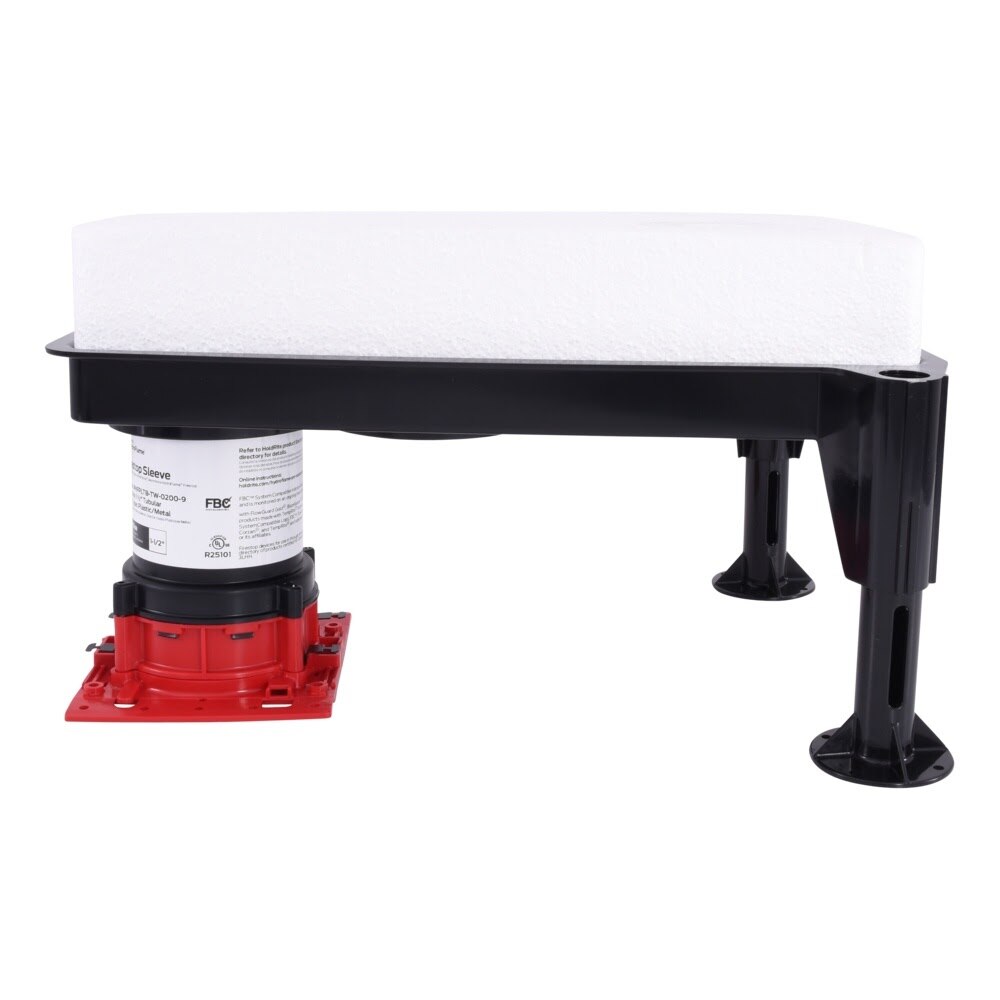

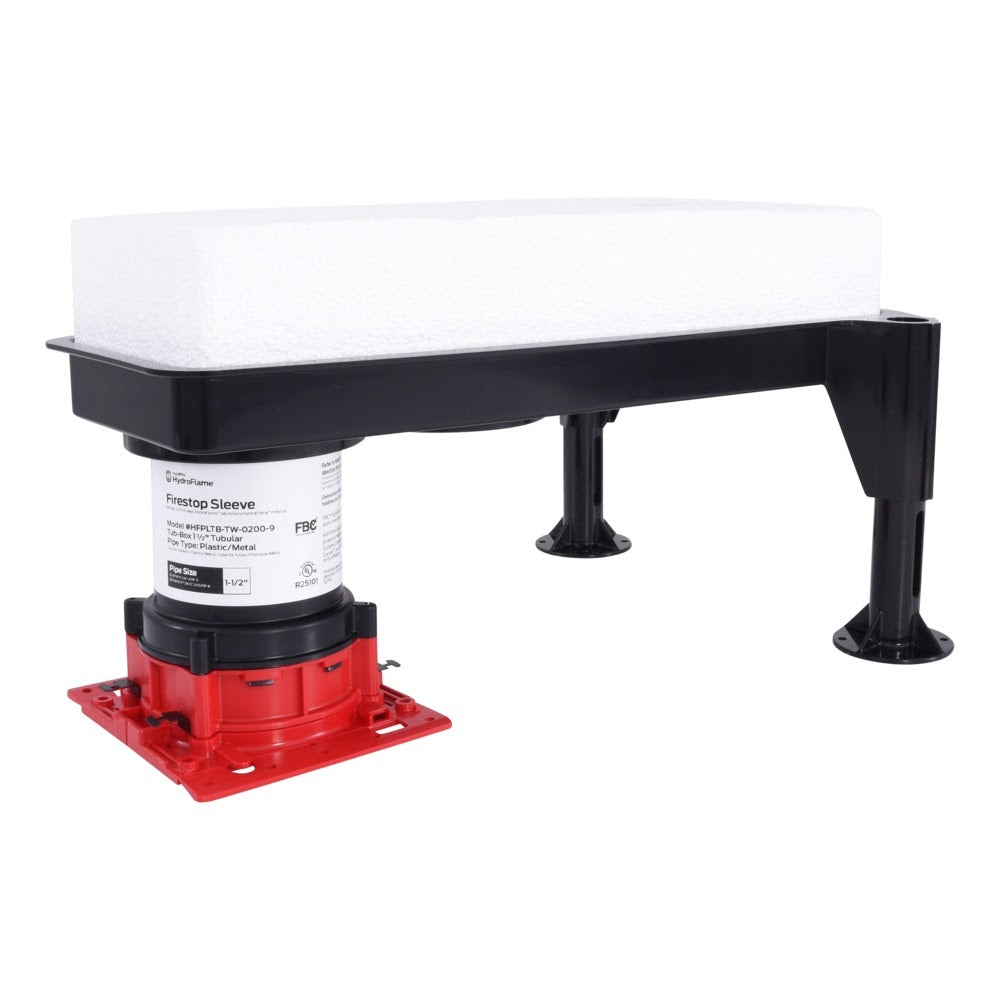

HoldRite HydroFlame Pro Series Long Tub Box is a UL listed firestop device for bathtub drains using 1-1/2 in. OD plastic or metallic drain piping. This 9 in. tall assembly includes a 2 in. floor sleeve with 3 in. ID and provides built-in fire, smoke, gas, and water protection while allowing for expansion, contraction, and field height modification.
HoldRite HFPLTB-TW-0200-9 Includes
- (1) HydroFlame Pro Series Long Tub Box
HoldRite HFPLTB-TW-0200-9 Features
- UL listed firestop device for bathtub drains
- 3 hour F-Rating
- Built-in fire, smoke and gas protection
- Provides a watertight slab penetration
- Accepts 1-1/2 in. plastic or metallic drains
- Allows for expansion, contraction and movement
- UL W-Rated water seal
- Pre-built 9 in. height can be modified in the field
- Includes 2 in. floor sleeve with 3 in. ID
- Compatible with sleeve extensions for thick floor slabs
HoldRite HFPLTB-TW-0200-9 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro |
| Product Type | Long Tub Box |
| Application | Bathtub drains |
| Drain Outside Diameter | 1-1/2 in. |
| Penetrating Pipe Type | 1-1/2 in. thin wall drain |
| Drain Material Compatibility | Plastic or Metal |
| Pre-Built Height | 9 in. |
| Floor Sleeve Size | 2 in. |
| Floor Sleeve ID | 3 in. |
| Box Length | 16 in. |
| Fire Rating | 3 hour F-Rating |
| Water Rating | UL W-Rated water seal |
| UL Listed | Yes |
Toolup Part # :
882371
