HoldRite HFPTB-NP-0200 Description

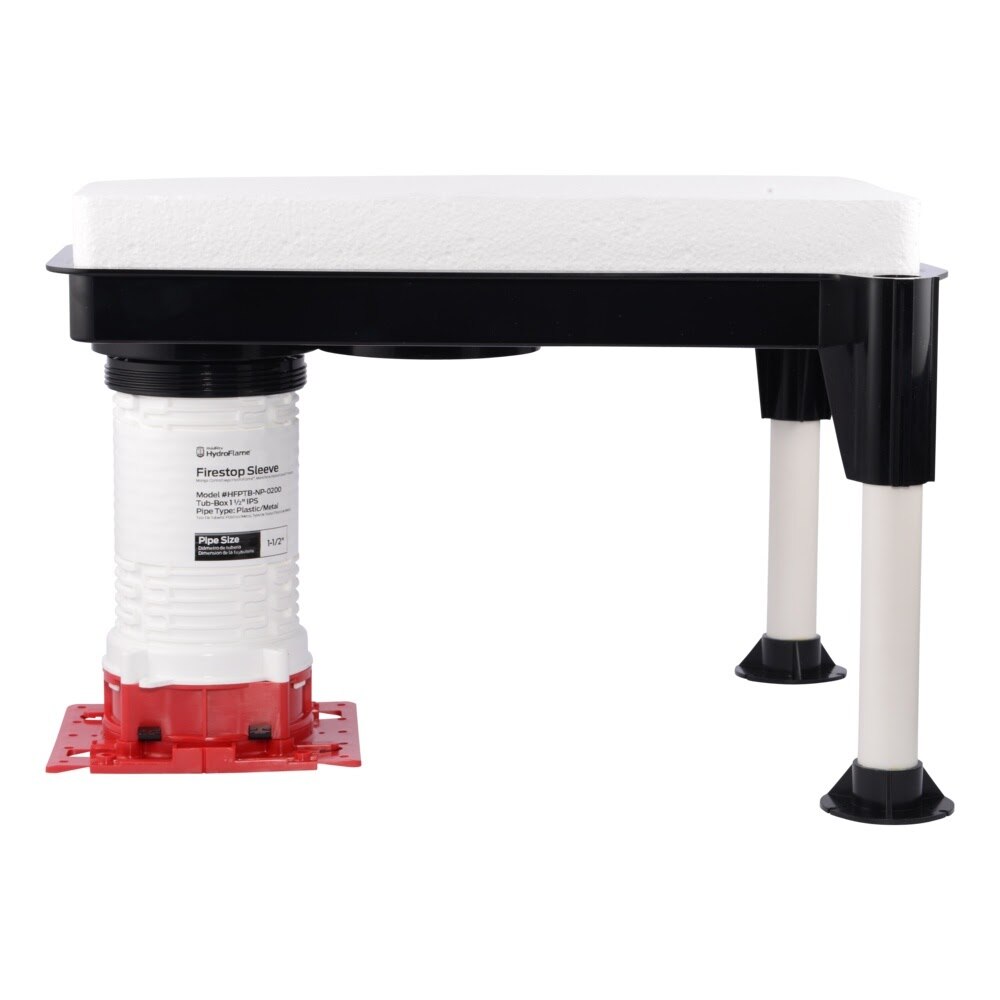

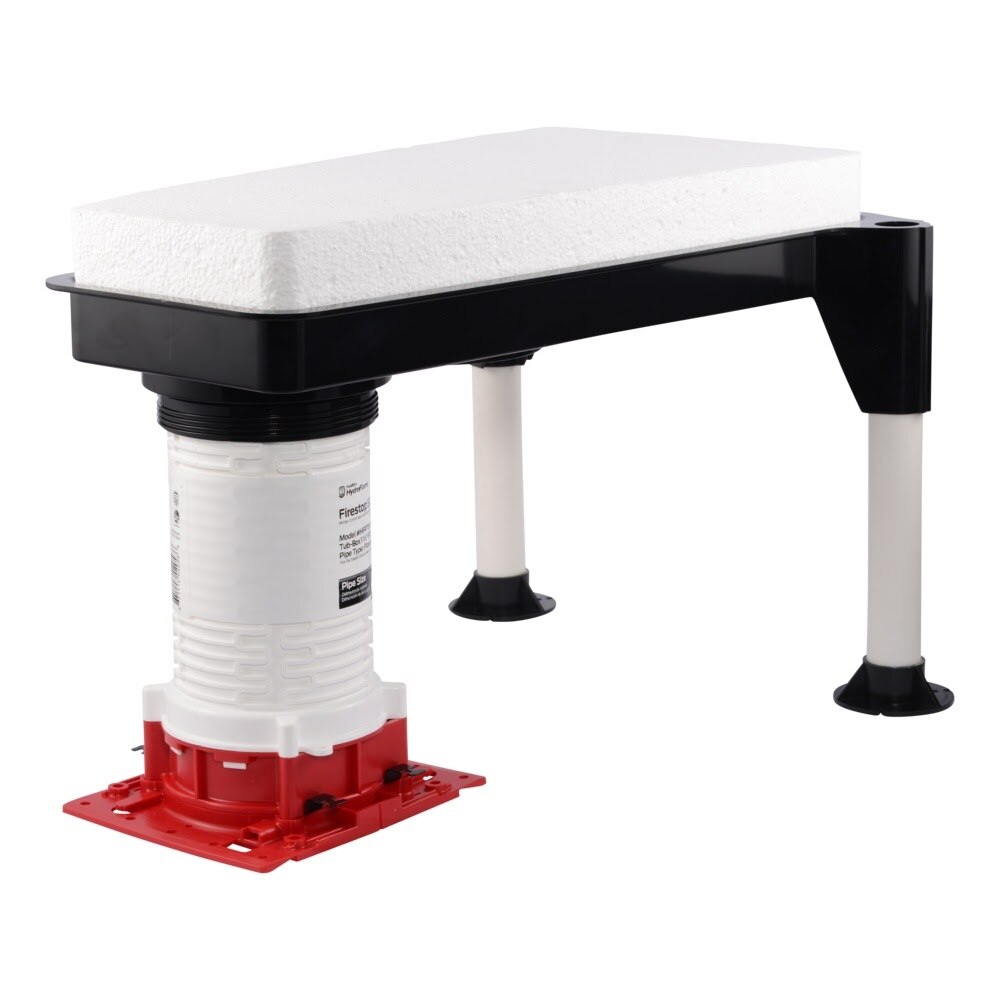

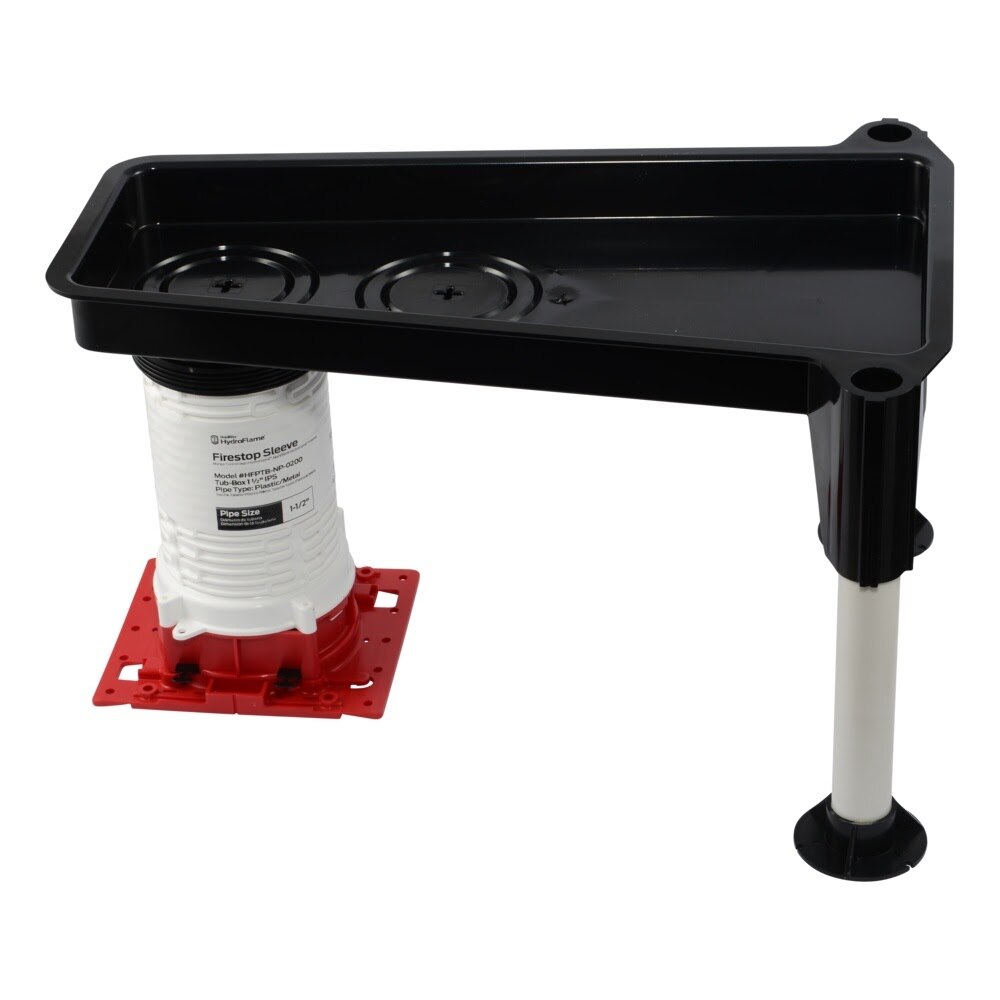

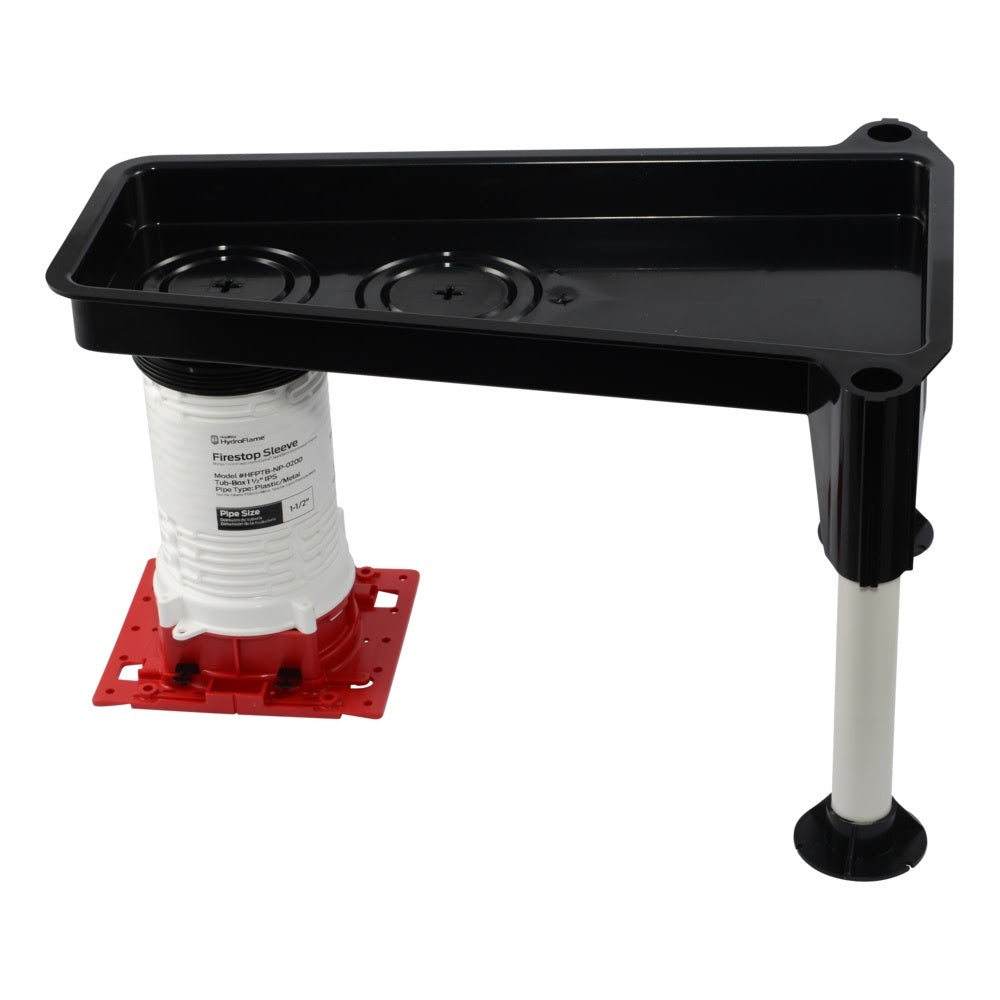

The HoldRite HydroFlame Pro Series long tub box is designed for 1-1/2 in. IPS drain installations and includes an HFP-P2B firestop sleeve built 10-1/2 in. tall. It helps create a watertight slab penetration with built-in fire, smoke, and gas protection while accommodating common plastic and metal drain pipe materials.
HoldRite HFPTB-NP-0200 Includes
- (1) HydroFlame Pro Series Long Tub Box
- (1) HFP-P2B Firestop Sleeve
HoldRite HFPTB-NP-0200 Features
- Up to 3-hour fire rating
- Built-in fire, smoke, and gas protection
- Provides a watertight slab penetration
- Accepts 1-1/2 in. PVC, ABS, cast iron, and brass drain pipes
- Allows for expansion, contraction, and movement
- Height can be modified in the field
- HFPE2 extension can be added for slabs greater than 10-1/2 in.
- Tested to ASTM E814, UL 1479, and CAN/ULC S115 standards
HoldRite HFPTB-NP-0200 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Long Tub Box |
| Drain Size | 1-1/2 in. |
| Drain Connection Type | IPS |
| Sleeve Model | HFP-P2B |
| Built Height | 10-1/2 in. |
| Compatible Drain Pipe Materials | PVC, ABS, cast iron, brass |
| Fire Rating | Up to 3 hours |
| Watertight Rating | UL listed W rating |
| Field Adjustable Height | Yes |
| Testing Standards | ASTM E814, UL 1479, CAN/ULC S115 |
| Package Length (in) | 15.5 |
| Package Width (in) | 14.5 |
| Package Height (in) | 5 |
| Shipping Weight (lb) | 2.92 |
| Case Quantity | 5 |
