HoldRite HFPWD2 Description

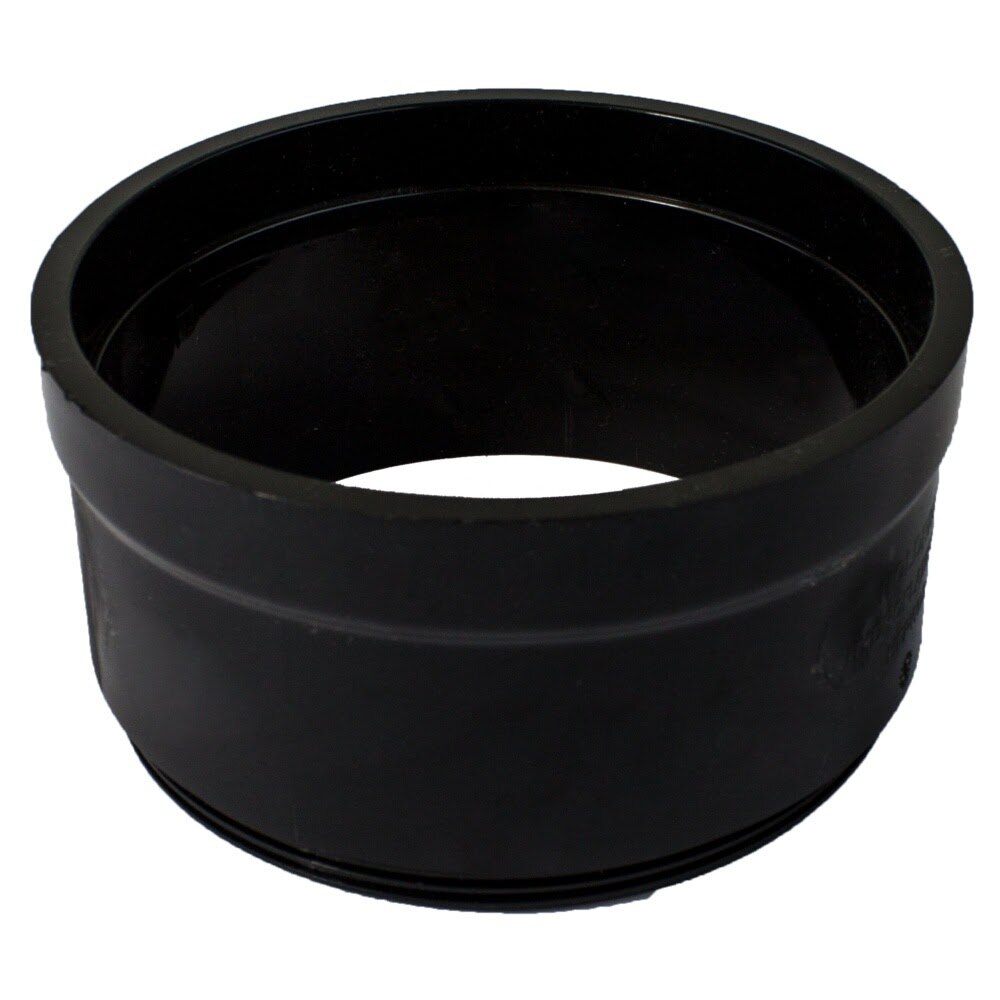

The HoldRite HydroFlame Pro Series HFPWD2 water dam is designed for use with No 2 firestop sleeves and No 3 hollow sleeves for 1 in. to 2 in. metal or plastic pipe penetrations. It adds 2 in. of overall height, installs after the concrete pour and safety cap removal, and helps impede water when used with cast in place sleeves.
HoldRite HFPWD2 Includes
- (1) HydroFlame Pro Series Water Dam
HoldRite HFPWD2 Features
- Designed for use with No 2 firestop sleeves and No 3 hollow sleeves
- Compatible with 1 in. to 2 in. metal and plastic pipe
- Adds 2 in. of overall height to HydroFlame Pro Series sleeves
- Installs after concrete pour and safety cap removal
- Helps impede water when used with cast in place sleeves
- Screws onto HydroFlame Pro Series telescoping sleeves or water modules
- Load rated for riser clamp support
HoldRite HFPWD2 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Water Dam |
| Compatible Firestop Sleeve | No 2 |
| Compatible Hollow Sleeve | No 3 |
| Nominal Penetrant Size | 1 in. - 2 in. |
| Penetrating Pipe Type | Metal and Plastic |
| Added Height | 2 in. |
| Installation | After concrete pour and safety cap removal |
| Mounting | Screws onto telescoping sleeves or water modules |
| Load Rated for Riser Clamp Support | Yes |
| Product Length (in) | 4.007 |
| Product Width (in) | 4.007 |
| Product Height (in) | 2.599 |
| Product Weight (lb) | 0.32 |
Toolup Part # :
884321
