HoldRite HFPWD4 Description

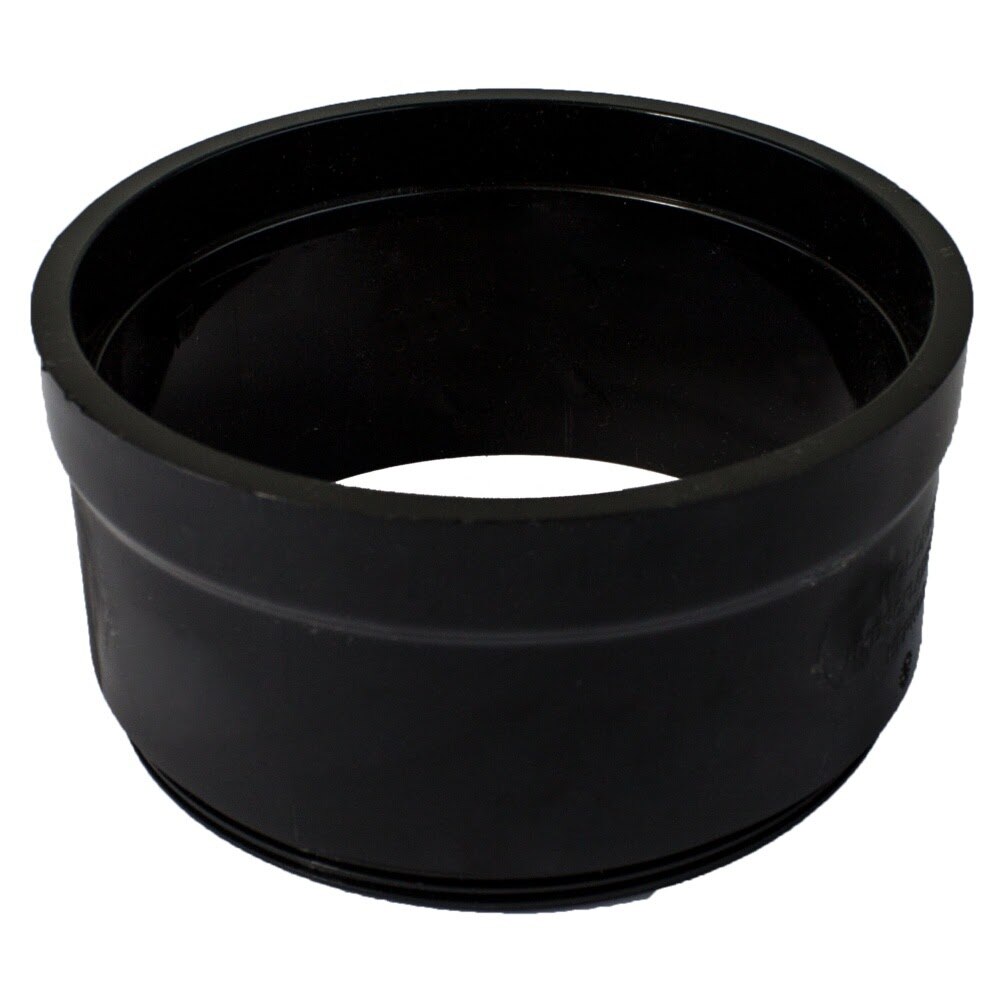

The HoldRite HydroFlame Pro Series Water Dam attaches to the top of compatible Pro Series cast-in-place firestop sleeves to create a water dam barrier around the sleeve opening. Designed for Size 4 firestop sleeves and Size 5 hollow sleeves used with metal or plastic pipe, it adds 2 inches of overall sleeve height and installs after the concrete pour and safety cap removal.
HoldRite HFPWD4 Includes
- (1) HydroFlame Pro Series Water Dam
HoldRite HFPWD4 Features
- Creates a water dam barrier at the perimeter of the sleeve opening
- Attaches to the top of HydroFlame Pro Series cast-in-place firestop sleeves
- Adds 2 in. of overall height to the sleeve assembly
- Load-rated for riser clamp support
- Installs after concrete pour and safety cap removal
- Designed for Size 4 firestop sleeves and Size 5 hollow sleeves
- Compatible with metal or plastic pipe
HoldRite HFPWD4 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Water Dam |
| Compatible Firestop Sleeve Size | Size 4 |
| Compatible Hollow Sleeve Size | Size 5 |
| Pipe Compatibility | Metal or Plastic |
| Added Height | 2 in. |
| Installation | After concrete pour and safety cap removal |
| Support Rating | Load-rated for riser clamp support |
| Product Length (in) | 6.135 |
| Product Width (in) | 6.135 |
| Product Height (in) | 2.621 |
| Product Weight (lb) | 0.524 |
Toolup Part # :
883892
