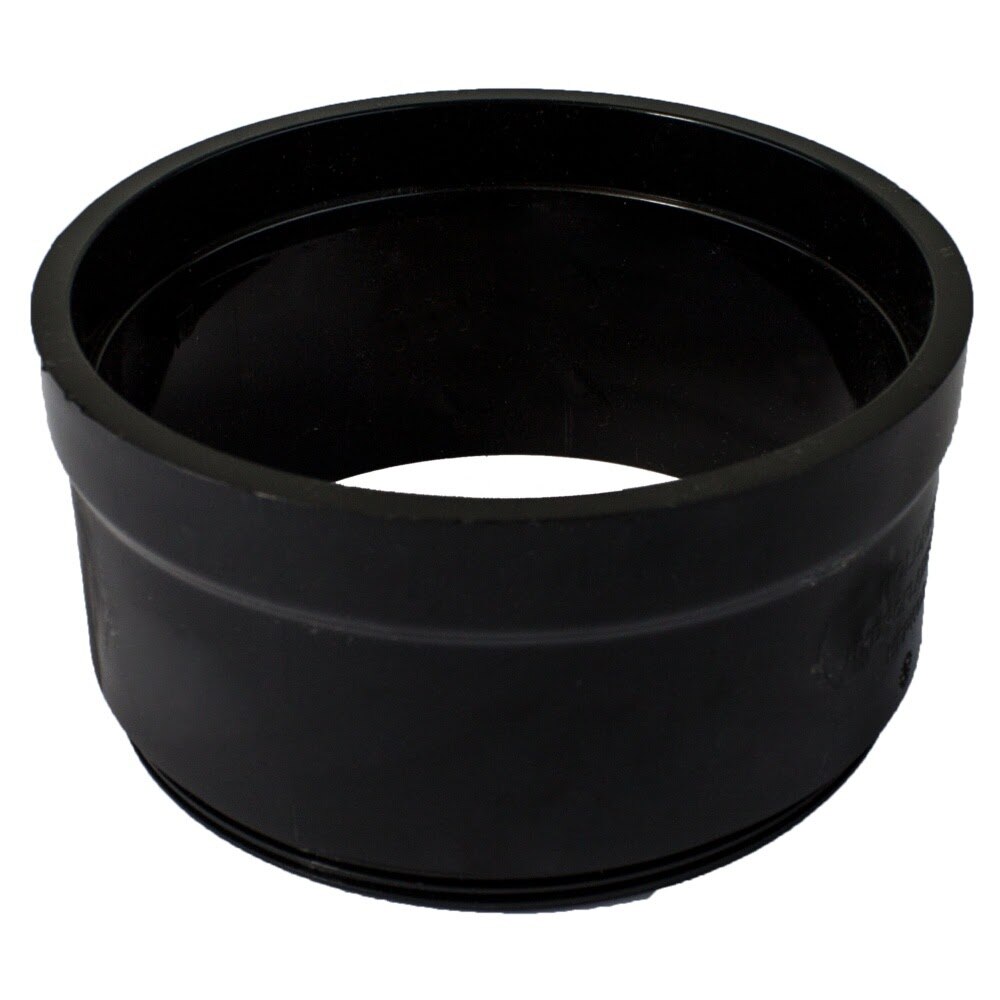

HoldRite HFPWD6 Description
The HoldRite HydroFlame Pro Series water dam is designed for use with No. 6 firestop sleeves and No. 7 hollow sleeves on metal or plastic pipe penetrations. It fits nominal penetrant sizes from 4 in. to 6 in., adds 2 in. of overall height to compatible sleeves, and helps impede water in cast-in-place sleeve applications. The water dam installs after the concrete pour and safety cap removal, then screws onto compatible HydroFlame Pro Series telescoping sleeves or water modules.
HoldRite HFPWD6 Includes
- (1) HydroFlame Pro Series Water Dam
HoldRite HFPWD6 Features
- Compatible with No. 6 firestop sleeves and No. 7 hollow sleeves
- Fits 4 in. to 6 in. nominal penetrant sizes
- For metal and plastic pipe applications
- Adds 2 in. of overall height to compatible HydroFlame Pro Series sleeves
- Load-rated for riser clamp support
- Installs after concrete pour and safety cap removal
- Helps impede water when used with cast-in-place sleeves
- Screws onto HydroFlame Pro Series telescoping sleeves or water modules
HoldRite HFPWD6 Specifications
| Brand | HoldRite |
| Series | HydroFlame Pro Series |
| Product Type | Water Dam |
| MPN | HFPWD6 |
| Compatible Sleeve | No. 6 Firestop Sleeve and No. 7 Hollow Sleeve |
| Nominal Penetrant Size | 4 in. - 6 in. |
| Penetrating Pipe Type | Plastic and Metal |
| Added Height | 2 in. |
| Each Width | 2.62 in. |
| Each Height | 8.75 in. |
| Each Length | 8.75 in. |
| Each Shipping Weight | 1.04 lb |
Toolup Part # :
883102
