HoldRite HR-F-C-0 Description

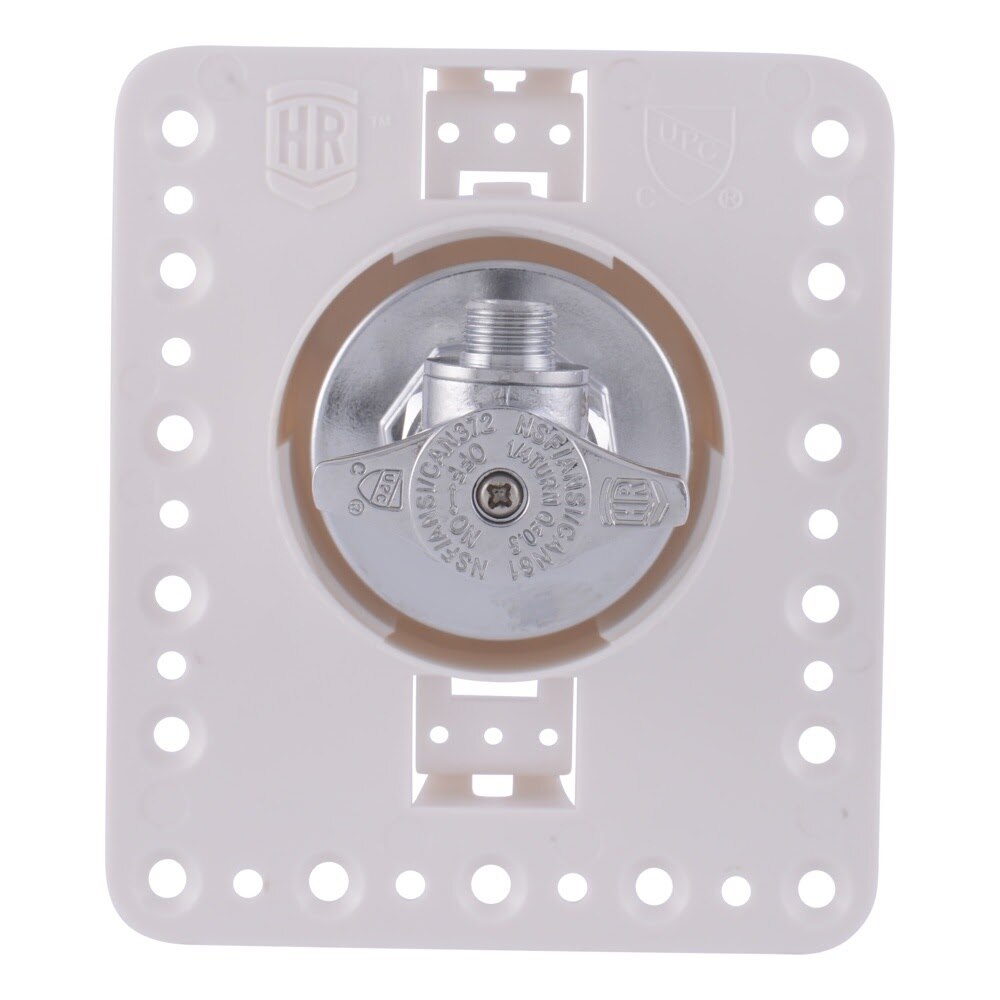

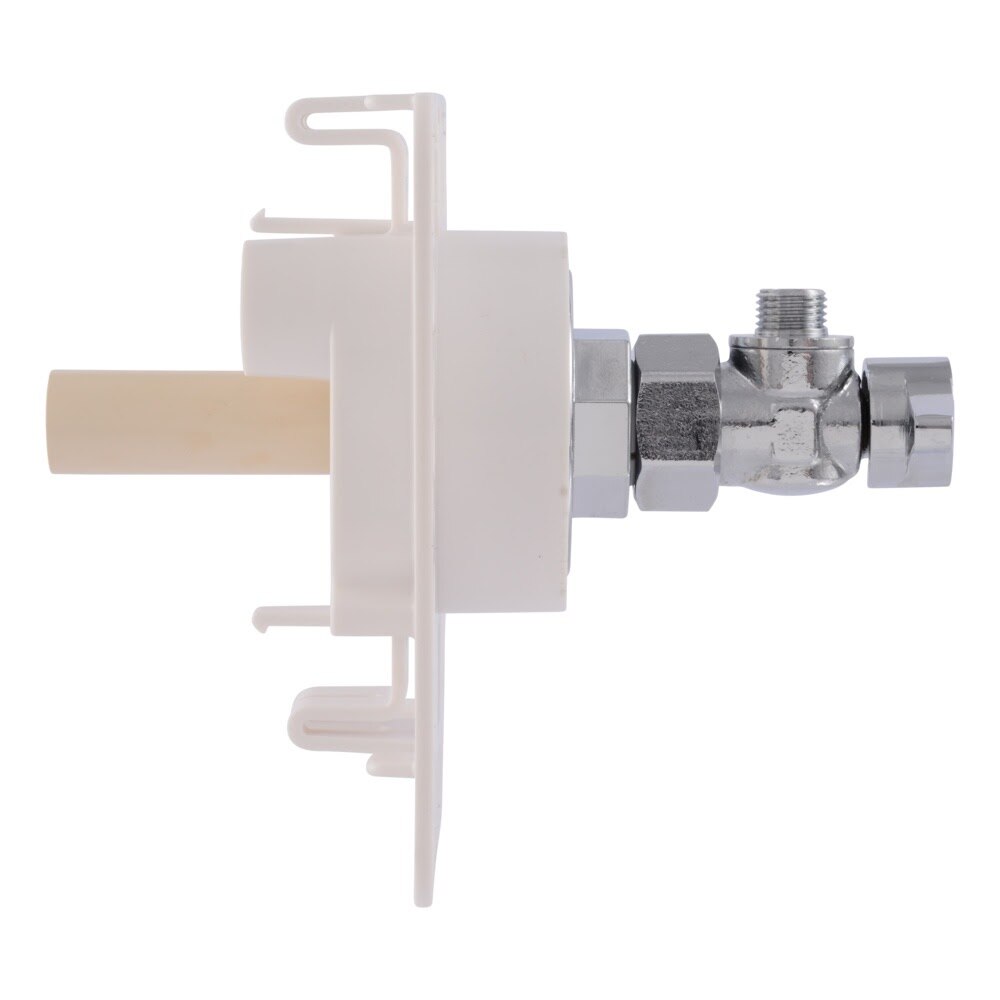

The HoldRite HR-F-C-0 is a fixture outlet box assembly designed for residential and commercial plumbing rough-in applications. It features a 1/2 in. CPVC inlet, 1/4 in. compression outlet, an integrated quarter turn angle supply valve, and a protective debris cover for clean, efficient installation.
HoldRite HR-F-C-0 Includes
- (1) Fixture Outlet Box Assembly
- (1) Quarter Turn Angle Supply Valve
- (1) Protective Debris Cover
HoldRite HR-F-C-0 Features
- Non fire rated design
- 1/2 in. CPVC inlet with 1/4 in. OD compression outlet
- Includes an integrated quarter turn angle supply valve
- Fully assembled out of the bag
- Tailpiece allows near 360 degree movement for flexible installation orientation
- Installs directly to a stud or between studs with compatible bracketing

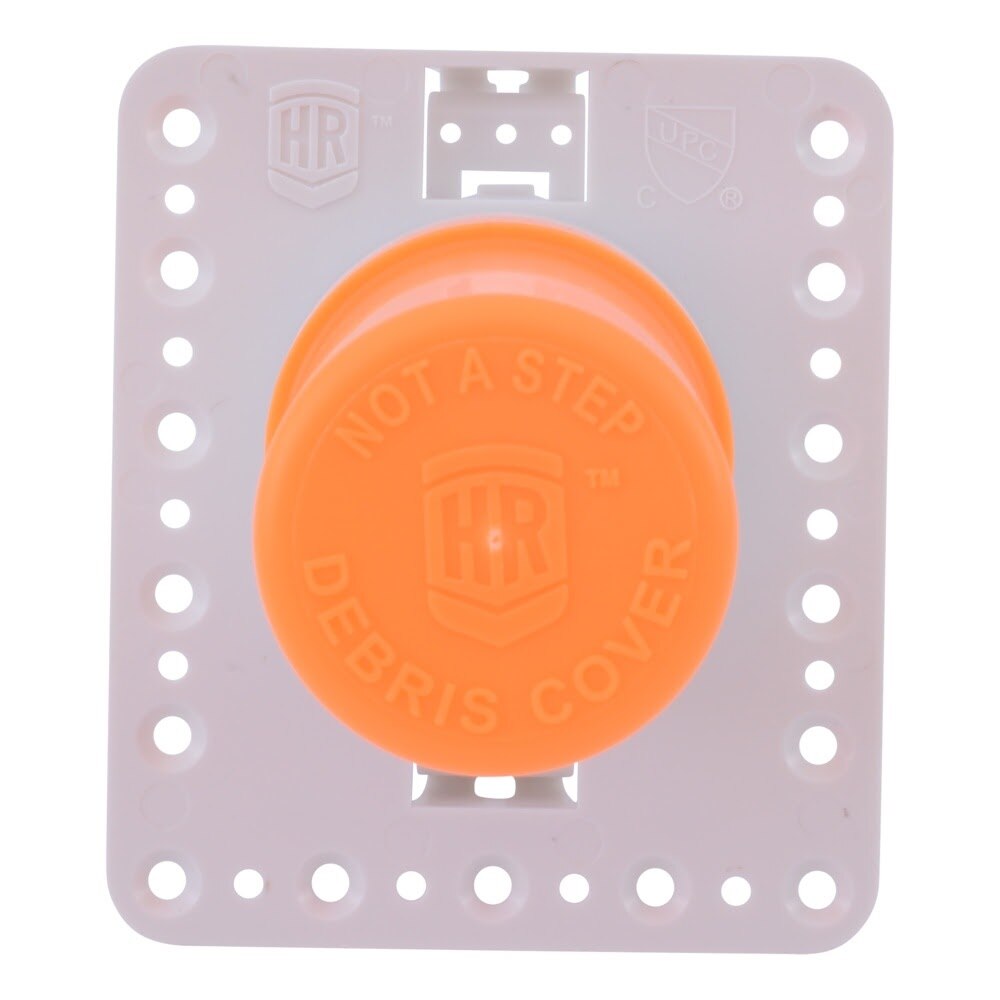

- Protective threaded debris cover installs and removes without additional tools or screws
- Handles standard drywall configurations out of the box
- Compact footprint with a 2.5 in. sheetrock hole size
- Two support leg sockets and one 5/8 in. friction socket provide added support options
- Suitable for lavatory, sink, and toilet installations
HoldRite HR-F-C-0 Specifications
| Product Type | Fixture Outlet Box |
| Fire Rating | Non Fire Rated |
| Inlet Size | 1/2 in. |
| Inlet Type | CPVC |
| Outlet Size | 1/4 in. |
| Outlet Type | Compression |
| Pipe Tailpiece | CPVC |
| Valve Type | Quarter Turn Angle Supply Valve |
| Maximum Pressure | 125 psi |
| Maximum Temperature | 160 F |
| Application | Plumbing |
Toolup Part # :
883789
