HoldRite HR-F-M-1 Description

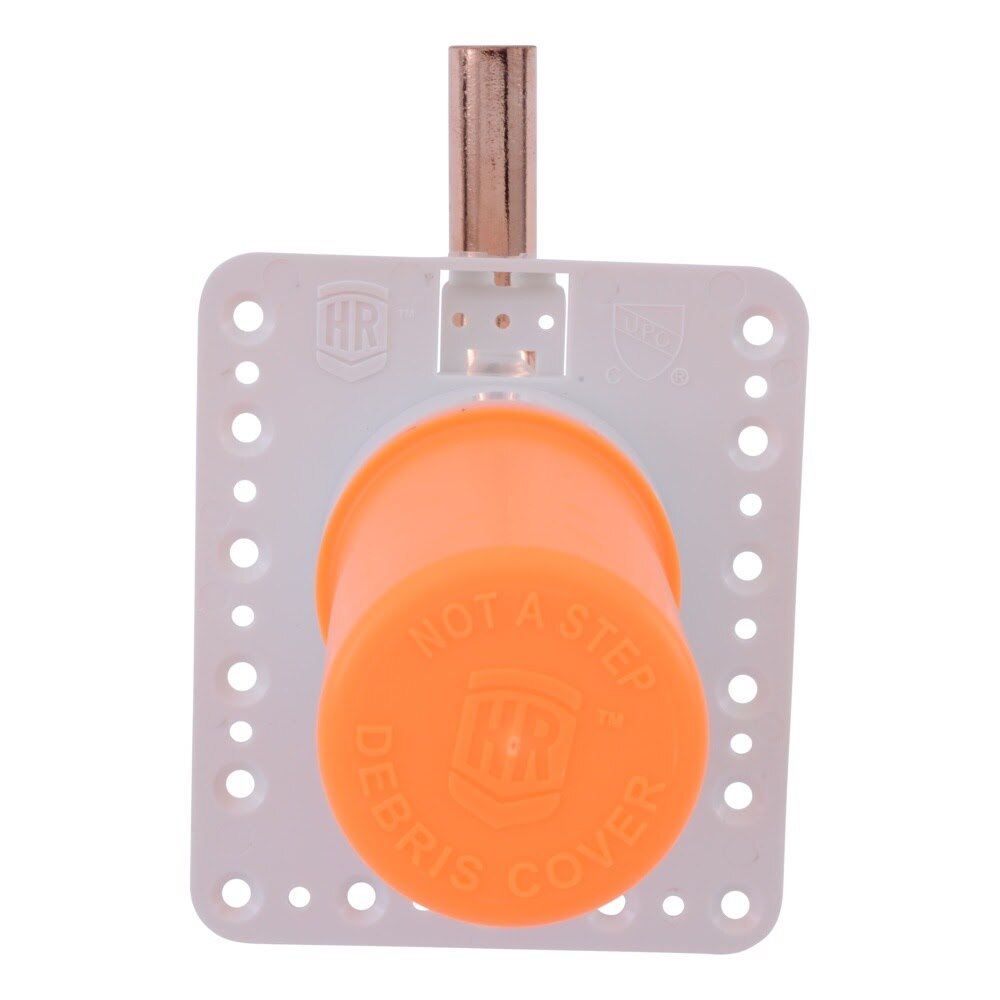

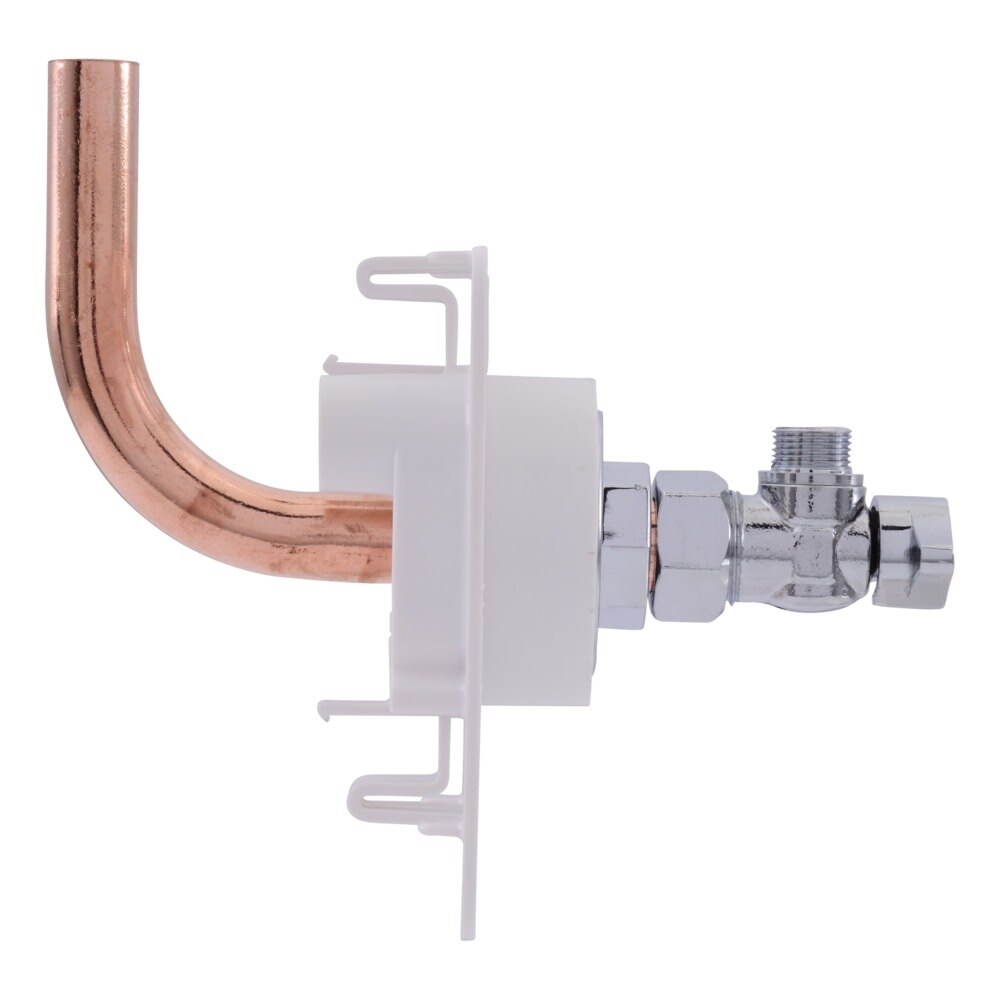

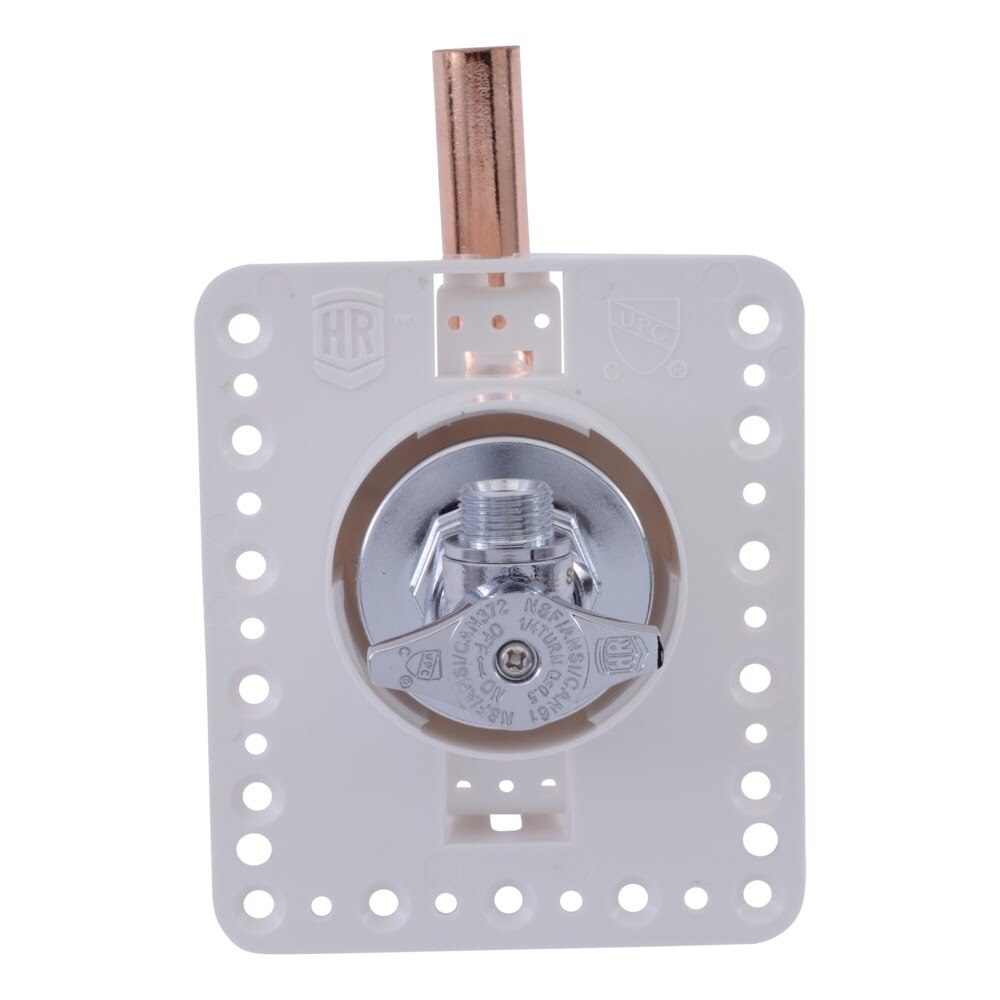

The HoldRite HR-F-M-1 is a non fire rated fixture outlet box assembly with a 1/2 in. copper inlet and 3/8 in. compression outlet. Each unit comes pre-assembled with an angle supply valve and threaded debris cover to help speed rough-in installation for faucet and toilet connections in residential and commercial potable water systems.
HoldRite HR-F-M-1 Includes
- (1) Fixture Outlet Box Assembly with Pre-assembled Supply Valve
- (1) Threaded Debris Cover
HoldRite HR-F-M-1 Features
- Non fire rated fixture outlet box assembly
- Pre-assembled with supply valve and 3/8 in. compression connection
- Helps reduce installation time compared to traditional methods
- Includes threaded debris cover
- Allows the supply stop to be installed and pressure tested at rough-in
- Tail pieces provide near 360 Degree movement for flexible installation orientation
- Ideal for residential and commercial potable water applications
- Quarter-turn angle valve configuration
HoldRite HR-F-M-1 Specifications
| Fire Rating | Non Fire Rated |
| Inlet Diameter (In.) | 1/2 |
| Outlet Diameter (In.) | 3/8 |
| Connection | Sweat x Comp |
| Compatible Pipe Material | Copper |
| Compatible Product | Faucet, Toilet |
| Valve Configuration | Angle |
| Valve Operation | Quarter Turn |
| Application | Potable Water |
| Indoor/Outdoor | Indoor |
| Material | Brass |
| Maximum Pressure (PSI) | 125 PSI |
| Maximum Working Temperature (F) | 160 |
| Pack Size | 1 |
| Product Length (in.) | 11.81 in |
Toolup Part # :
883496
