HoldRite HR-F-P-1 Description

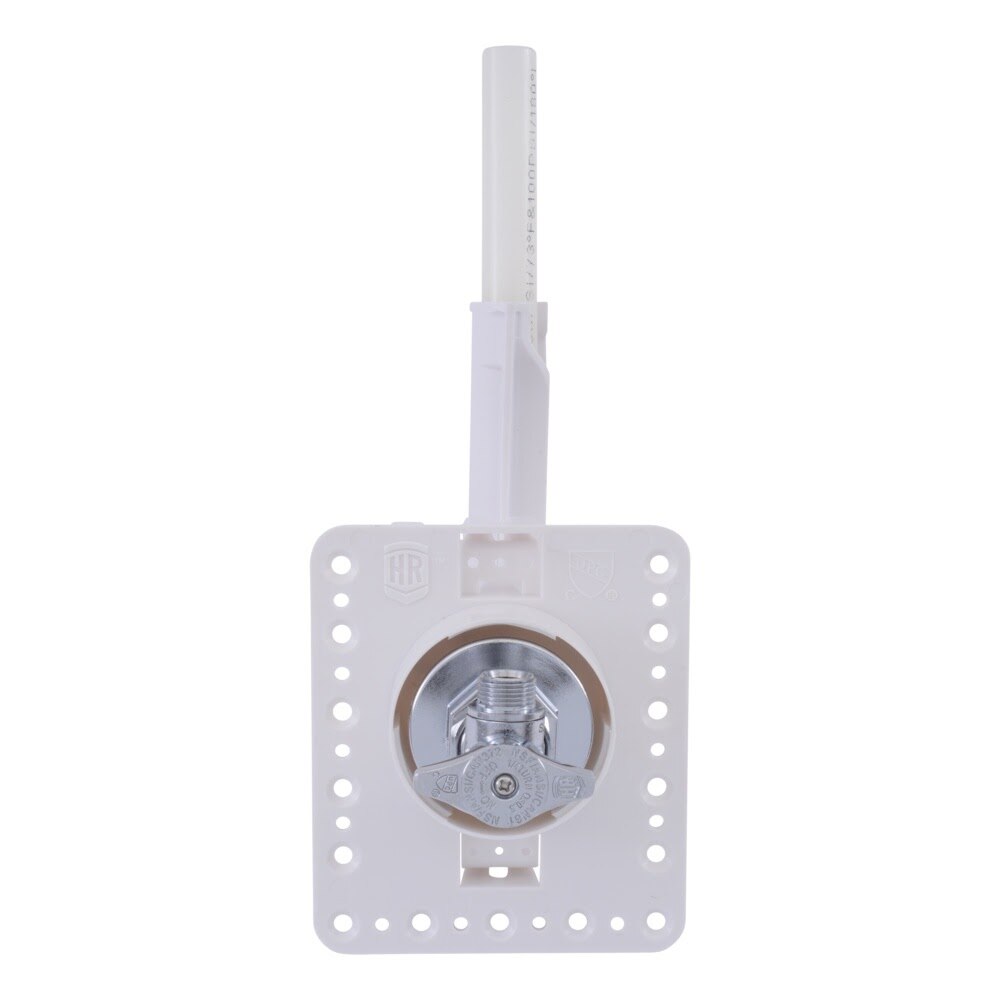

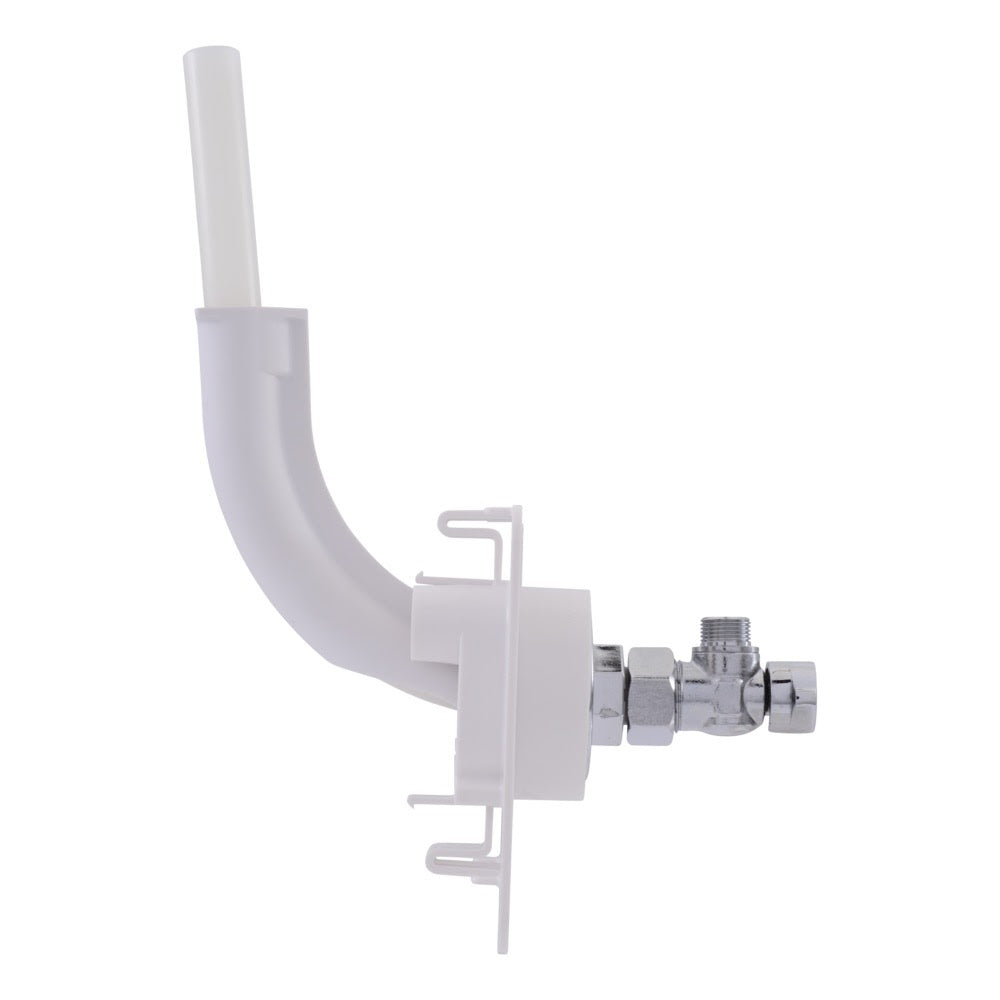

The HoldRite HR-F-P-1 is a non fire rated fixture outlet box designed for 1/2 in. PEX-A inlet and 3/8 in. compression outlet connections. Each box is pre-assembled with an angle supply valve and threaded debris cover to help speed rough-in installation for faucet and toilet supply lines in potable water applications.
HoldRite HR-F-P-1 Includes
- (1) Non Fire Rated Fixture Outlet Box with 1/2 in. PEX-A x 3/8 in. Compression Connection
- (1) Integrated Angle Supply Valve

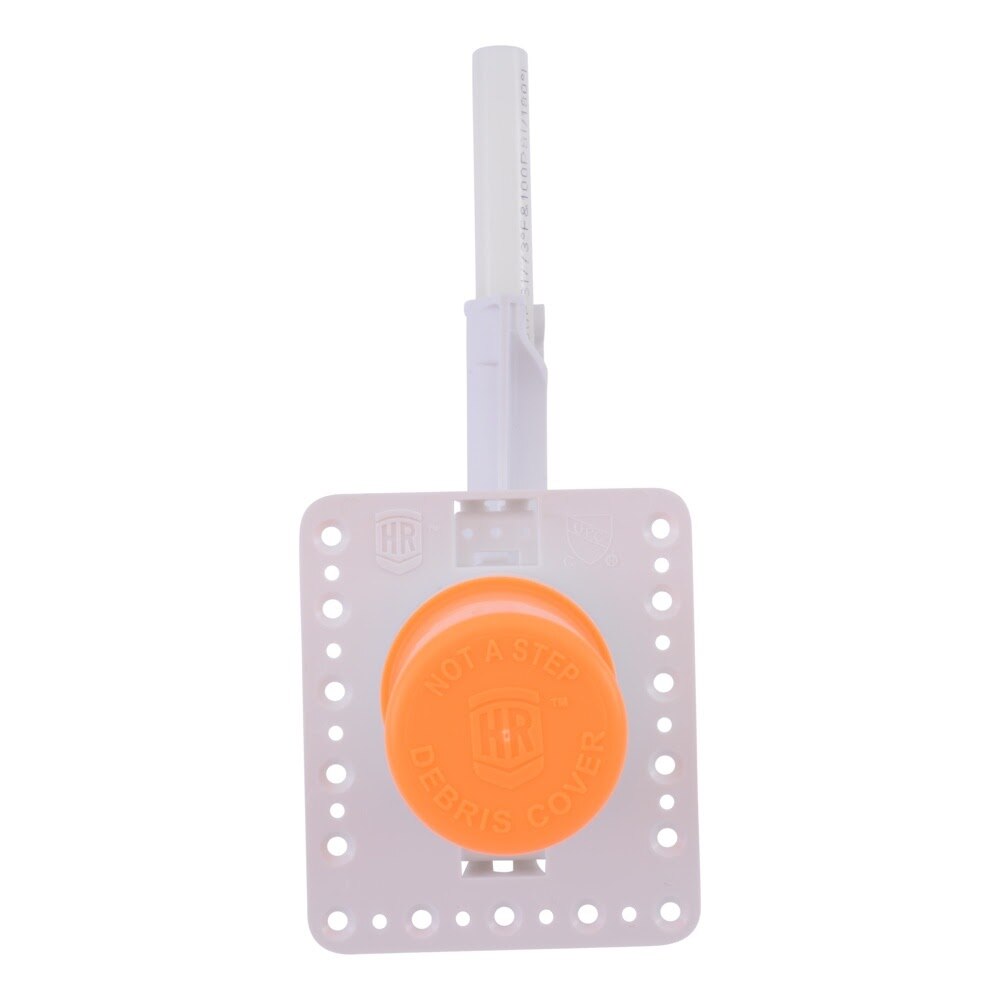

- (1) Threaded Debris Cover
HoldRite HR-F-P-1 Features
- Pre-assembled with supply valve for faster installation
- 3/8 in. compression outlet connection for fixture hookup
- Includes threaded protective debris cover
- Allows supply stop to be installed and pressure tested at rough-in
- Tailpieces offer near 360 Degree movement for flexible orientation
- Quarter-turn angle valve design
- Suitable for residential and commercial potable water applications
HoldRite HR-F-P-1 Specifications
| Product Type | Fixture Outlet Box |
| Fire Rating | Non Fire Rated |
| Pack Size | 1 |
| Application | Potable Water |
| Compatible Pipe Material | PEX |
| Compatible Product | Faucet, Toilet |
| Inlet Connection | 1/2 in. PEX-A |
| Outlet Connection | 3/8 in. Compression |
| Connection Type | Barb x Comp |
| Valve Configuration | Angle |
| Operation | Quarter Turn |
| Indoor/Outdoor | Indoor |
| Material | Brass |
| Color/Finish | White and Silver |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Product Length | 13.78 in. |
| Product Height | 9.00 in. |
| Product Width | 11.81 in. |
