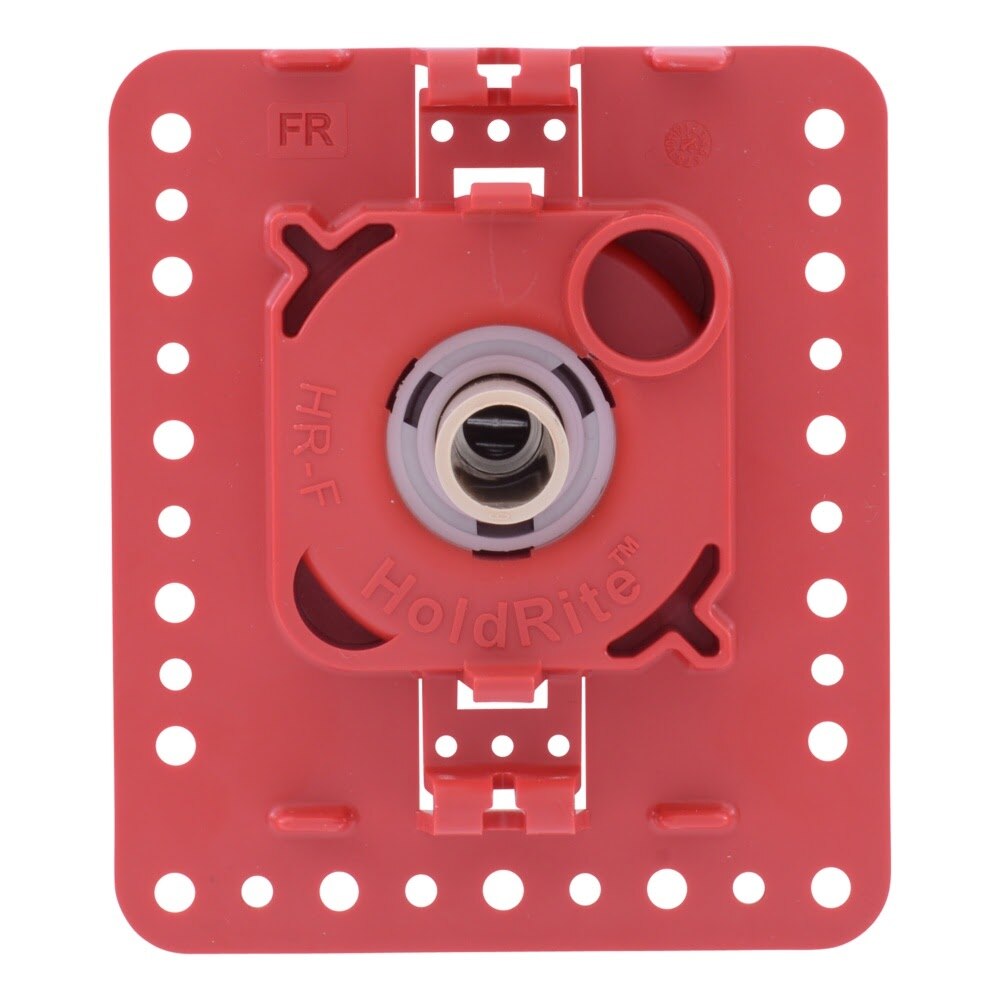

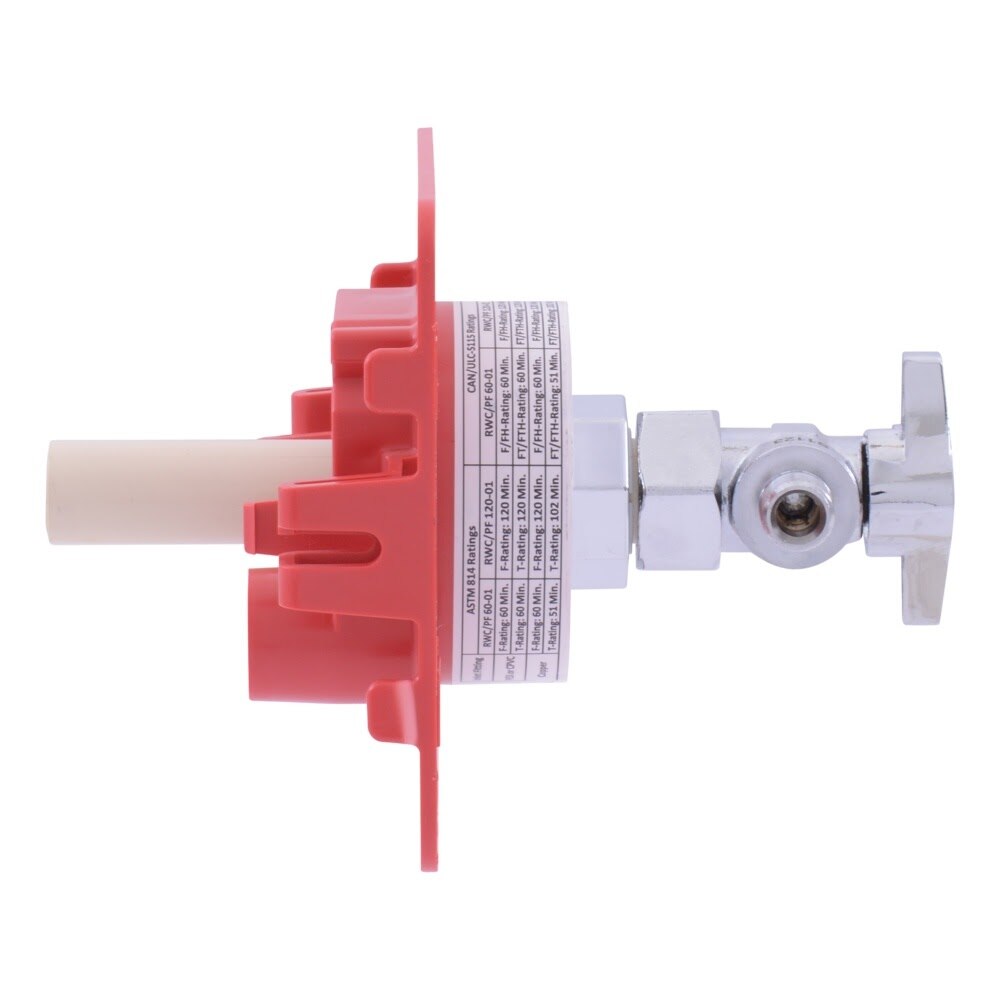

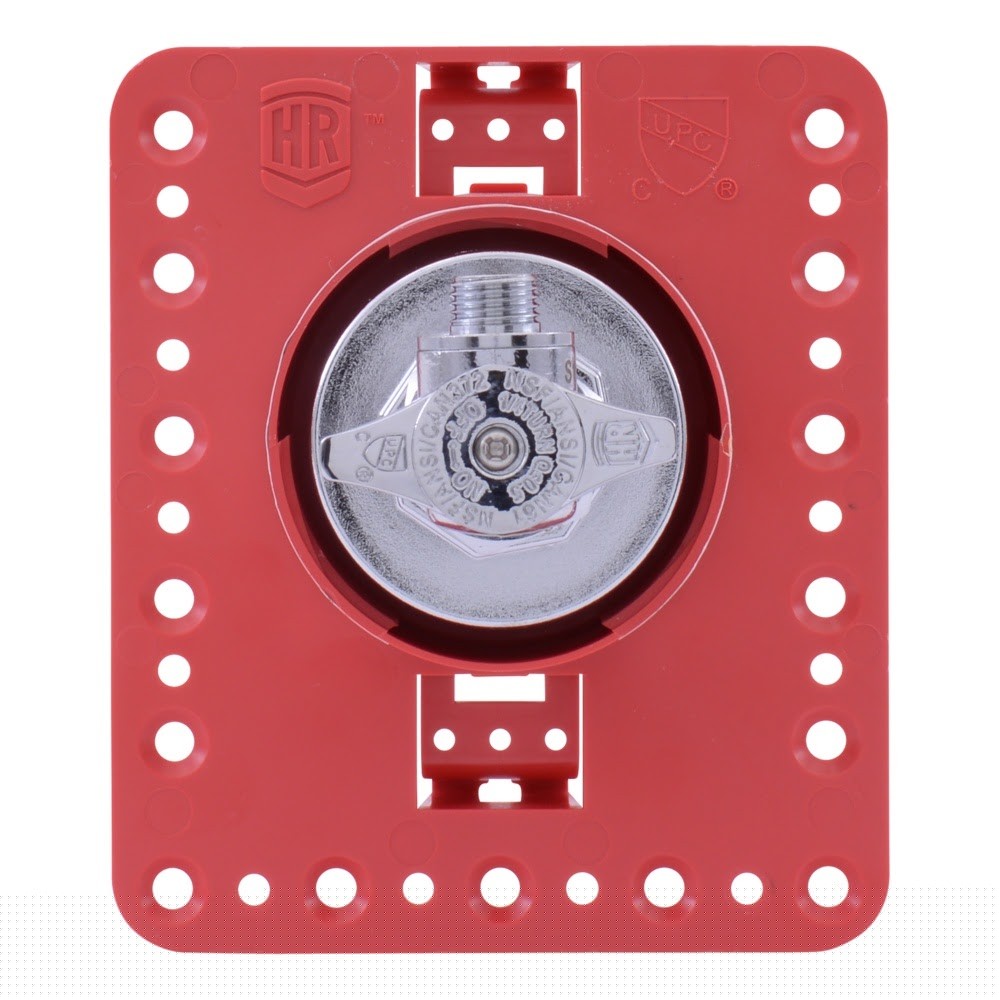

HoldRite HR-FR-C-0 Description
The HoldRite fire-rated fixture outlet box assembly is designed for commercial and residential plumbing rough-in applications, allowing the water supply valve to be installed early in the job. This fully assembled unit features a 1/2 in. CPVC inlet, a 1/4 in. compression outlet, a quarter-turn angle supply valve, and a threaded protective debris cover for clean, efficient installation.
HoldRite HR-FR-C-0 Includes
- (1) Fire-Rated Fixture Outlet Box Assembly with 1/4 Turn Angle Supply Valve
- (1) Protective Debris Cover
HoldRite HR-FR-C-0 Features
- Fire-rated outlet box assembly for plumbing rough-in applications
- Fully assembled for faster installation
- 1/2 in. CPVC inlet with 1/4 in. OD compression outlet
- Includes quarter-turn angle supply valve
- Tailpiece offers near 360 Degree movement for flexible orientation
- Compatible with HoldRite brackets, hyco bars, or direct stud mounting
- Threaded protective debris cover installs and removes without extra tools or screws
- Small footprint fits a 2.5 in. sheetrock hole
- Handles standard drywall configurations
- Suitable for lavatory, sink, and toilet installations
HoldRite HR-FR-C-0 Specifications
| Product Type | Fire-rated fixture outlet box assembly |
| Inlet Size | 1/2 in. |
| Pipe Tailpiece | CPVC |
| Outlet Size | 1/4 in. OD |
| Outlet Type | Compression |
| Valve Type | Quarter-turn angle supply valve |
| Max Pressure | 125 PSI |
| Max Temperature | 160 F |
| Application | Plumbing |
| Common Applications | Lavatory, sink, toilet |
| Drywall Hole Size | 2.5 in. |
| Each Length | 11.811 in. |
| Each Width | 9.8425 in. |
| Each Height | 7.999984 in. |
| Each Shipping Weight | 0.6172936 lb |
Toolup Part # :
883725
