HoldRite HR-FR-P-1 Description

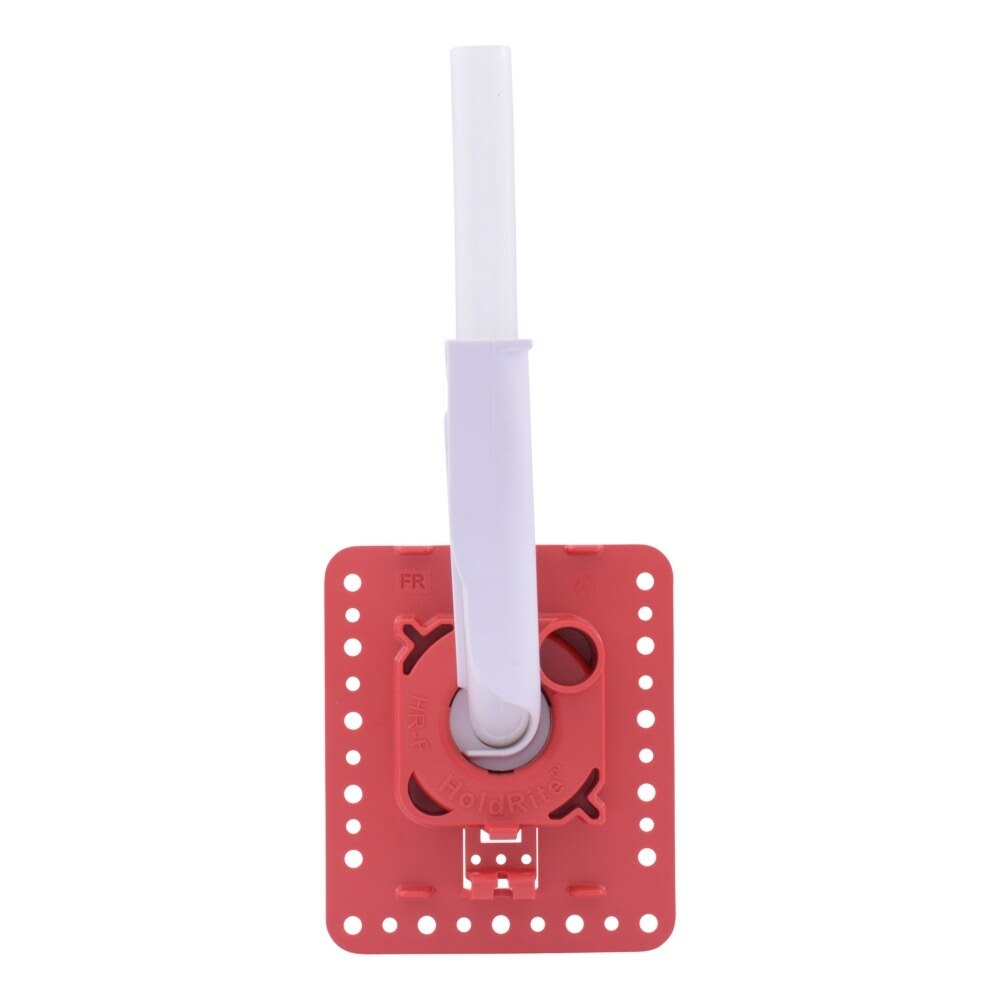

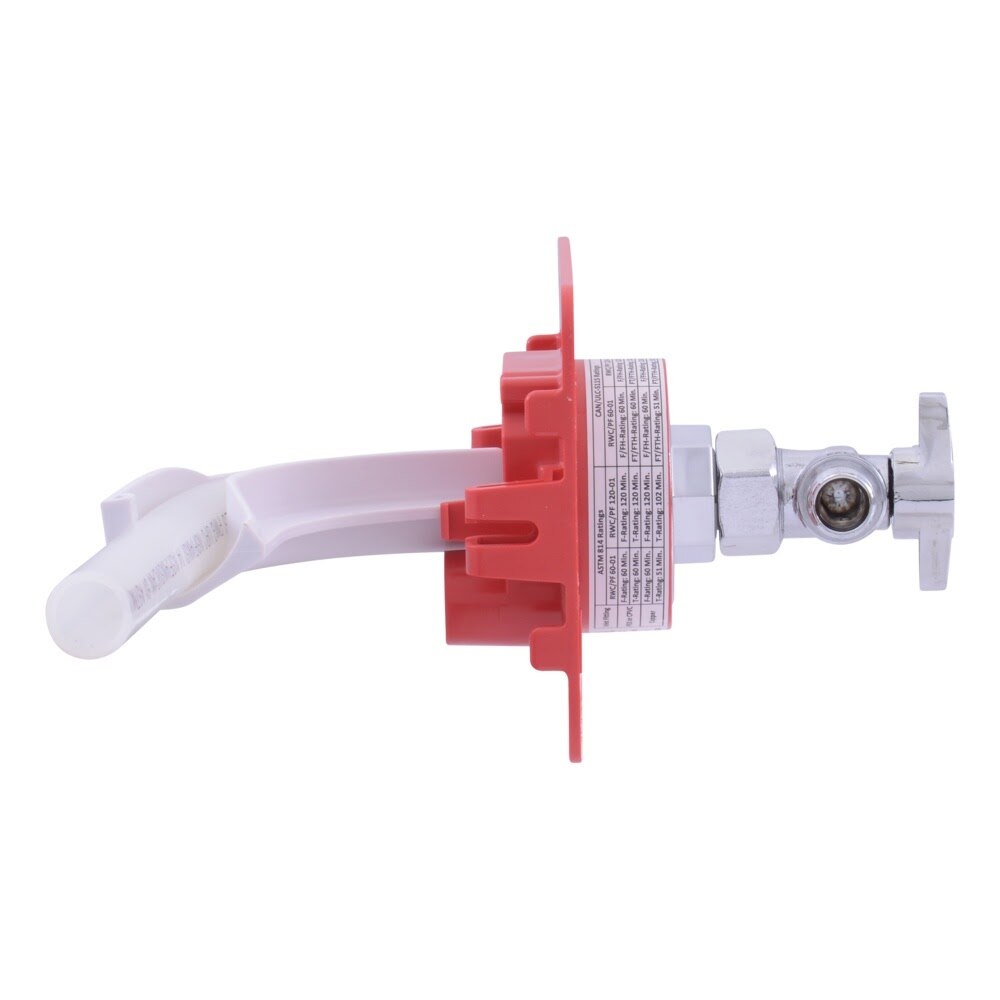

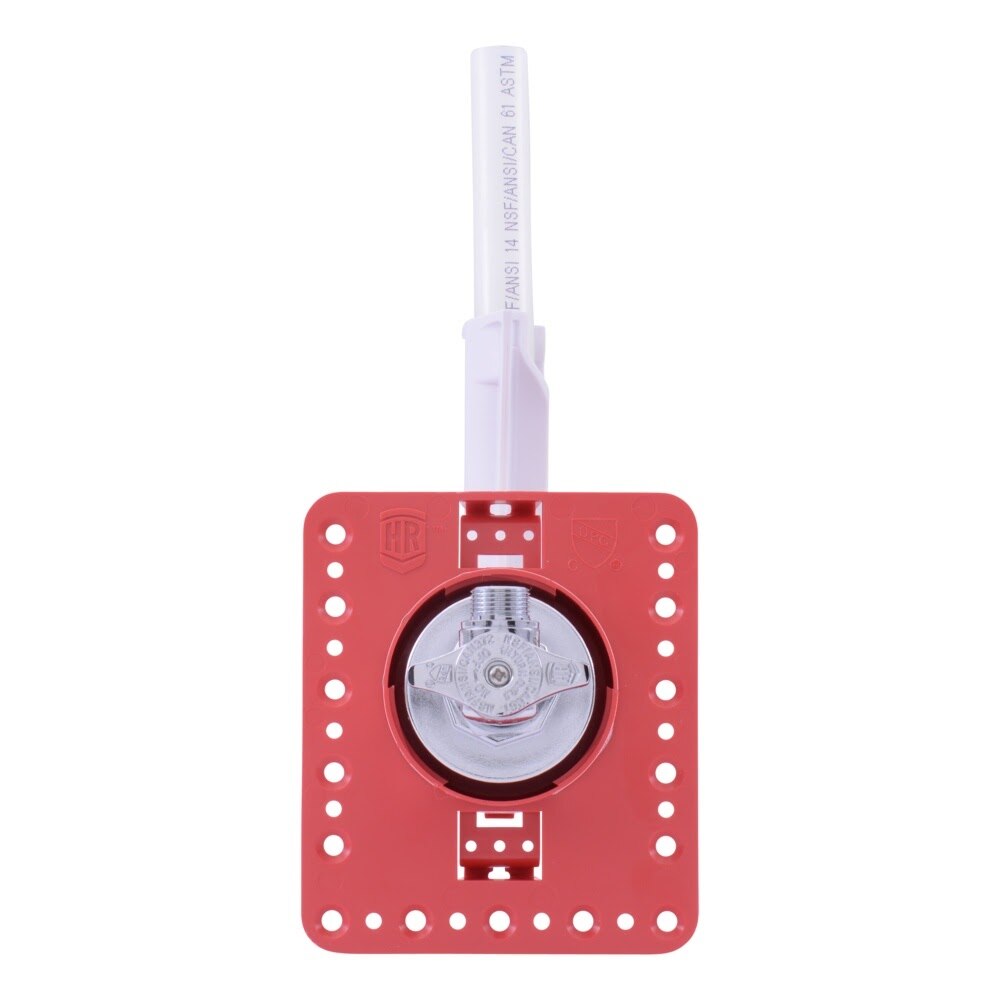

This pre-assembled HoldRite fire-rated fixture outlet box connects 1/2 in. PEX to a 3/8 in. compression outlet for faucet and toilet supply lines. The assembly includes a quarter-turn angle valve and threaded protective cover to speed rough-in, pressure testing, and finish work in residential or commercial potable water installations.
HoldRite HR-FR-P-1 Includes
- (1) Fire-Rated Fixture Outlet Box Assembly
- (1) Integrated Quarter-Turn Supply Valve
- (1) Threaded Protective Cover
HoldRite HR-FR-P-1 Features
- Pre-assembled with supply valve and 3/8 in. compression connection
- Fire-rated outlet box design for fixture and appliance installations
- Quarter-turn angle valve for easy shutoff
- Allows supply stop installation and pressure testing at rough-in
- Tailpiece offers near 360 Degree movement for flexible installation orientation
- Includes threaded protective debris cover
- Helps reduce installation time compared to traditional methods
- Suitable for residential and commercial potable water applications
HoldRite HR-FR-P-1 Specifications
| Application | Potable Water |
| Color/Finish | Red |
| Compatible Pipe Material | PEX |
| Compatible Product | Faucet, Toilet |
| Connection | 1/2 in. PEX x 3/8 in. Compression |
| Features | Fire Rated, Quarter Turn |
| Indoor/Outdoor | Indoor |
| Material | Brass |
| Maximum Pressure | 125 PSI |
| Maximum Working Temperature | 160 F |
| Valve Configuration | Angle |
| Inlet Diameter | 1/2 in. |
| Outlet Diameter | 3/8 in. |
| Product Length | 13.78 in. |
| Pack Size | 1 |
Toolup Part # :
883506
