Description
Description

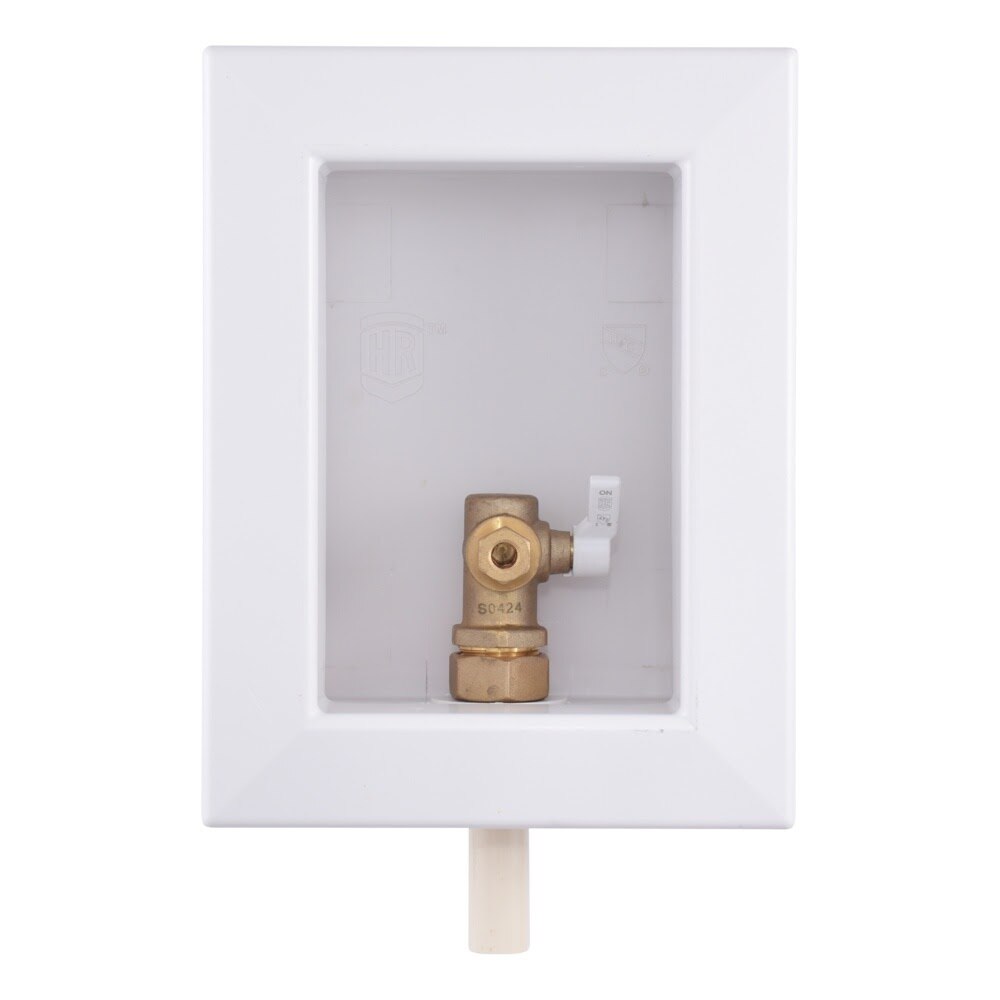

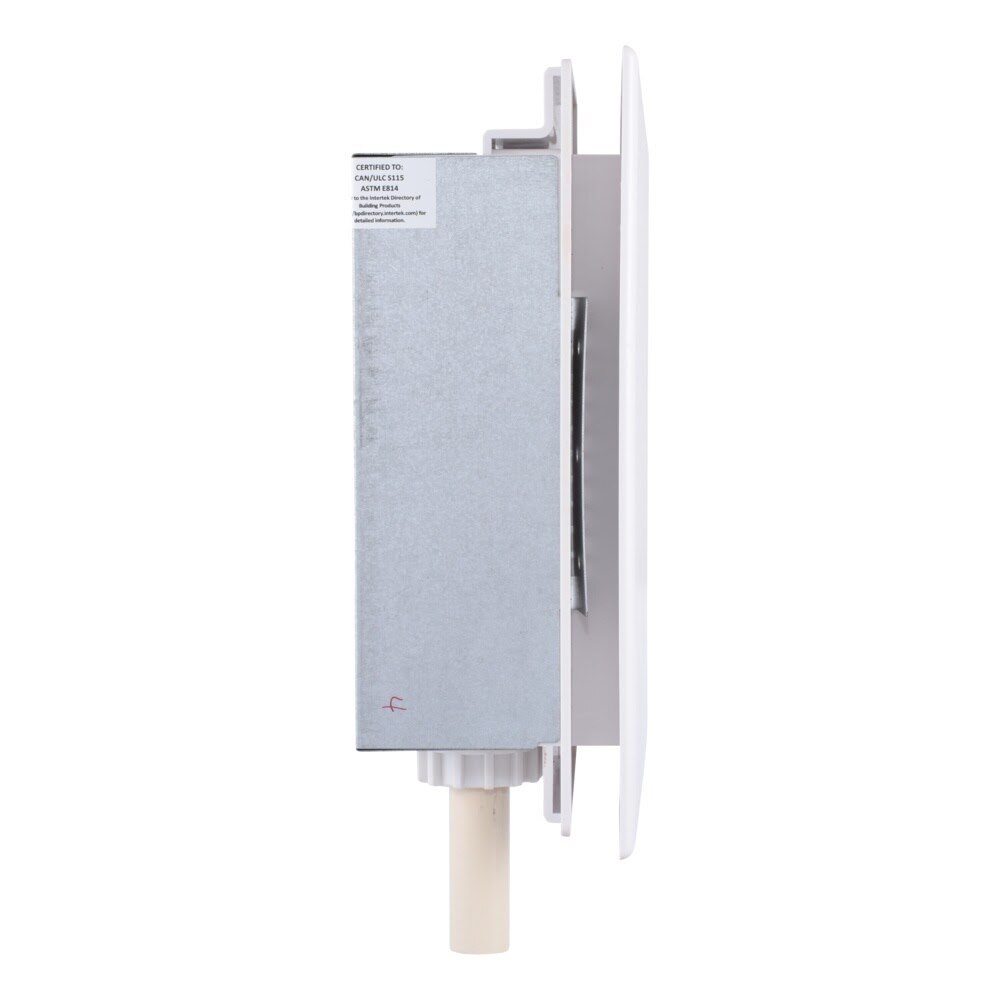

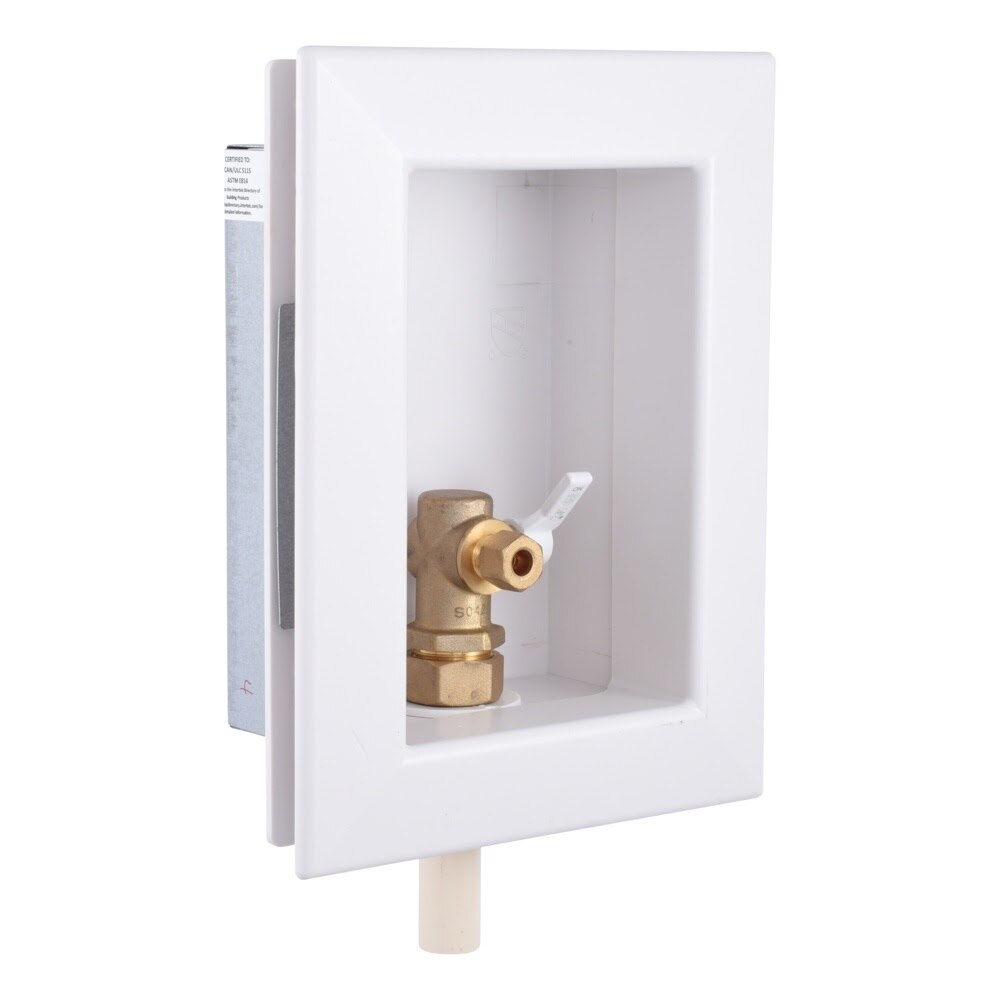

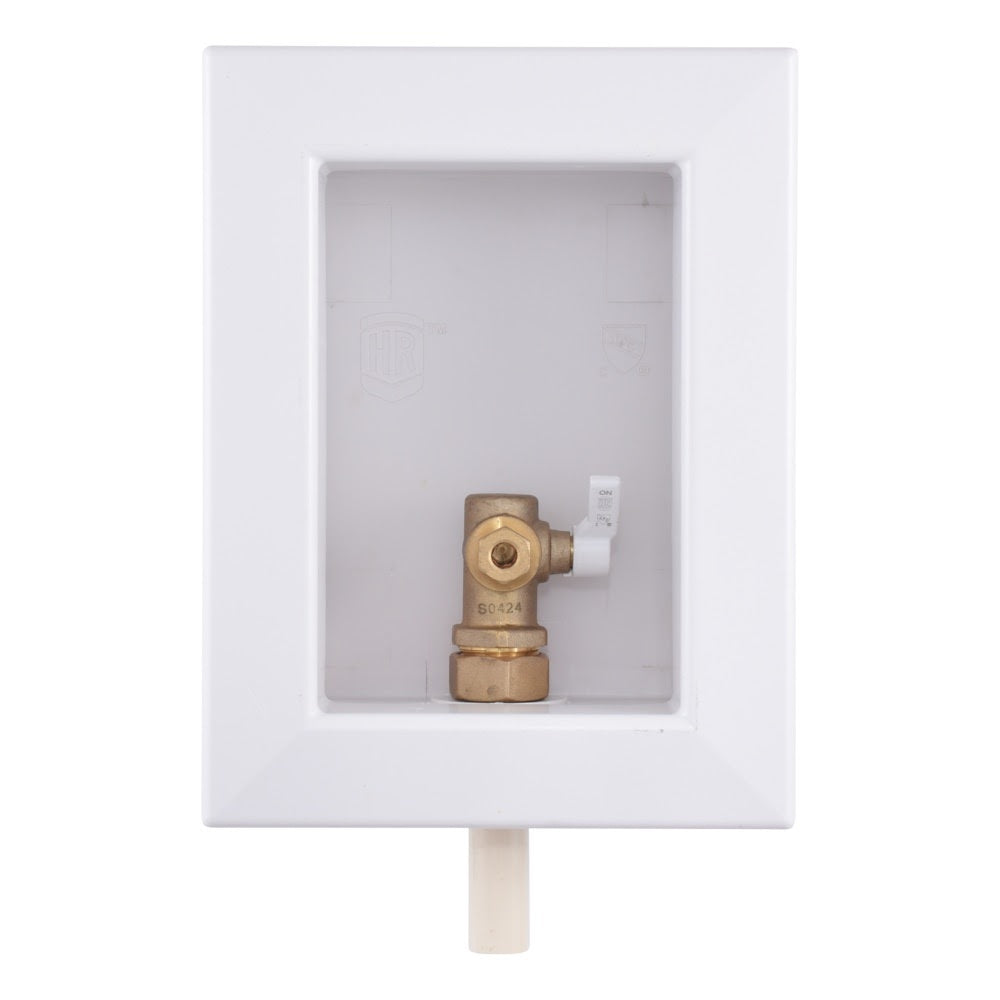

HoldRite HR-IMR-C-0 Description
The HoldRite HR-IMR-C-0 is a fire-rated ice maker outlet box with a pre-assembled 1/2 in. CPVC inlet and 1/4 in. compression outlet for clean, professional water supply installations. It includes a white paintable trim cover and debris cover, and it can be mounted for top or bottom supplied water lines in residential or commercial applications.
HoldRite HR-IMR-C-0 Includes
- (1) Fire-rated ice maker outlet box
- (1) Integrated 1/2 in. CPVC x 1/4 in. compression valve
- (1) White paintable trim cover
- (1) Debris cover
HoldRite HR-IMR-C-0 Features
- Fire-rated outlet box designed for ice maker installations
- Pre-assembled design helps reduce installation time
- 1/2 in. CPVC inlet x 1/4 in. compression outlet connection
- White paintable trim cover snaps into place without adhesives or fasteners
- Can be mounted for top or bottom supplied water lines
- Suitable for residential and commercial applications
- Provides a clean, professional finished appearance
- Certified to CAN/ULC S115 and ASTM E814
HoldRite HR-IMR-C-0 Specifications
| Product Type | Ice Maker Outlet Box |
| Fire Rated | Yes |
| Inlet Connection Size | 1/2 in. |
| Inlet Connection Type | CPVC |
| Outlet Connection Size | 1/4 in. |
| Outlet Connection Type | Compression |
| Installation | Pre-assembled |
| Water Supply Orientation | Top or bottom supplied water lines |
| Trim Cover Color | White |
| Trim Cover Finish | Paintable |
| Application | Residential and commercial |
| Standards | CAN/ULC S115; ASTM E814 |
| Model Number | HR-IMR-C-0 |
| UPC | 671119004731 |
Toolup Part # :
882740
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
