Description
Description
HoldRite HR-IMRA-M-0 Description

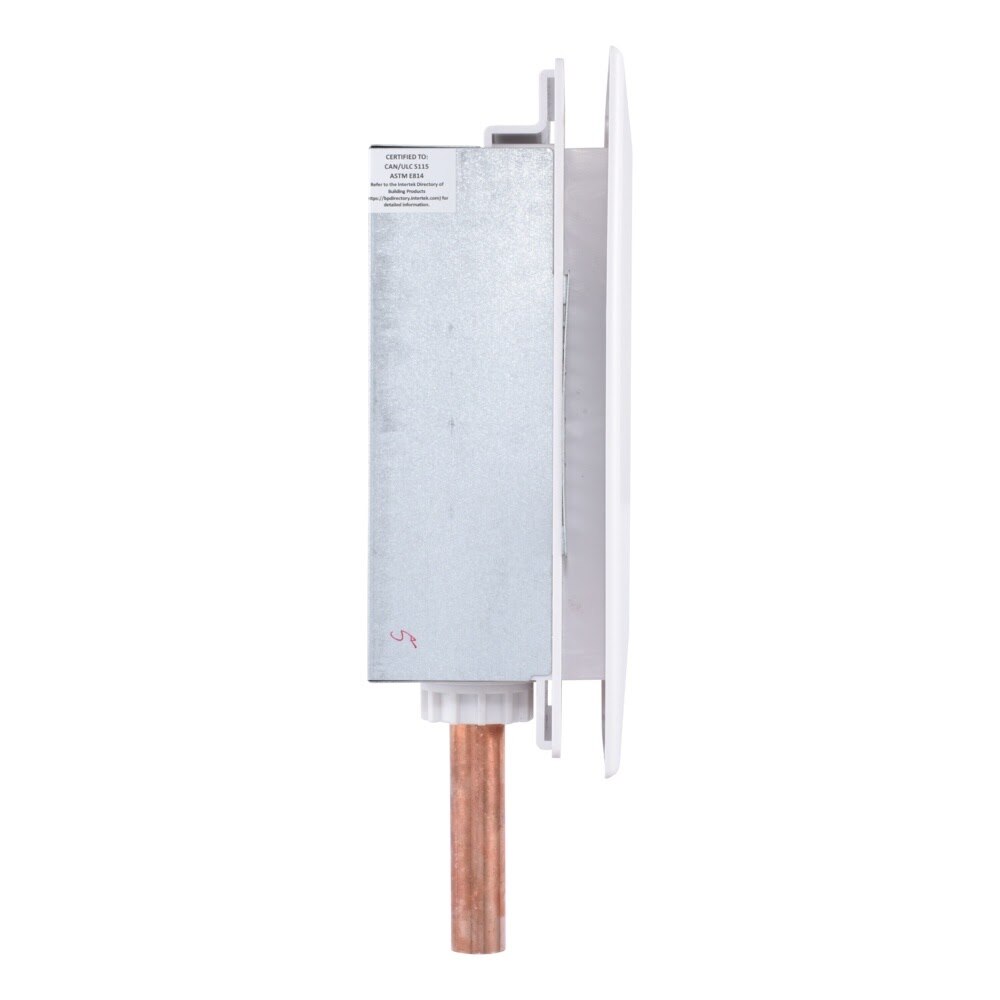

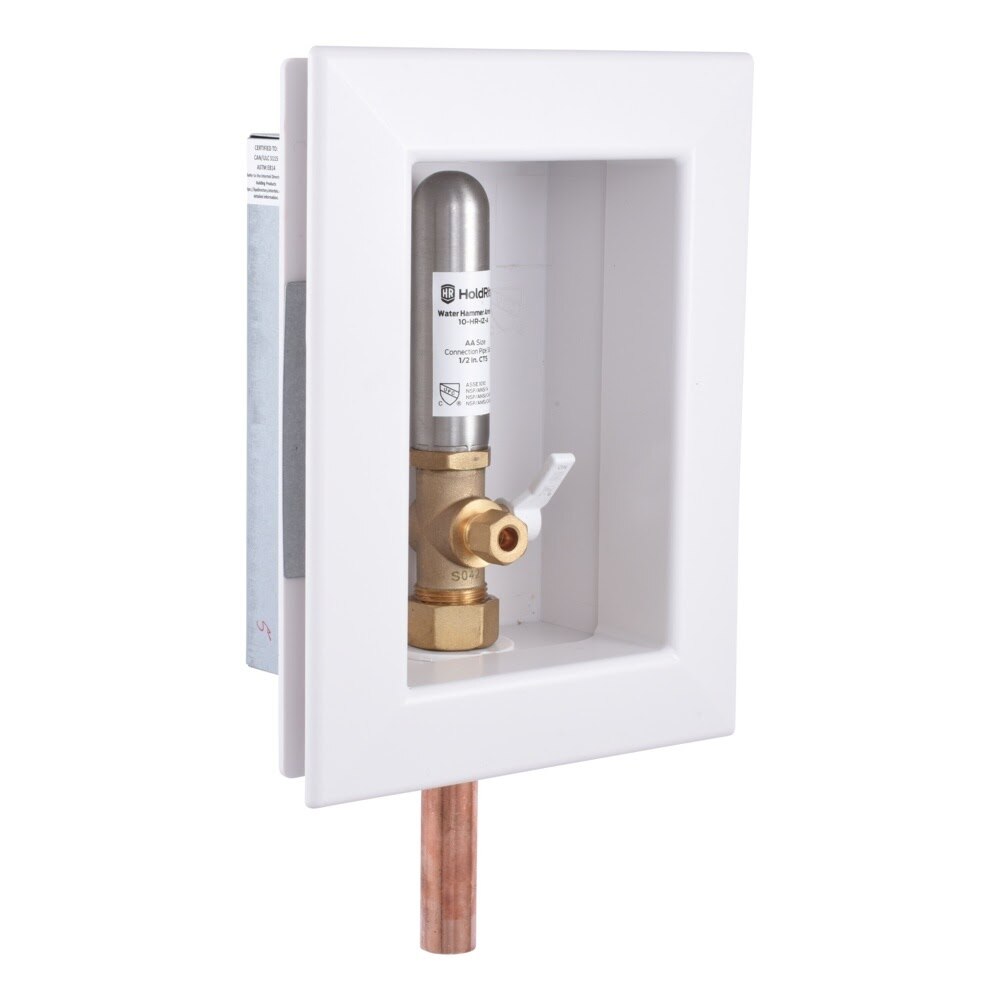

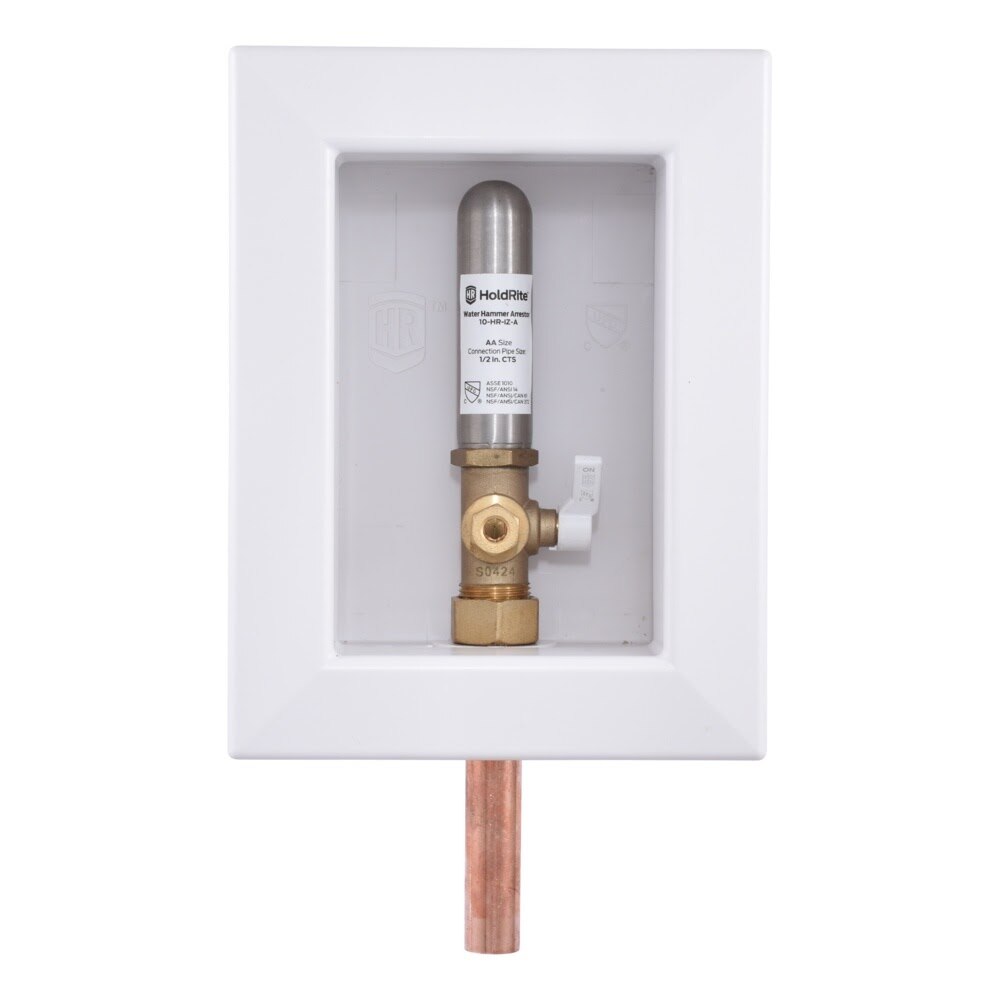

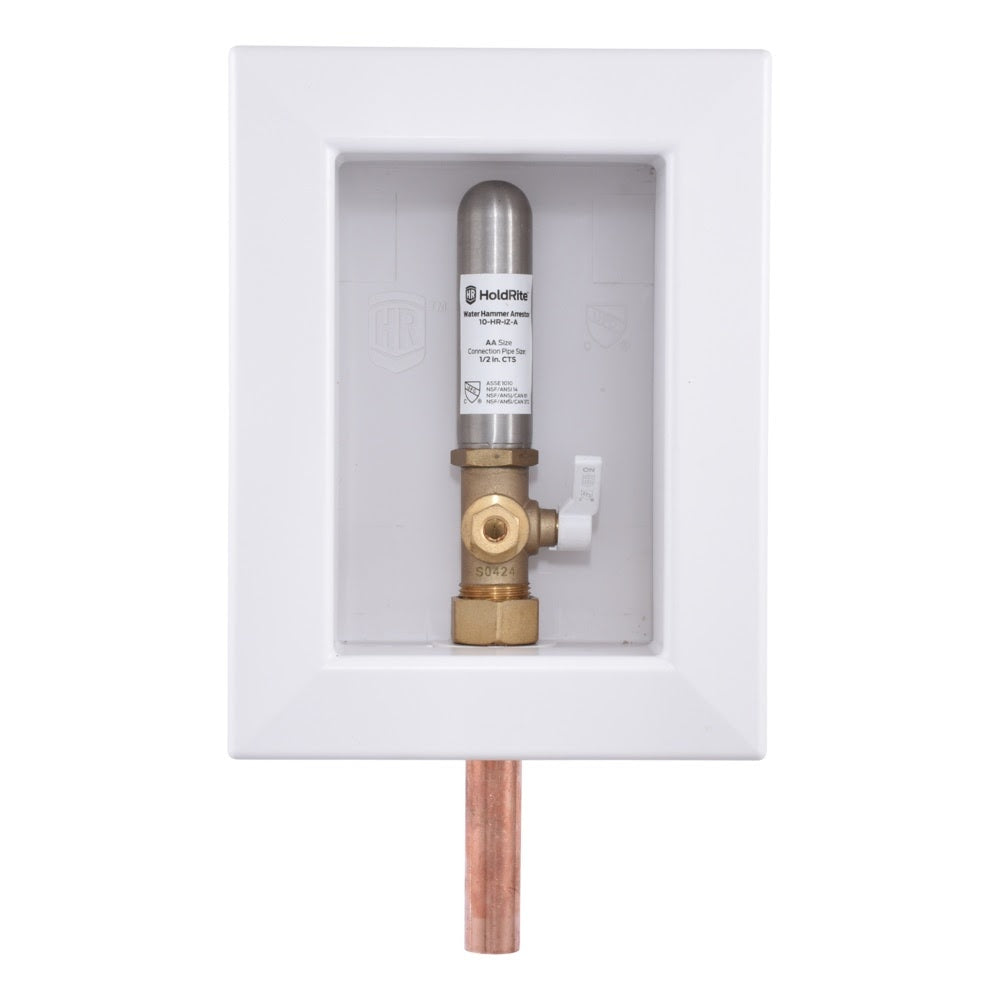

This fire rated ice maker outlet box is designed for rough-in water supply installations and includes an integral water hammer arrestor to help reduce shock in the line. The copper 1/2 in. x 1/4 in. compression assembly features a slim recessed ABS box, quarter-turn shut-off valve, paintable trim cover, and flexible upright or inverted installation with top or bottom supply.
HoldRite HR-IMRA-M-0 Includes
- (1) Fire Rated Ice Maker Outlet Box
- (1) Water Hammer Arrestor
- (1) Quarter-Turn Shut-Off Valve
- (1) White Trim Cover
- (1) Rough-In Debris Cover
HoldRite HR-IMRA-M-0 Features
- Fire rated recessed outlet box for ice maker water supply installations
- Integral water hammer arrestor helps reduce water shock
- Copper 1/2 in. x 1/4 in. compression connection
- Suitable for residential and commercial applications
- Slim compact design for clean in-wall installation
- Durable ABS plastic box construction
- White paintable trim cover snaps into place without adhesives or fasteners
- Can be installed upright or inverted
- Supports top or bottom water supply
- Attaches directly to studs or compatible mounting brackets
HoldRite HR-IMRA-M-0 Specifications
| Product Type | Ice Maker Outlet Box |
| Fire Rated | Yes |
| Water Hammer Arrestor | Yes |
| Connection Material | Copper |
| Inlet Size | 1/2 in. |
| Outlet Size | 1/4 in. |
| Outlet Connection | Compression |
| Box Material | ABS plastic |
| Valve Material | Lead-free brass |
| Supply Orientation | Top or bottom supply |
| Installation Position | Upright or inverted |
| Color | White |
| Product Length (in) | 13.78 |
| Product Width (in) | 12.6 |
| Product Height (in) | 3 |
| Shipping Weight (lb) | 1.71 |
| Case Quantity | 10 |
Toolup Part # :
882661
