HoldRite HR-IMRA-P-0 Description

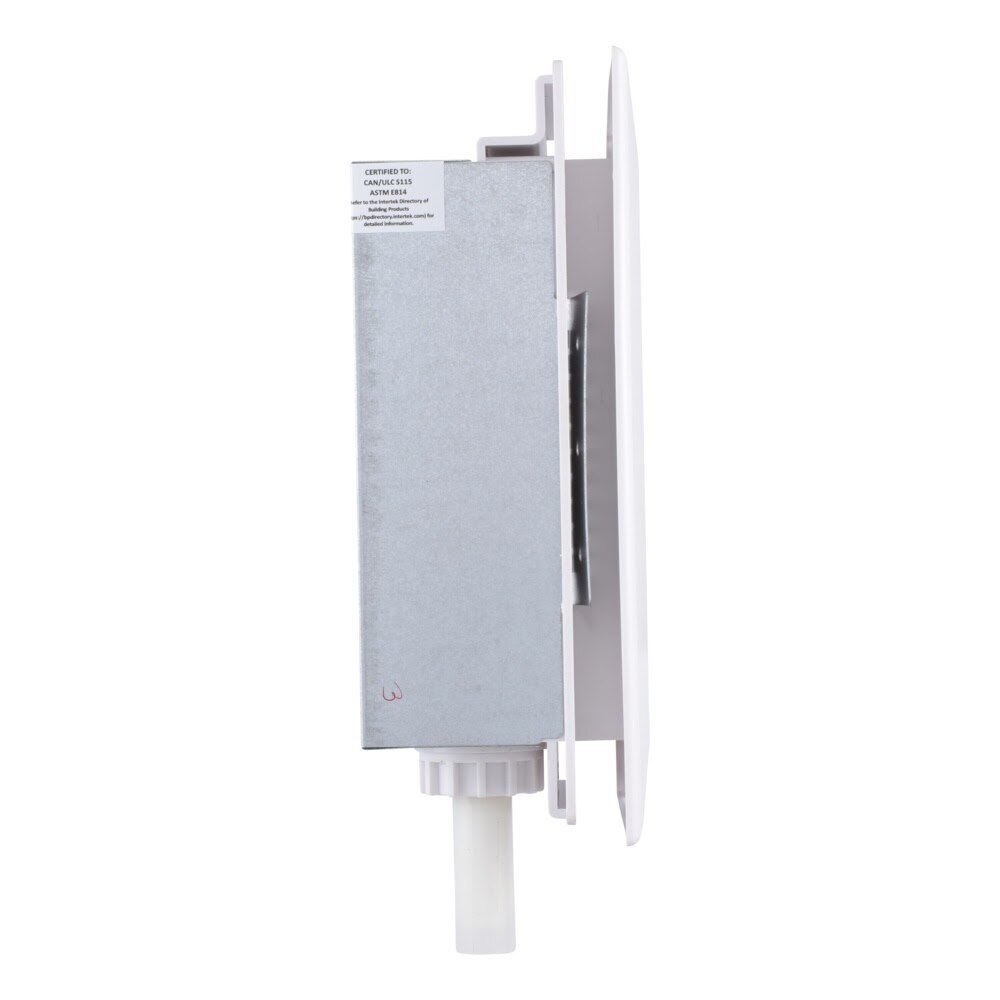

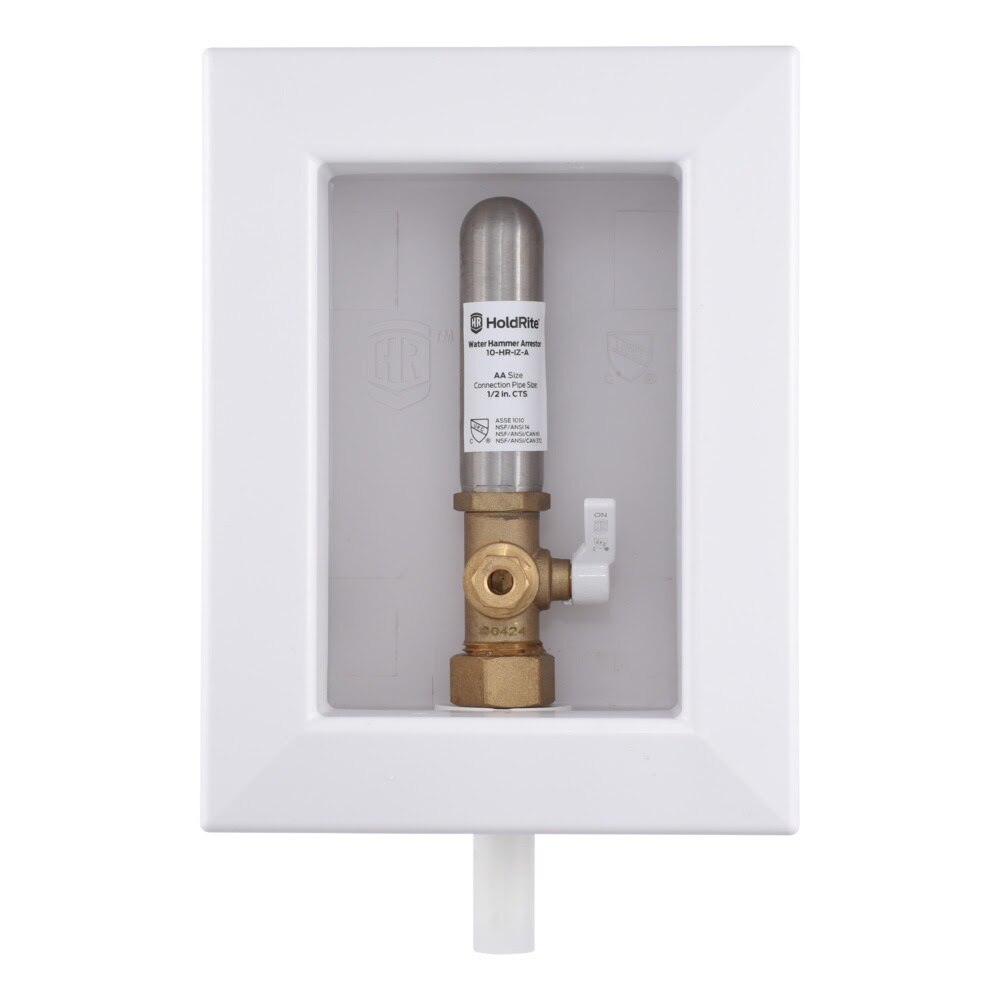

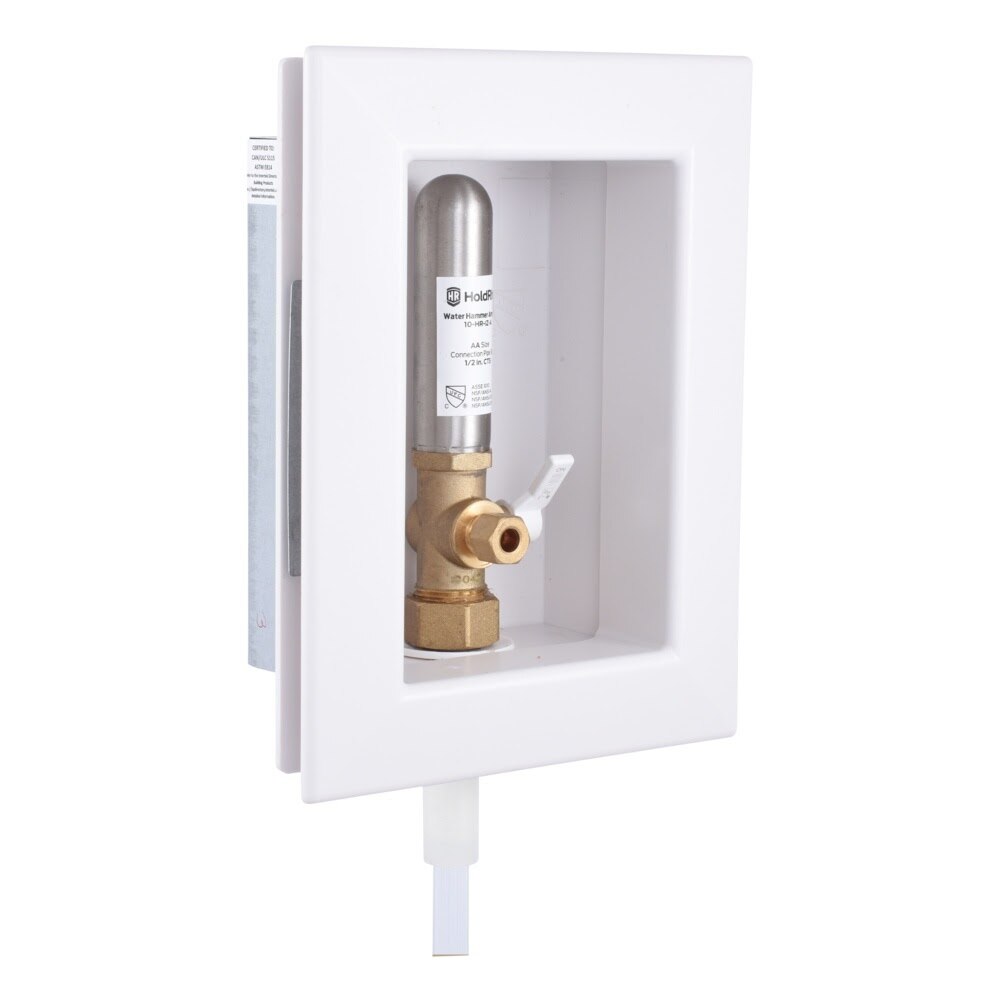

The HoldRite fire rated ice maker outlet box is a pre-assembled solution for connecting an ice maker supply line with a 1/2 in. PEX inlet and 1/4 in. compression outlet. It features an integrated water hammer arrestor and quarter turn ball valve to help reduce pipe noise and vibration while helping maintain the integrity of fire rated wall assemblies.
HoldRite HR-IMRA-P-0 Includes
- (1) Fire Rated Ice Maker Outlet Box with Water Hammer Arrestor
- (1) White Paintable Trim Cover
- (1) Debris Cover
- (1) Valve Marking Label Set
HoldRite HR-IMRA-P-0 Features
- Pre-assembled for easy installation and a professional appearance
- Integrated water hammer arrestor helps reduce pipe noise and vibration
- Fire-rated design helps maintain the integrity of fire-rated wall assemblies
- Quarter turn ball valve provides convenient shutoff control
- White paintable trim cover snaps into place without adhesives or fasteners
- Can be mounted for top or bottom supplied water lines
- Designed for 1/2 in. PEX inlet and 1/4 in. compression outlet connections
HoldRite HR-IMRA-P-0 Specifications
| Connection Type | PEX |
| Inlet Size | 1/2 in. |
| Outlet Size | 1/4 in. Compression |
| Valve Type | Quarter turn ball valve |
| Maximum PSI | 125 |
| Material | ABS plastic |
| Number of Valves | 1 |
| Water Hammer Arrestor Included | Yes |
| Fire Rated | Yes |
| Compatible Pipe Material | PEX |
| Complies with Federal Lead Guidelines | Yes |
| Warranty | 2-year limited |
| Product Length (in) | 13.78 |
| Product Width (in) | 12.6 |
| Product Height (in) | 3 |
| Product Weight (lb) | 1.63 |
Toolup Part # :
882686
