HoldRite HR-W-M Description

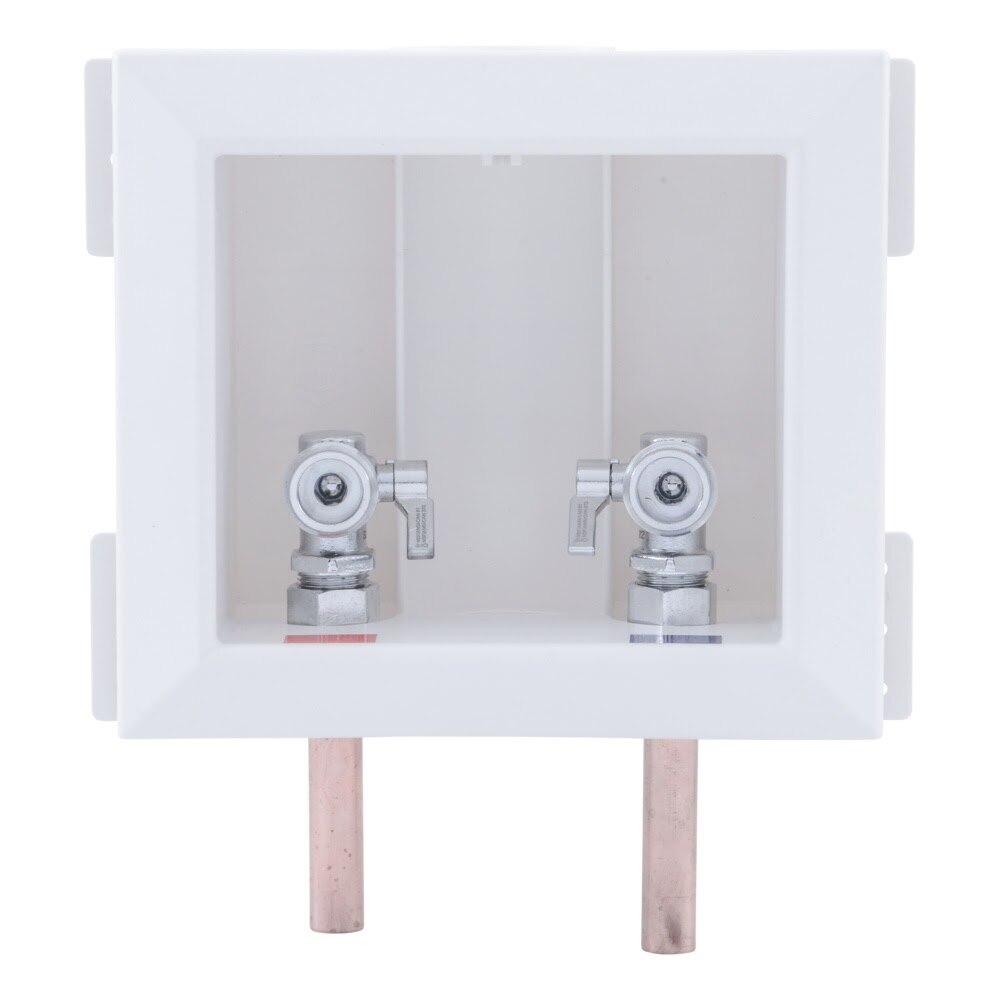

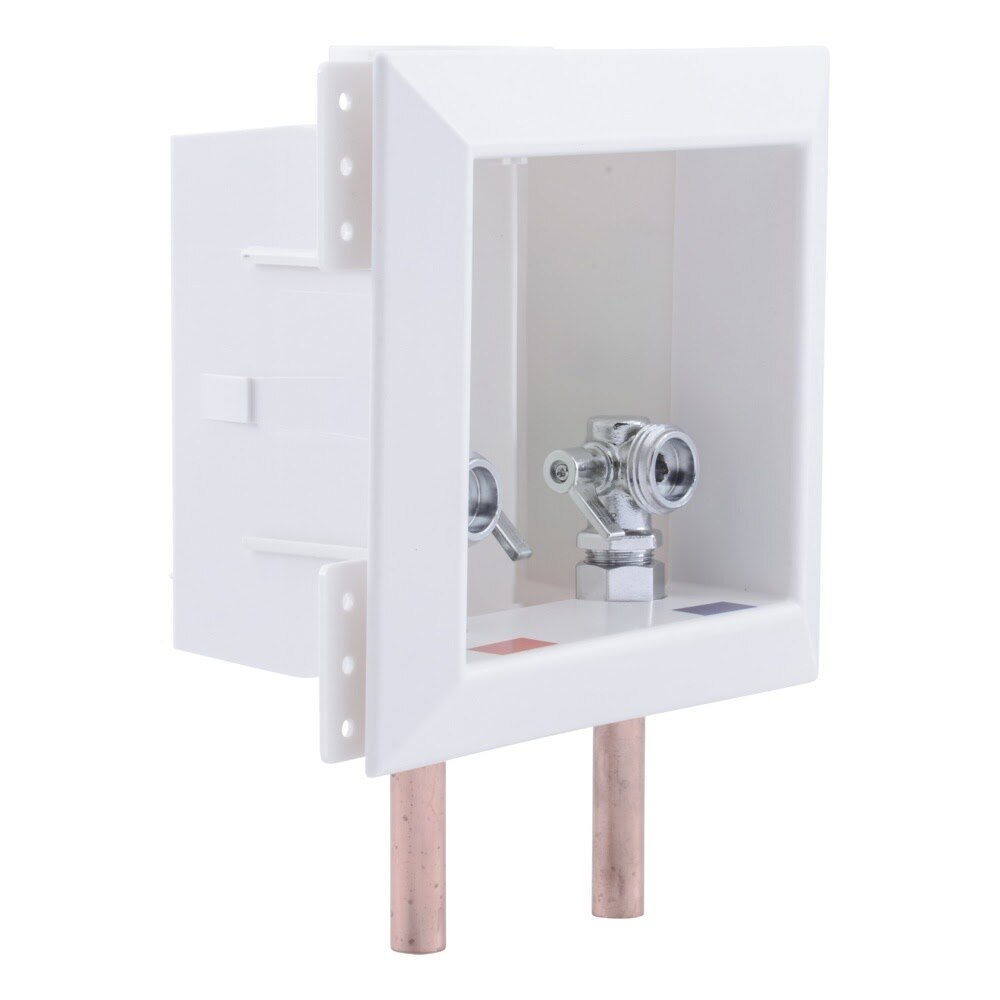

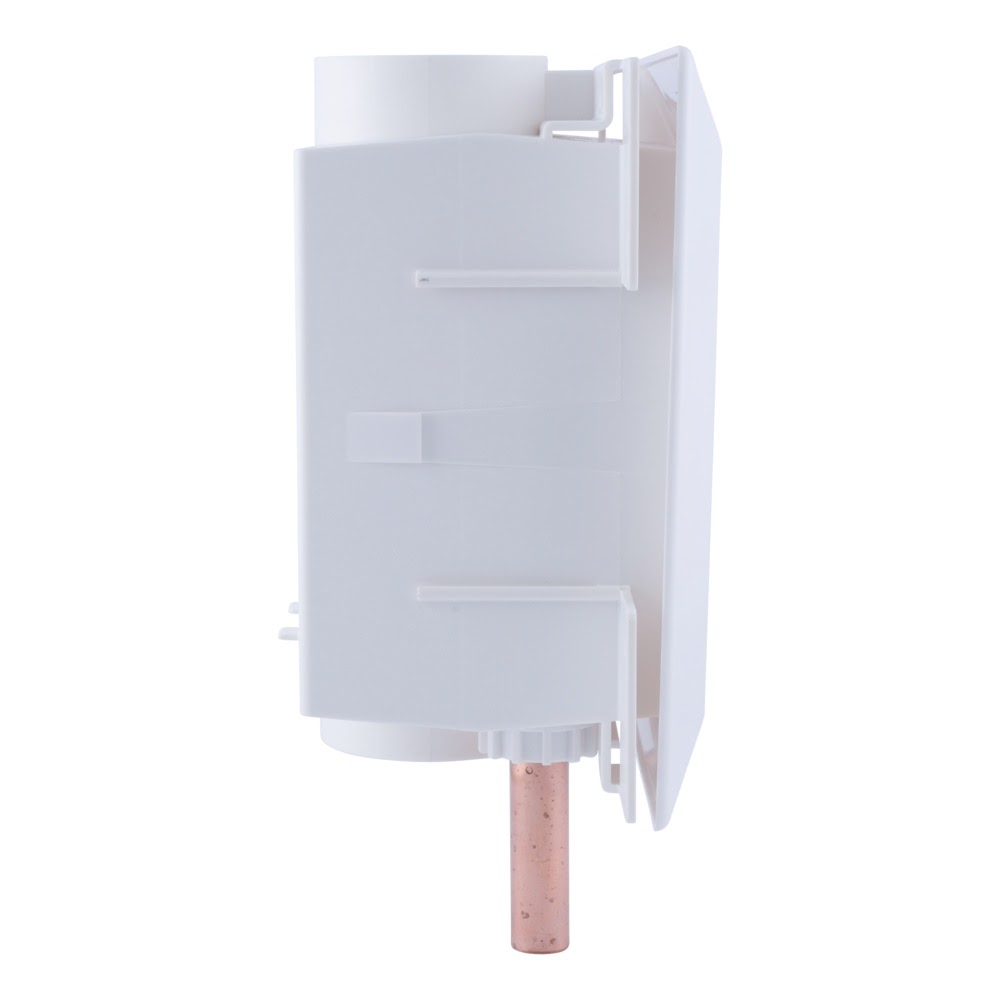

The HoldRite HR-W-M is a non-fire-rated washing machine outlet box designed for residential laundry rough-in applications. This version features 1/2 in. copper connections, integrated quarter-turn hot and cold supply valves, a paintable snap-in trim cover, and multiple mounting options for flexible installation.
HoldRite HR-W-M Includes
- (1) Washing Machine Outlet Box
- (2) Quarter-turn supply valves
- (1) Face plate
- (1) Debris cover
- (1) Set of hot/cold valve marking labels
HoldRite HR-W-M Features
- Non-fire-rated outlet box design
- Configured for 1/2 in. copper connections
- No water hammer arresters
- Integrated hot and cold quarter-turn supply valves
- 3/4 in. male threaded hose connections
- Compact design for residential laundry installations
- Paintable trim cover snaps into place without adhesives or fasteners
- Can be mounted for top or bottom supplied water lines
- Attaches directly to studs, hyco bar, or HoldRite 170/170-26 brackets in the top position
- Valves can be installed in upright or inverted position
- Drain knockout on both sides of the box
- Each drain knockout includes 3/4 in. CTS and 3/4 in. IPS knockouts for condensate or T&P relief piping
- Ships with debris cover and hot/cold valve marking labels
- Face plate included
HoldRite HR-W-M Specifications
| Product Type | Washing Machine Outlet Box |
| Fire Rating | Non-fire-rated |
| Water Hammer Arresters | No |
| Connection Size | 1/2 in. |
| Connection Material | Copper |
| Valve Type | Quarter-turn |
| Hose Connection | 3/4 in. male threaded |
| Drain Socket Size | 2 in. |
| Drain Knockouts | 3/4 in. CTS and 3/4 in. IPS |
| Mounting Options | Direct to stud, hyco bar, or HoldRite 170/170-26 brackets |
| Each Length (in) | 18.1102 |
| Each Width (in) | 14.1732 |
| Each Height (in) | 5.999988 |
| Each Shipping Weight (lb) | 2.0282504 |
| Case Quantity | 10 |
Toolup Part # :
882566
