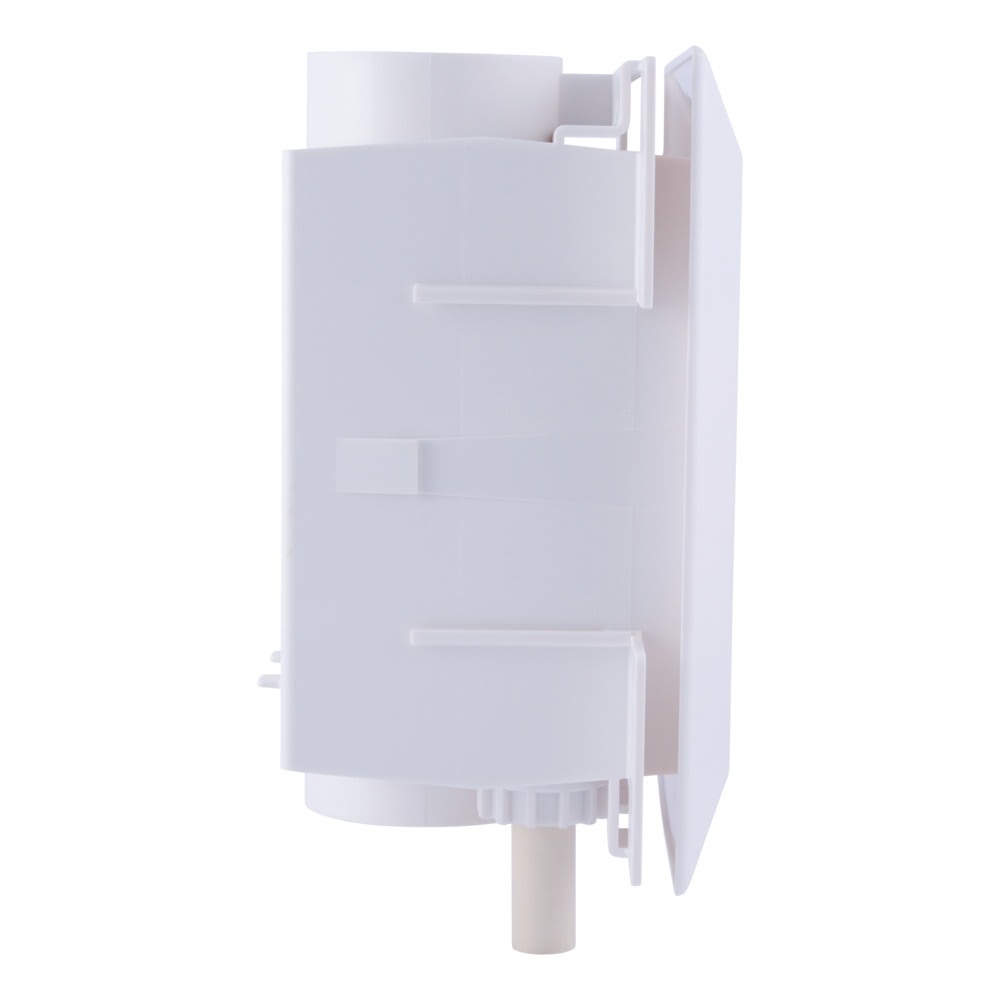

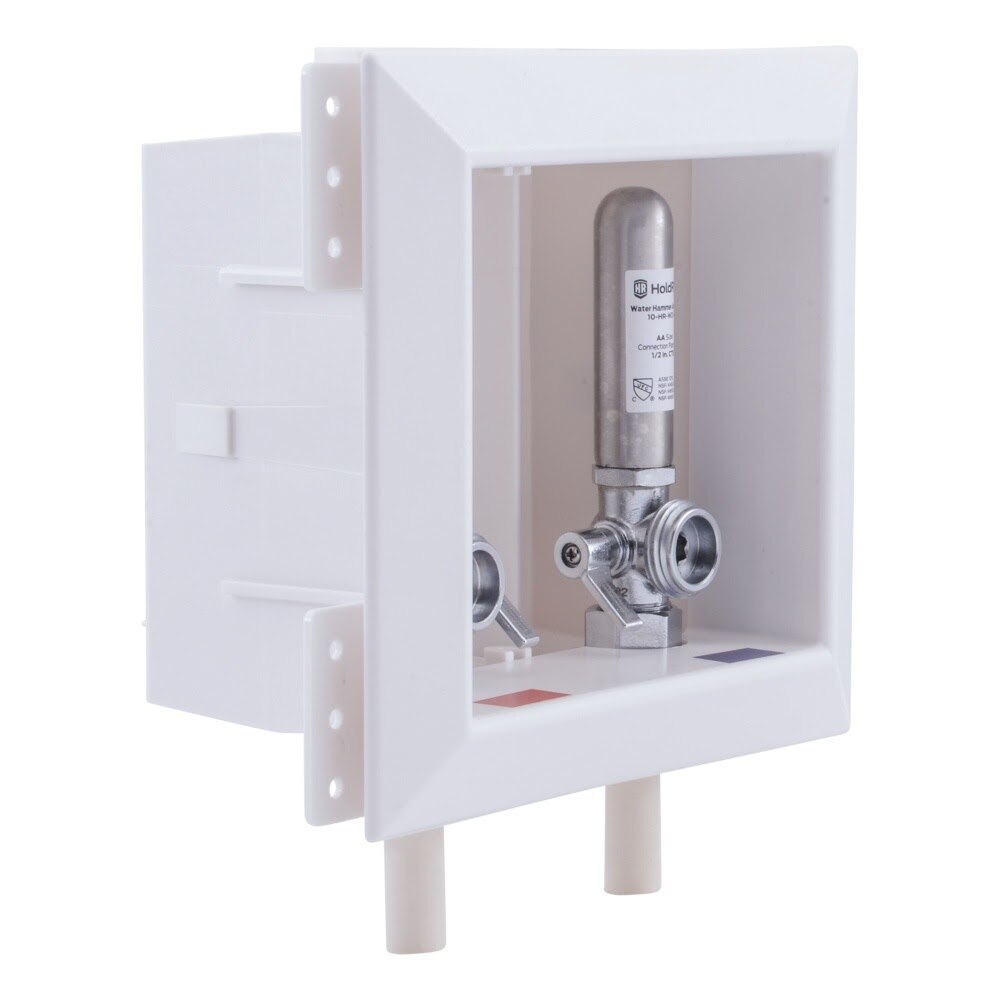

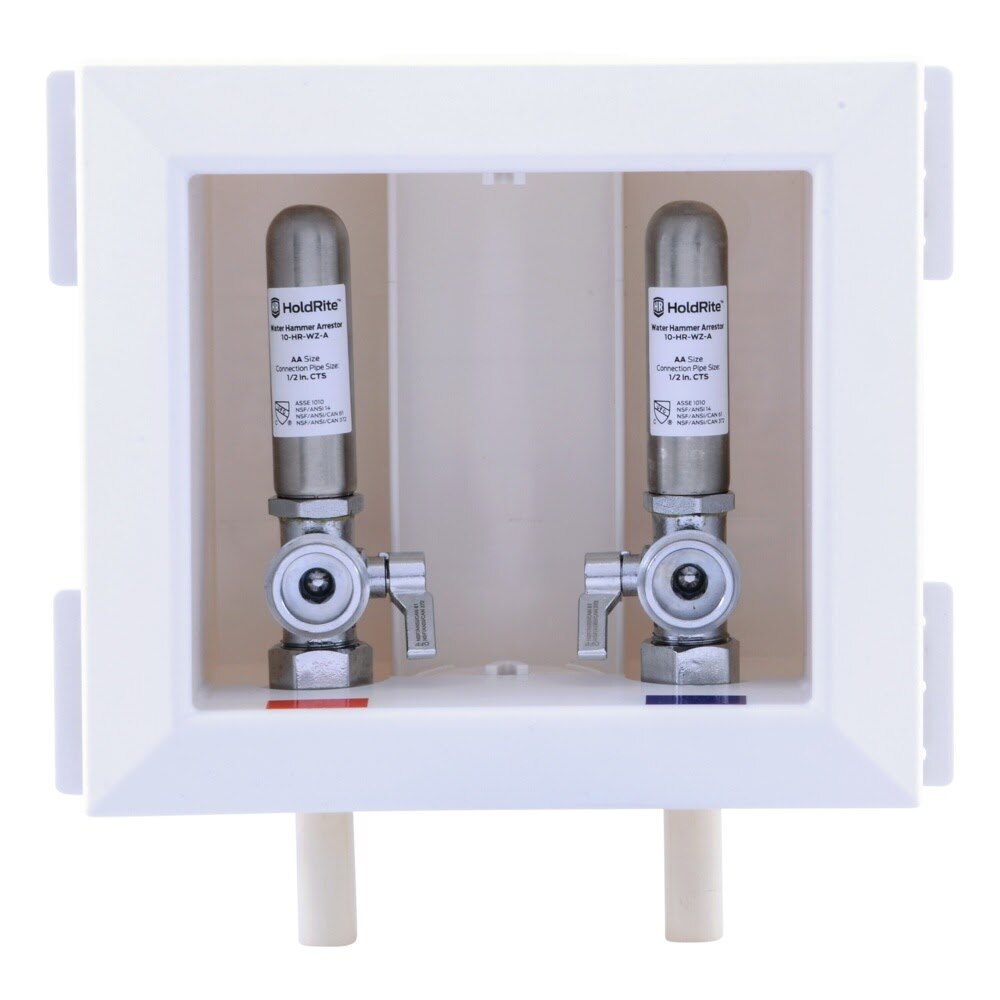

HoldRite HR-WA-C Description
The HoldRite HR-WA-C is a non fire rated washing machine outlet box designed for 1/2 in. CPVC connections. It combines hot and cold quarter-turn valves with integrated water hammer arrestors in a compact recessed box and includes a paintable snap-in trim cover, debris cover, and dual-side drain knockouts for a clean, flexible laundry installation.
HoldRite HR-WA-C Includes
- (1) HR-WA-C washing machine outlet box with integrated valves and water hammer arrestors
- (1) Paintable trim cover
- (1) Debris cover
- (1) Hot/cold valve marking label set
HoldRite HR-WA-C Features
- Compact recessed outlet box design
- Integrated water hammer arrestors help reduce pressure surges, noise, and vibration
- Hot and cold quarter-turn supply valves
- Paintable trim cover snaps into place without adhesives or fasteners
- Fits 1 or 2 layers of 1/2 in. or 5/8 in. sheetrock
- Includes a debris cover and optional hot/cold valve marking labels
- Can attach to brackets, hyco bar, or directly to studs
- Valves can be installed in upright or inverted positions
- Drain knockouts are provided on both sides of the box
HoldRite HR-WA-C Specifications
| Product Type | Washing machine outlet box |
| Fire Rating | Non-fire-rated |
| Connection Size | 1/2 in. |
| Pipe Material | CPVC |
| Valve Type | Quarter-turn |
| Arrestor Type | Integrated water hammer arrestors |
| Drain Knockouts | Both sides |
| Each Length (in) | 18.1102 |
| Each Width (in) | 14.1732 |
| Each Height (in) | 5.999988 |
| Each Shipping Weight (lb) | 2.0723428 |
| Case Quantity | 10 |
| Each UPC | 671119043181 |
Toolup Part # :
882541
