HoldRite HR-WA-M Description

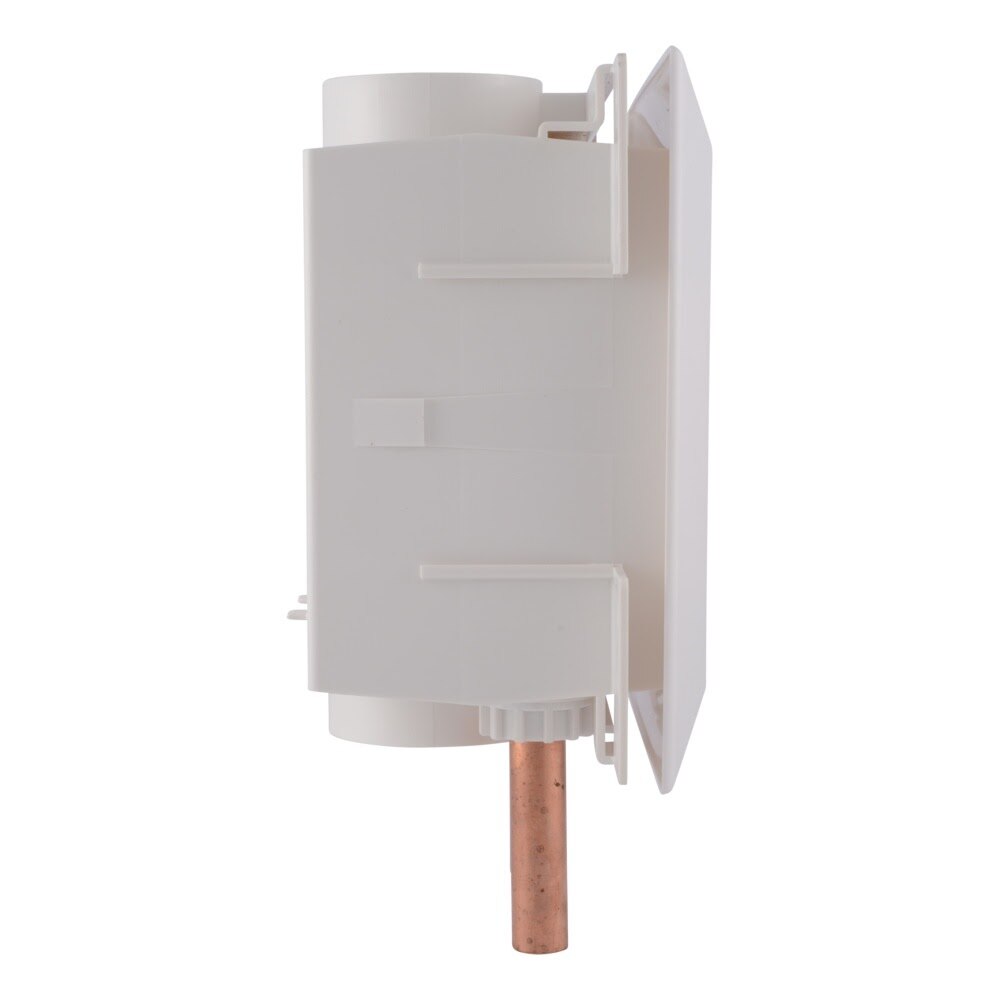

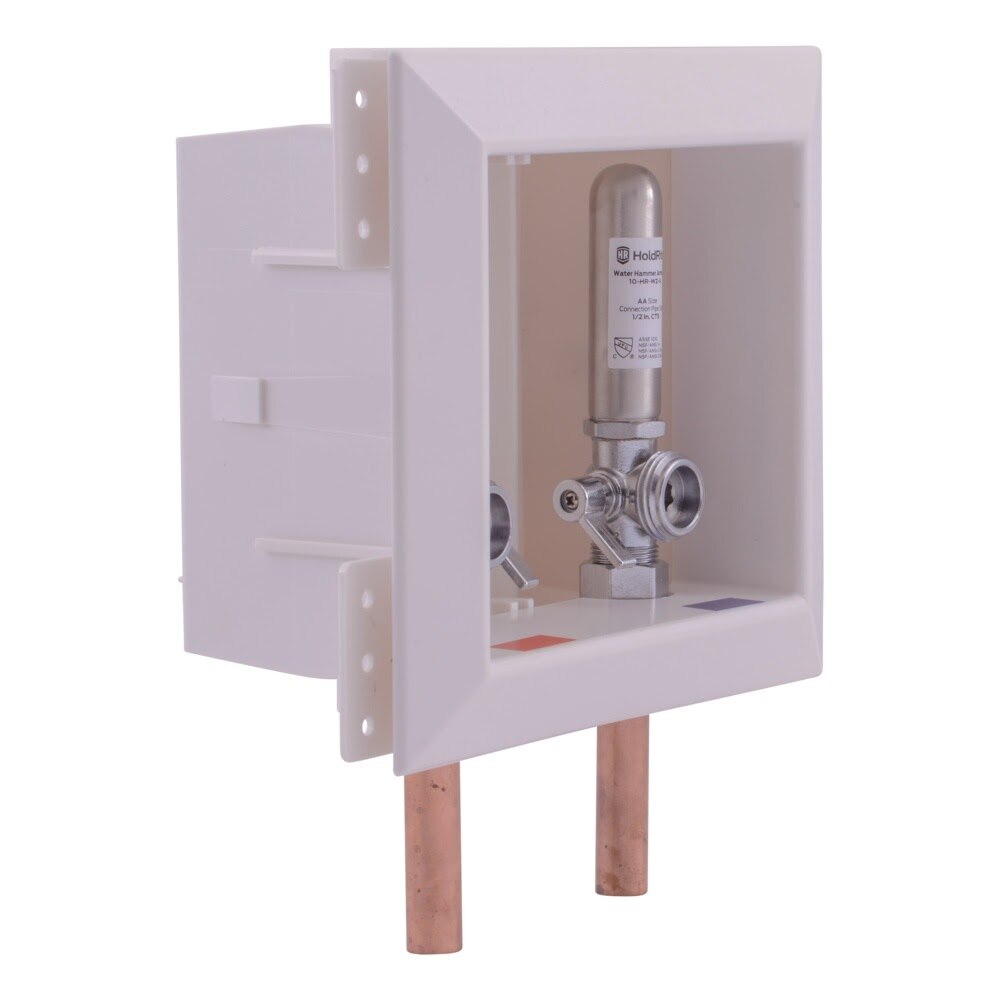

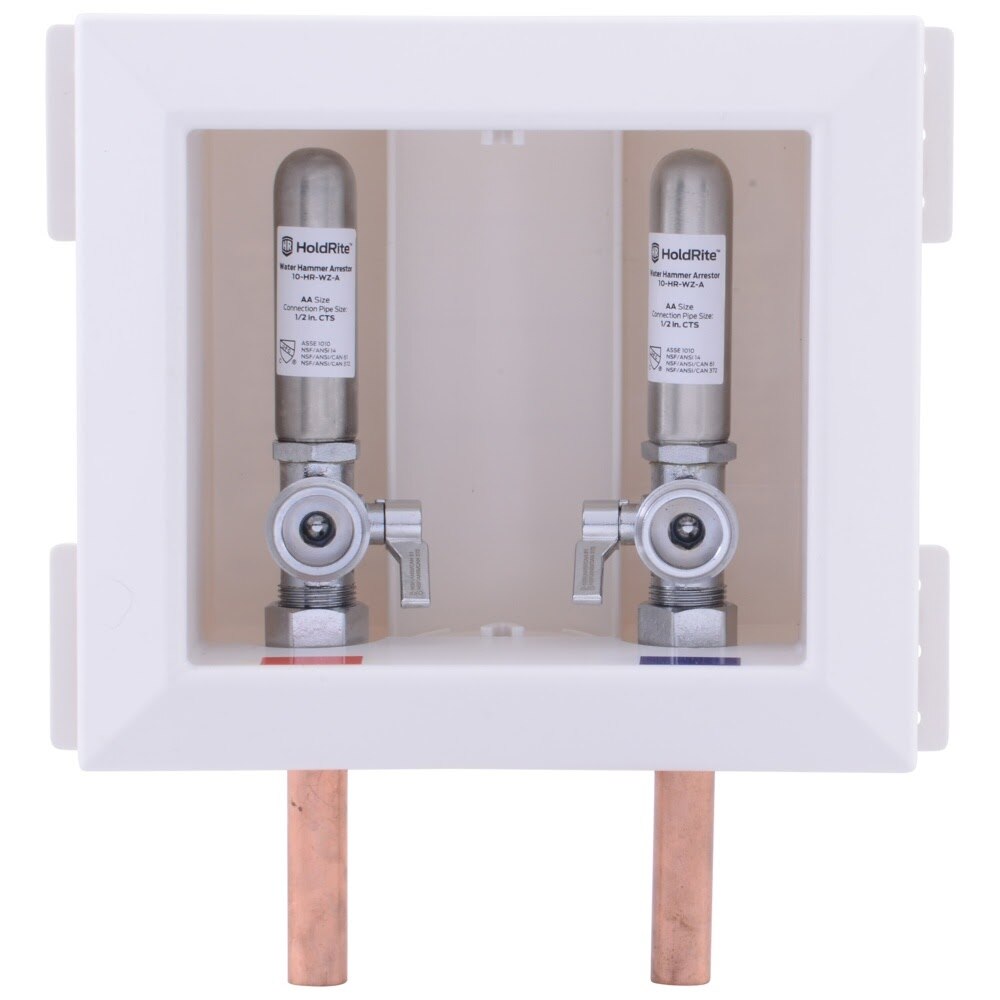

The HoldRite HR-WA-M is a non-fire-rated washing machine outlet box designed for 1/2 in. copper connections and built-in water hammer arrestors. Its compact design, quarter-turn supply valves, and snap-in trim cover help simplify laundry box installation while reducing pressure surges, noise, and vibration in residential plumbing systems.
HoldRite HR-WA-M Includes
- (1) Washing Machine Outlet Box with Arrestors
- (1) Debris Cover
- (1) Set of Hot/Cold Valve Marking Labels
HoldRite HR-WA-M Features
- Built-in water hammer arrestors help reduce pressure surges, noise, and vibration
- Designed for 1/2 in. copper connections
- Non-fire-rated outlet box for washing machine installations
- Compact design helps fit residential laundry applications
- Paintable trim cover snaps into place without adhesives or fasteners
- Trim cover fits 1 or 2 layers of 1/2 in. or 5/8 in. sheetrock
- Ships with a debris cover and optional hot/cold valve marking labels
- Attaches to 170/170-26 brackets in the top position, hyco bar, or directly to studs
- Valves can be installed in upright or inverted positions
- Drain knockouts on both sides of the box
- Each drain knockout includes 3/4 in. CTS and 3/4 in. IPS knockout options for condensate or T&P relief piping
- Quarter-turn hot and cold supply valves with threaded hose connections
HoldRite HR-WA-M Specifications
| Brand | HoldRite |
| SKU | HR-WA-M |
| Product Type | Washing Machine Outlet Box |
| Fire Rating | Non-Fire-Rated |
| Connection Material | Copper |
| Pipe Size | 1/2 in. |
| Water Hammer Arrestors | Integrated |
| Valve Type | Quarter-Turn |
| Drain Knockouts | Both sides |
| Drain Knockout Sizes | 3/4 in. CTS and 3/4 in. IPS |
| Each Width | 14.1732 in. |
| Each Height | 5.999988 in. |
| Each Length | 18.1102 in. |
| Each Shipping Weight | 2.2487124 lb |
| Case Quantity | 10 |
| Minimum Order Quantity | 10 |
| Each UPC | 671119043198 |
Toolup Part # :
882499
