HoldRite HR-WA-P Description

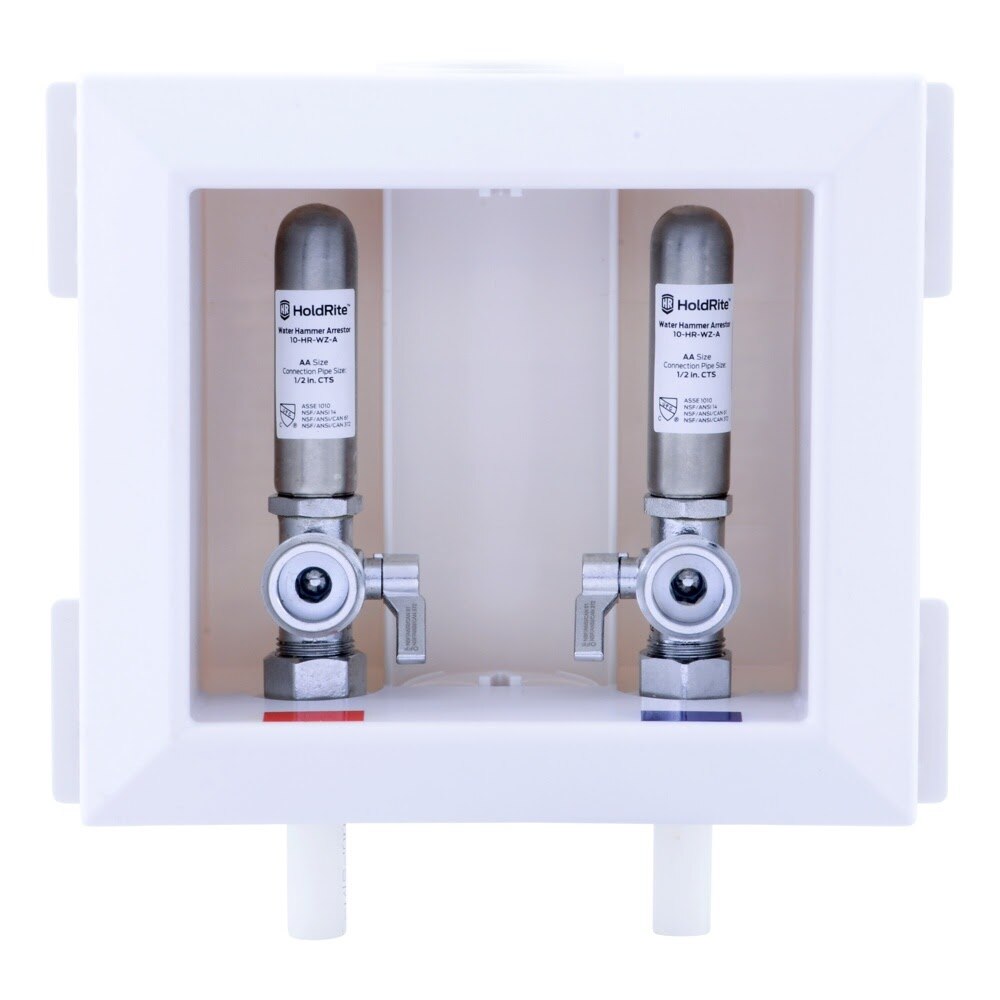

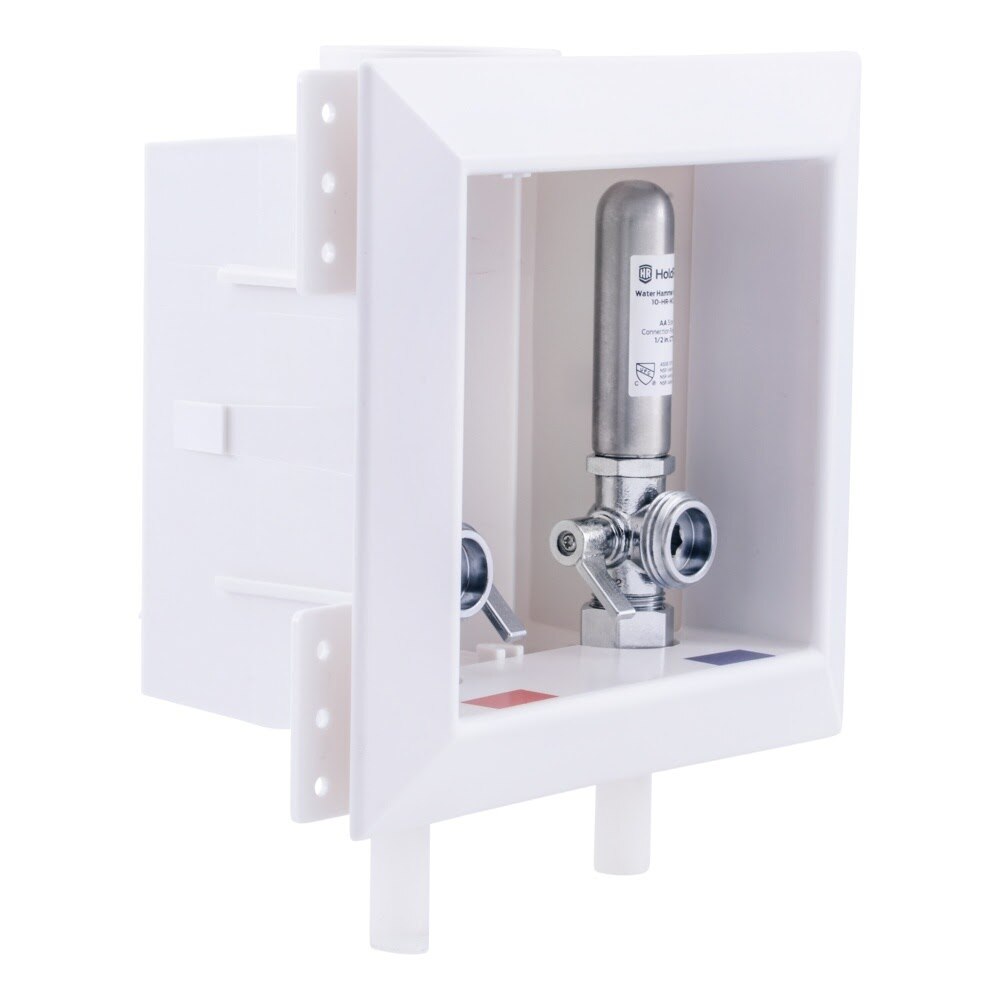

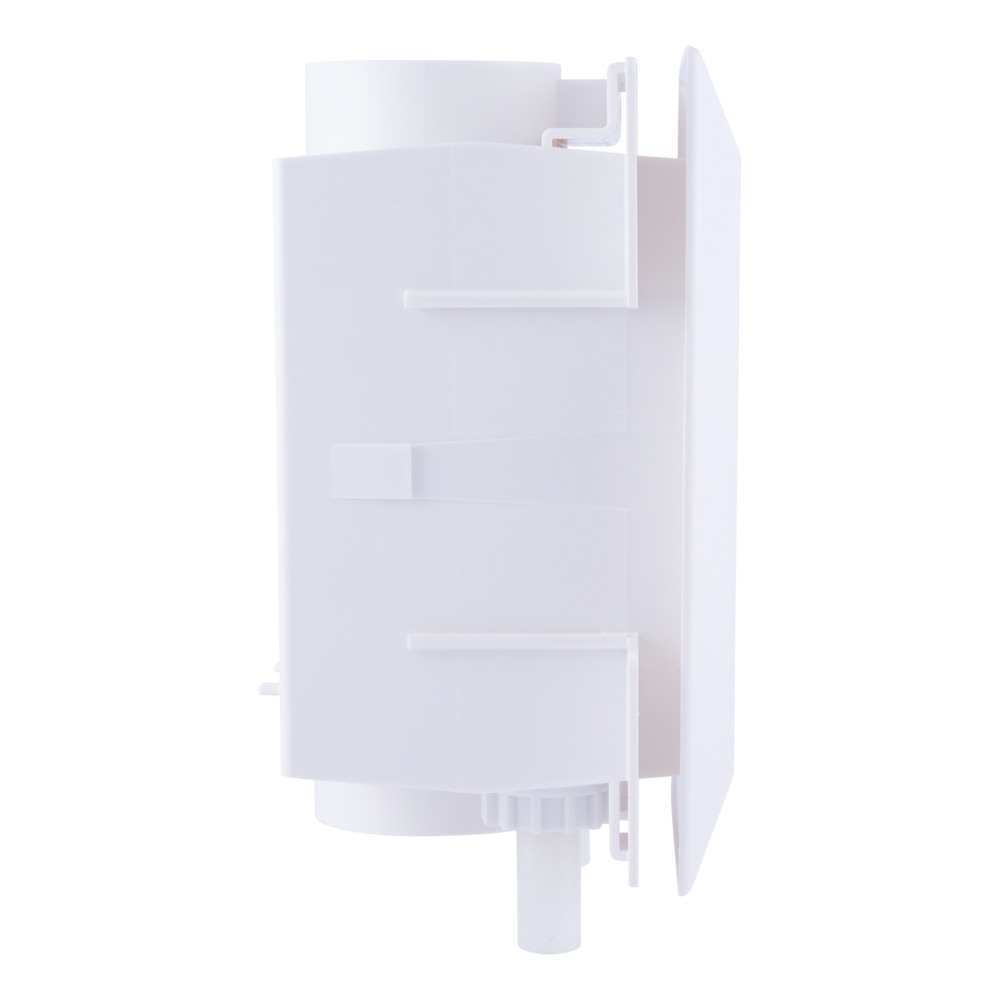

The HoldRite HR-WA-P is a non fire rated washing machine outlet box designed for 1/2 in. PEXA connections and built with integrated water hammer arresters. It helps reduce pressure surges, noise, and vibration while providing hot and cold quarter turn supply valves, threaded hose connections, a paintable snap in trim cover, and flexible mounting options for residential laundry installations.
HoldRite HR-WA-P Includes
- (1) Washing machine outlet box with integrated water hammer arresters
- (1) Debris cover
- (1) Set of hot and cold valve marking labels
HoldRite HR-WA-P Features
- Integrated water hammer arresters help reduce pressure surges, noise, and vibration
- Non fire rated outlet box for washing machine installations
- Designed for 1/2 in. PEXA connections
- Compact design for residential laundry spaces
- Paintable trim cover snaps into place without adhesives or fasteners
- Includes debris cover and optional hot and cold valve marking labels
- Valves can be installed in upright or inverted positions
- Attaches to 170 or 170-26 brackets in the top position, hyco bar, or directly to studs
- Drain knockouts on both sides support condensate or T&P relief piping
- Quarter turn hot and cold valves with threaded hose connections
HoldRite HR-WA-P Specifications
| Product Type | Washing Machine Outlet Box |
| Fire Rating | Non Fire Rated |
| Connection Size | 1/2 in. |
| Connection Type | PEXA |
| Integrated Water Hammer Arresters | Yes |
| Valve Type | Quarter Turn Hot and Cold Valves |
| Hose Connection | Threaded |
| Trim Cover | Paintable Snap In Cover |
| Mounting Options | 170 or 170-26 brackets top position, hyco bar, or direct to studs |
| Valve Orientation | Upright or Inverted |
| Drain Knockouts | Both Sides |
| Auxiliary Knockouts | 3/4 in. CTS and 3/4 in. IPS |
| Item Length | 18.1102 in. |
| Item Width | 14.1732 in. |
| Item Height | 5.999988 in. |
| Shipping Weight | 2.0282504 lb |
Toolup Part # :
882562
