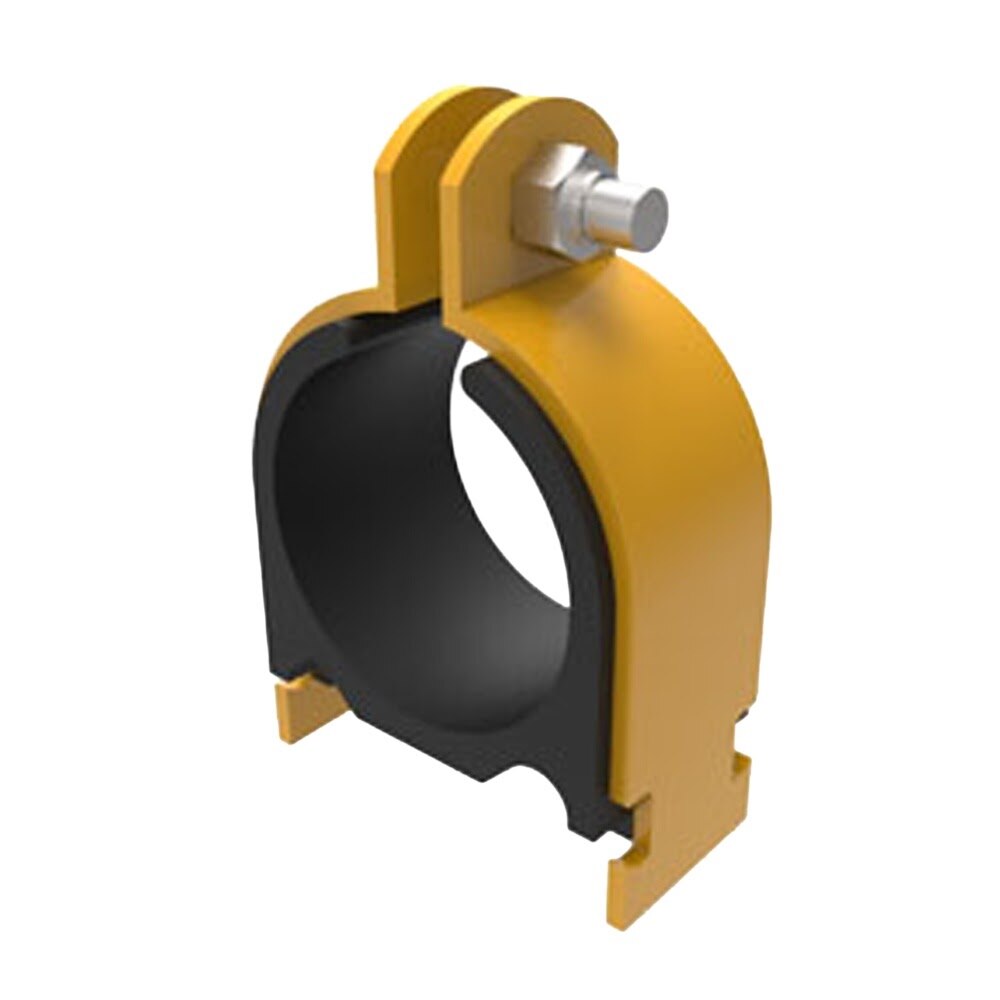

HoldRite HR100025 Description
The HoldRite HR100025 100 Series strut-mounted cushion clamp is designed for 1/4 in. O.D. tube and helps eliminate metal-to-metal contact between piping, clamps and strut. Made of yellow trivalent non-hex plated mild steel, it is ideal for overhead insulated pipe on a trapeze or direct-to-strut mounting, supports copper, PEX and other materials, and includes a nylon insert locknut.
HoldRite HR100025 Includes
- (1) Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR100025 Features
- Eliminates metal-to-metal contact between piping, clamps and strut
- Yellow trivalent non-hex plated mild steel construction
- Designed for 1/4 in. O.D. tube
- Ideal for overhead insulated pipe on a trapeze or direct-to-strut mounting
- Resists most fuels, oils, gases, greases, solvents, mineral acids and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Permits mixed line sizes and variable center distances between conductors
- Compatible with copper, PEX and other materials
- Working temperature range from -65 Degree to +275 Degree
- Includes nylon insert locknut
HoldRite HR100025 Specifications
| Series | 100 Series |
| Tube Outside Diameter | 1/4 in. |
| Material | Mild steel |
| Finish | Yellow trivalent non-hex plated |
| Mounting Type | Strut mounted |
| Application | Overhead insulated pipe on a trapeze or direct-to-strut mounting |
| Compatible Materials | Copper, PEX and other materials |
| Working Temperature Range | -65 Degree to +275 Degree |
| Included Hardware | Nylon insert locknut |
| Product Length | 2 in. |
| Product Width | 1.5 in. |
| Product Height | 0.673 in. |
| Product Weight | 0.106 lb |
