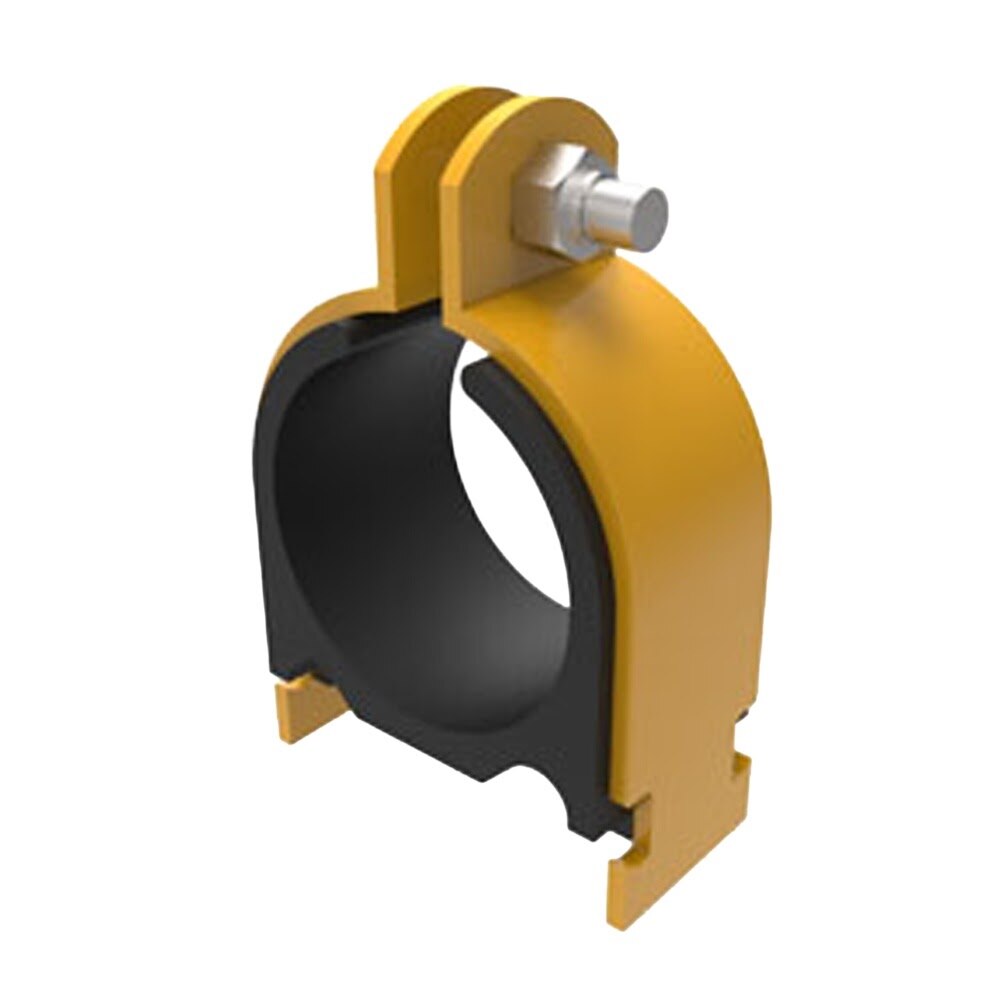

HoldRite HR100050 Description
The HoldRite 100 Series strut-mounted cushion clamp is designed for 1/2 in. O.D. tube and helps eliminate metal-to-metal contact between piping, clamps, and strut. Made from yellow trivalent non-hex plated mild steel, it is ideal for overhead insulated pipe installations on trapeze supports or direct-to-strut mounting.
HoldRite HR100050 Includes
- (1) Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR100050 Features
- Designed for 1/2 in. O.D. tube
- Yellow trivalent non-hex plated mild steel construction
- Helps eliminate metal-to-metal contact between piping, clamp, and strut
- Ideal for overhead insulated pipe on trapeze supports or direct-to-strut mounting
- Resists most fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Permits various line sizes to be mixed to suit the installation
- Center distances between conductors may be varied
- Compatible with copper, PEX, and other materials
- Working temperature range from -65 Degree to +275 Degree
- Includes nylon insert locknut
HoldRite HR100050 Specifications
| Brand | HoldRite |
| Series | 100 Series |
| Product Type | Strut-Mounted Cushion Clamp |
| Tube Outside Diameter | 1/2 in. O.D. |
| Material | Mild steel |
| Finish | Yellow trivalent non-hex plated |
| Mounting Type | Strut-mounted |
| Application | Overhead insulated pipe on trapeze supports or direct-to-strut mounting |
| Compatible Materials | Copper, PEX and other materials |
| Working Temperature Range | -65 Degree to +275 Degree |
| Hardware Included | Nylon insert locknut |
| Case Quantity | 25 |
| Minimum Order Quantity | 25 |
| Product Length (in) | 2.416 |
| Product Width (in) | 2.416 |
| Product Height (in) | 2.416 |
| Product Weight (lbs) | 0.136 |
Toolup Part # :
884963
