HoldRite HR100062 Description

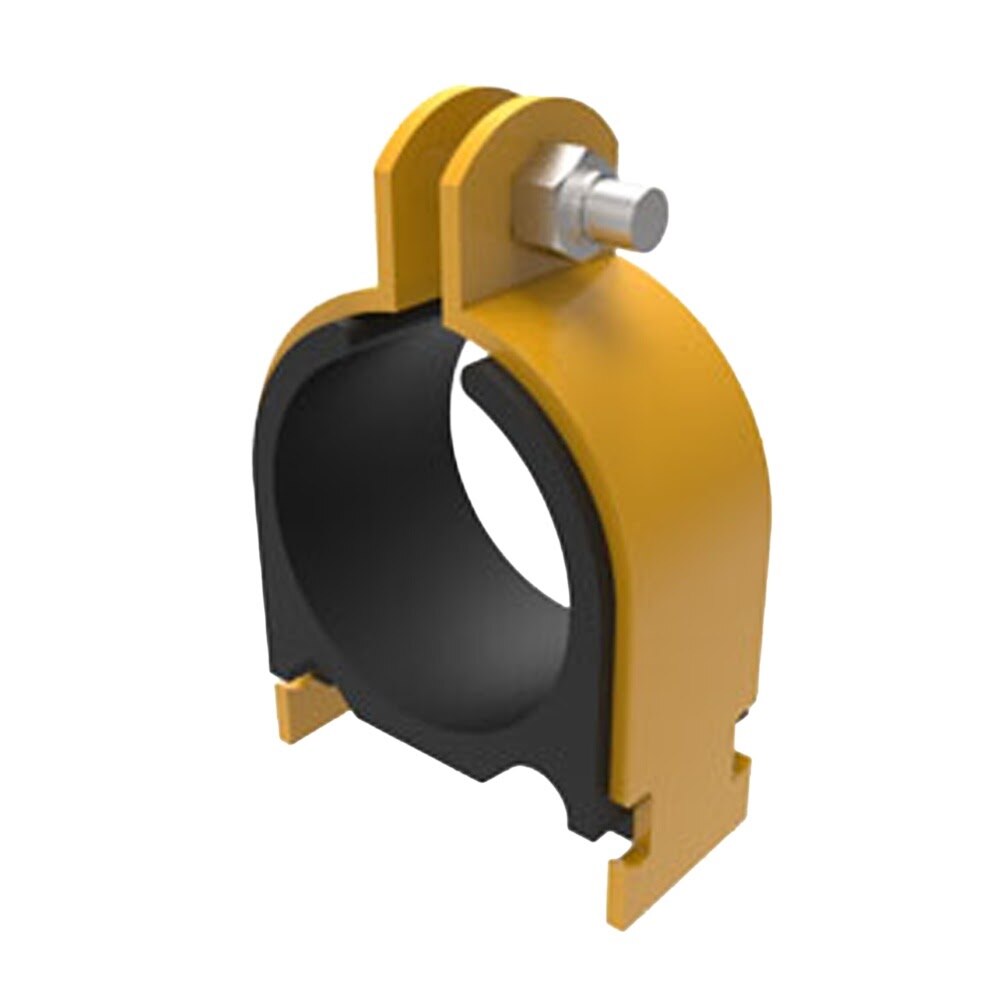

The HoldRite HR100062 100 Series strut-mounted cushion clamp is designed for 5/8 in. O.D. tube and helps eliminate metal-to-metal contact between the piping, clamp, and strut. Made from yellow trivalent non-hex plated mild steel, it is ideal for overhead insulated pipe installations on trapeze supports and includes a nylon insert locknut.
HoldRite HR100062 Includes
- (1) 100 Series Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR100062 Features
- Sized for 5/8 in. O.D. tube
- Yellow trivalent non-hex plated mild steel construction
- Eliminates metal-to-metal contact between piping, clamp, and strut
- Designed for overhead insulated pipe installations on trapeze supports
- Mounts directly to strut
- Resists most fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Compatible with copper, PEX, and other materials
- Working temperature range from -65 Degree to +275 Degree
- Includes nylon insert locknut
HoldRite HR100062 Specifications
| Brand | HoldRite |
| Series | 100 Series |
| Product Type | Strut-Mounted Cushion Clamp |
| Tube Outside Diameter | 5/8 in. O.D. |
| Material | Mild Steel |
| Finish | Yellow trivalent non-hex plated |
| Mounting Type | Strut-mounted |
| Application | Overhead insulated pipe on a trapeze |
| Compatible Materials | Copper, PEX and other materials |
| Working Temperature Range | -65 Degree to +275 Degree |
| Included Hardware | Nylon insert locknut |
| Each Length | 2.54 in. |
| Each Width | 1.4 in. |
| Each Height | 1.18 in. |
| Each Shipping Weight | 0.156 lb |
| Case Quantity | 25 |
| Minimum Order Quantity | 25 |
Toolup Part # :
884889
