HoldRite HR100075-4-655 Description

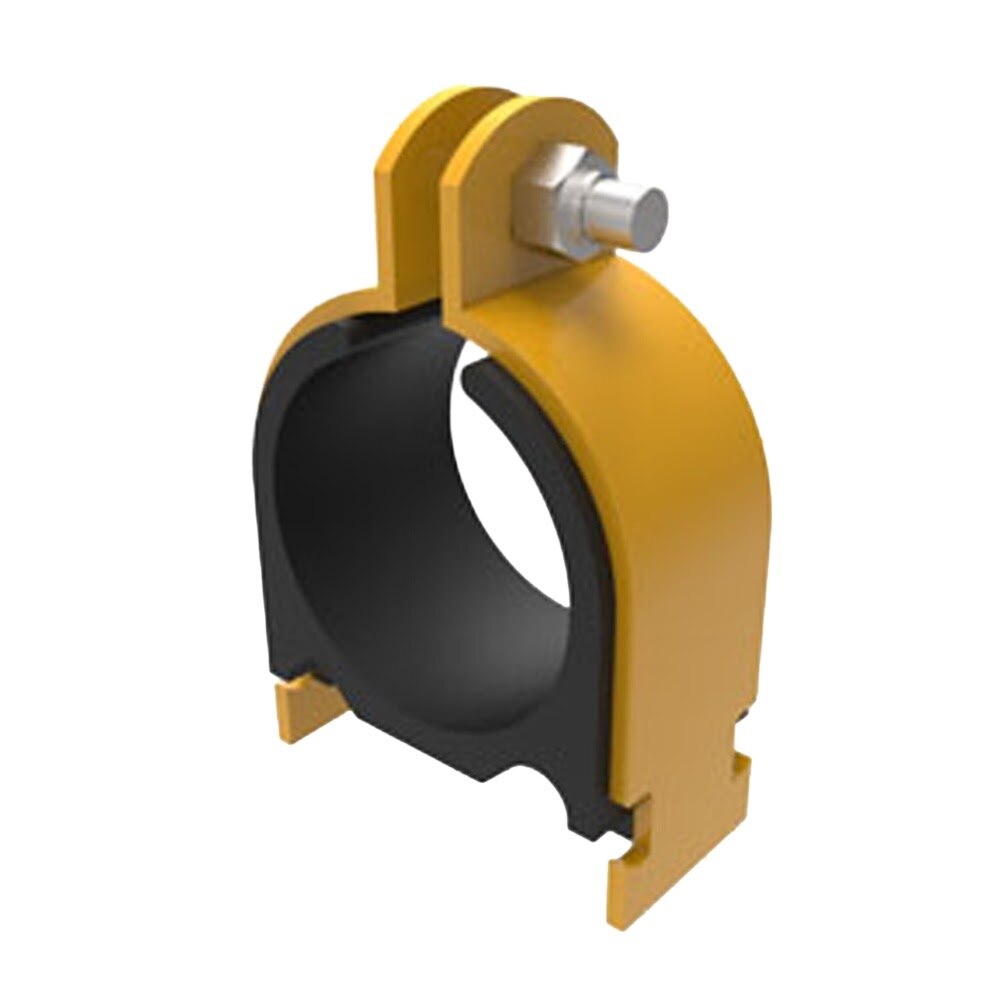

The HoldRite HR100075-4-655 is a 316 stainless steel strut-mounted cushion clamp sized for 3/4 in. O.D. tube. Its cushioned design helps eliminate metal-to-metal contact while supporting copper, PEX, and other piping materials, and it includes a nylon insert locknut for fast, secure installation.
HoldRite HR100075-4-655 Includes
- (1) Strut-Mounted Cushion Clamp for 3/4 in. O.D. Tube
- (1) Nylon Insert Locknut
HoldRite HR100075-4-655 Features
- 316 stainless steel construction provides strong corrosion resistance
- Cushioned design eliminates metal-to-metal contact between piping, clamp, and strut
- Sized for 3/4 in. O.D. tube
- Compatible with copper, PEX, and other piping materials
- Allows piping to be added or removed without disturbing adjacent lines
- Permits flexible line spacing during installation
- Resists fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Fast and simple strut-mounted installation
- Working temperature range from -65 F to 275 F
- Includes nylon insert locknut
HoldRite HR100075-4-655 Specifications
| Product Type | Strut-Mounted Cushion Clamp |
| Series | 100 Series |
| Material | 316 Stainless Steel |
| Tube Outside Diameter | 3/4 in. |
| Mount Type | Strut-Mounted |
| Compatible Materials | Copper, PEX and other materials |
| Operating Temperature Min | -65 F |
| Operating Temperature Max | 275 F |
| Each Length | 3 in. |
| Each Width | 1.55 in. |
| Each Height | 1.25 in. |
| Each Shipping Weight | 0.184 lb |
| Case Quantity | 25 |
| Case Length | 7.75 in. |
| Case Width | 8 in. |
| Case Height | 8 in. |
| Case Weight | 4.6 lb |
