HoldRite HR100100 Description

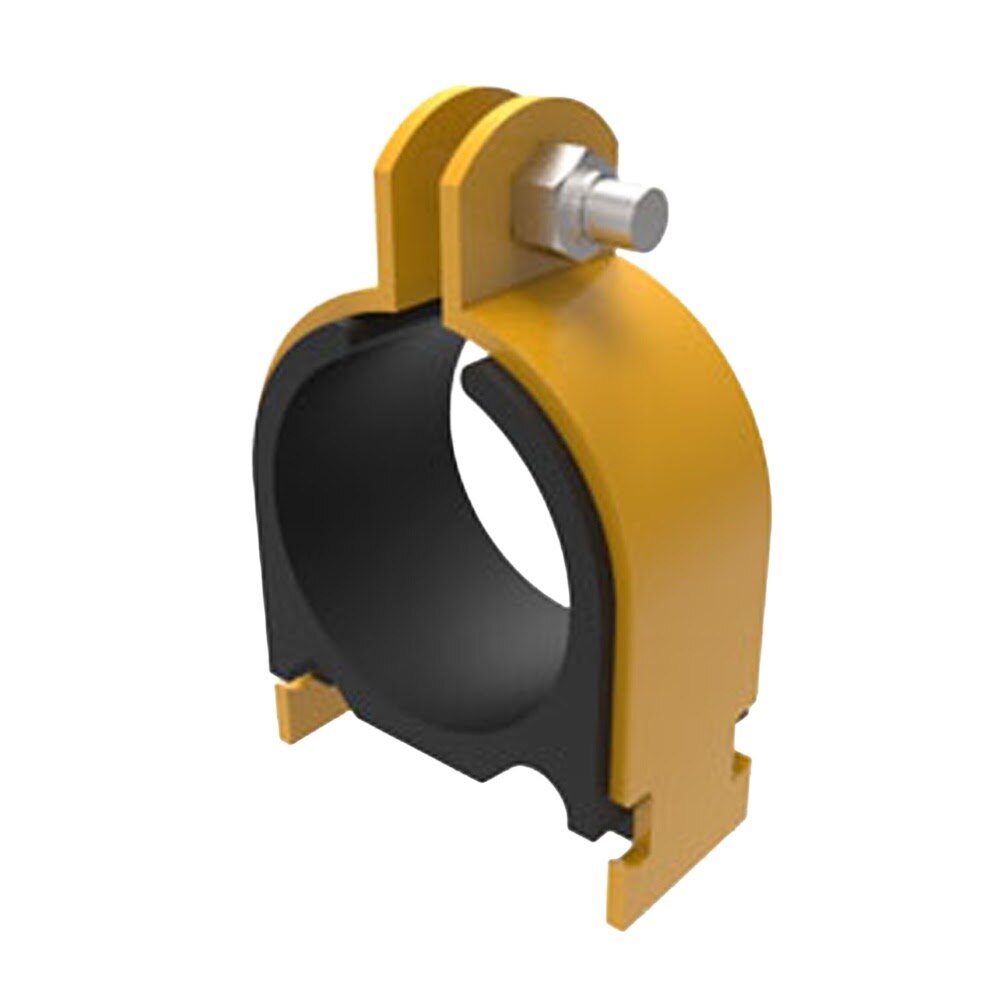

The HoldRite HR100100 100 Series strut-mounted cushion clamp supports 1 in. O.D. tube while helping eliminate metal-to-metal contact between piping, the clamp, and strut. Made of yellow trivalent non-hex plated mild steel, it is designed for overhead insulated pipe installations, mounts directly to strut, and includes a nylon insert locknut.
HoldRite HR100100 Includes
- (1) 100 Series Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR100100 Features
- Eliminates metal-to-metal contact between piping, clamp, and strut
- Designed for overhead insulated pipe on a trapeze and direct-to-strut mounting
- Resists most fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Permits various size lines to be mixed to suit the installation
- Center distances between conductors may be varied
- Compatible with copper, PEX, and other materials
- Working temperature range from -65 Degree to +275 Degree
HoldRite HR100100 Specifications
| Series | 100 Series |
| Product Type | Strut-Mounted Cushion Clamp |
| Material | Mild steel |
| Finish | Yellow trivalent non-hex plated |
| Tube Outside Diameter | 1 in. O.D. |
| Mounting Type | Direct to strut |
| Application | Overhead insulated pipe on a trapeze |
| Compatible Materials | Copper, PEX, and other materials |
| Working Temperature Range | -65 Degree to +275 Degree |
| Includes | Nylon insert locknut |
| Each Length | 2.413 in. |
| Each Width | 2.413 in. |
| Each Height | 2.413 in. |
| Each Shipping Weight | 0.198 lb |
| Case Quantity | 25 |
| Minimum Order Quantity | 25 |
| Case Length | 7.874 in. |
| Case Width | 7.874 in. |
| Case Height | 7.874 in. |
| Case Weight | 4.96 lb |
