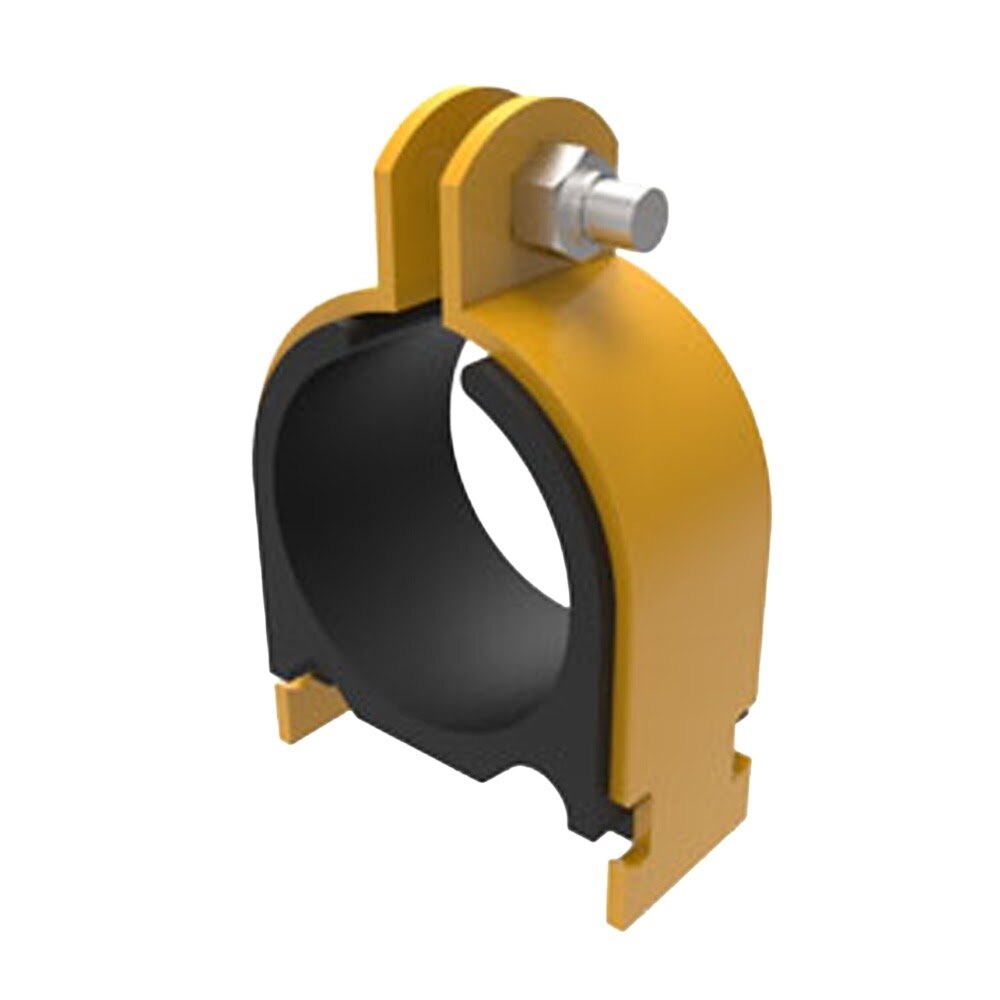

HoldRite HR100112 Description
The HoldRite HR100112 is a 100 Series strut-mounted cushion clamp sized for 1-1/8 in. O.D. tube. Made of yellow trivalent non-hex plated mild steel, it helps eliminate metal-to-metal contact between piping, clamps, and strut for overhead insulated pipe installations and direct strut mounting.
HoldRite HR100112 Includes
- (1) Strut-mounted cushion clamp
- (1) Nylon insert locknut
HoldRite HR100112 Features
- Yellow trivalent non-hex plated mild steel construction
- Sized for 1-1/8 in. O.D. tube
- Cushion design helps eliminate metal-to-metal contact between piping, clamps, and strut
- Ideal for overhead insulated pipe on a trapeze and direct strut mounting
- Compatible with copper, PEX, and other materials
- Resists most fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Permits various size lines to be mixed to suit installation
- Center distances between conductors may be varied
- Working temperature range from -65 Degree to +275 Degree
- Includes nylon insert locknut
HoldRite HR100112 Specifications
| Brand | HoldRite |
| Series | 100 Series |
| Product Type | Strut Mounted Cushion Clamp |
| Tube Outer Diameter | 1-1/8 in. O.D. |
| Material | Mild steel |
| Finish | Yellow trivalent non-hex plated |
| Mount Type | Strut mounted |
| Application | Overhead insulated pipe on a trapeze; direct to strut mounting |
| Compatible Materials | Copper, PEX and other materials |
| Working Temperature Range | -65 Degree to +275 Degree |
| Included Hardware | Nylon insert locknut |
| Each Length (in) | 2.603 |
| Each Width (in) | 2.603 |
| Each Height (in) | 2.603 |
| Each Shipping Weight (lb) | 0.22 |
| Case Quantity | 20 |
Toolup Part # :
884666
