HoldRite HR100137 Description

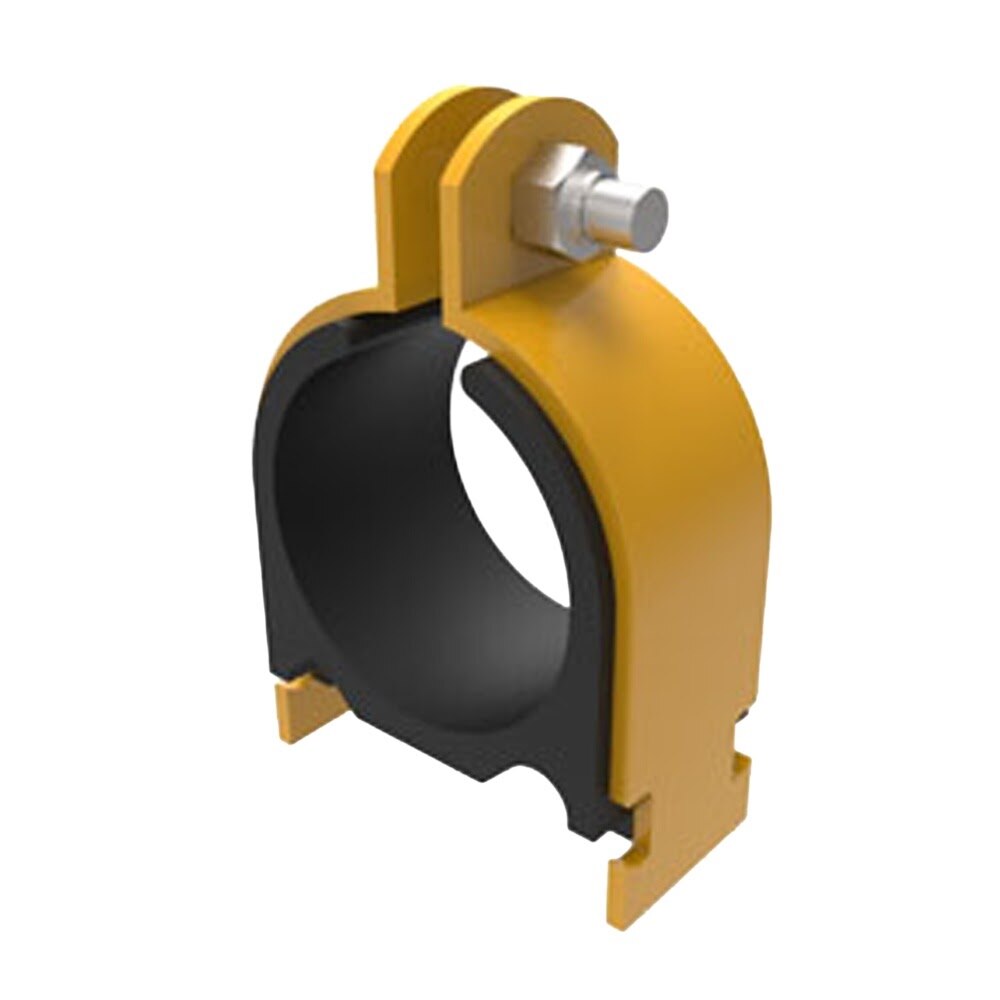

The HoldRite 100 Series strut-mounted cushion clamp is designed for 1-3/8 in. OD tube and helps eliminate metal-to-metal contact between piping, the clamp, and strut. Made from yellow trivalent non-hex plated mild steel, it is ideal for overhead insulated pipe on trapeze installations and includes a nylon insert locknut.
HoldRite HR100137 Includes
- (1) Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR100137 Features
- Designed for 1-3/8 in. OD tube
- Eliminates metal-to-metal contact between piping, clamp, and strut
- Yellow trivalent non-hex plated mild steel construction
- Ideal for overhead insulated pipe on trapeze installations
- Direct strut-mount design
- Compatible with copper, PEX, and other materials
- Resists fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Working temperature range from -65 Degree to +275 Degree
HoldRite HR100137 Specifications
| Brand | HoldRite |
| Series | 100 Series |
| Product Type | Strut-Mounted Cushion Clamp |
| Material | Mild Steel |
| Finish | Yellow trivalent non-hex plated |
| Tube Outside Diameter | 1-3/8 in. |
| Mounting Type | Strut Mounted |
| Application | Overhead insulated pipe on trapeze |
| Compatible Materials | Copper, PEX and other materials |
| Working Temperature Range | -65 Degree to +275 Degree |
| Hardware Included | Nylon insert locknut |
| Product Length (in) | 3.5 |
| Product Width (in) | 3 |
| Product Height (in) | 1.61 |
| Product Weight (lb) | 0.317 |
