HoldRite HR100162-4-555 Description
The HoldRite HR100162-4-555 is a 304 stainless steel strut-mounted cushion clamp designed for 1-5/8 in. OD tube. Its cushioned insert helps reduce metal to metal contact between the piping, clamp, and strut while resisting fuels, oils, gases, greases, solvents, and mineral acids for dependable support in demanding installations.

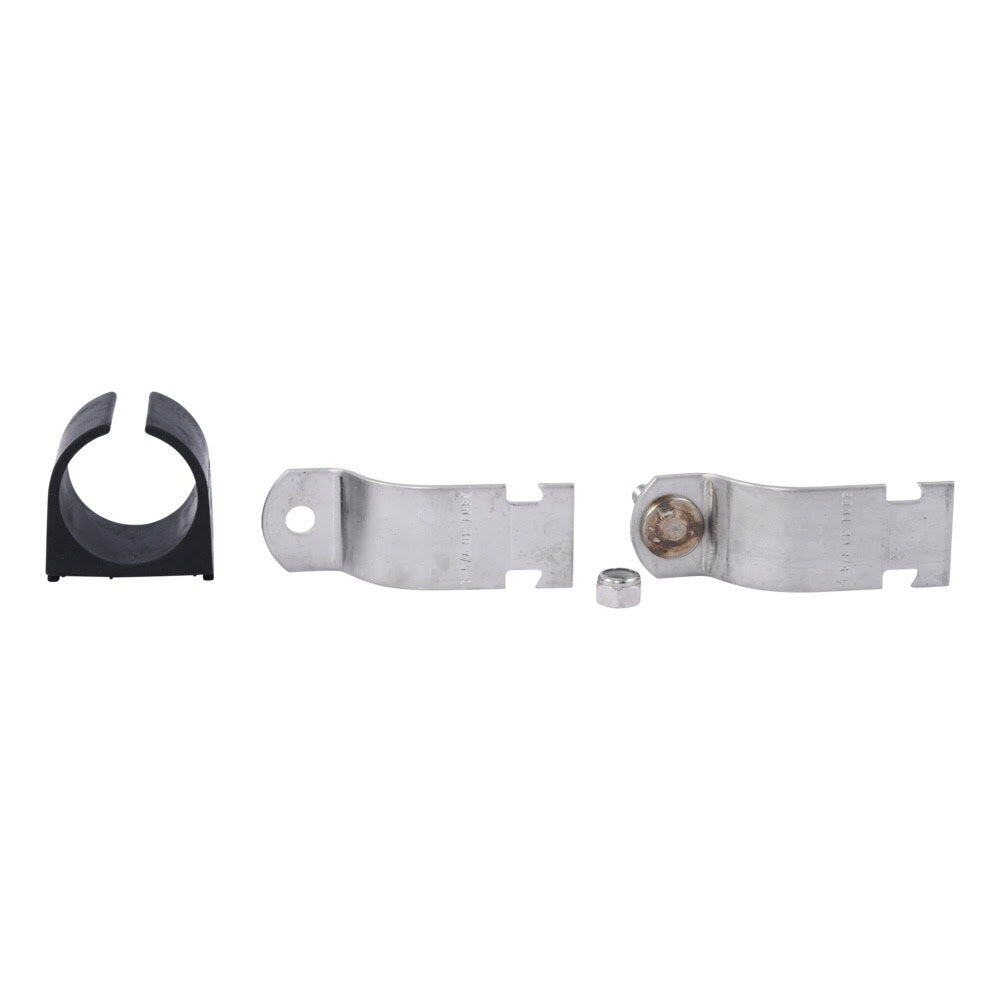

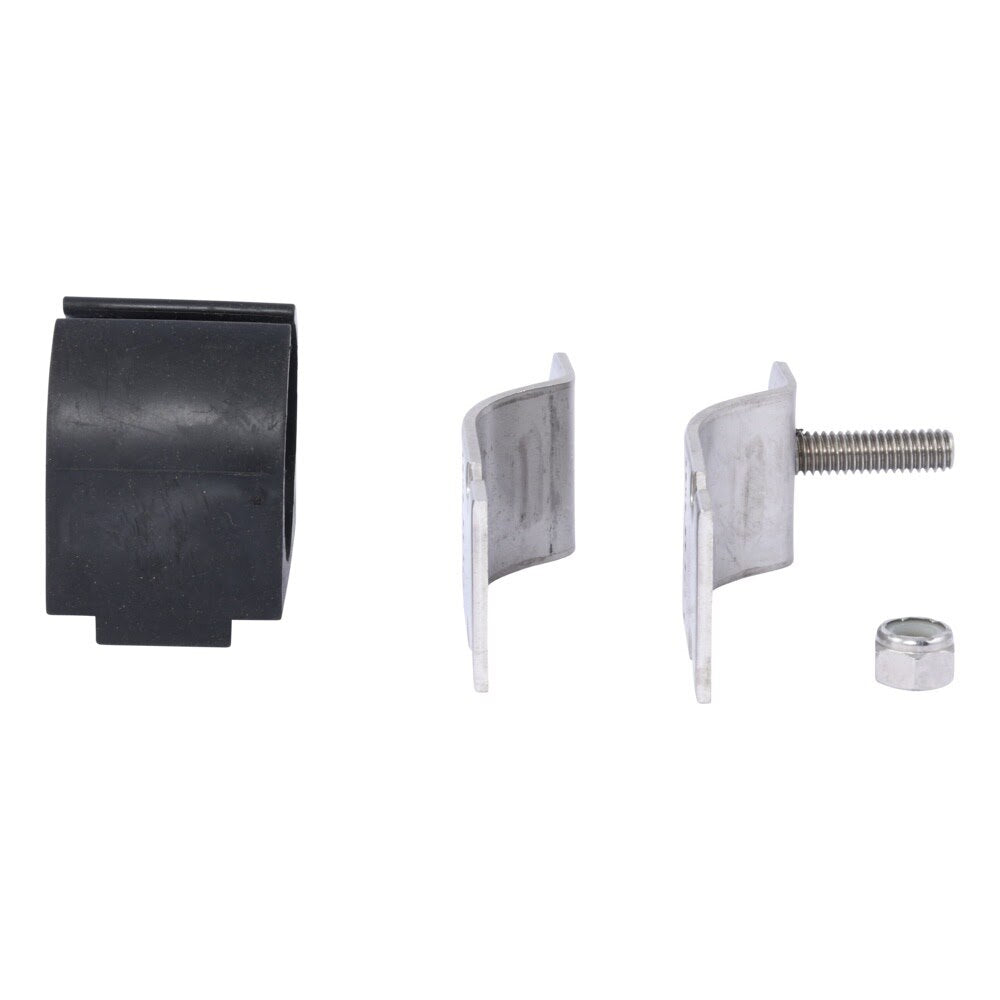

HoldRite HR100162-4-555 Includes
- (1) Strut-mounted cushion clamp assembly
- (1) Nylon insert locknut
HoldRite HR100162-4-555 Features
- 304 stainless steel construction for corrosion resistance
- Designed for 1-5/8 in. outside diameter tube
- Cushioned insert helps eliminate metal to metal contact between piping, clamp, and strut
- Resists most fuels, oils, gases, greases, solvents, and mineral acids
- Allows piping to be added or removed without disturbing adjacent lines
- Supports mixed line sizes and variable center distances
- Provides fast and simple strut-mounted installation
- Compatible with copper, PEX, and other piping materials
- Operating temperature range from -65 F to 275 F
- Includes nylon insert locknut
HoldRite HR100162-4-555 Specifications
| Material | 304 stainless steel |
| Mount Type | Strut mounted |
| Tube Outside Diameter | 1-5/8 in. |
| Design Load | 600 lb |
| Operating Temperature Min | -65 F |
| Operating Temperature Max | 275 F |
| Compatible Materials | Copper, PEX and other materials |
| Product Length (in) | 4 |
| Product Width (in) | 2.4 |
| Product Height (in) | 1.75 |
| Product Weight (lb) | 0.195 |
Toolup Part # :
884763
