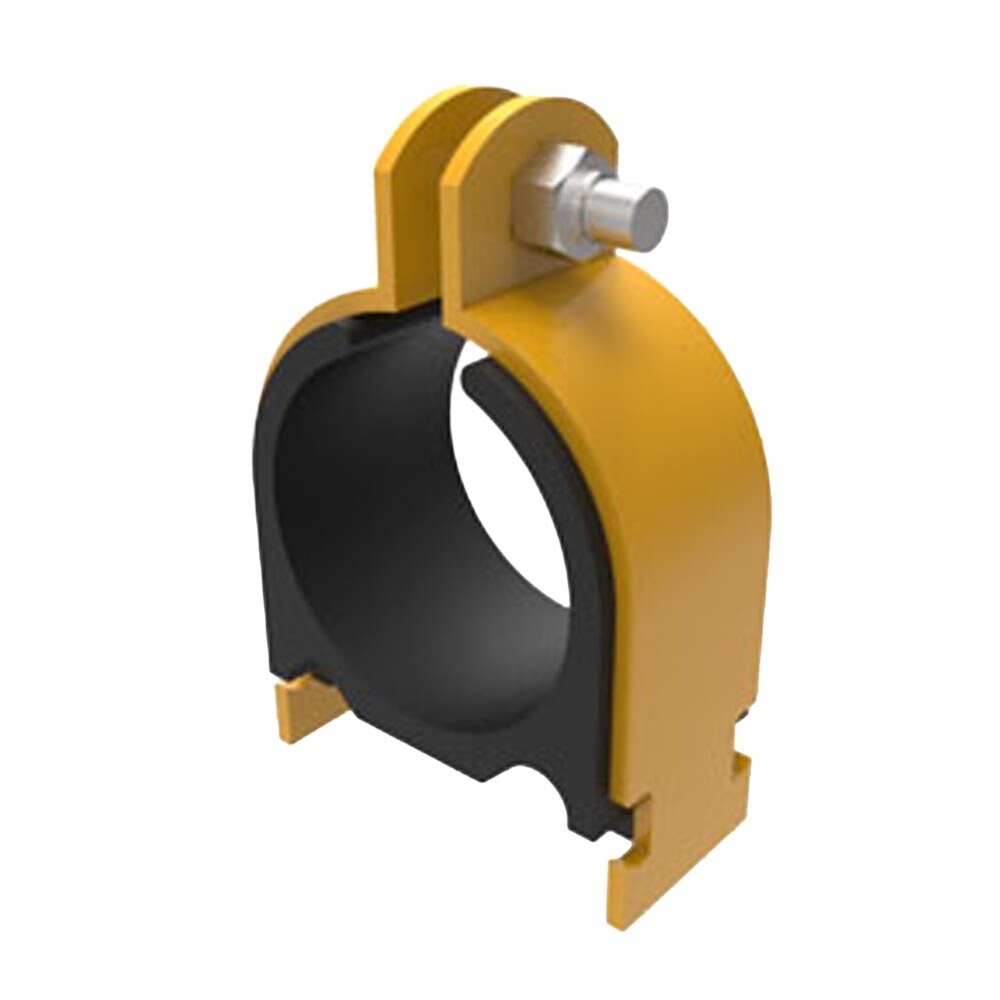

HoldRite HR100312 Description
The HoldRite HR100312 100 Series strut-mounted cushion clamp is designed for 3-1/8 in. O.D. tube and helps eliminate metal-to-metal contact between the piping, clamp, and strut. Made of yellow trivalent non-hex plated mild steel, it is ideal for overhead insulated pipe on a trapeze or direct strut mounting and includes a nylon insert locknut.
HoldRite HR100312 Includes

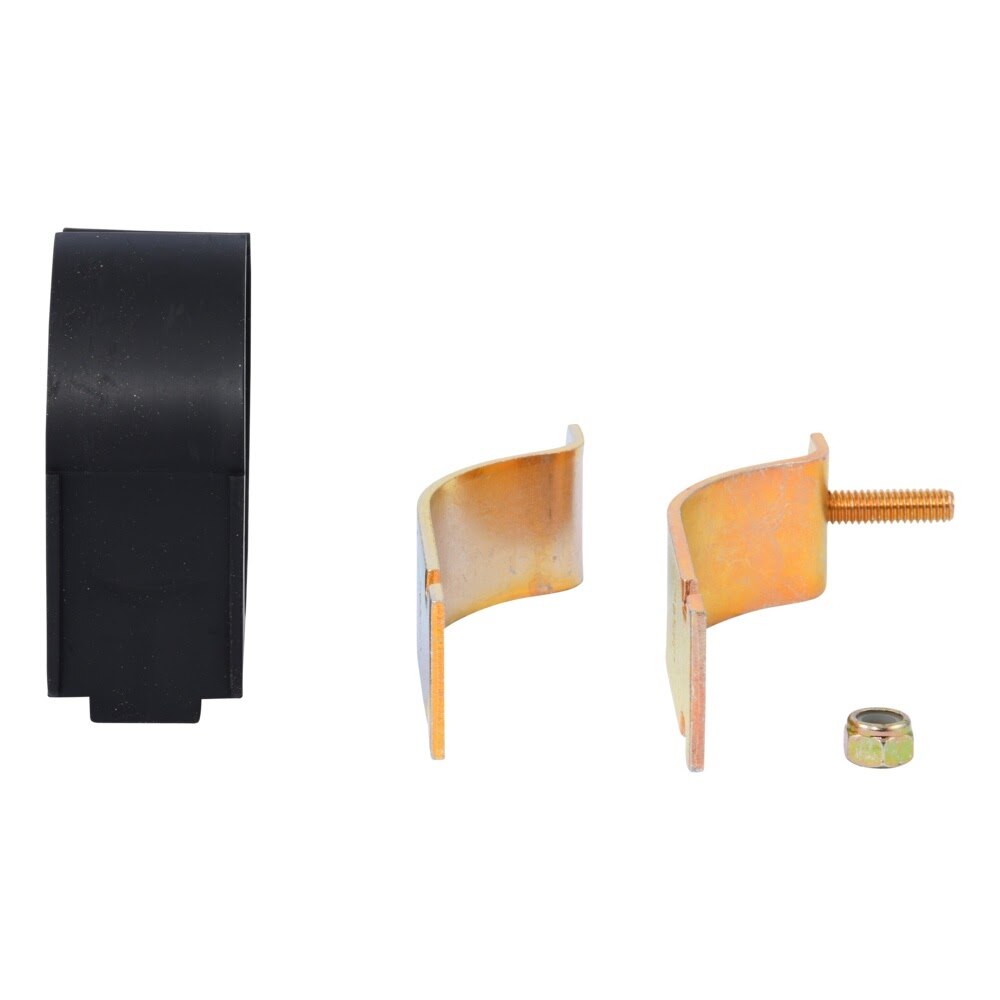

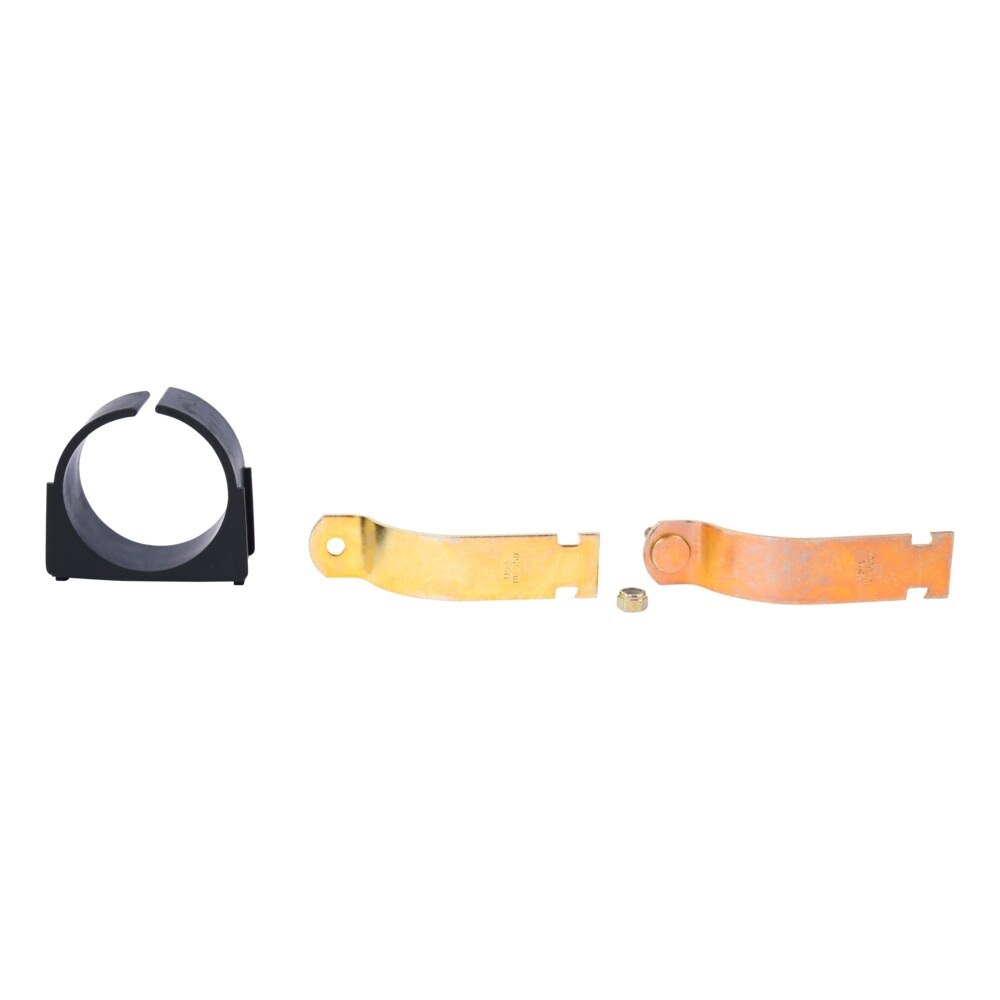

- (1) 3-1/8 in. O.D. Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR100312 Features
- Designed for 3-1/8 in. O.D. tube
- Yellow trivalent non-hex plated mild steel construction
- Cushion insert helps eliminate metal-to-metal contact between piping, clamp, and strut
- Suitable for overhead insulated pipe on a trapeze
- Mounts directly to strut
- Resists most fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Permits various size lines to be mixed to suit installation
- Compatible with copper, PEX, and other materials
- Working temperature range from -65 Degree to +275 Degree
- Includes nylon insert locknut
HoldRite HR100312 Specifications
| Series | 100 Series |
| Product Type | Strut-Mounted Cushion Clamp |
| Material | Mild Steel |
| Finish | Yellow trivalent non-hex plated |
| Tube Outside Diameter | 3-1/8 in. O.D. |
| Mounting Type | Strut mounted |
| Application | Overhead insulated pipe on a trapeze or direct strut mounting |
| Compatible Materials | Copper, PEX and other materials |
| Working Temperature Range | -65 Degree to +275 Degree |
| Includes | Nylon insert locknut |
| Each Length | 5.656 in. |
| Each Width | 3.961 in. |
| Each Height | 1.5 in. |
| Each Shipping Weight | 1.22 lb |
| Case Quantity | 5 |
Toolup Part # :
882915
