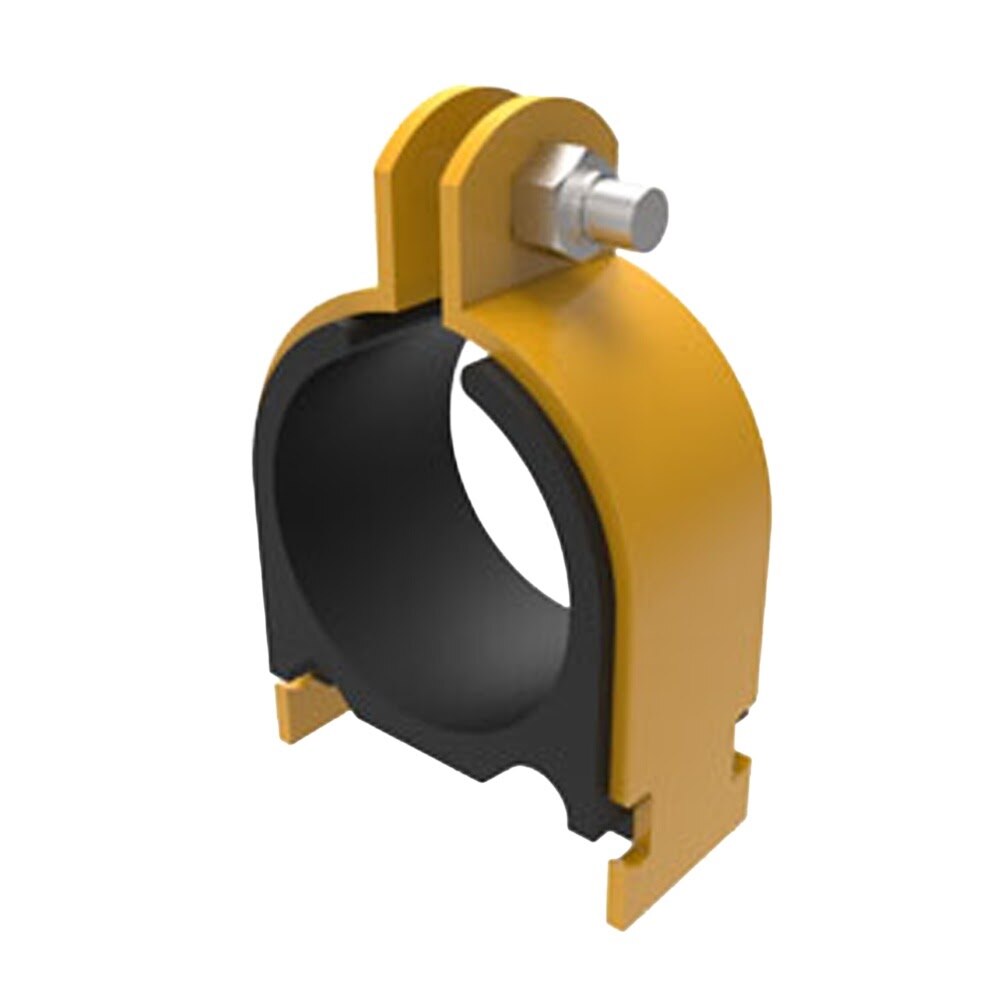

HoldRite HR100612 Description
HoldRite HR100612 is a 100 Series strut-mounted cushion clamp made from yellow trivalent non-hex plated mild steel for 6-1/8 in. O.D. tube. It helps eliminate metal-to-metal contact between piping, the clamp, and strut in overhead insulated pipe installations and includes a nylon insert locknut.
HoldRite HR100612 Includes
- (1) 6-1/8 in. O.D. Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR100612 Features
- Eliminates metal-to-metal contact between piping, clamp, and strut
- Yellow trivalent non-hex plated mild steel construction
- Designed for 6-1/8 in. O.D. tube
- Ideal for overhead insulated pipe on a trapeze with direct strut mounting
- Resists most fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Permits various size lines to be mixed to suit installation
- Center distances between conductors may be varied
- Compatible with copper, PEX, and other materials
- Working temperature range from -65 Degree to +275 Degree
- Includes a nylon insert locknut
HoldRite HR100612 Specifications
| Brand | HoldRite |
| Series | 100 Series |
| Product Type | Strut-Mounted Cushion Clamp |
| Tube Outer Diameter | 6-1/8 in. O.D. |
| Material | Mild steel |
| Finish | Yellow trivalent (non-hex) plated |
| Mounting Type | Strut mounted |
| Application | Overhead insulated pipe on a trapeze |
| Compatible Materials | Copper, PEX and other materials |
| Temperature Range | -65 Degree to +275 Degree |
| Includes | Nylon insert locknut |
| Each Width | 1.5 in. |
| Each Height | 7.5 in. |
| Each Length | 8.25 in. |
| Each Shipping Weight | 1.5 lb |
Toolup Part # :
882745
