Description
Description
HoldRite HR200150 Description

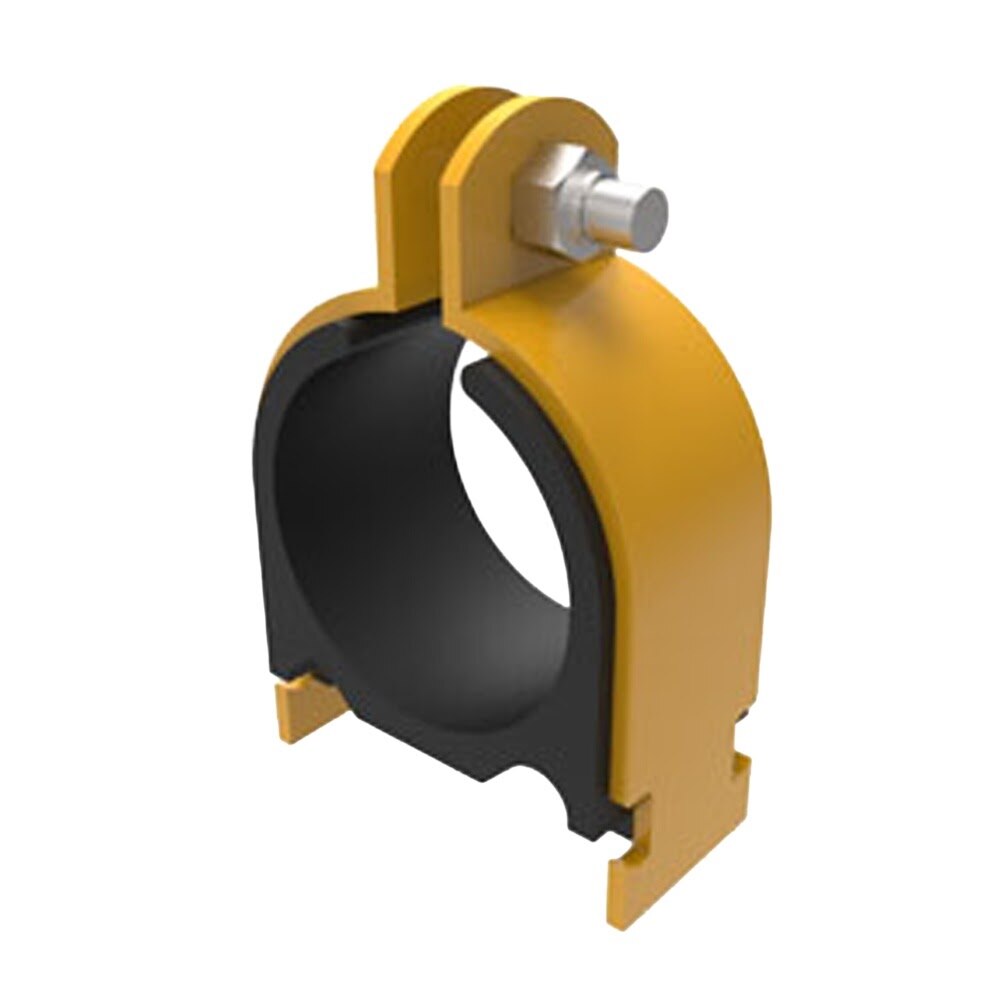

HoldRite HR200150 is a 200 Series strut-mounted cushion clamp designed for 1-1/2 in. nominal pipe. Its yellow trivalent plated mild steel body and cushioned insert help prevent metal-to-metal contact, resist harsh materials, and support quick overhead pipe installation.
HoldRite HR200150 Includes
- (1) HoldRite HR200150 Strut-Mounted Cushion Clamp
- (1) Nylon Insert Locknut
HoldRite HR200150 Features
- Designed for 1-1/2 in. nominal pipe
- Yellow trivalent non-hex plated mild steel construction
- Cushion insert eliminates metal-to-metal contact between piping, clamp, and strut
- Compatible with copper, PEX, and other piping materials
- Resists fuels, oils, gases, greases, solvents, mineral acids, and other harsh materials
- Allows piping to be added or removed without disturbing adjacent lines
- Provides fast, simple strut-mounted installation
- Working temperature range from -65 degrees F to 275 degrees F
- Includes nylon insert locknut
HoldRite HR200150 Specifications
| Brand | HoldRite |
| Series | 200 Series |
| Product Type | Strut-Mounted Cushion Clamp |
| Nominal Pipe Size | 1-1/2 in. |
| Material | Mild steel |
| Finish | Yellow trivalent (non-hex) plated |
| Mount Type | Strut mounted |
| Compatible Pipe Materials | Copper, PEX and other materials |
| Operating Temperature Min | -65 degrees F |
| Operating Temperature Max | 275 degrees F |
| Each Length | 3.068 in. |
| Each Width | 3.068 in. |
| Each Height | 3.068 in. |
| Each Shipping Weight | 0.479 lb |
| Case Quantity | 20 |
| Minimum Order Quantity | 20 |
Toolup Part # :
883982
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
