HoldRite SB3-7341 Description

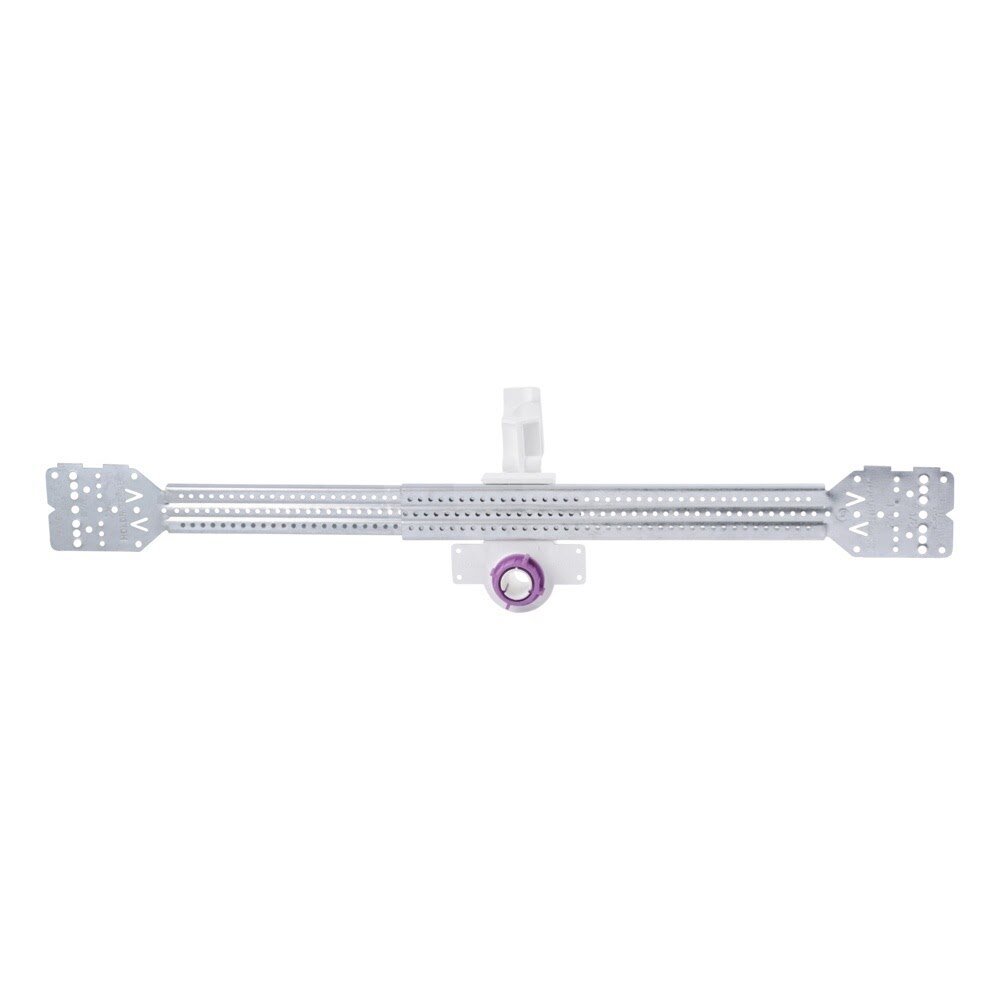

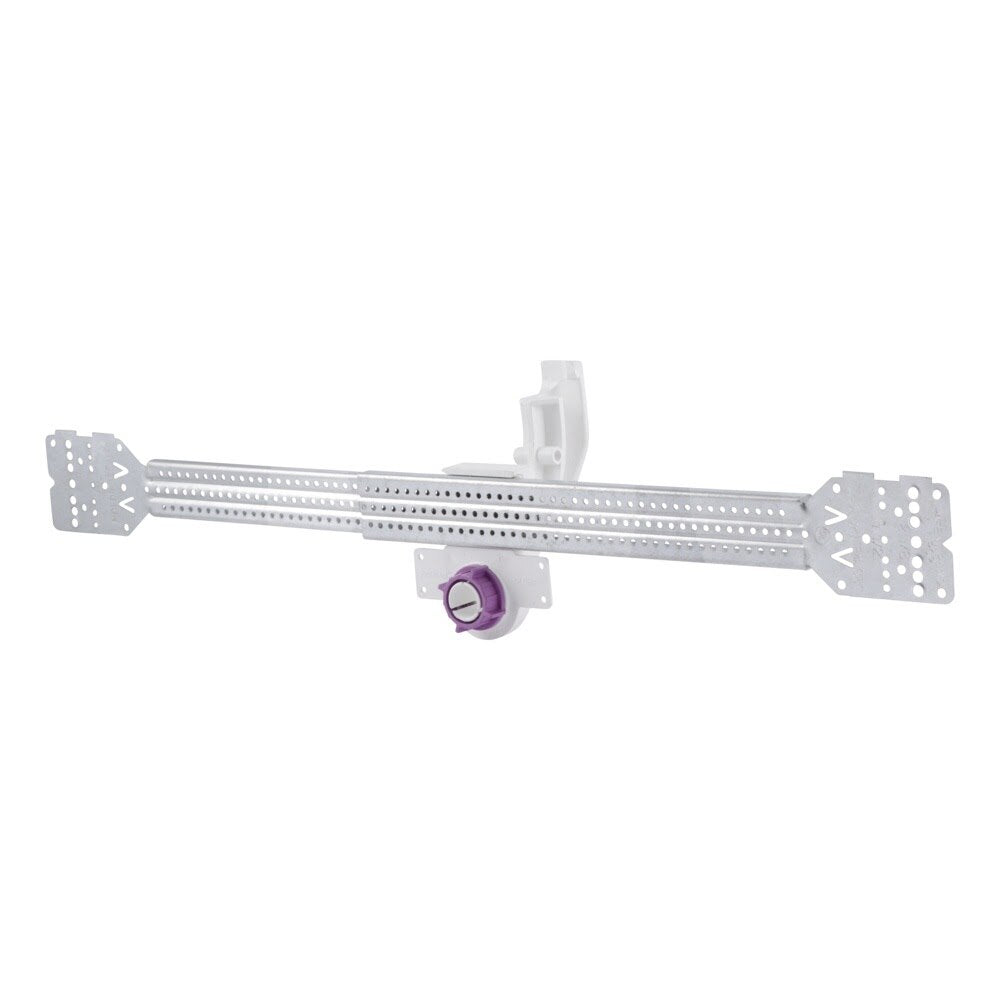

The HoldRite SB3-7341 is a pre-assembled turn-out kit featuring a wide telescoping galvanized steel bracket support with an adjustable span from 10 1/4 in. to 17 1/2 in. and a 1/2 in. CTS #734 turn-out support. Designed for PEX installations at toilets and sinks, it helps provide an ideal turning radius while reducing the need for in-wall fittings and concealed joints.
HoldRite SB3-7341 Includes
- (1) Turn-Out Kit
- (1) Wide telescoping galvanized steel bracket support

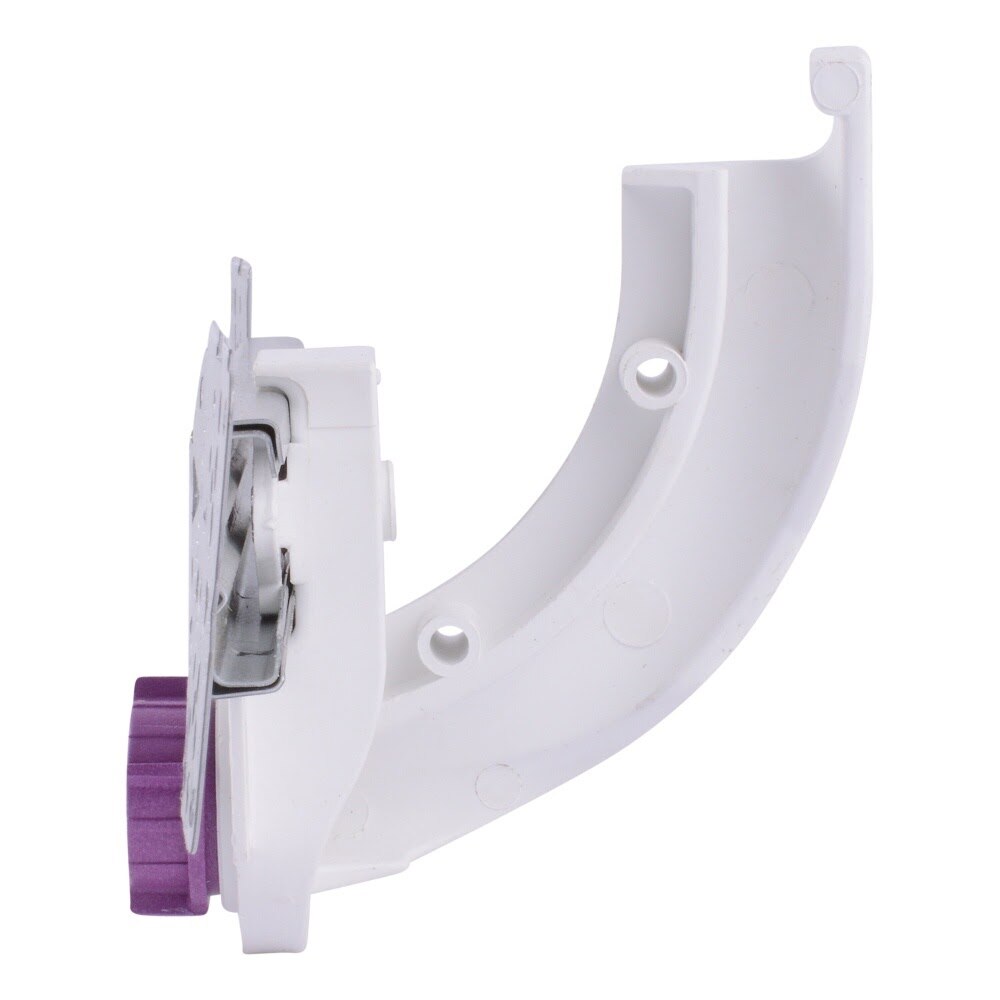

- (1) 1/2 in. CTS #734 turn-out support
HoldRite SB3-7341 Features
- Wide telescoping galvanized steel bracket adjusts from 10 1/4 in. to 17 1/2 in.
- Designed for PEX stub-out installations at toilets and sinks
- Compatible with all manufacturers of 1/2 in. CTS PEX tubing
- Helps maintain an ideal turning radius to reduce kinking
- Eliminates in-wall fittings and concealed joints
- Pre-assembled design speeds installation
- Integrates with #734 stub-out support
- Load rating of 25 lb
- Fire rated UL 94 V-0
HoldRite SB3-7341 Specifications
| Brand | HoldRite |
| Part Number | SB3-7341 |
| Product Type | Turn-Out Kit |
| Bracket Material | Galvanized steel |
| Adjustable Range | 10 1/4 in. to 17 1/2 in. |
| Tube Size Compatibility | 1/2 in. CTS PEX |
| Support Model | #734 |
| Application | Toilets and sinks |
| Load Rating | 25 lb |
| Temperature Range | -10 DegreeF to 140 DegreeF |
| Fire Rating | UL 94 V-0 |
| Each Length | 16.7 in. |
| Each Width | 5.679 in. |
| Each Height | 3.973 in. |
| Each Shipping Weight | 0.788 lb |
Toolup Part # :
883454
