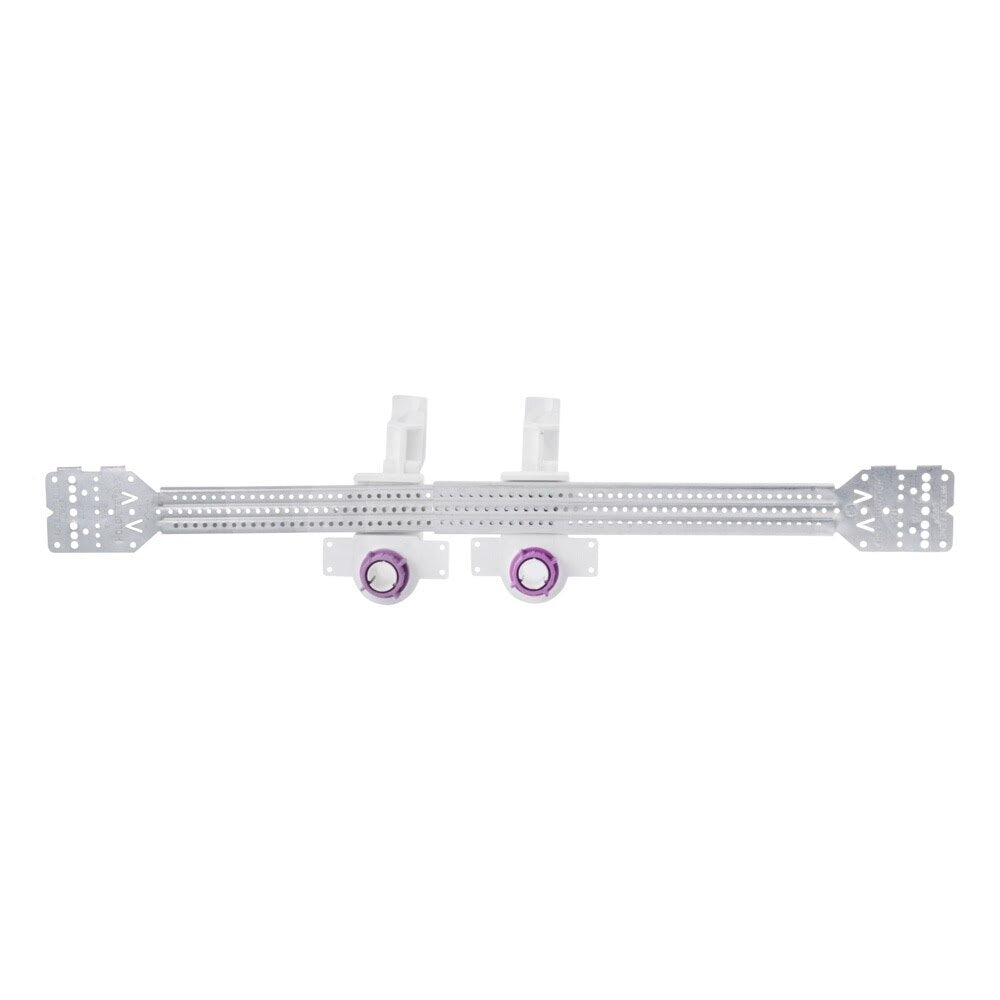

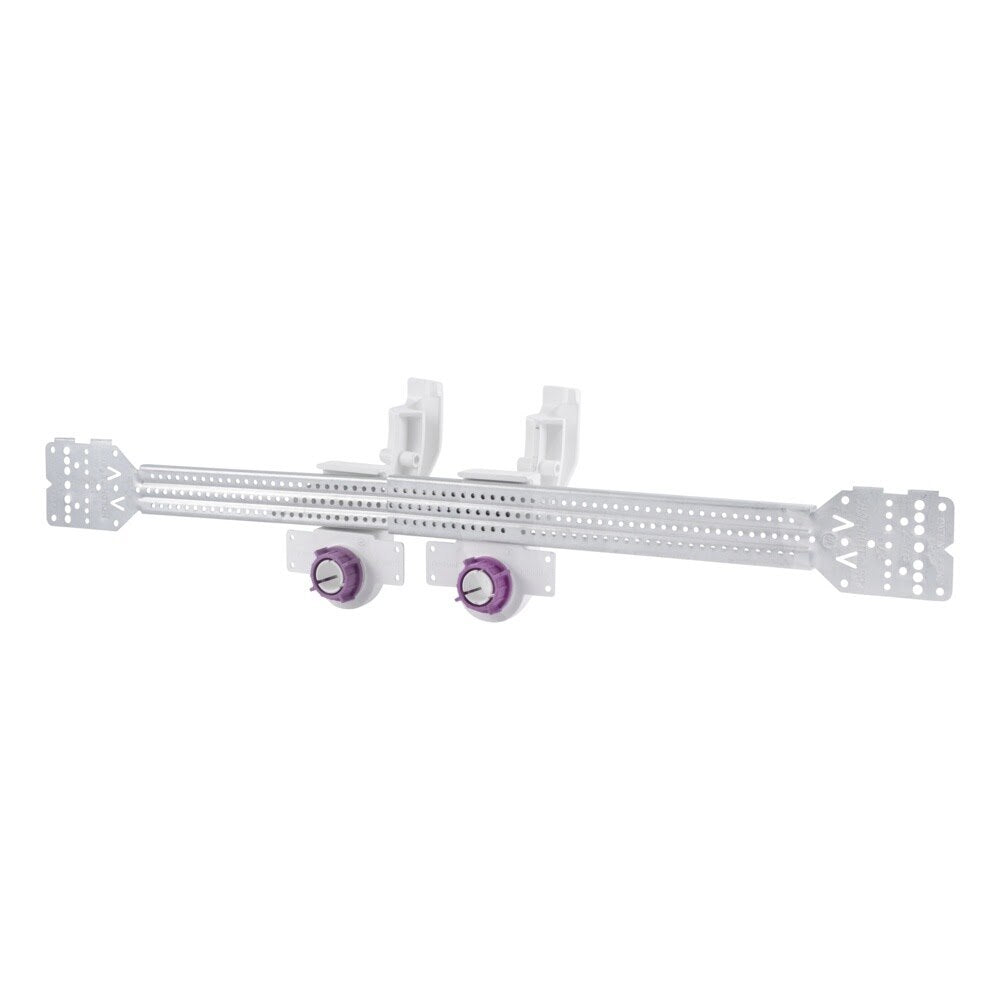

HoldRite SB3-7342 Description
The HoldRite SB3-7342 is a pre-assembled PEX turn-out kit for toilets and sinks with a wide telescoping galvanized steel bracket support that adjusts from 10-1/4 in. to 17-1/2 in. It includes two 1/2 in. CTS #734 turn-out supports to help provide a proper turning radius for PEX stub-outs while reducing the need for in-wall fittings and concealed joints.
HoldRite SB3-7342 Includes
- (1) SB3-7342 turn-out kit
- (1) Wide telescoping galvanized steel bracket support
- (2) 1/2 in. CTS #734 turn-out supports
HoldRite SB3-7342 Features
- Wide telescoping bracket adjusts from 10-1/4 in. to 17-1/2 in.
- Designed for PEX stub-outs for toilets and sinks
- Compatible with all manufacturers of 1/2 in. CTS PEX tubing
- Helps maintain an ideal turning radius to reduce the chance of PEX kinking
- Eliminates in-wall fittings and concealed joints

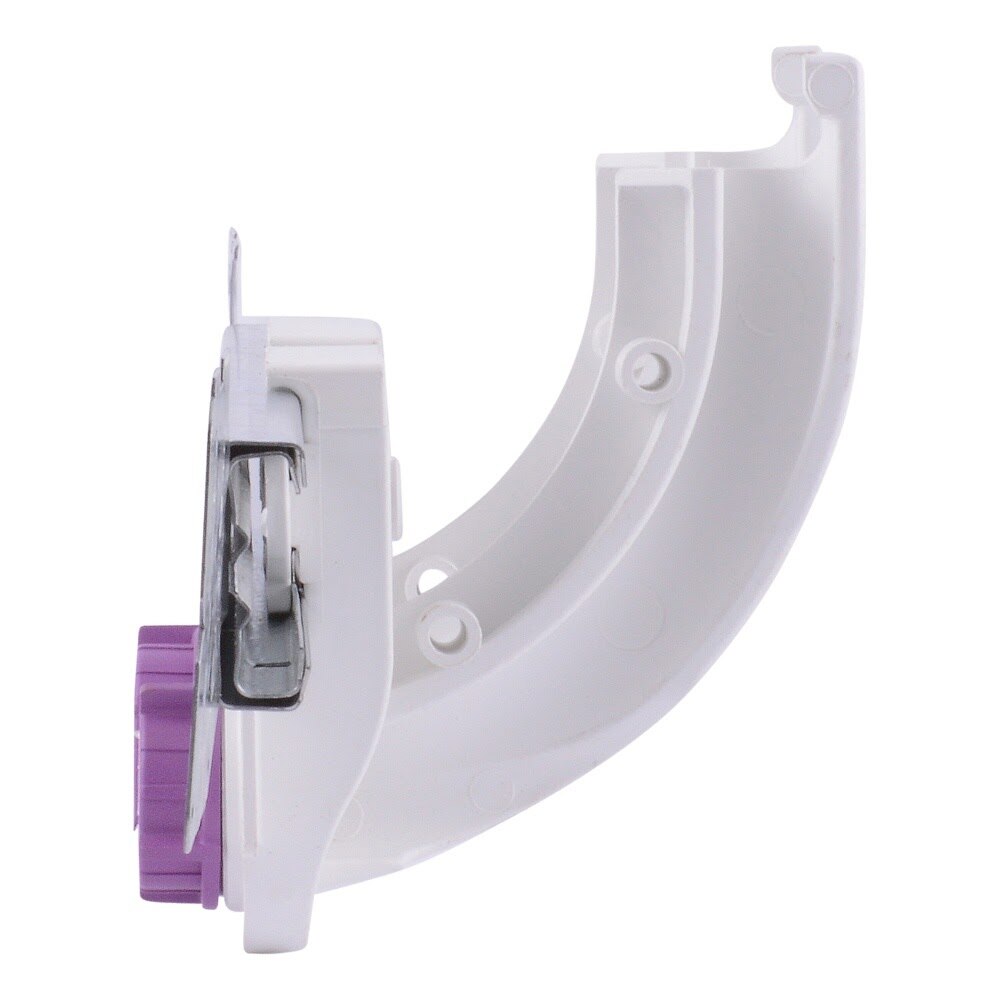

- Includes two integrated #734 turn-out supports
- Galvanized steel bracket provides durable mounting support
- Fire rated UL 94 V-0
- Temperature range from -10 °F to 140 °F
- Load rating of 25 lb
HoldRite SB3-7342 Specifications
| Brand | HoldRite |
| Model | SB3-7342 |
| Product Type | PEX turn-out kit |
| Application | Toilets and sinks |
| Bracket Style | Wide telescoping galvanized steel support |
| Adjustable Range | 10-1/4 in. to 17-1/2 in. |
| Pipe Compatibility | 1/2 in. CTS PEX tubing |
| Included Supports | (2) #734 turn-out supports |
| Materials | Galvanized steel, PVC, UL94V-0 Nylon 6/6 |
| Temperature Range | -10 °F to 140 °F |
| Load Rating | 25 lb |
| Fire Rating | UL 94 V-0 |
| Product Length | 16 in. |
| Product Width | 5.143 in. |
| Product Height | 4.189 in. |
| Shipping Weight | 0.869 lb |
Toolup Part # :
883343
