Ideal 30-342 Description

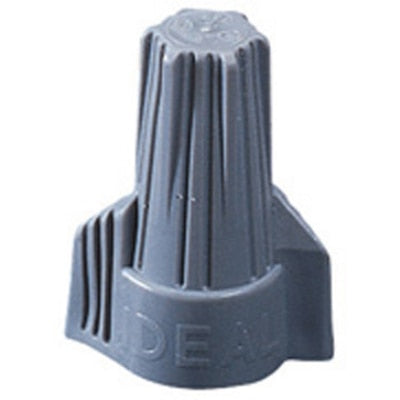

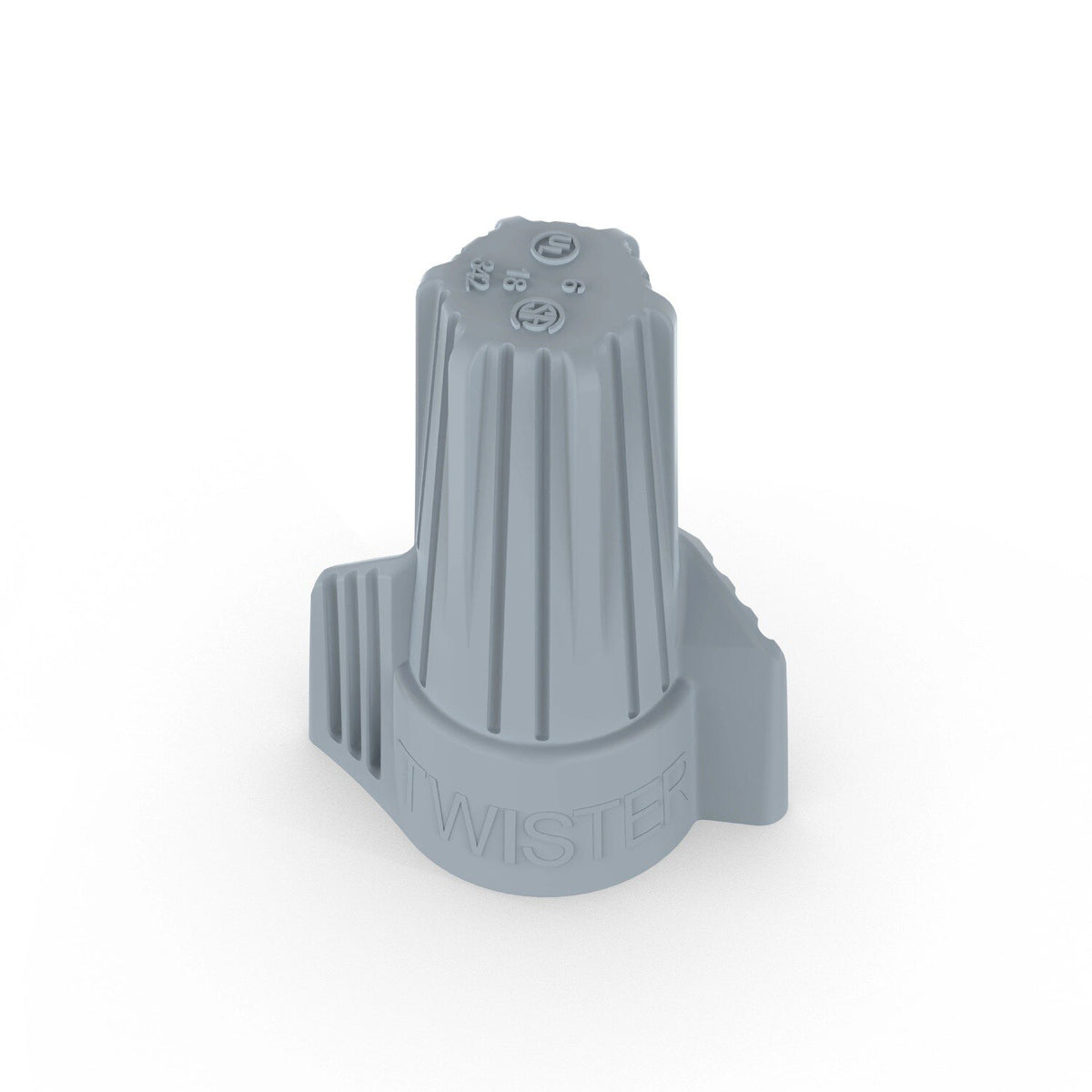

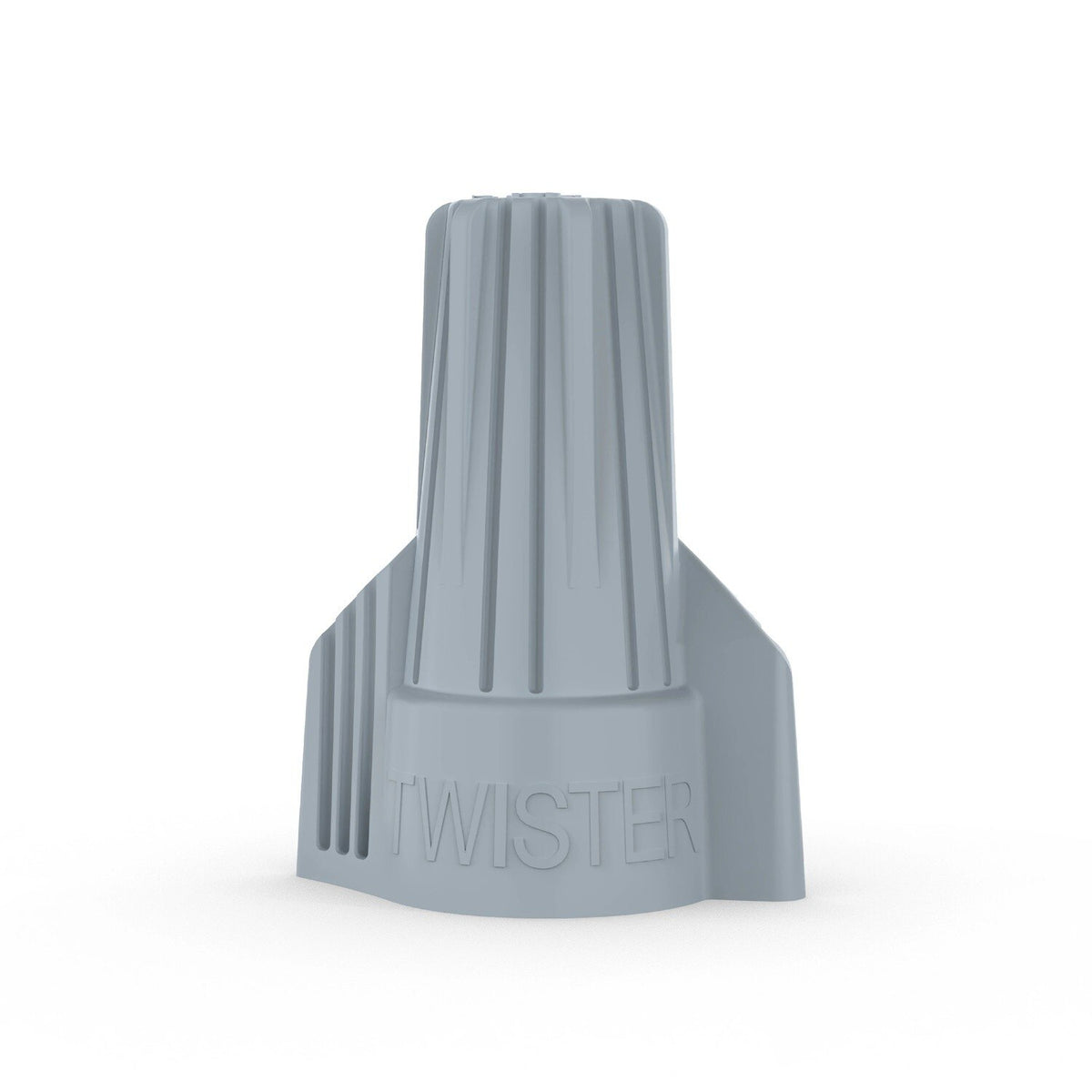

The Ideal Twister 342 gray wire connector provides a wide wire range for #18 through #8 AWG conductors and installs quickly with no pre-twisting required. It is rated up to 600 Volt maximum, features a swept-wing design for leverage and comfort, and uses a hex shape that can be driven with a standard nutdriver. The reusable connector is UL Listed and CSA Certified, with a shell rated for 105 Degree C.
Ideal 30-342 Includes
- (100) Twister 342 Wire Connector
Ideal 30-342 Features
- For #18 thru #8 AWG
- Accepts 3 #14 to 2 #10 with 4 #12 solid wire combinations
- Rated for 600 Volt maximum
- Shell rated for 105 Degree C
- Exceptional wire range capacity with only three sizes to stock

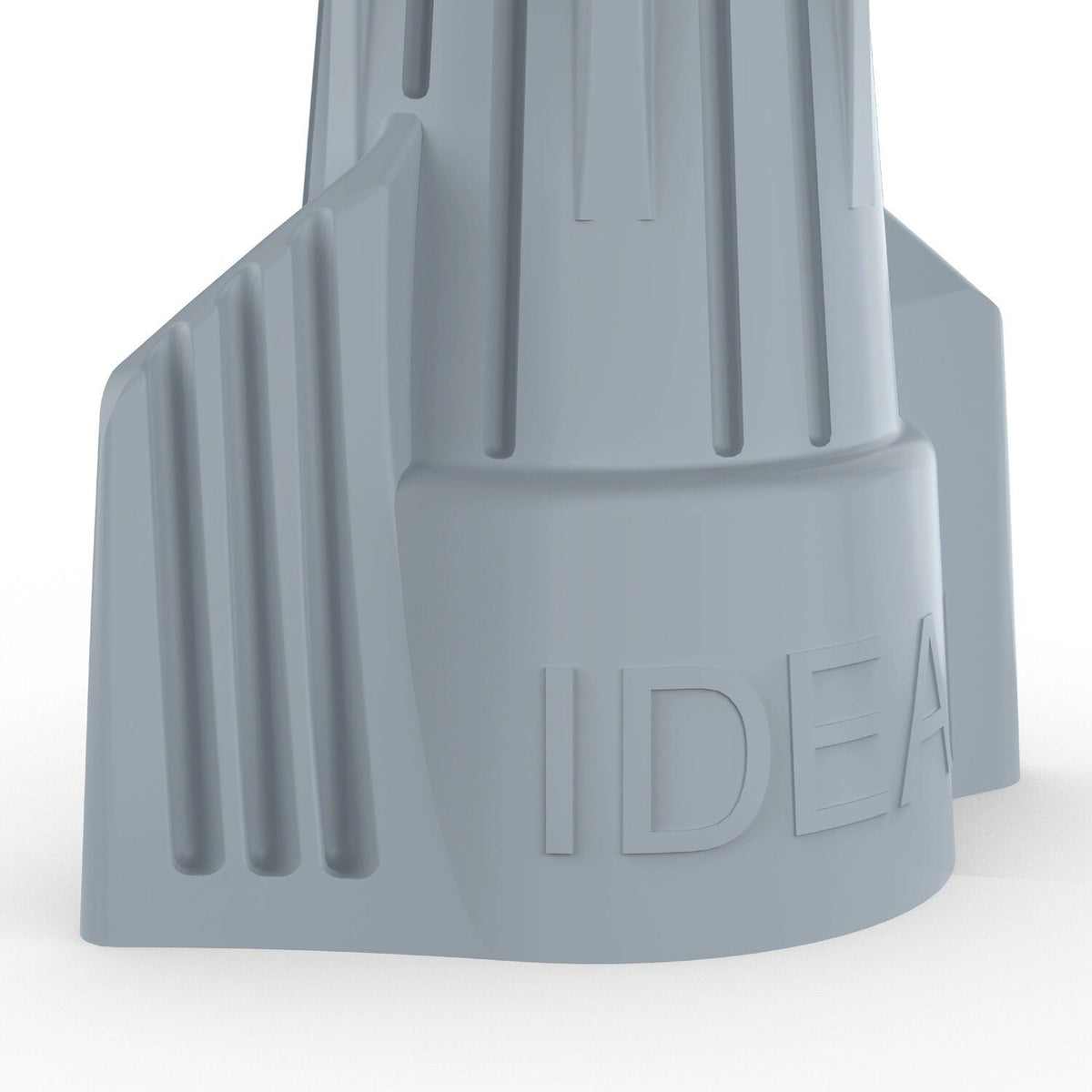

- Swept-wing design for comfort and greater leverage
- Live-action, square-wire spring
- Hexagonal shape allows connectors to be applied with a standard nutdriver
- No pre-twisting required
- UL Listed and CSA Certified
- Reusable
Ideal 30-342 Specifications
| Model | Twister 342 |
| Color | Gray |
| Wire Range | #18 thru #8 AWG |
| Wire Combination Acceptance | Accepts 3 #14 to 2 #10 with 4 #12 solid wire combinations |
| Maximum Voltage | 600 Volt |
| Shell Temperature Rating | 105 Degree C |
| Certifications | UL Listed; CSA Certified |
| Quantity | 100 |
| UPC | 783250303427 |
| Shipping Weight | 0.75 lb |
