At a Glance
Description
Description
INCLUDES:
• (1) Transmitter
• (1) Receiver
FEATURES:
• Quickly and easily identifies circuit breakers/fuses without disrupting power on energized 120-Volt AC circuits
• Clear visual and audible indicators

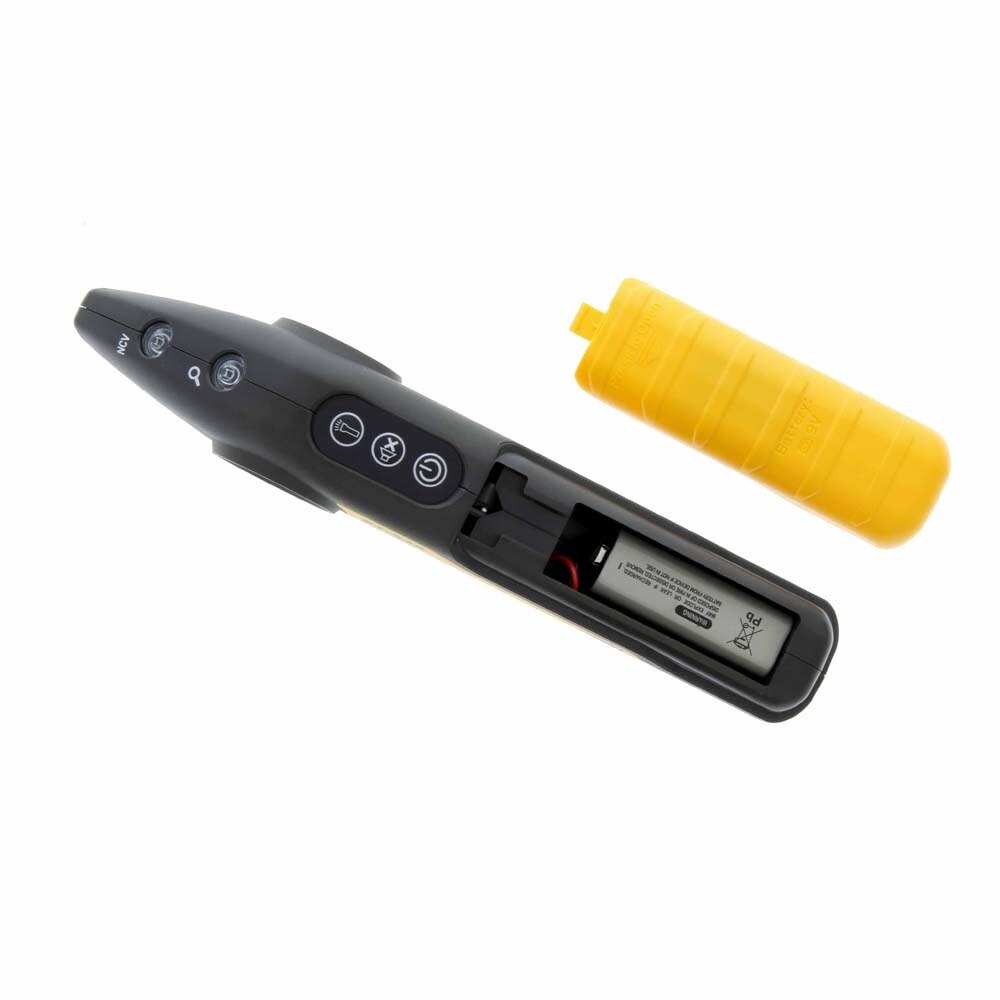

• Receiver powers off automatically after 5-minutes of non-use to conserve battery life
• NCVT in receiver tip indicates presence of AC voltage between 80-Volt tov300-Volt
SPECIFICATIONS:
• cULus 1436 certified, CAT II 150-Volt
• Length: 1.81in
• Width: 5.91in
• Height: 9.88in

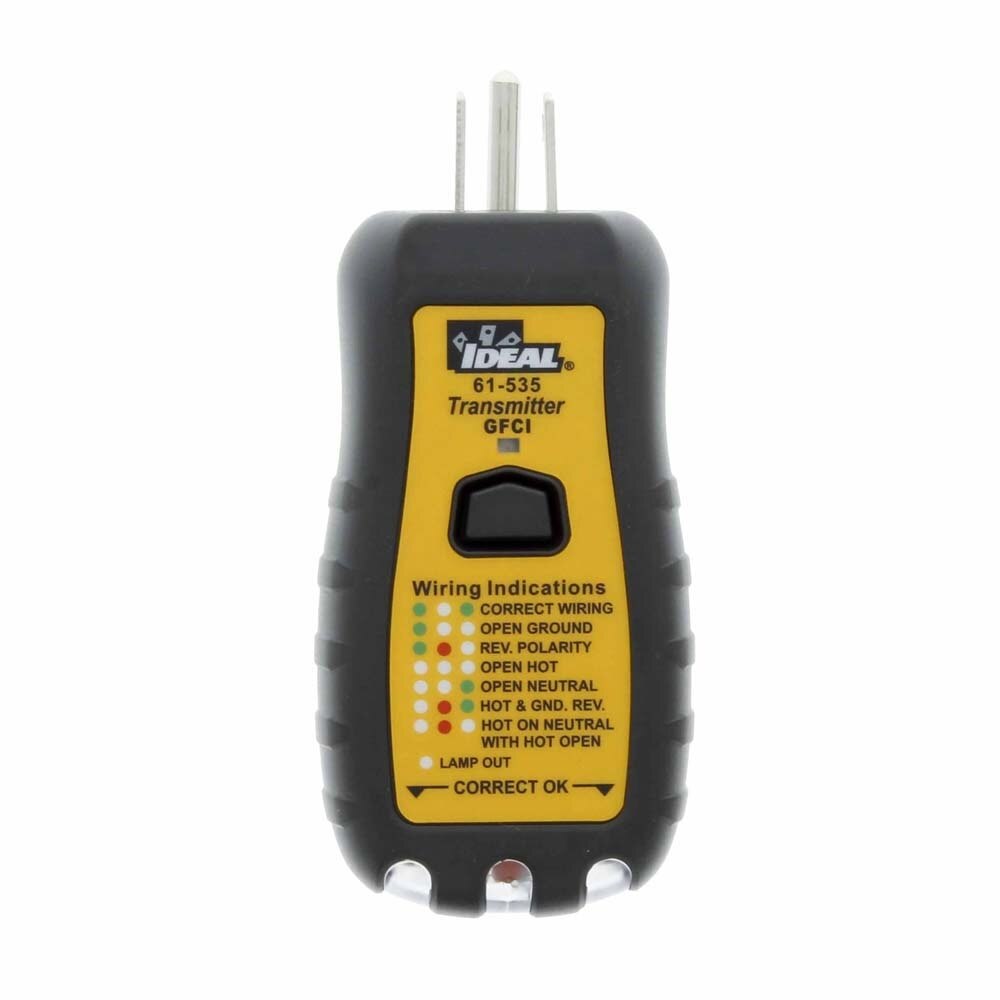

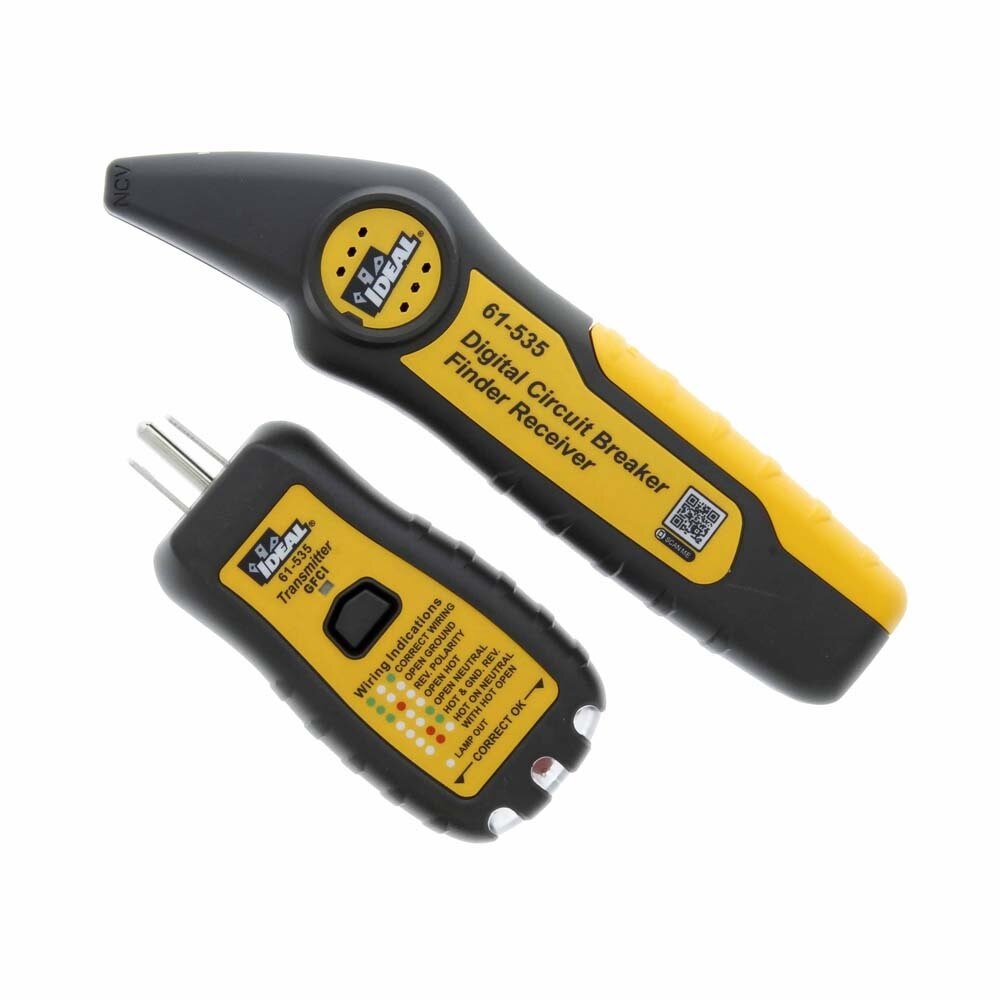

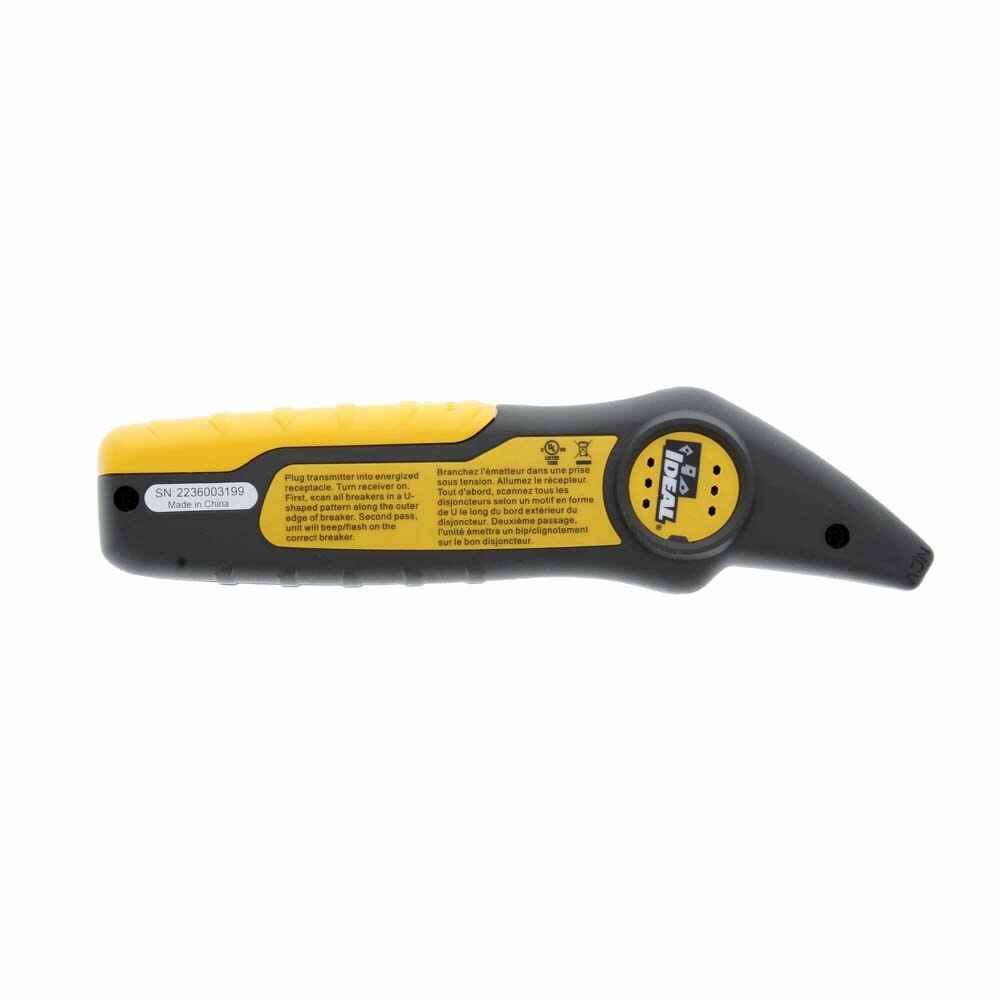

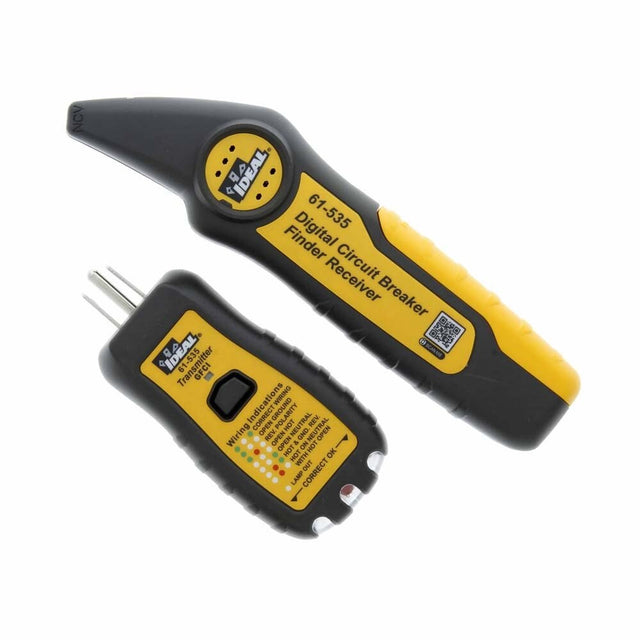

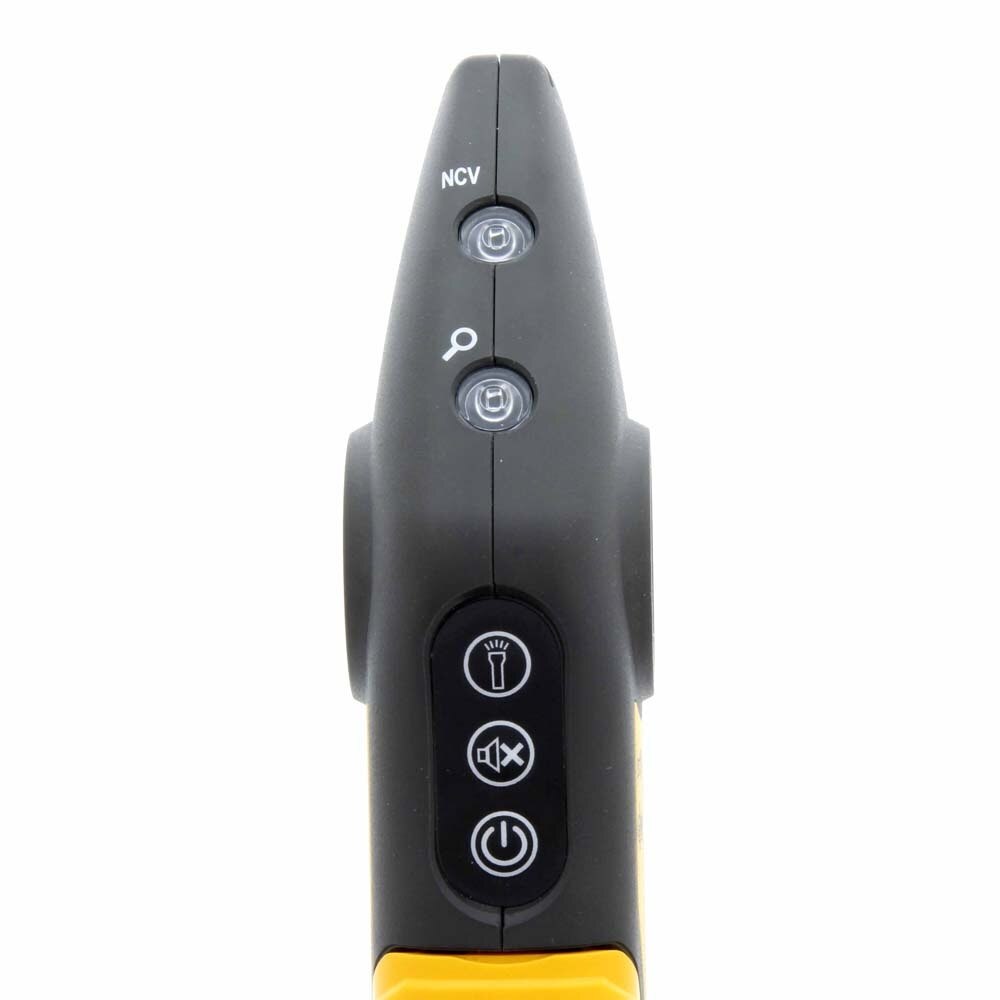

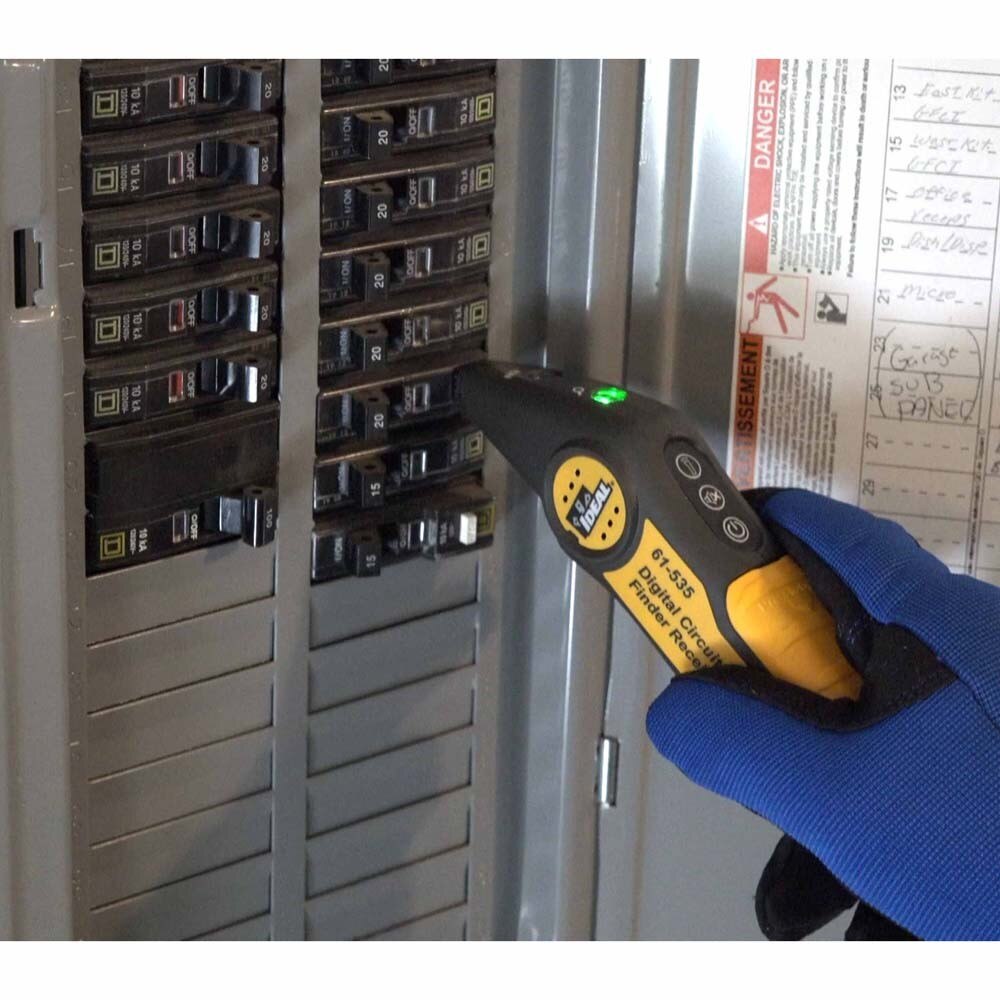

The IDEAL 61-535 is a 120V AC Circuit Breaker Finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The Transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates corrector/incorrect wiring conditions via illuminated Green and Red LED’s and contains a GFCI Trip Tester. The receiver reads the transmitter’s signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal. The receiver also senses the presence of AC voltage (60 - 600 V AC) via and non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound. The audible tone for both the breaker finding mode and the NCV mode can be muted via a button for working in noise sensitive areas. The receiver also includes a work light that can be operated independently for work in poorly lit conditions.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
