At a Glance
Tape Width
3/4 in
Roll Length
66 ft
Tape Thickness
0.007 in
Tensile Strength
17 lb
Voltage Rating
600V
Sold As
Individual
Color
Black
Description
Description

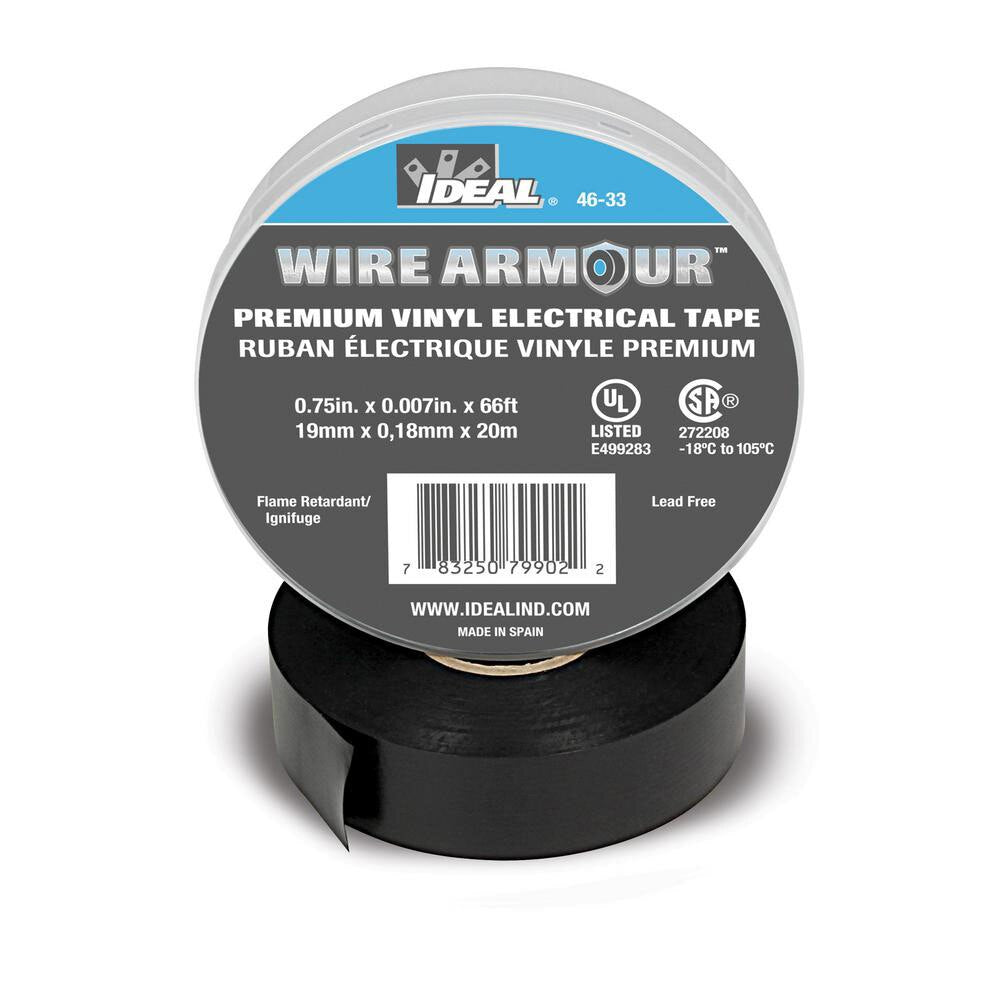

Ideal 46-33 Includes
- (1) 0.75" x 66' Electrical tape
Ideal 46-33 Features
- 7 mil thickness
- Cold and weather resistant
- High dielectric strength
- Highly elastic
- Flame retardant
- Highly resistant to sun, water, oil, acids, alkalis and corrosive chemicals
- Lead free
- UL 510, CSA Listed
Ideal 46-33 Specifications
| Color | UV Black |
| Maximum Wire Gauge | 2 AWG |
| Minimum Wire Gauge | 4 AWG Twist-On Style Asst |
| Size | 0.75 in. x 66 ft. (19mm x 20m) |
| Thickness | 0.007 in, 0.18 mm |
| Tensile Strength | 17 lb./in. |
| Elongation | 260 % |
| Adhesion to Steel | 20 oz./in |
| Meets | – ASTM D 3005, Type I – HH-1595C / A-A-55809A – EN 60454-3-1, Type 11 – UL 510 – CSA C 22.2 No. 197 |

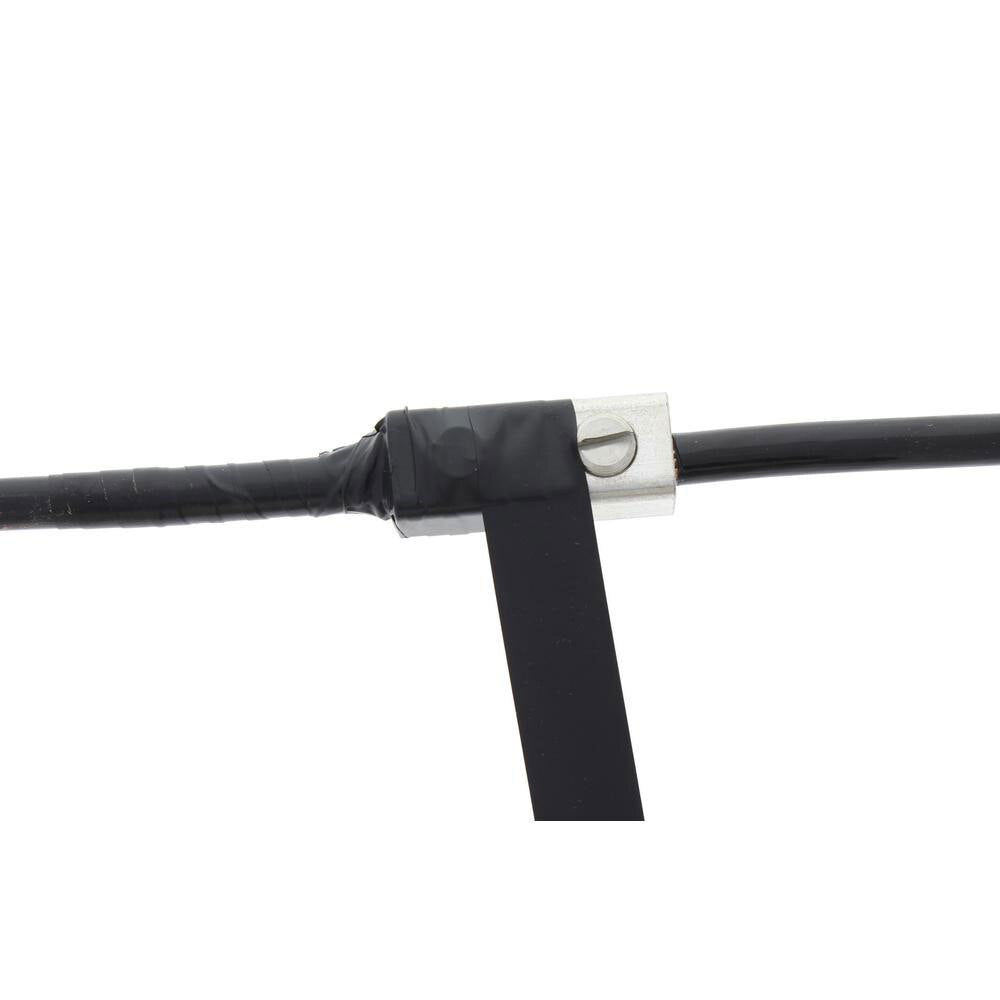

| Recommended Uses | Used for general splicing purposes. Can be used as primary insulation for splices up to 600 volts. Provide a protective outer jacket over splices for all low temperature applications. Can be used for wrapping wire harnesses and insulating degaussing coils.WIRE ARMOUR™ Professional Grade Vinyl Electrical Tape A 7 mil (0.18mm) all weather, professional grade, pressure sensitive vinyl tape which applies easily and gives excellent performance over a wide range of temperatures. Cold and weather resistant and flame retardant. 46-33 can be used as primary insulation for splices up to 600 volts. Use as protective outer jacket over splices and for all low temperature applications. |
Toolup Part # :
610559
