At a Glance
Adhesive Type
Vinyl
Tape Width
3/4 in
Roll Length
66 ft
Tape Thickness
0.007 in
Tensile Strength
17 lb
Voltage Rating
600V
Sold As
Individual
Color
Green
Description
Description

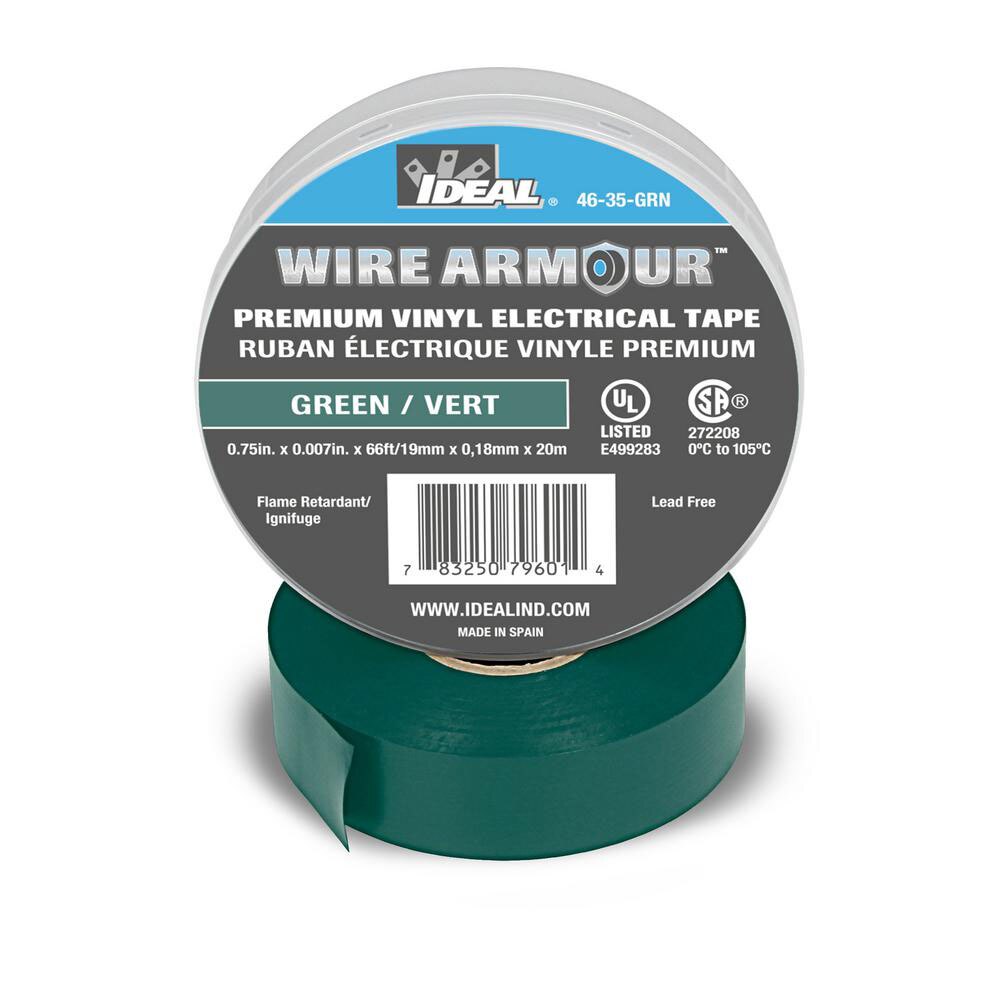

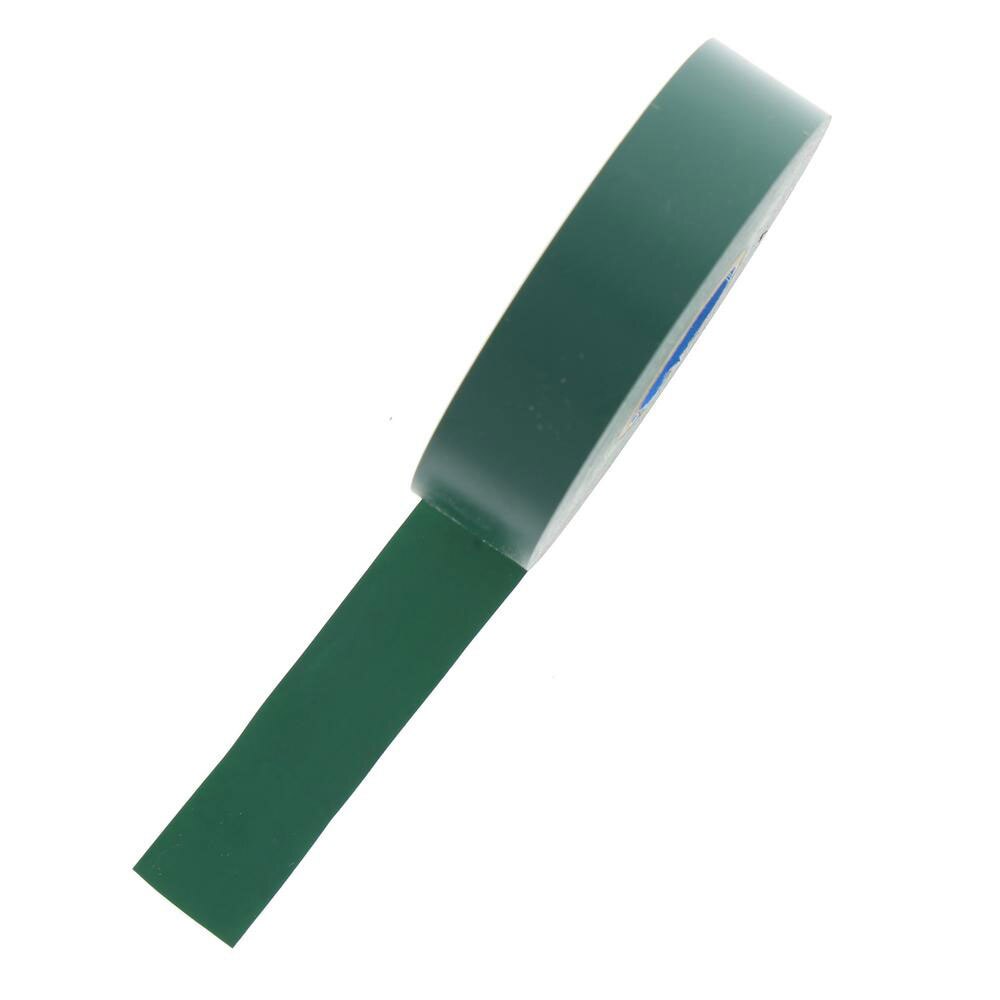

Ideal 46-35-GRN Includes
- (1) 0.75" x 66' Electrical tape
Ideal 46-35-GRN Features
- 7 mil thickness
- Cold and weather resistant
- High dielectric strength
- Highly elastic
- Highly comfortable
- Highly UV resistant
- Flame retardant
- Highly resistant to sun, water, oil, acids, alkalis and corrosive chemicals
- Lead free
- UL 510, CSA Listed
Ideal 46-35-GRN Specifications
| Color | Green |
| Size | 0.75 in. x 66 ft. (19mm x 20m) |
| Thickness | 0.007 inch, 0.18 mm |
| Tensile Strength | 17 lb./in. |
| Elongation | 200 % |
| Adhesion to Steel | 20 oz./in |
| Meets | – ASTM D 3005, Type I – ASTM D 1000 – HH-1595C / A-A-55809A – EN 60454-3-1, Type 11 – UL 510 – CSA C 22.2 No. 197 |

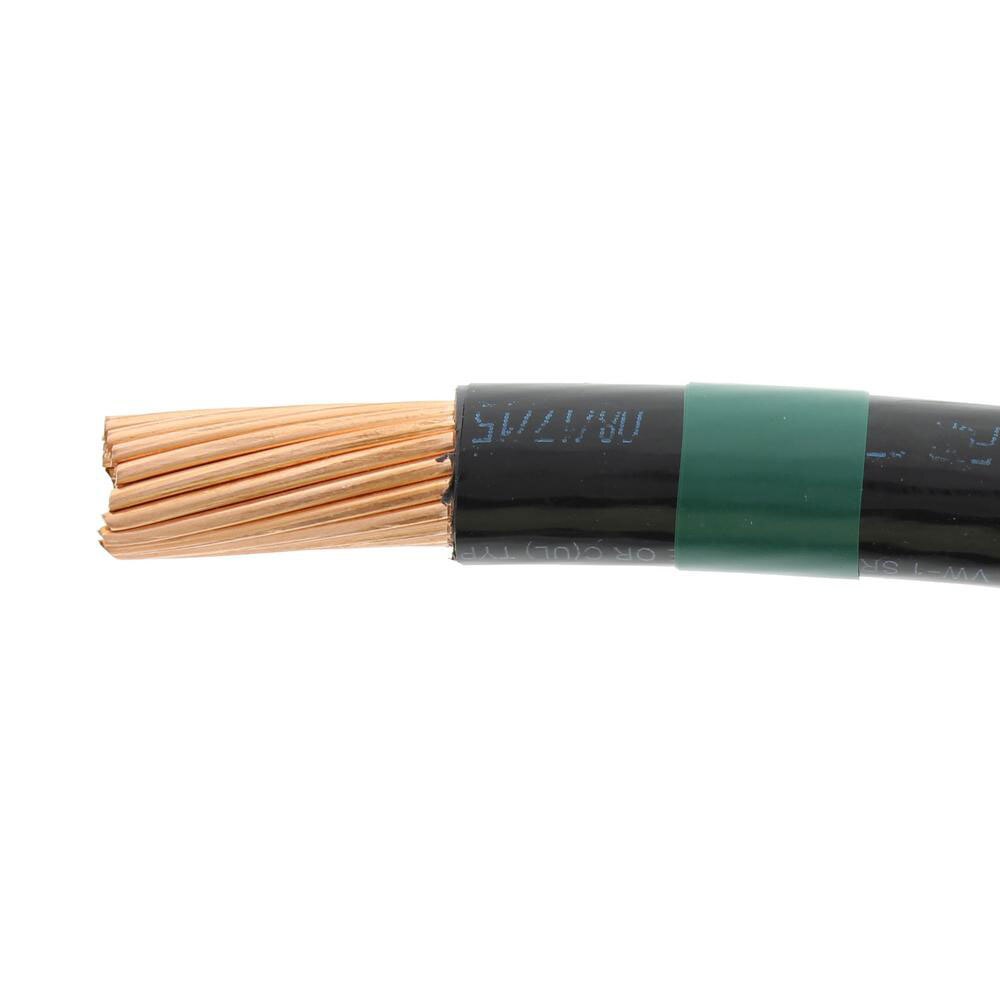

| Recommended Uses | Used for general splicing purposes. Can be used as primary insulation for splices up to 600 volts. Provide a protective outer jacket over splices for all low temperature applications. Can be used for wrapping wire harnesses and insulating degaussing coils.Wire Armour™ Professional Grade Color Coding Vinyl Electrical Tape A 7 mil (0.18 mm) all weather, professional grade, pressure sensitive vinyl tape that is available in nine colors for color coding and insulating. Cold and weather resistant. Flame retardant. Use Premium 46-35 for easy identification of electrical circuits, containers, and conduit systems, as well as primary insulation for splices at not more than 600 volts. |
Toolup Part # :
610562
