ITW Buildex | SKU:
1088000

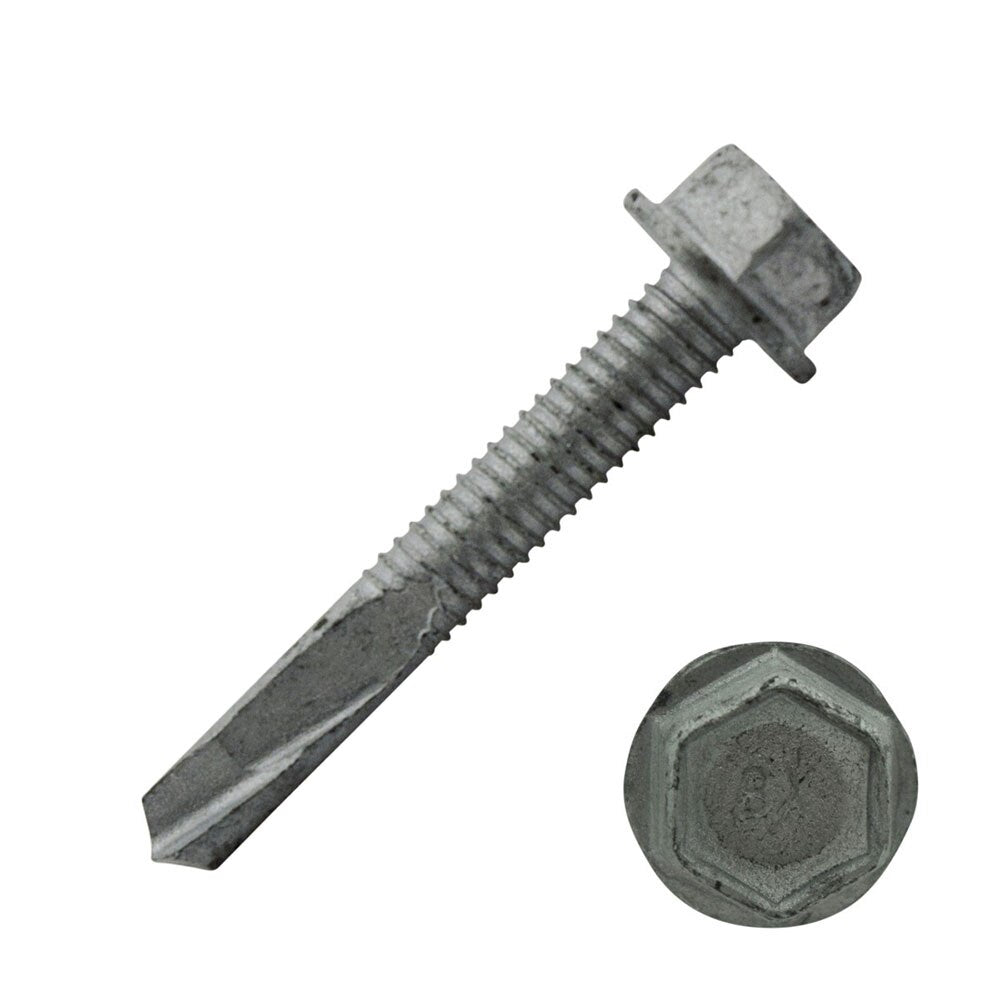

ITW Buildex 1088000 Hex Washer Head Teks Steel to Steel Self-Drilling 12-24X7/8
$0.21
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
ITW Buildex 1088000 Includes
- (1) Hex Washer Head Teks Steel to Steel Self-Drilling 12-24X7/8
ITW Buildex 1088000 Features
- *Teks Drill Point - Non walking, cutting edges, pigtail reduction - Engages material faster, drills with less effort, safer installation
- * Heavy Duty load bearing area - Attaches up to 7.2" of material including 1/2" steel - Attaches up to 7.2" of material including 1/2" steel
- * Climaseal® - Coating provides long life protection - Fewer replacements
- * Integrated Drill Point & Tapping Threads - Quick transition from drilling to tapping - Lower installation torqueUse this screw for securing wood, plywood and fiber cement to steel. Wings bore through wood to create a clearance hole so piece does not climb up shank and then break off as they engage with steel.
ITW Buildex 1088000 Specifications
| Size | 12-24 x 7/8'' |
| Point Style | Teks® 4 |
| Drive Style | Hex-Unslotted |
| Coating | Climaseal® |
| Material | Carbon Steel |
| Material Attachment Range | 0.125"- 0.325" |
| Steel Grade | C1022 |
| Screw Color | Clima Gray |
| Head Style | Hex Washer |
| Head Size | 5/16'' HWH |
| Across Flats (HWH) | 5/16" |
| Installation Tool | 5/16" Driv-Tru™ Socket (1513910) |
| Screw Diameter | 0.210" |
| Thread Size | 12" |
| Tensile Strength | 3,020 lbs |
| Box Quantity | 5,000 |
| Cartoon Weight | 51.25 lbs |
