ITW Buildex | SKU:
1127000

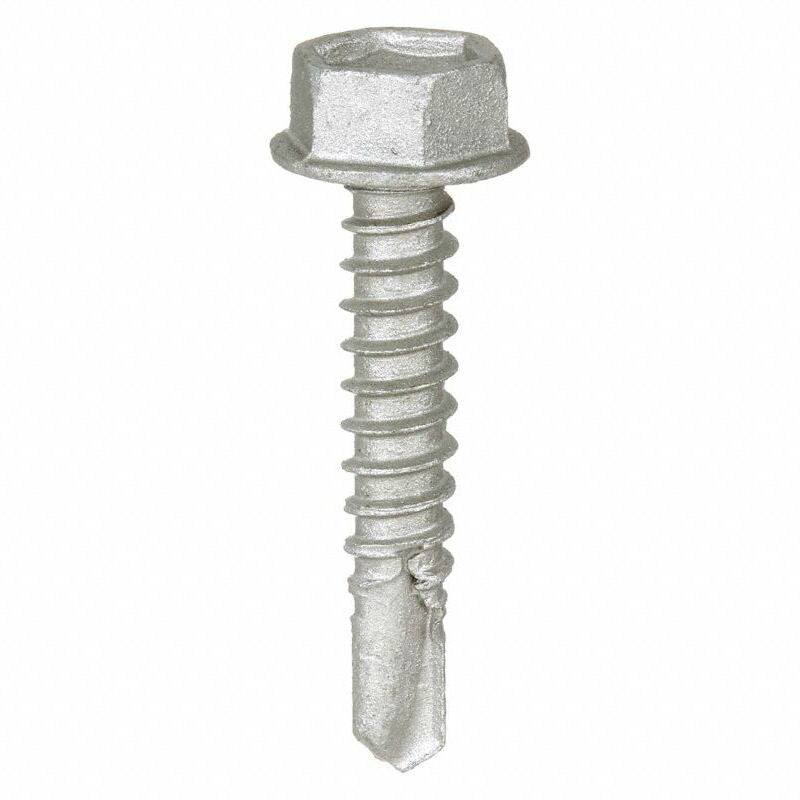

ITW Buildex 1127000 Teks Steel Self-Drilling Screws, 10-16" x 5/8", 5000
$163.80
$276.41
Unit price
/
Unavailable
Description
Description
ITW Buildex 1127000 Includes
- (1) Box of 5000 Teks® Steel to Steel Self-Drilling Screws, 10-16" x 5/8"
ITW Buildex 1127000 Features
- Teks Drill Point: Non walking, cutting edges, pigtail reduction. Engages material faster, drills with less effort, safer installation.
- Climaseal®: Coating provides long life protection. Fewer replacements.
- Integrated Drill Point & Tapping Threads: Quick transition from drilling to tapping. Lower installation torque.
- Application: Clips, duct straps, brick ties or accessories to steel framing
ITW Buildex 1127000 Specifications
| Size | 10-16 x 5/8'' |
| Point Style | Teks® 3 |
| Drive Style | Hex-Unslotted |
| Coating | Climaseal® |
| Material | Carbon Steel |
| Material Attachment Range | .036"-.200" |
| Product Name | Teks® 3 |
| Steel Grade | C1022 |
| Screw Color | Clima Gray |
| Head Style | Hex Washer |
| Head Style | 5/16'' HWH |
| Across Flats (HWH) | 5/16 " |
| Installation Tool | 5/16" Driv-Tru™ Socket (1513910) |
| Screw Diameter | #10 |
| Screw Diameter | 0.190 " |
| Threads Per Inch | 16 |
| Thread Size | 10 " |
| Thread Style | Standard |
| Length Under Head to Point | 5/8 " |
| Max. Material Attachments | 0.200 " |
