ITW Buildex | SKU:
1770000
ITW Buildex 1770000 12-24 x 1-1/2" HWH TEKS 5.0 CL
Free Shipping
$236.34
Unit price
/
Unavailable
Description
Description

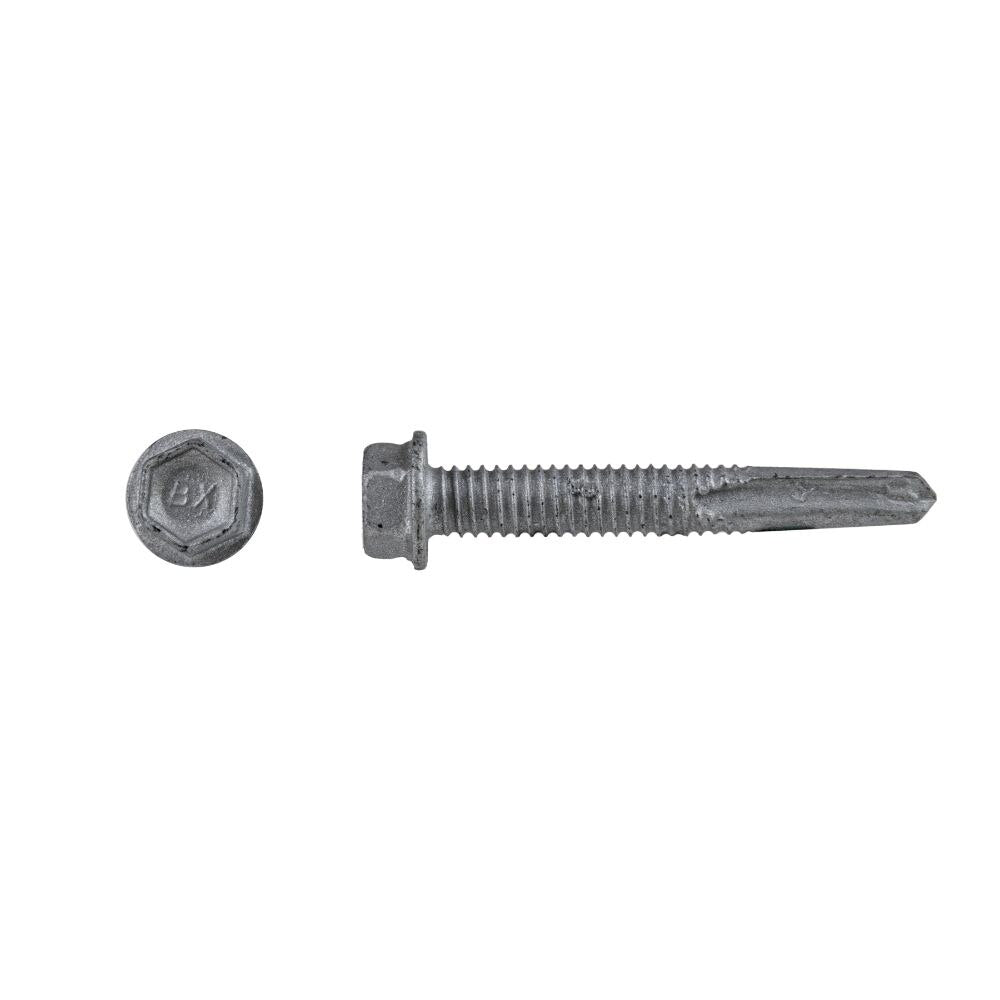

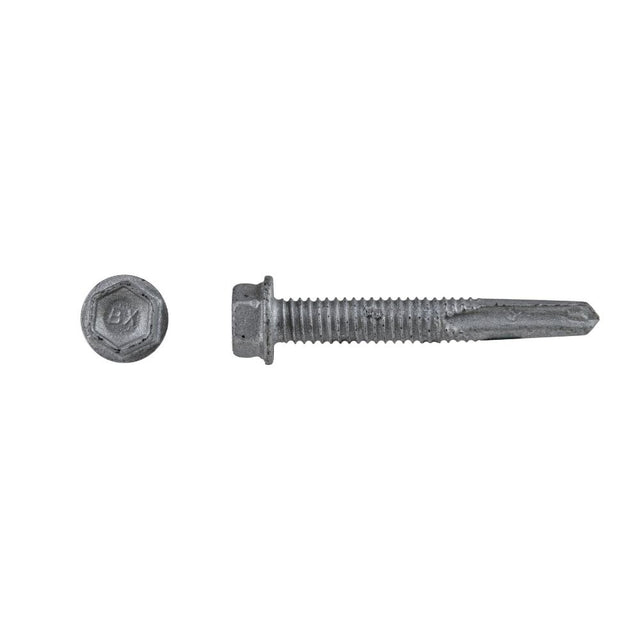

ITW Buildex 1770000 Description
Faster drilling than the original Teks 5, with the same great performance! The original self-drillers for heavy duty applications.
ITW Buildex 1770000 Includes

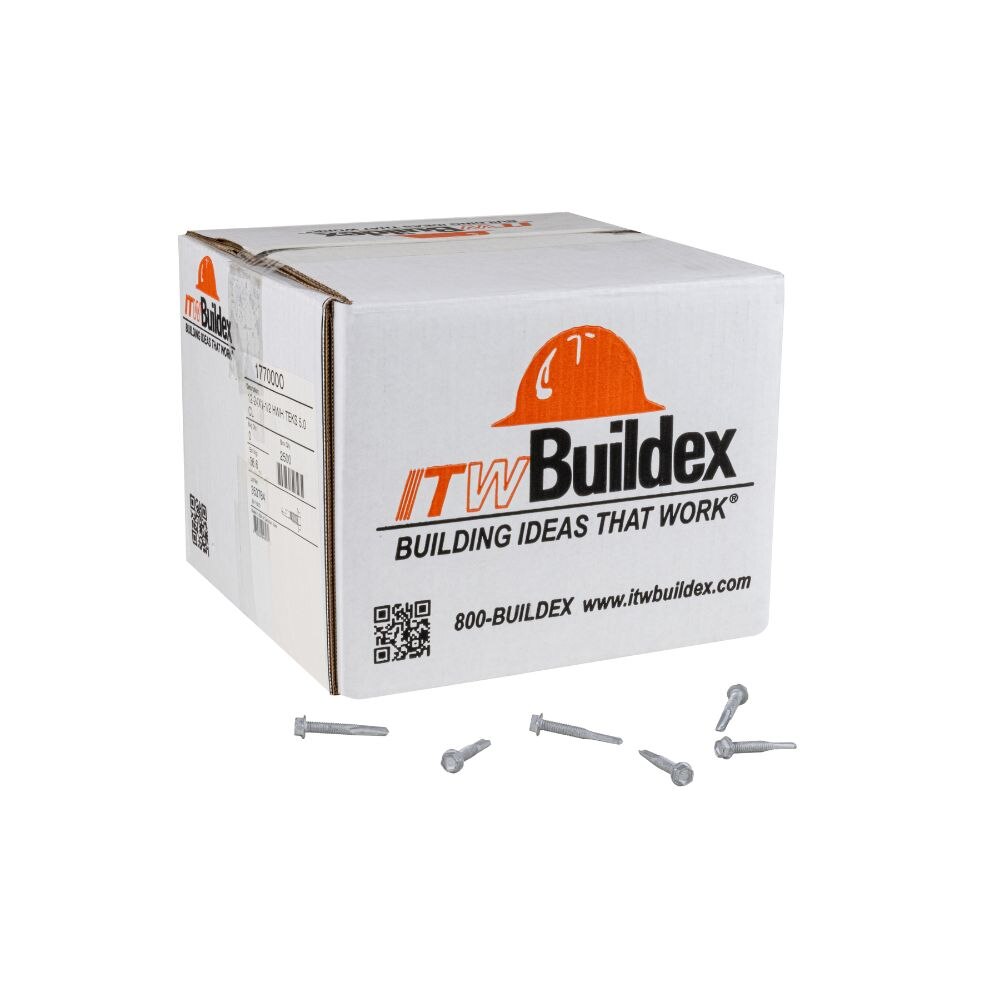

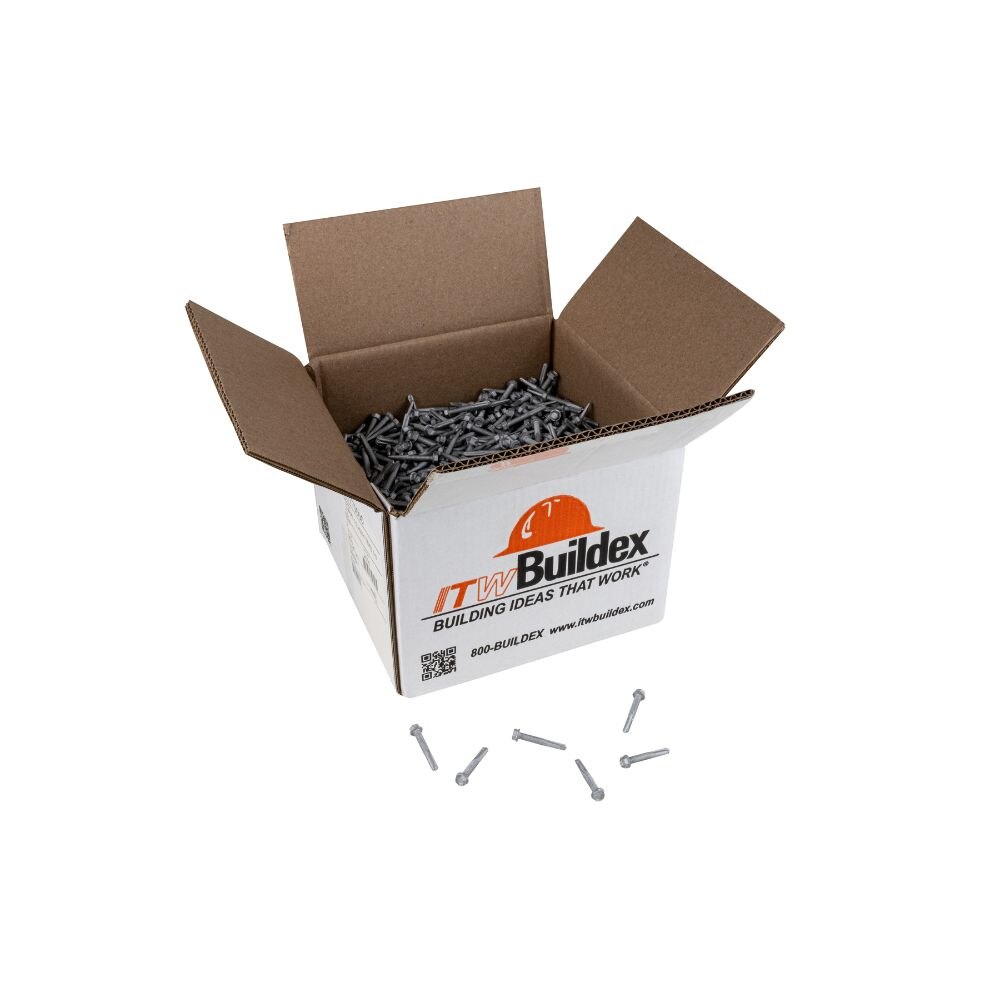

- (2500) Screws
ITW Buildex 1770000 Features
- Patented drill point improves drilling performance in 1/8” steel through ½” Steel
- Engineered for fast drilling and smooth tapping with less effort
- Climaseal® finish provides excellent corrosion resistance and lower tapping torque
- Attaches up to 0.625” of materials
ITW Buildex 1770000 Specifications
| Material | 1022 |
| Finish | Climaseal |
| Length | 1-1/2" |
| Diameter | 0.214" |
| Washer Diameter | 0.415" |
| Fastener Head Style | HWH |
| Fastener Thread Type | #12-24 |
| Thread Size | 0.214" |
| Drill Point | TEKS 5.0 |
| Across Flats | 5/16" |
| Threads Per Inch | 24 |
| Max. Material Attachments | 0.700" |
| Drill & Tap Capacity | 0.500" |
| Washer Size | 19/32" |
| Washer Type | Banded |
